Why Regular Maintenance Matters for Lifting Equipment
Proper maintenance helps contractors maximize equipment availability and reduce costly downtime on critical lifting projects.
Peak Hydraulic PerformanceMaintain factory lifting power, precise multi-function control, and zero fluid degradation across demanding job sites.Maximum Structural IntegrityEliminate fatigue risks on telescopic booms, outrigger legs, and chassis welds with non-destructive audit routines.Highest Resale ValueFully documented service history preserves residual value and equipment integrity when trading or selling your fleet.Zero Unplanned DowntimeProactive servicing stops minor wear and tear from turning into expensive delays on American construction sites.
Maintenance Schedule
At LIFTSGLT, we believe a machine is only as reliable as its upkeep. To maximize the service life of your mini crawler crane and ensure safety on every job site, we’ve developed a streamlined maintenance protocol. Whether you’ve just taken delivery of a new unit or are managing a long-term fleet, follow our expert guides below to eliminate downtime and maintain the highest resale value for your equipment.

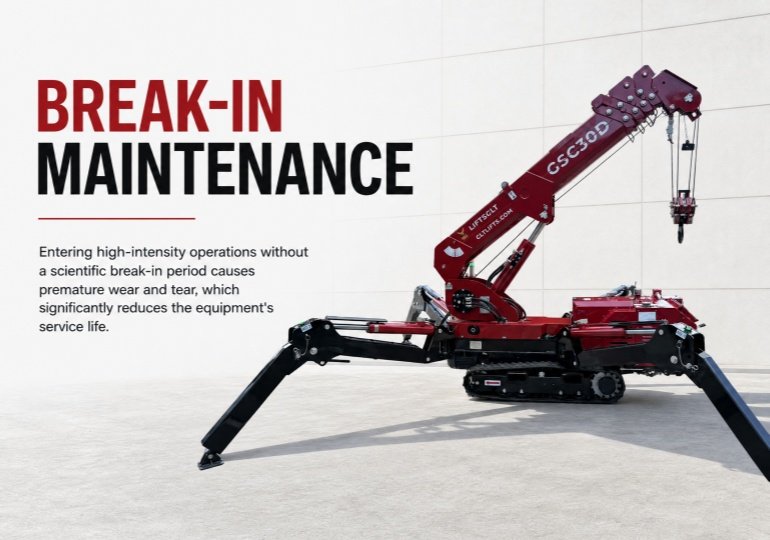

BREAK-IN MAINTENANCE
Entering high-intensity operations without a scientific break-in period causes premature wear and tear, which significantly reduces the equipment's service life.
Step 1: Initial Inspection & Prep
-Deep Clean: Keep the exterior spotless to easily spot any early oil leaks or loose parts.
-Fastener Check: Tighten all bolts, especially on the travel system and boom connections.
-First Lube: Complete a full lubrication cycle following the Lubrication Points Diagram.
Step 2: Advanced Hydraulic Oil Management
-The Critical Change: You must perform a full hydraulic oil change after the first 60 hours. This removes microscopic metal shavings that can damage the pump.
-Specs: Use L-HM46 oil (approx. 80L). Fill until the gauge reads "Full".
-Long-term: After the first change, service every 600 hours or every 24 months maximum.
Step 3: Professional Flushing & Oil Change Procedure
-Don't just drain; Deep Clean.
-Scrub the tank interior and perform a secondary flush with fresh oil before the final refill to eliminate all residual contaminants.
Step 4: The Science of Lubrication During Break-in
-Focus Areas: Travel system, winch bearings, hook blocks, and pivot pins.

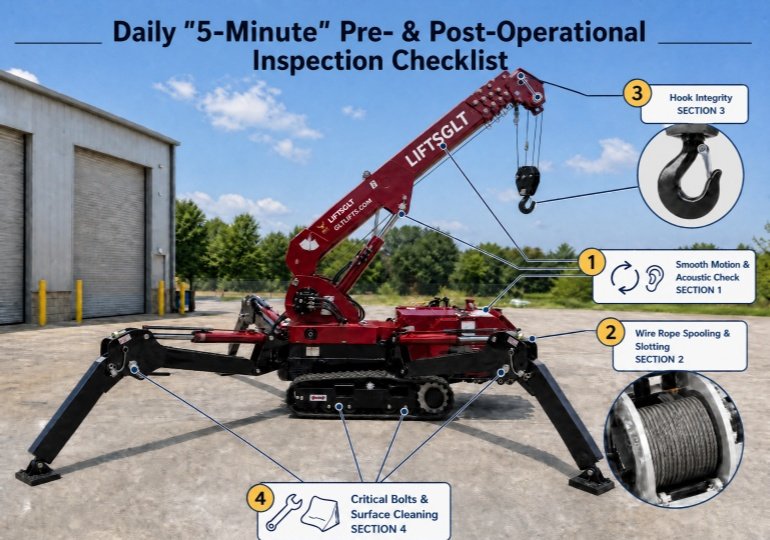

Section 1: Pre-Operational Machine Test Run
-Full Range of Motion: Operate the outriggers, slewing table, telescopic boom, and winch through their full range to ensure every movement is smooth and free of mechanical lag.
-Acoustic Diagnostics: Listen closely for any unusual metal-on-metal friction, grinding, or high-pitched squealing from the hydraulic pump.
-System Pressure Check: Monitor the hydraulic system to confirm steady performance and verify that oil pressure levels remain within the standard operating range for the mini crawler crane.
Section 2. Wire Rope Inspection
-Spooling & Reeving Condition: Check the rope on the reel and the pulley whether wound normal or not, whether exist the phenomena such as off slot, string slot, knot, twist and so on.
Section 3. Hook and Safety Devices
-Hook Integrity: Ensure the hook is securely fixed and that all rotating parts move freely. The hook body must be free of cracks or surface peeling.
Section 4. Fastening and Cleaning: The "Secret" to Service Life Extension
-Critical Fastening: Focus on inspecting bolts in the travel system, winch base, and boom connection pins for any signs of loosening.
-Surface Cleaning: Promptly remove dust, dirt, and lubricants (grease) from the machine body.

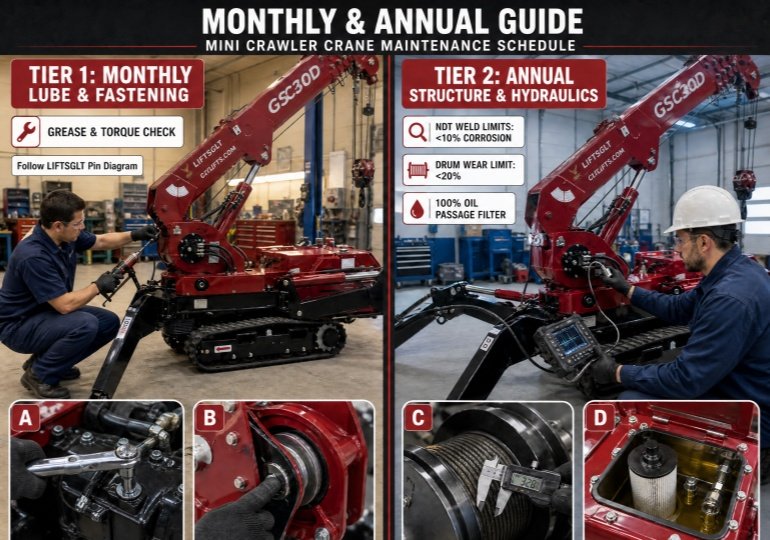

MONTHLY / ANNUAL
Mini crawler crane maintenance schedule: monthly & annual guide
Tier 1: Monthly Inspection (Focus: Lube & Fastening)
-Pivot Lubrication: Grease all pins per the LIFTSGLT Diagram to prevent dry friction.
-Precision Tightening: Secure all loose bolts, especially on the engine base and hydraulic pump.
-Pulley Audit: Check pulleys for cracks and ensure smooth, flexible rotation.
-Performance Test: Verify start-stop fluidity and eliminate any "torsion phenomena."
Tier 2: Annual Service (Focus: Structure & Hydraulics)
-NDT Weld Testing: Inspect critical welds for cracks. Corrosion limit: <10% of plate thickness.
-Hoist Calibration: Verify boom alignment. Drum wear limit: <20%; ensure grooves aren't sharp.
-System Purification: Deep-clean the hydraulic tank and filters to ensure 100% oil passage.
REPAIR & TROUBLESHOOTING GUIDE
Select the affected system below to find common symptoms, possible causes, and recommended first checks for your LIFTSGLT mini crawler crane.
1.Select the affected system.2.Open the matching symptom. 3.Follow the recommended first checks.
Hydraulic & Lifting System Issues
Slow boom movement or insufficient lifting force
Possible Causes: Low hydraulic oil, hydraulic leakage, pump wear.
Recommended Solutions:
1. Check hydraulic level and refill fluid if necessary.
2. Inspect hydraulic lines, fittings, and seals for leaks.
3. Contact technical support for pump inspection.
Hydraulic oil leakage
Possible Causes: Damaged hose, loose fitting, worn O-ring.
Recommended Solutions:
1. Stop machine and locate exact leakage point.
2. Tighten loose fittings or replace damaged O-rings.
3. Top up hydraulic oil to specified level after repair.
Boom or outrigger slowly drifts down
Possible Causes: Worn cylinder seals, faulty counterbalance valve.
Recommended Solutions:
1. Lower load safely and support outriggers on firm ground.
2. Inspect hydraulic cylinder holding valves.
3. Contact LIFTSGLT team for valve testing.
Electrical & Remote Control Issues
Wireless Remote Control Does Not Respond or Cannot Pair
Possible Causes:
Transmitter battery voltage is too low to maintain signal connection.
Emergency Stop button on either the transmitter or the machine body is engaged.
Signal linkage lost due to strong local electromagnetic interference or damaged antenna.
Wireless receiver fuse blown or power supply interrupted.
Knob or toggle switch not reset.
Recommended Solutions:
1.Check Emergency Stops: Ensure all E-stop buttons (on both remote transmitter and machine control panel) are twisted and released.
3.Inspect Hardware & Antenna: Check if the receiver antenna is securely tightened and undamaged.
4.Re-pair / Re-bind Remote: Follow the standard pairing code protocol (hold pairing button on receiver while switching on transmitter). If unresolved, check receiver fuse box.
5.Knob/Switch Reset: Keep remote toggle switches in the center position (set Speed Select to Low; set Follow-me / Auxiliary Switch to OFF).
Control Panel / Main Power Does Not Power On
Possible Causes:
Main battery disconnect switch (Master Switch) is turned OFF.
Main circuit fuse blown or battery completely drained (voltage below operation threshold).
Key switch electrical contacts loose, damaged, or main power relay stuck.
Loose wiring or a bad connection behind the Load Moment Indicator (LMI)
Recommended Solutions:
1.Check Master Switch: Locate the main battery disconnect switch on the chassis and switch it to the ON position.
2.Check Battery & Fuse Box: Measure battery voltage with a multimeter (>12V/24V depending on system). Inspect the main circuit breaker/fuse box for blown fuses.
3.Charge / Jumper Start: Recharge the starter battery if depleted; replace blown fuses with identical amperage ratings.
4.Check if the main power relay is operating properly.
5.Verify whether the battery voltage is too low; the system cannot function if the voltage drops below 10V.
6.Inspect Key Switch & Wiring: Check rear wiring harness behind the key switch for loose terminal connections.
*If the issue persists after resolving the above points, please contact the manufacturer for support.
Remote Control Signal Loss / Unstable Connection
Possible Causes:
Low transmitter battery causing RF power degradation.
Physical blockages (dense steel structures, thick concrete walls) or high-voltage power line interference nearby.
Damaged coaxial cable between receiver and antenna.
Recommended Solutions:
1.Replace Transmitter Battery: Weak batteries reduce transmission range before showing a low-battery alert.
2.Clear Line of Sight: Relocate position to ensure direct line-of-sight to the crane antenna; step away from large metal shielding or high-voltage lines.
3.Inspect Receiver Antenna: Check antenna connection cable for cuts, moisture ingress, or looseness. Tighten or replace antenna if necessary.
Safety System & Alarm Issues
LMI Alarm / Load Moment Indicator Warning
Possible Causes:
Actual load exceeds rated capacity for current boom.
Working radius expanded too far, shifting crane into unstable load curve zone.
Pressure sensor, boom angle sensor, or length encoder calibration offset/damaged.
Moment Limiter Alarm (Red Light):
Overload: The load exceeds the rated capacity.
Outrigger Sensor Fault: One or more outriggers are off the ground.
Anti-Two-Block (Overwind) Limit: The hook block has traveled too close to the boom tip.
Recommended Solutions:
1.Reduce Load / Radius Immediately: Safely lower the load to the ground or retract/raise the boom to reduce working radius.
2.Check LMI Screen Data: Verify if displayed length, angle, and load parameters match actual physical measurements.
Outrigger Sensor Alarm / Machine Not Level
Possible Causes:
One or more outriggers not fully set, pinned, or resting firmly on solid ground (pressure sensor untriggered).
Crane-Travel interlock engaged (e.g., trying to operate boom while outriggers are retracted, or trying to drive while boom is raised).
Anti-Two-Block (Over-winding) switch triggered by hook block contacting boom tip.
E-stop button physically pressed or wiring open circuit.
Recommended Solutions:
1.Check Outrigger Grounding: Ensure all 4 outriggers are firm on stable ground with outrigger pads properly deployed.
2.Level the Machine: Adjust outrigger height while checking the bubble level / digital tilt gauge on display until level (<1° recommended).
3.Clean Outrigger Limit Switches: Inspect micro-switches/proximity sensors on each outrigger pin and cylinder pad; clear mud or debris build-up.
Engine & Power System Issues
Engine is difficult to start
Possible Causes:
Starter battery voltage depleted.
Fuel system empty, clogged fuel filter, or air trapped in fuel lines (diesel models).
Dual-Power (Diesel/Electric) selector switch set to incorrect mode.
Starter relay fault or neutral/safety interlock engaged.
Recommended Solutions:
1. Verify Power Selector: Check dual-power selector switch to ensure it matches power source being used (Engine vs. Motor).
2.Check Fuel & Bleed Air: Check fuel gauge/tank. If ran dry previously, prime fuel pump and bleed air out of diesel lines.
3.Test Battery & Starter: Jump-start or charge starter battery. Listen for starter solenoid "click" sound when turning key.
Engine Starts but Stalls / Low Power Under Load
Possible Causes:
inadequate fuel supply volume.
Fuel filter blocked with dirt/water
Air intake filter heavily clogged with dust/debris.
Hydraulic system relief pressure set too high or hydraulic main pump over-loaded/jammed.
Recommended Solutions:
1.Inspect Fuel & Air Filters: Clean air filter element; drain fuel-water separator bowl and replace fuel filter element if contaminated.
2.Check Hydraulic Load: Ensure all control valve levers are neutral when starting; check hydraulic oil level and oil cooler clean state.
3.Quality Fuel Use: Ensure clean diesel fuel rated for current local ambient temperatures is used.
Insufficient Battery Power / Charging System Failure
Possible Causes:
Engine alternator belt loose or alternator failure.
Battery reached end of service life / cell degradation.
BMS (Battery Management System) protection trip (temperature protection or cell voltage imbalance on lithium models).
Recommended Solutions:
1.Inspect Alternator Belt: Check drive belt tension on engine alternator; adjust or replace if worn/loose.
2.Check Charging Voltage: Measure terminal voltage with engine running (should show 13.8V–14.4V for 12V systems).
3.BMS Diagnostics (Lithium Units): If lithium battery shuts down, disconnect load, check battery error logs on screen, and allow battery temperature to normalize before charging.
Travel & Undercarriage Issues
One Track Does Not Move / Crane Pulls to One Side
Possible Causes:
Travel motor mechanical brake on failing side unable to release (hydraulic brake valve issue).
Debris, rocks, or mud jammed tightly between track sprocket, rollers, and rubber track.
Pilot control signal valve or joystick potentiometer signal lost for that travel circuit.
Recommended Solutions:
1.Clear Undercarriage Debris: Safely lift the track off ground using outriggers and clear packed dirt, rocks, or debris around track sprocket and idler.
2.Inspect Pilot Line & Remote Signal: Check if pilot hydraulic hose or electrical control wire leading to that side's travel valve is damaged.
3.Check Hydraulic Motor:Inspect track motor for external oil leaks; swap hydraulic pilot lines to isolate whether problem is valve-side or motor-side.
Machine Cannot Travel / Slow Travel Speed
Possible Causes:
Outrigger/Boom interlock activated (travel function automatically locked if outriggers are down or boom is unseated).
Two-speed travel solenoid valve stuck in slow mode or electrical signal fault.
Travel pilot system pressure too low.
Recommended Solutions:
1.Verify Boom & Outrigger Position: Ensure outriggers are 100% retracted and boom is lowered and locked into travel position cradle.
2.Check Speed Switch: Toggle High/Low speed selector switch on remote/control panel to check if solenoid clicks and mode changes.
3.Check Main Relief Pressure: Have a technician verify hydraulic main system pressure if overall hydraulic power feels weak across travel.
Track Slippage / Track Tension Issues
Possible Causes:
Rubber track tension is too loose due to grease cylinder valve pressure loss
Excessive wear on track links, drive sprocket teeth, or idler wheel guide.
Improper steering technique (sharp zero-radius turns on jagged rocks or high-friction ground).
Recommended Solutions:
1.Adjust Track Tension: Locate grease fitting on track frame tensioner cylinder. Inject grease using grease gun until track slack (sag distance midway between rollers) meets spec (typically 10–20 mm sag).
2.Inspect Track Condition: Check rubber track inner steel cords and sprocket teeth for severe rounding or tears. Replace if worn beyond limits.
3.Operator Practice: Avoid sharp pivot turns on soft mud or heavy obstacles; turn smoothly while slightly moving forward/backward.
Engineering Support for Spider Crane Systems
If the issue is not covered in this troubleshooting guide, our technical team can help assess hydraulic, electrical, and load-control systems and recommend the next service step. REQUEST ENGINEERING SUPPORT
FAQ: Expert Maintenance & Buying Advice
Q1: What is the estimated total cost of ownership (TCO) for a mini crawler crane over the first 5 years?
Beyond the initial purchase, the total cost of ownership for mini crawler crane is highly predictable. The primary expenses include scheduled preventive maintenance, such as hydraulic oil changes (first at 60 hours, then every 600 hours) and annual LMI system calibration. By following our 《Mini Crawler Crane Maintenance Manual》, owners can significantly reduce mini crawler crane maintenance costs by preventing premature wear on the boom and travel system, ensuring a high resale value and a faster ROI on lifting projects.
Q2: Can I use third-party hydraulic filters and oils without voiding the LIFTSGLT warranty?
To maintain the mini crawler crane warranty policy and ensure peak performance, we strongly recommend using official LIFTSGLT spare parts. However, for routine fluid top-ups, you may use ISO standard hydraulic oil (such as L-HM46) that meets our technical specifications. While crane spare parts compatibility is broad, using non-certified filters can lead to pump cavitation or contamination. Always document your service history to ensure continued LIFTSGLT technical support and warranty coverage.
Q3: How does the mini crawler crane’s safety system (LMI) perform in extreme North American weather conditions?
Our LMI system reliability is engineered for extreme climate lifting safety, from the heat of Texas to the freezing winters of Canada. The sensors feature advanced temperature compensation technology to prevent signal drift during rapid thermal fluctuations. For optimal mini crawler crane cold weather performance, we recommend a 15-minute hydraulic warm-up cycle to ensure fluid viscosity is within the operating range before engaging high-precision lifts.
Q4: What level of specialized training is required for my team to perform routine crane maintenance?
Most daily safety inspections and Tier 1 lubrication tasks can be performed by a trained operator using our 《Mini Crawler Crane Maintenance Manual》. However, Tier 2 annual servicing and structural audits require a qualified heavy-equipment technician. To minimize downtime, LIFTSGLT offers comprehensive technical documentation and remote assistance to help your local team meet crane maintenance training requirements without needing to ship the unit back to a factory service center.
Q5: What are the best practices for long-term storage if the crane is inactive for several months?
Proper long-term storage for lifting equipment is vital to prevent seal drying and battery degradation. If your crane will be idle for over 3 months, we recommend a full undercarriage cleaning, retracting all hydraulic cylinders to protect the chrome rods from corrosion, and using a battery tender. Periodically cycling the engine and hydraulic functions every 30 days will maintain system integrity and ensure the machine is job-ready when your next project begins.
Complete Service & Maintenance Documentation
Download everything you need to ensure jobsite safety and equipment longevity. This guide includes detailed maintenance schedules and step-by-step troubleshooting for LIFTSGLT mini crawler cranes.
