New Machine Masterclass: The Essential 60-Hour Guide to glt Spider Crane Break-in Maintenance

Why the first 60 hours determine the lifetime of your investment

In the crane industry, there’s an old saying: "The lifespan of a machine is determined by its first 60 hours of operation." For customers who have just purchased a glt Mini Crawler Crane, break-in maintenance is not just a suggestion—it is a mandatory quality assurance measure.

Even though the surfaces of mechanical parts on a new or overhauled machine look smooth, microscopic irregularities from the manufacturing process remain. Entering high-intensity operations without a scientific break-in period causes premature wear and tear, which significantly reduces the equipment's service life. This guide will detail exactly how to navigate this critical break-in phase.

Step 1: Pre-Break-in Preparation & Inspection

Before the machine enters formal break-in modes, such as "test running" or "initial lifting," thorough preparation is required.

Surface Cleaning: This is the first step. Clean the crane’s exterior thoroughly to help you quickly identify any

 early signs of oil seepage or loose fasteners.

Fastener Tightening: Perform a comprehensive tightening check. Inspect and secure all bolts and nuts, paying close attention to critical fasteners in the travel system and boom connections.

Initial Lubrication: Follow the requirements of the Lubrication Points Diagram to perform the first full round of lubrication across all designated points.

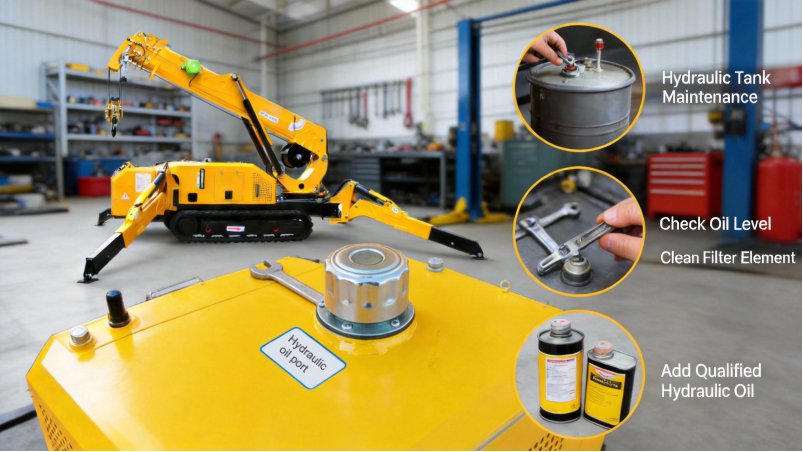

Step 2: Advanced Hydraulic Oil Management

For a spider crane, the hydraulic system is its heart, and the hydraulic oil is its lifeblood. During the break-in period, oil management is your top priority.

Fluid Specification: The GLT CSC50 utilizes L-HM46 high-performance hydraulic oil.

The 60-Hour Milestone: You must perform a full hydraulic oil change after the first 60 hours of break-in. This removes microscopic metal shavings generated by initial friction that, if left inside, will damage the hydraulic pump and valve groups.

Filling Standards: The hydraulic oil capacity is approximately 80L. Fill the reservoir until the sight gauge indicates "Full".

Ongoing Maintenance: After the initial 60-hour change, the oil should be replaced or filtered every 600 hours under normal operating conditions.

Maximum Service Life: Hydraulic oil must not be used for more than 24 months. Beyond two years, the oil must be completely replaced, as even filtering cannot restore its required chemical properties.

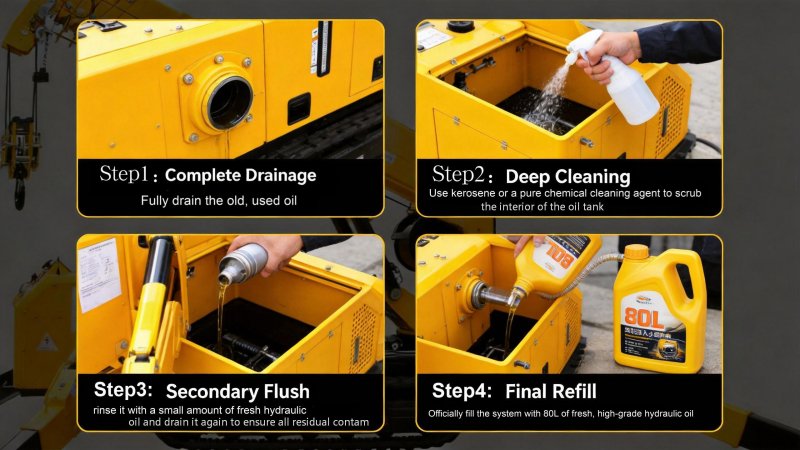

Step 3: Professional Flushing & Oil Change Procedure

When changing hydraulic oil, simply "draining and refilling" is insufficient. glt recommends the following professional sequence:

1.Complete Drainage: Fully drain the old, used oil.

2.Deep Cleaning: Use kerosene or a pure chemical cleaning agent to scrub the interior of the oil tank.

3.Secondary Flush: Once the tank is dry, rinse it with a small amount of fresh hydraulic oil and drain it again to ensure all residual contaminants are eliminated.

4.Final Refill: Officially fill the system with 80L of fresh, high-grade hydraulic oil.

Step 4: The Science of Lubrication During Break-in

Proper lubrication is vital for smooth operation, efficiency, and jobsite safety. Maintenance personnel must prioritize checking the lubrication status of all moving parts.

During the break-in phase, focus on greasing these key areas:

1.Travel system and winch bearing seats.

2.Hook blocks and fixed pulleys.

3.Operational linkage and pivot pins.

4.glt Pro Tip: Pressure Injection Method We strongly recommend using pressure lubrication via a grease gun or oil pump. This force-feeds the lubricant directly onto the friction surfaces. Manual smearing often fails to reach internal contact points, leading to hidden dry-friction damage.

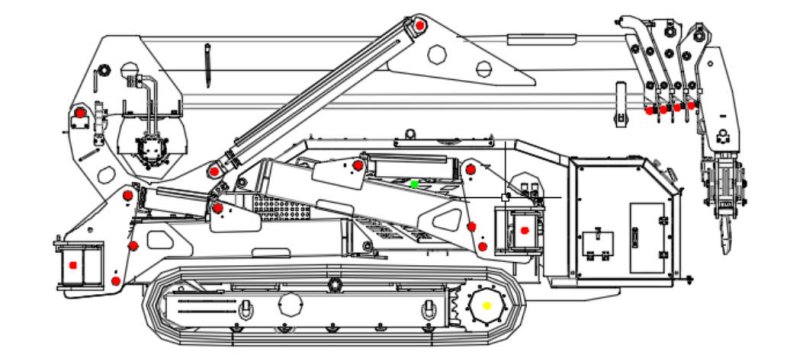

Lubricating Parts Chart Of The Mini Crane

Conclusion: Our Commitment to Your Uptime

By providing this level of care during the first 60 hours, your GLT CSC50 mini crane will reach its peak performance state. This ensures the millimeter-precision and stability required for complex glass curtain wall installations and indoor lifting projects.

Always remember our service commitment: Full Machine One-Year Warranty, Free Parts Replacement, and Lifetime Technical Support. By following these professional break-in protocols, glt remains your most reliable partner in conquering every lifting challenge.
