GLT LIFTS | TECHNICAL SPECIFICATIONS GCT60 Crawler Boom LiftDiesel & 220V Electric | Wireless Proportional Control | |
KEY SPECIFICATIONS | |
MAX. WORKING HEIGHT 59'1" 18.0 m | PLATFORM CAPACITY 507 lbs 230 kg |
MAX. HORIZONTAL REACH 29'6" At 265 lbs capacity | MIN. TRANSPORT WIDTH 2'11" Without platform |
Maximum horizontal reach depends on platform load. Reduced transport dimensions require removal of the work platform.
01 / WORKING PERFORMANCE |

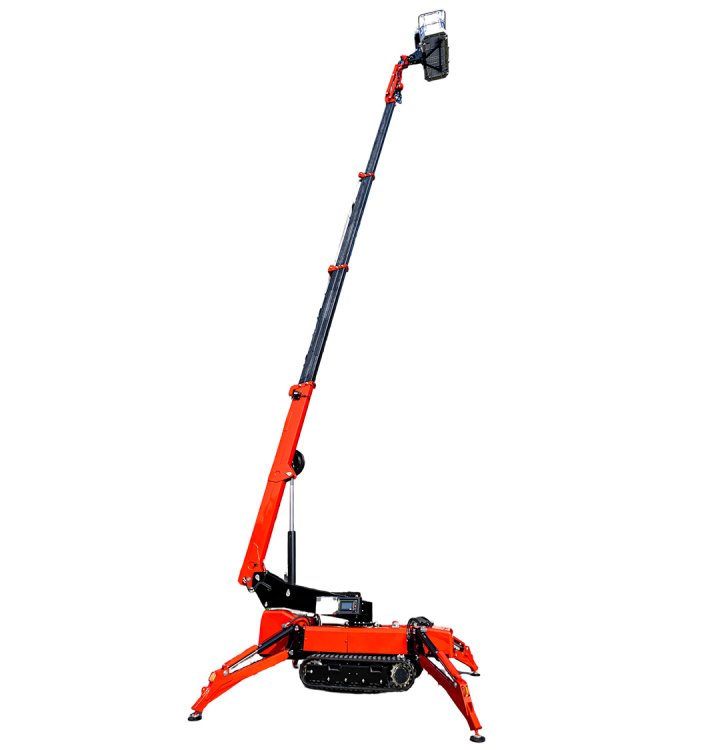

| Max. Working Height | 59'1" (18.0 m) |
| Max. Platform Height | 52'6" (16.0 m) |

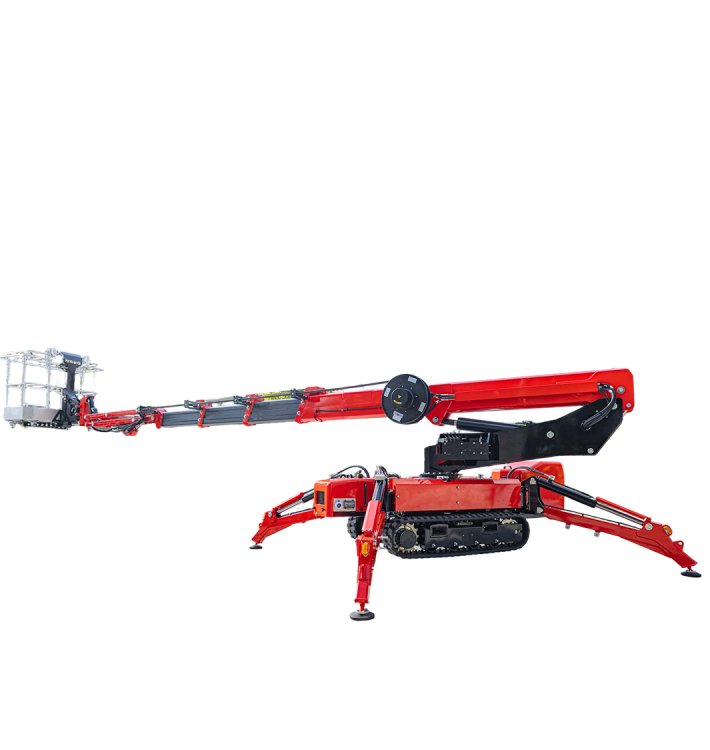

| Max. Horizontal Reach | 24'7" @ 507 lbs / 29'6" @ 265 lbs |
| Turret Rotation | 360° Continuous |

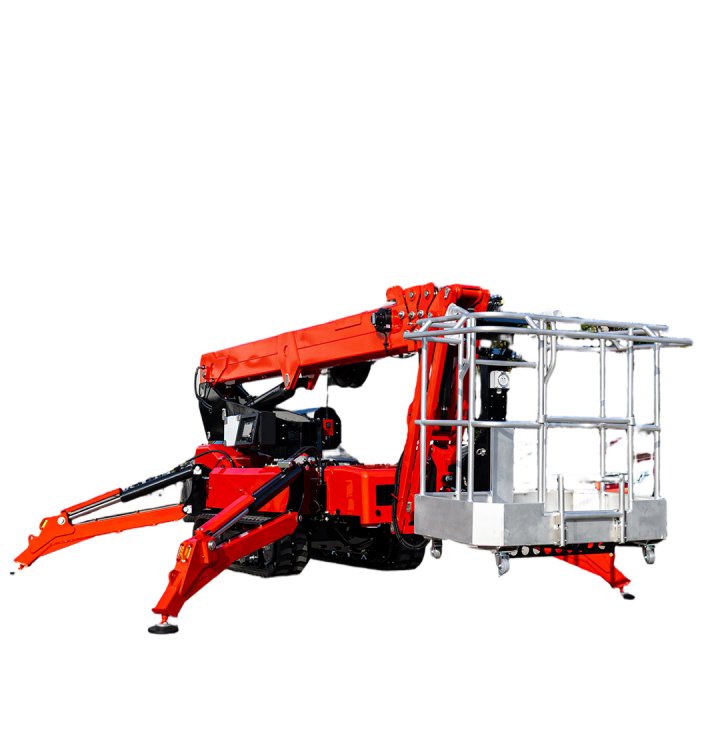

| Platform Dimensions | 57.5" × 32.7" |
| Platform Rotation | 180° |
| Max. Platform Capacity | 507 lbs (230 kg) |
02 / TRANSPORT & SITE ACCESS |
| Transport Length | 18'2" / 15'9"* |
| Transport Width | 4'9" / 2'11"* |
| Stowed Height | 6'6" |

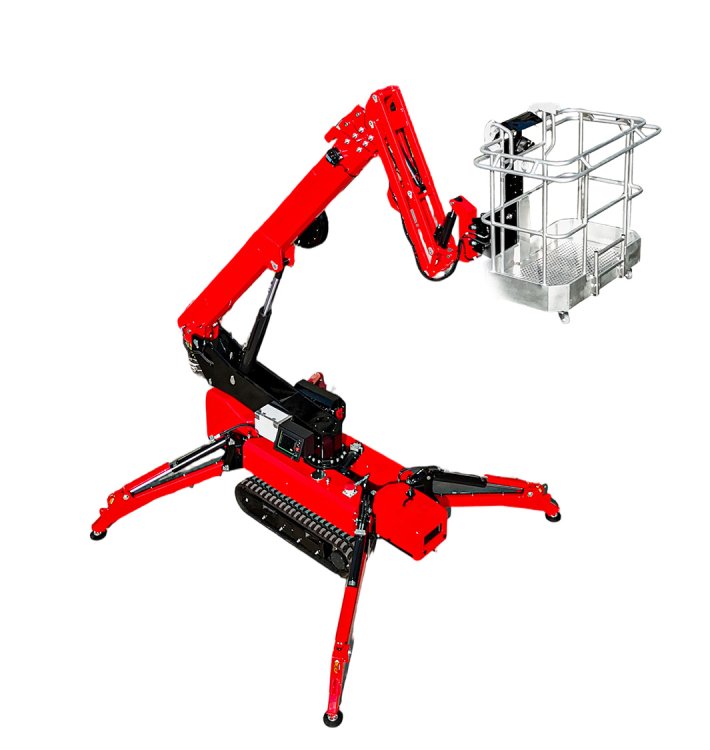

| Outrigger Footprint | 11'2" × 11'3" |
| Max. Gradeability | 20° (36%) |
| Travel Speed | High: 0.75 mph Low: 0.50 mph |
| Machine Weight | 7,275 lbs |
| Overall Dimensions | 18'2" × 4'9" × 6'6" |
| Dimensions Without Platform | 15'9" × 2'11" × 6'7"* |
*Confirm the exact dimensions and measurement conditions with the factory before publication.
03 / POWER & CONTROL |
| Diesel Engine | Yanmar 3TNV74 15 HP @ 2,400 RPM |
| Electric Motor | 220V · 3 HP |
| Travel Control | Wireless Proportional Control |
| Outrigger Control | Wireless Proportional Control |
| Boom Control | Wireless Proportional Control |
| Emergency Operation | Manual Emergency Pump |
04 / STANDARD SAFETY & EQUIPMENT |
| ✓ | Load Moment Indicator (LMI) |
| ✓ | Emergency Stop Button |
| ✓ | Outrigger Ground Detection |
| ✓ | Interlock Device for Getting On and Off the Lift |
| ✓ | Superstructure Return Detection |
| ✓ | Lifting Frame Weighing Detection |
| ✓ | Automatic Leveling |
| ✓ | Automatic Leveling of the Work Platform |
| ✓ | Voice Broadcast |
| ✓ | Outrigger Warning Lights |
| ✓ | Wired and Wireless Remote Control |
| ✓ | Quick-Disassembly Aluminum Alloy Work Platform |
| ✓ | AC 220V Platform Power Outlet |
| ✓ | Manual Emergency Pump |
| ✓ | Timer |
| ✓ | Work-Area Safety Control System |
05 / OPTIONAL EQUIPMENT |
Non-Marking White Rubber TracksDesigned for applications where minimizing floor marks is important. |
Smart Power Proximity Safety SystemOptional proximity-based safety feature. Confirm availability and configuration with the factory. |
Need Specifications for Your Project?Contact GLT LIFTS for GCT60 configuration details, technical documentation, and a project-specific quotation. |
