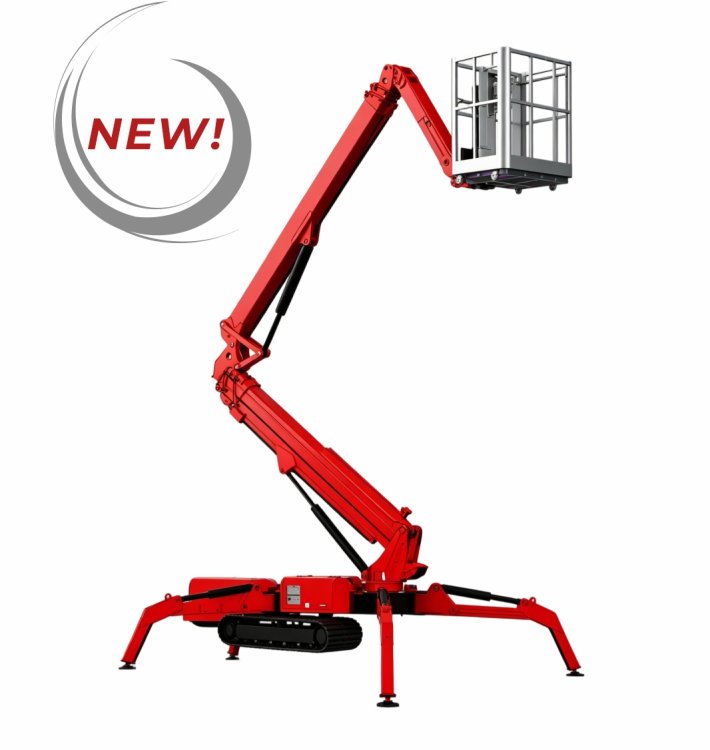

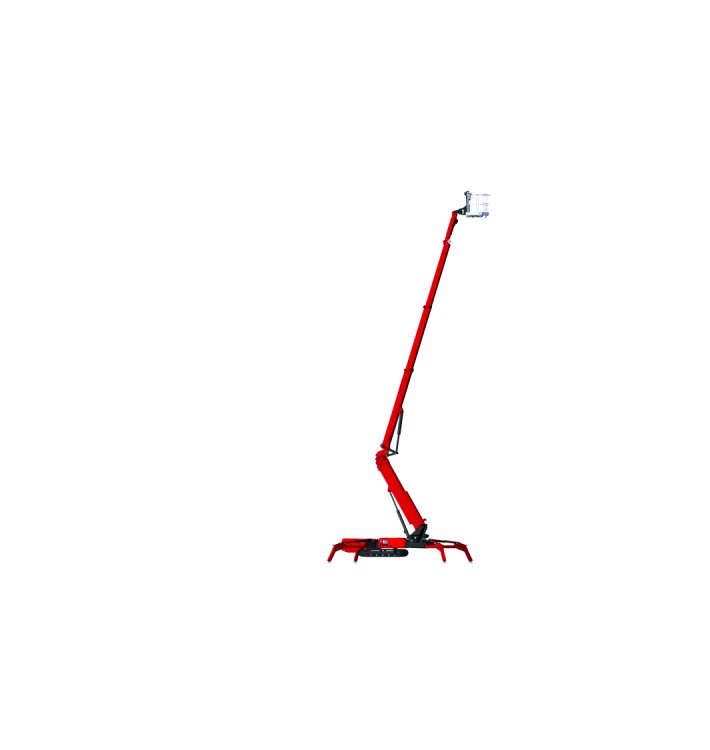

The GCA98 spider boom lift gives operators a 98' 5" (30 m) working height and 48' 7" (14.8 m) horizontal reach without the transport hassle of heavy boom lifts. Built with a dual-power diesel engine and electric motor, it fits right between standard 90 ft and 100 ft tracked spider lift classes. Its 4+3+1 boom design, 360° continuous rotation, and automatic outrigger leveling keep crews working safely and efficiently acrosstree care, structural steel erection, and exterior building maintenance.
| Power: Diesel Engine + Electric Motor | Max. Working Height: 98' 5"/ 30 m |
| Max. Horizontal Reach: 48' 7" / 14.8 m | Max. Platform Capacity: 507 lbs / 230 kg |
| Outrigger Footprint: 16' 11" x 14' 10" / 5.15 x 4.51 m | Max. Platform Height: 92' 10" / 28.3 |
| Dimensions (LxWxH): 19'8" x 4'9" x 7'3" / 6200 x 1460 x 2200mm | Total Weight: 13,228 lbs / 6,000 kg |
| GCA98 Spider Boom Lift | ||
| Technical Data | unit | Technical parameter |
| Max. Working Height | ft | 98' 5" |
| Max. Platform Height | ft | 92' 10" |

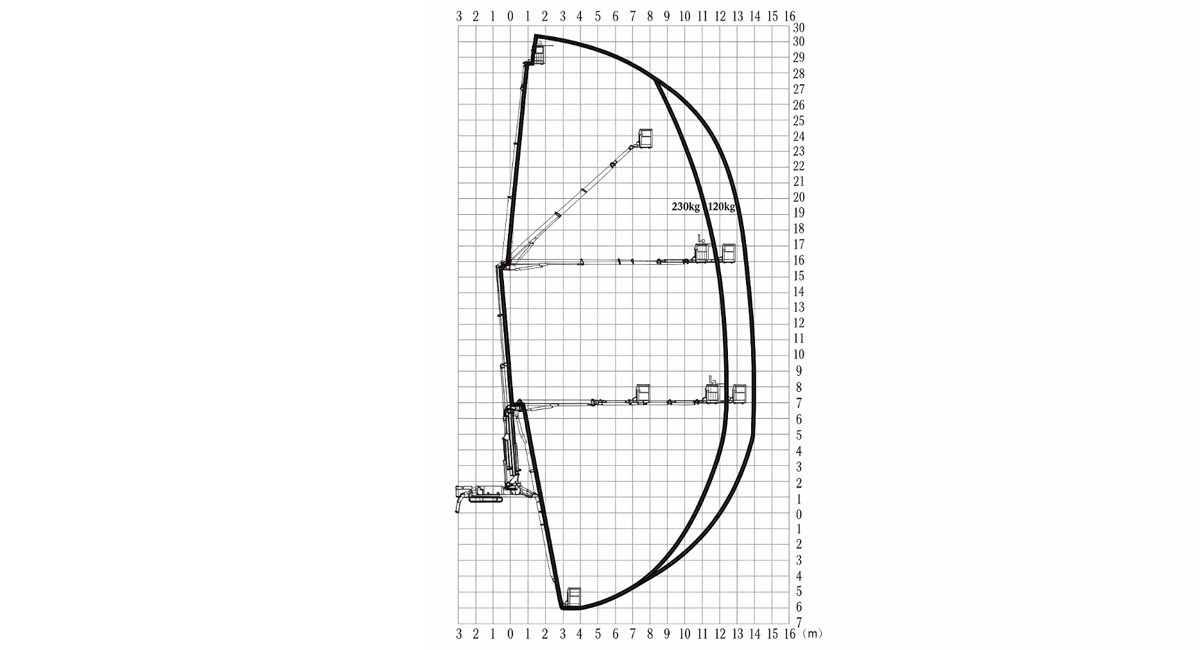

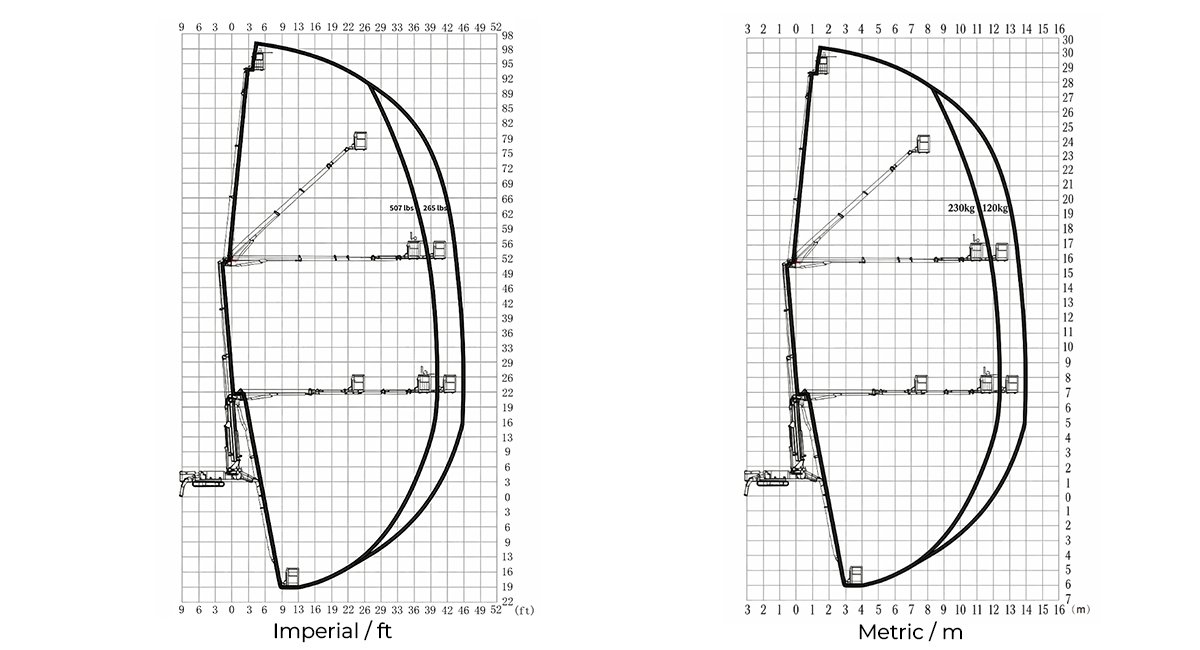

| Max. Horizontal Reach | ft | 48' 7" |
| Rotation Angle | ° | 360 （ continuous ） |
| Platform Dimensions | ft | 4'10" x 2'9" x 3'7" |
| Platform Rotation Angle | ° | 180 |
| Max. Platform Capacity | lbs | 507 |
| Transport Length | ft | 19' 8" / 17' 9"（without platform ） |
| Transport Width | ft | 4' 9" / 2' 11"（without platform ） |
| Stowed Height | ft | 7' 3" |

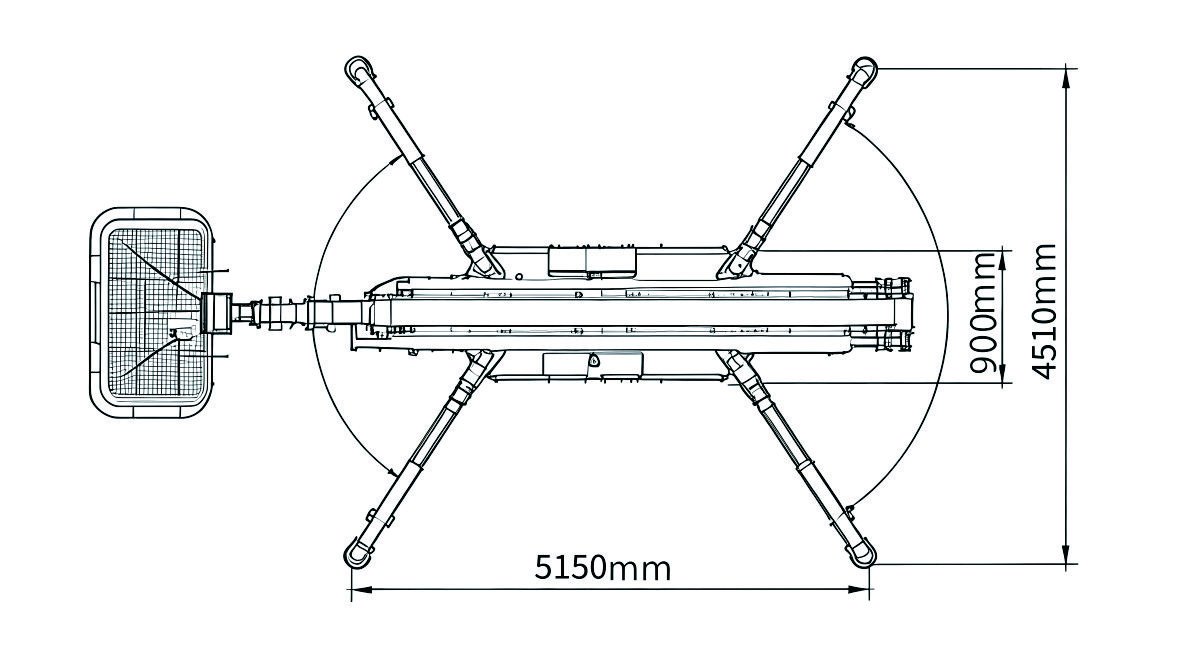

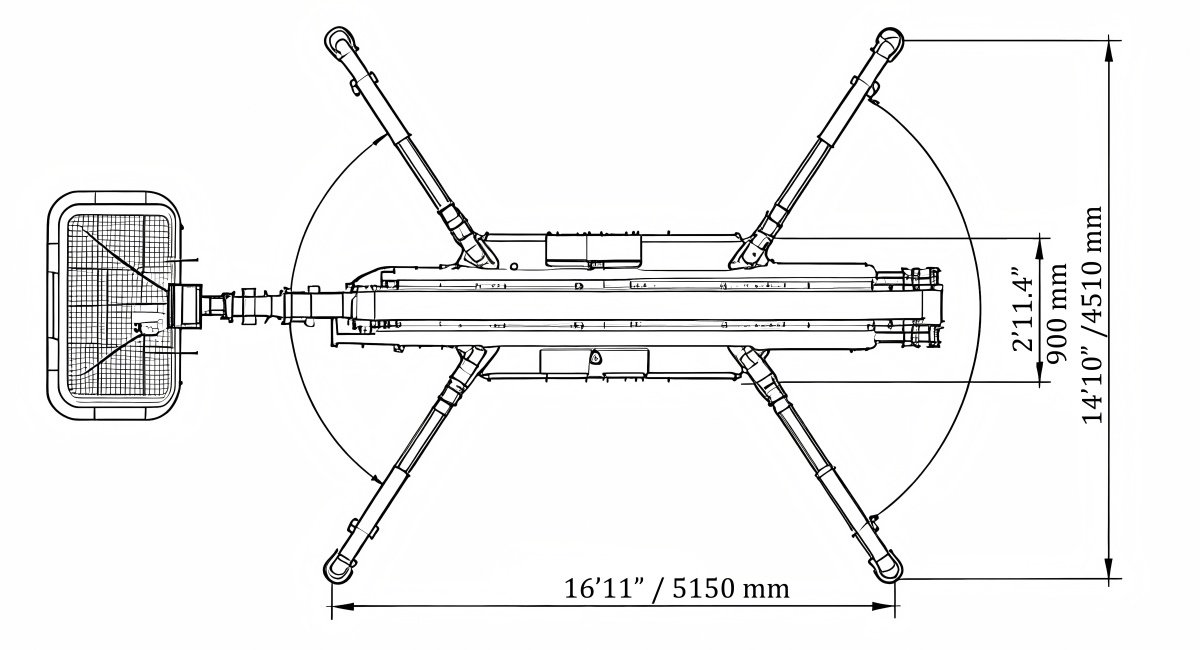

| Overall Outrigger Footprint | ft | 16' 11" x 14' 10" |
| Gradeability | ° | 30 |
| Driving Speed | mph | High Speed 0.93, Low Speed 0.5, |
| Weight | lbs | 13,228 |

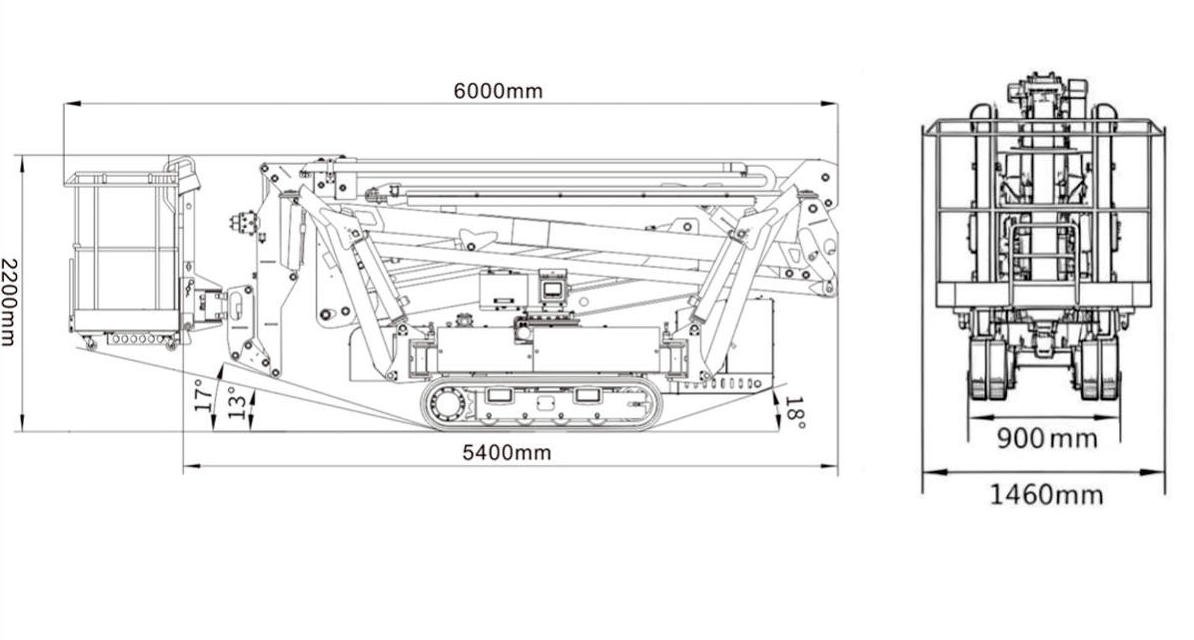

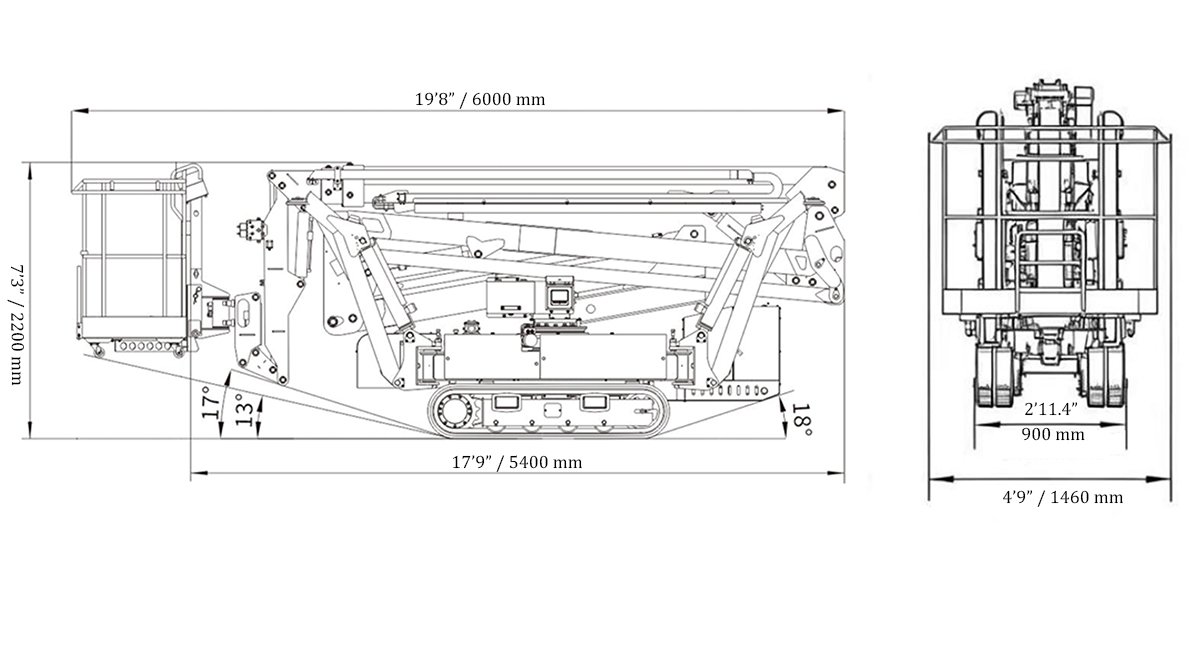

| Dimension | ft | 19'8" x 4'9" x 7'3" |
| Power | ||
| Engine V1505-E4 YANMAR （diesel） | 30 HP @ 2400 RPM | |
| Electric Motor 220 V | HP | 4 |
| Manual Emergency Pump | Manual operation | |
| Operate System | ||
| Driving | Wireless Proportional Control | |
| Outrigger | Wireless Proportional Control | |
| Boom | Manual Operation | |
| Safety Devices | ||
| LMI, Automatic Leveling, Sensor of Outrigger, Alarm Device, Anti-Tpping, Emergency stop button, 3-Mode Safety Interlock (Travel / Outrigger / Boom) | ||
| Optional Device | ||
| Non-Marking White Rubber Tracks | ||
GLT LIFTS spider boom lift Load Moment Limiter LMI digital display screen monitoring outrigger status and working envelope
Equipped with a reliable Yanmar diesel engine power unit and cooling system
Work platform featuring 180-degree rotation angle for precise positioning at height
Outrigger ground contact sensor and safety indicator light system
Emergency operation panel and manual backup system for safety and reliability
Precision bubble level indicator for machine stabilization and setup accuracy
Electrical grounding device terminal and safety warning sign for static protection
Auxiliary AC power outlet and electrical safety circuit breaker panel
Heavy-duty composite outrigger pad with secure handle for ground load distribution
GLT LIFTS-GCA98 spider boom lift features an advanced Wireless Proportional Control
GLT LIFTS spider boom lift hydraulic system featuring Danfoss proportional valves for smooth and precise motion control
Unmatched agility with the all-new 4+3+1 boom configuration. Ideal for tree services and complex architectural maintenance.
Max. Working Height: 98' 5" / 30 m
Max. Platform Capacity: 507 lbs / 230 kg
Dual-power versatility meets rugged off-road performance: Conquer any terrain with the GCA66 Track-Mounted Articulating Boom
Max. Working Height: 66' / 20 m
Max. Platform Capacity: 507 lbs / 230 kg
This telescopic boom lift is compact and lightweight with minimal ground pressure, making it ideal for use on lawns and sensitive interior surfaces.
Max. Working Height: 42'8" / 13 m
Max Platform Capacity: 507 lbs / 230 kg
Premium compact tracked lifts engineered for tight spaces and indoor atriums. Save up to 30% by bypassing traditional dealer markups—fully backed by our Texas technical support and parts depot.
In the competitive aerial work platform (AWP) rental and construction sectors, maneuverability is the ultimate driver of profitability. This technical brief explores GLT's core innovations—180° platform rotation and 360° continuous turntable rotation. Discover how this dual-system approach eliminates operational dead zones, boosts onsite efficiency by over 30%, and significantly slashes O&M costs.
There are many aerial work platforms operating in Northern climates with extreme temperatures in North America and Europe
Low-Angle Ramps: Use low-profile ramps to prevent undercarriage damage.
Tie-Downs: Secure the lift strictly using factory-designated anchor points.
Tow Capacity: Ensure the vehicle matches the total machine and powertrain weight.
Yes，the wireless proportional control features a clean, highly intuitive interface, making operation exceptionally easy and convenient.
Use the Emergency Operation procedure to lower the platform, when normal engine-powered or remote controls wireless proportional control are unavailable. Always follow the manufacturer's emergency instructions and keep the area below the platform clear.
Remove Moisture: Clear frost, ice, or condensation from sensors and connectors.
Check Wiring: Inspect harnesses and connectors for moisture, damage, or loose connections.
Check Voltage: Verify stable battery voltage before restarting the system.
Allow Components to Stabilize: Let sensors and electronics reach normal operating conditions if condensation is present.
Do Not Bypass LMI: Never operate with a malfunctioning or bypassed load moment indicator.
All GLT LIFTS devices are backed by a one-year full-unit warranty. This covers critical components and ensures your equipment operates at peak performance.
If any issues arise, our technical team is ready to assist you immediately.
Need support?
View Warranty Details |
Technical Guidance |
Contact After-Sales Support
At GLT LIFTS, operator safety is our core engineering principle. Our crawler boom lifts are designed with a multi-layered safety architecture to ensure reliable operation in challenging environments:
Walking/Outrigger/Boom Three-Mode Interlock System: A sophisticated safety logic that prevents accidental movement by ensuring all components are safely positioned before the boom or tracks can be operated.
Overload Protection System: Automatically monitors platform weight and restricts functions if the rated capacity is exceeded.
Tilt Protection System: Provides real-time monitoring of chassis inclination, issuing alerts and limiting boom reach on unsafe slopes.
Emergency Stop Buttons: Dual-control emergency stops are strategically located on both the ground panel and the platform basket for immediate shutdown.
