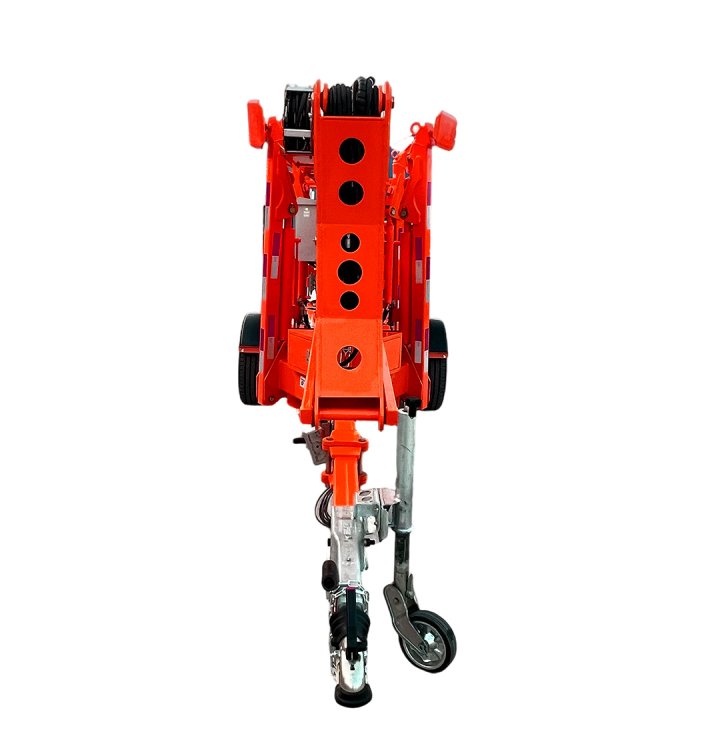

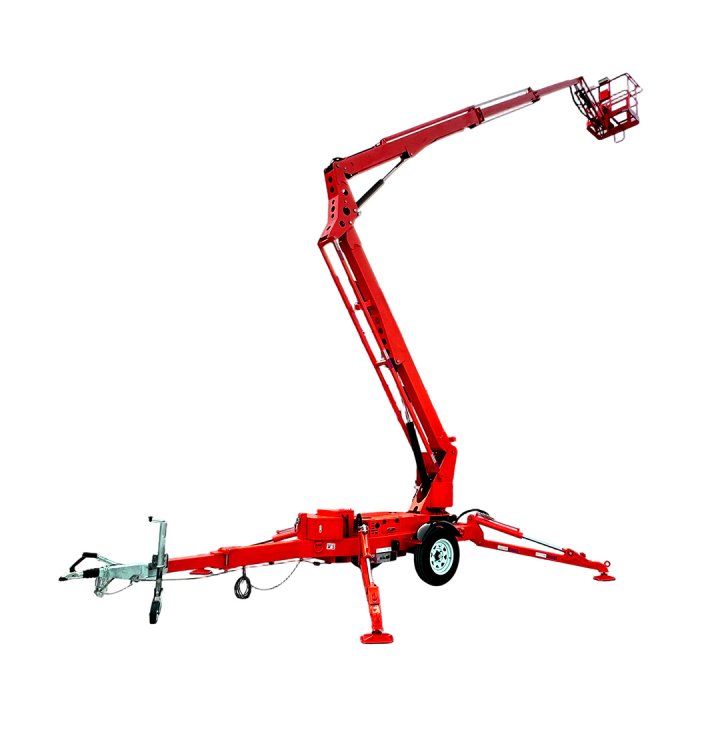

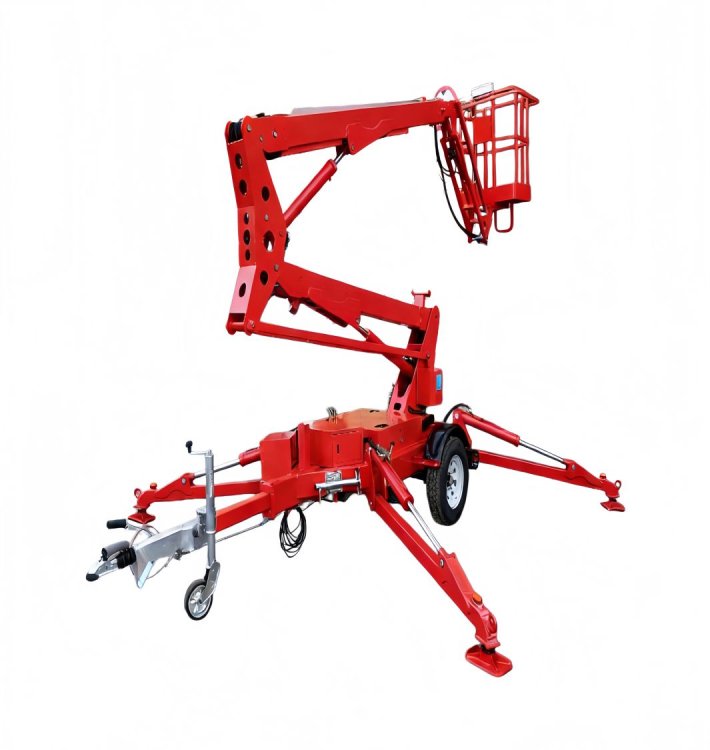

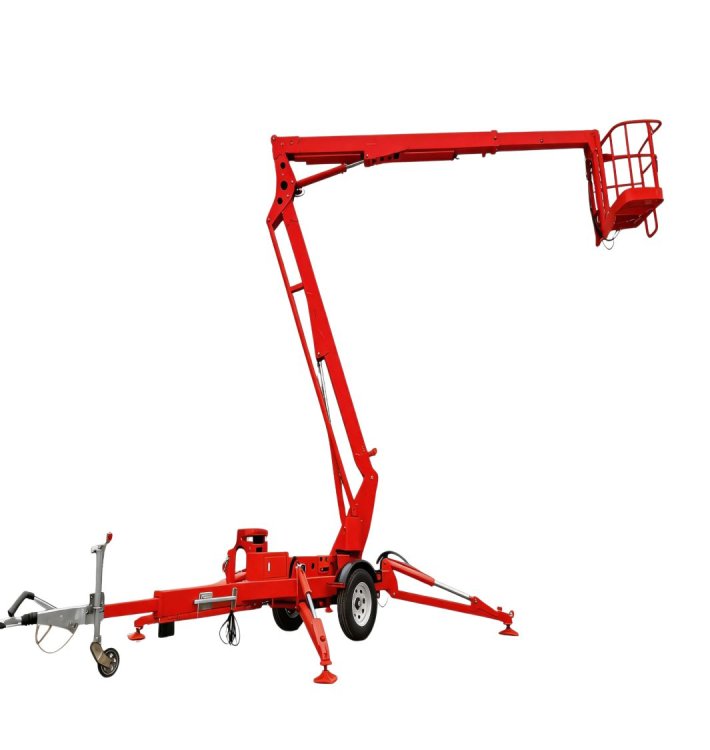

Model Overview: The GTB60 is a 60 ft towable boom lift featuring an articulating lower boom and telescopic upper boom. Its larger working envelope provides greater working height and extended horizontal reach, allowing access to hard-to-reach areas with fewer repositioning requirements. This pull-behind lift is suited for a wide range of elevated work.
Ideal Applications: Building maintenance, construction, tree care, utilities, and facility maintenance.

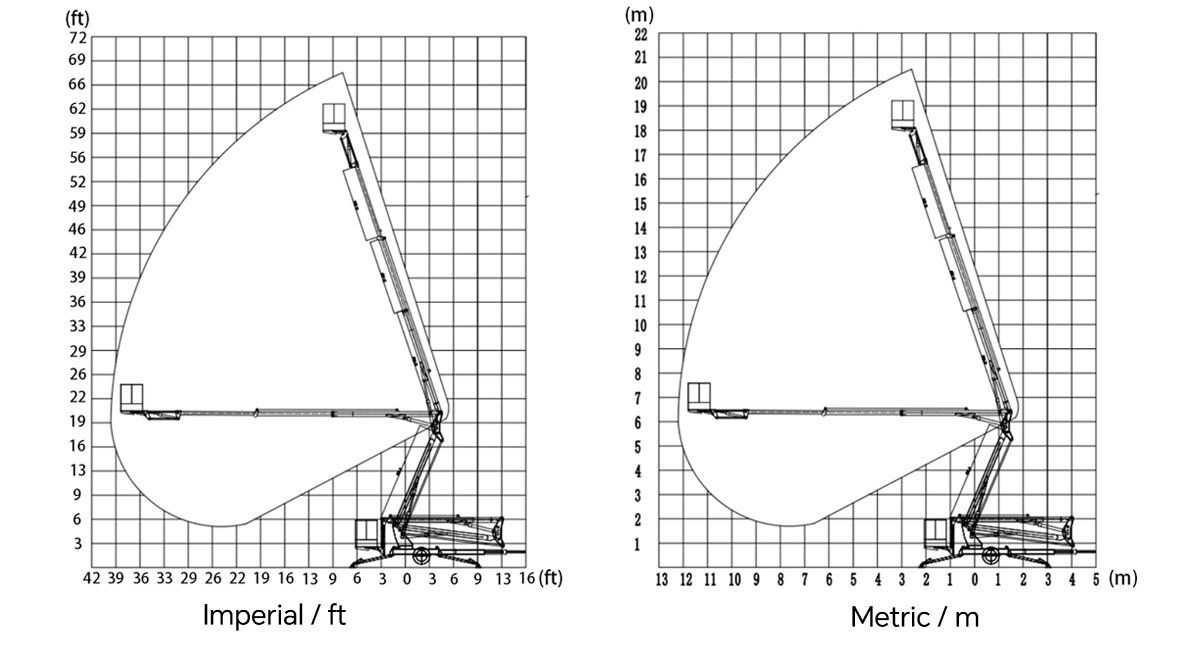

| Max Platform Height: 59' 1" / 18 m | Max Working Height: 65' 7" / 20 m |
| Max Horizontal Outreach: 39' 4" / 12 m | Max. Platform Capacity: 440 lbs / 200 kg |
| Total Weight: 7,275 lbs / 3300 kg |
| GTB60 Trailer-Mounted Boom Lift | ||
| Technical Data | Unit | Technical Parameter |
| Max Working Height | ft | 65' 7" |
| Max Platform Height | ft | 59' 1" |
| Max Horizontal Outreach | ft | 39' 4" |
| Rotation Angle | ° | 359° Non-continuous Rotation |
| Platform Dimensions | in | 35.4" × 27.6" × 43.3" |
| Max Platform Capacity | lbs | 440 |

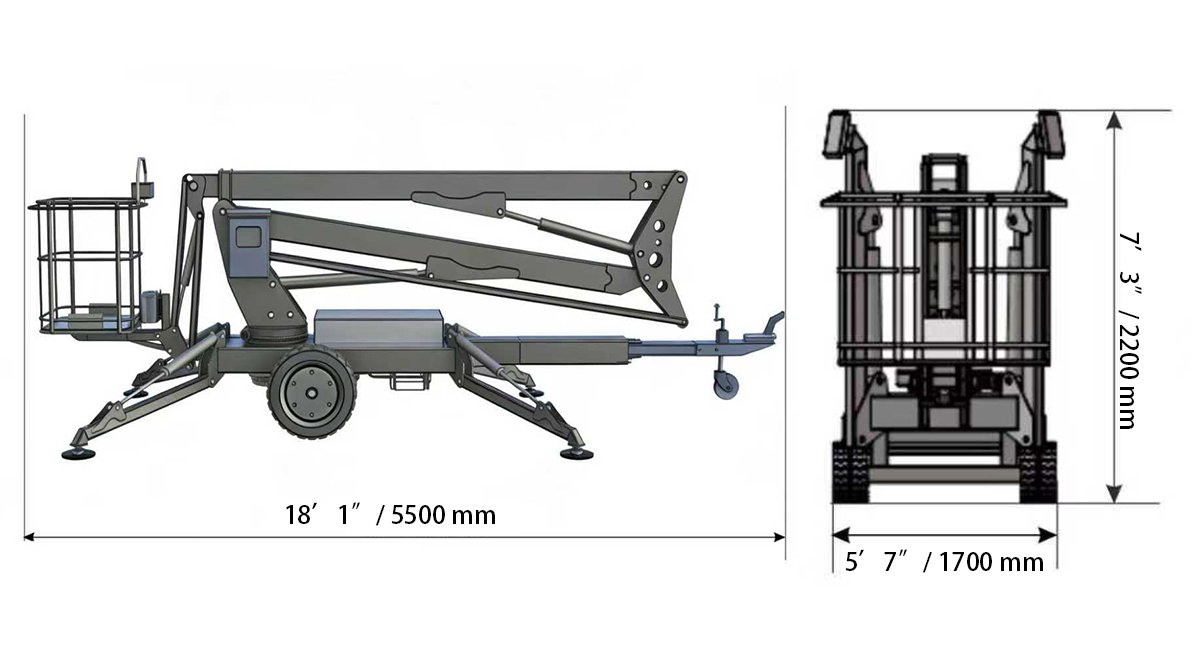

| Dimension（L × W × H） | ft | 18' 1" × 5' 7" × 7' 3" |

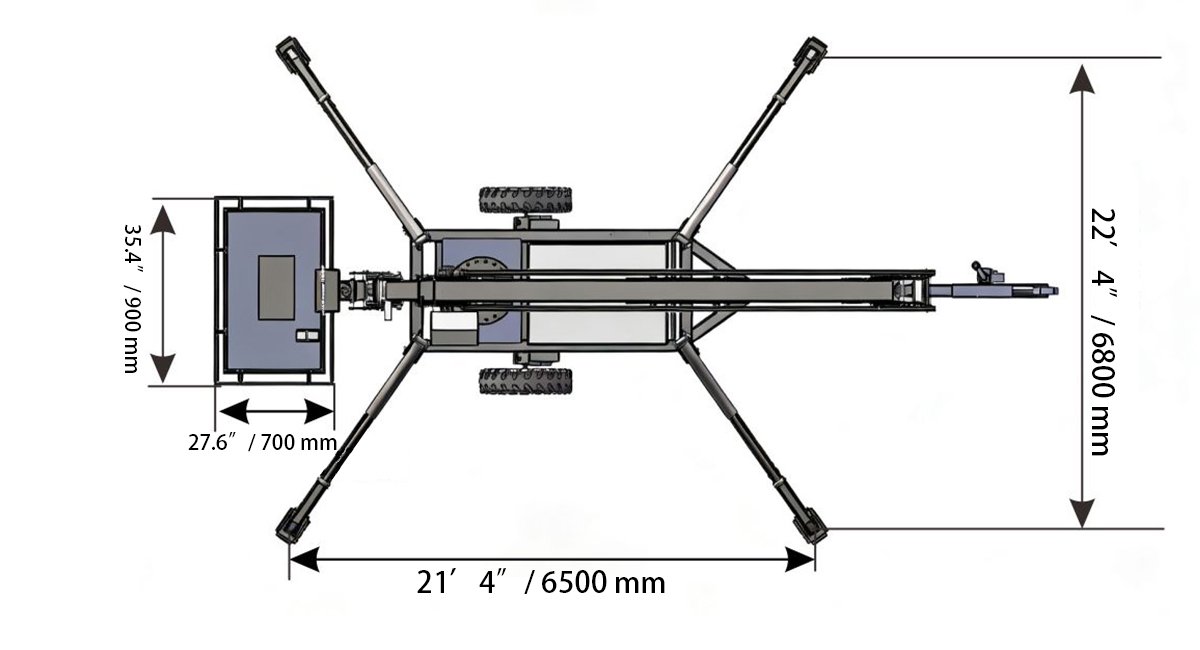

| Overall Outrigger Footprint | ft | 21' 4" × 22' 4" |
| Max Towing Speed | mph | 68 |
| Weight | lbs | 7,275 |
| Power | ||
| Engine (diesel) | Kubota Diesel Engine | |
| Engine (gasoline) | B&S Gasoline Engine | |
| Electric Motor | 110V / 220V AC | |
| Battery | Lead-Acid Battery / Lithium-ion Battery | |
| Manual Emergency Pump | Manual Operation | |
| Safety Devices | ||
| Automatic Leveling Control, Sensor of Outrigger, Alarm Device, Emergency Stop Button, Travel / Outrigger /Boom Three-Way Interlock System | ||
| Optional Devices | ||
| 360°Continuous Rotation, 160°Platform Rotation Angle, Assist Drive System, Dual-Power | ||
Multilingual LCD touchscreen control interface for GTB60 towable boom lift
Hydraulic platform auto-leveling control valve
359-degree rotation slewing ring drive assembly
Platform boom transport interlocking clamp mechanism
Heavy-duty German AL-KO inertia mechanical brake lever
Internal boom drag chain and hydraulic hose protection assembly
AC power socket outlet with emergency stop switch and control panel
Max operating wind speed safety warning decal

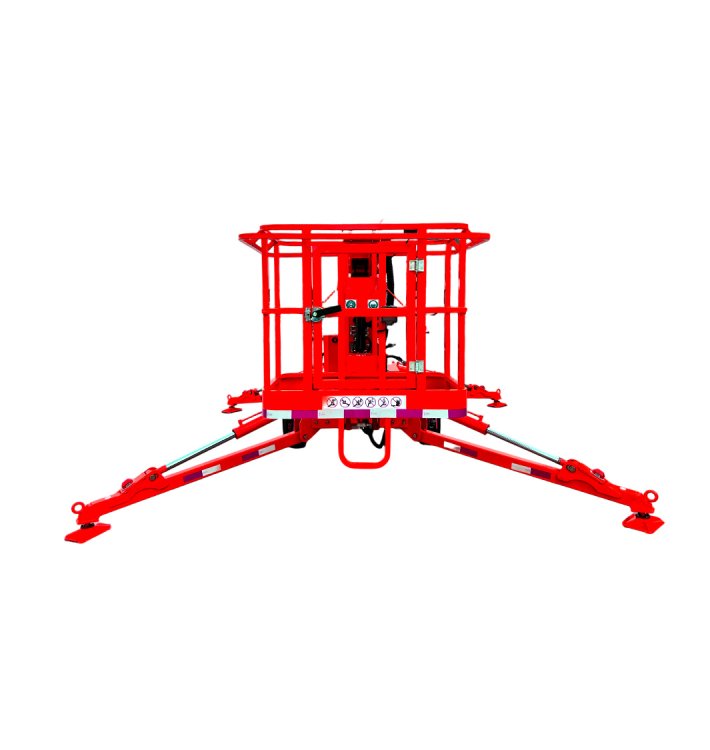

Hydraulic outrigger holding valve and safety check assembly
Hydraulic outrigger holding valve and safety check assembly
Heavy-duty AL-KO tow hitch coupler with safety chains
Waterproof electrical control box with touchscreen interface
See how the GTB60 towable boom lift is used for building maintenance, stadium lighting, street maintenance, tree care, and other elevated access work. These case studies show how its articulating lower boom and telescopic upper boom provide flexible platform positioning and extended reach when working around buildings, structures, and other hard-to-reach areas.
The 32 ft / 10 m class solution for high-efficiency maintenance, engineered to keep pace with your most demanding projects.
Max Platform Height: 32' 10" / 10 m
Max. Working Height: 39' 4" / 12 m
Max Horizontal Outreach: 19' 0" / 5.8 m
Boasting a 40 ft / 12 m platform height, this unit is easily towable by a standard 1/2-ton pickup
Max Platform Height: 39' 4" / 12 m
Max Working Height: 45' 11" / 14 m
Max Horizontal Outreach: 21' 4" / 6.5 m
With a 28ft Side Outreach-engineered for professional Commercial Mall Exteriors and precision tree trimming at height.
Max Platform Height: 45' 11" / 14 m
Max. Working Height: 52' 6" / 16 m
Max Horizontal Outreach: 27' 11" / 8.5 m

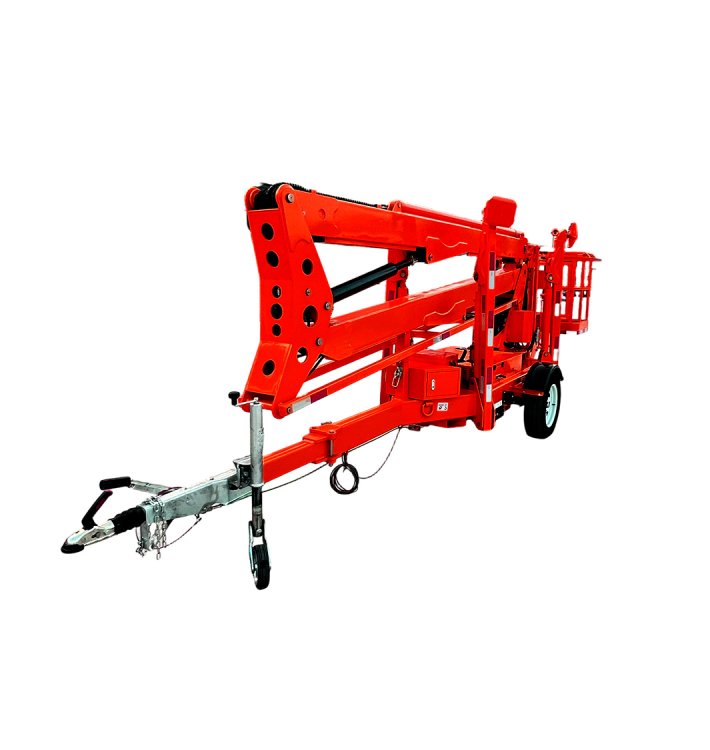

The GTB52 Trailer-Mounted Boom Lift is perfect for extensive commercial exterior upkeep and professional tree services.
