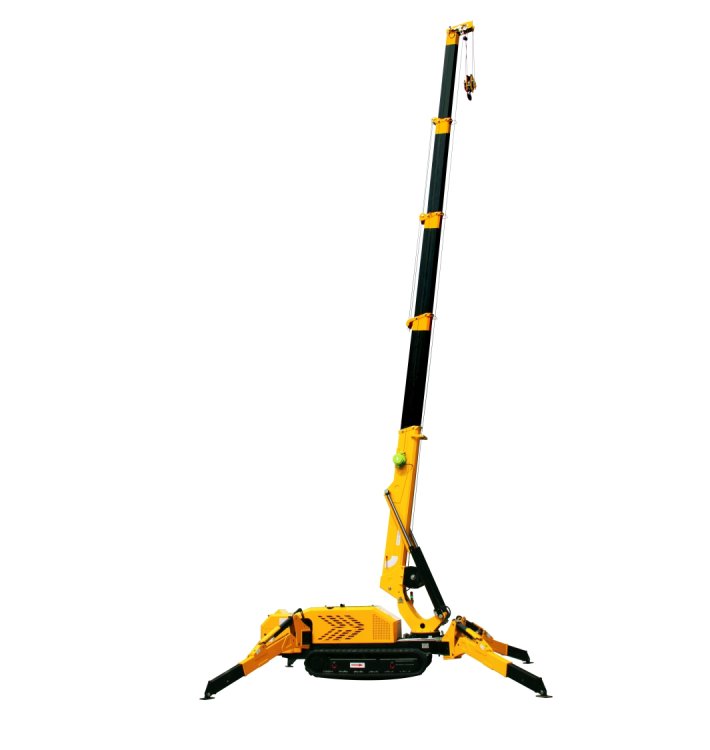

Heavy-Duty Reach for Structural Construction
Designed for demanding commercial applications, the 5-ton mini crawler crane delivers superior lifting capacity and extended boom reach. Perfect for steel structure erection, curtain wall installation, and industrial plant maintenance, it offers maximum stability and precision without sacrificing site mobility.
| Power: Diesel Engine + Electric Motor | Max. Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m |
| Max. Lifting Height (OG): 43' (13.1 m) | Max. Lifting Height (UG): 328' (100 m) |

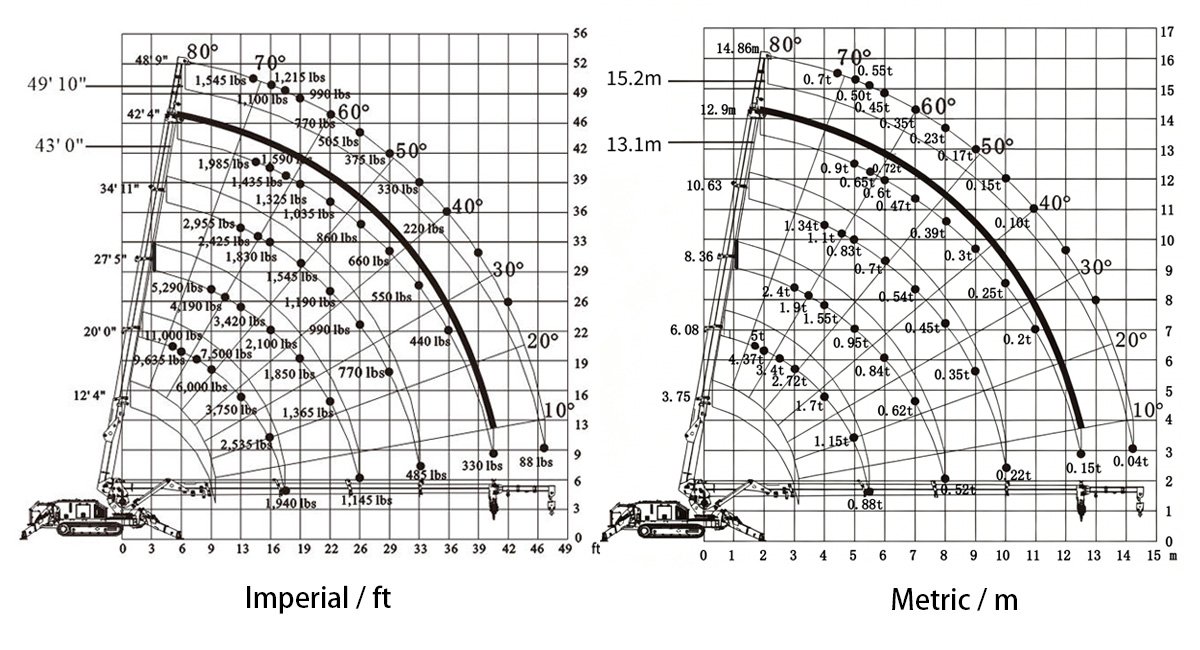

| Max. Working Radius: 40' 8" @ 330 lbs (12.4 m × 0.15 T) | Vehicle Weight: 9,921 lbs (4500 Kg) |

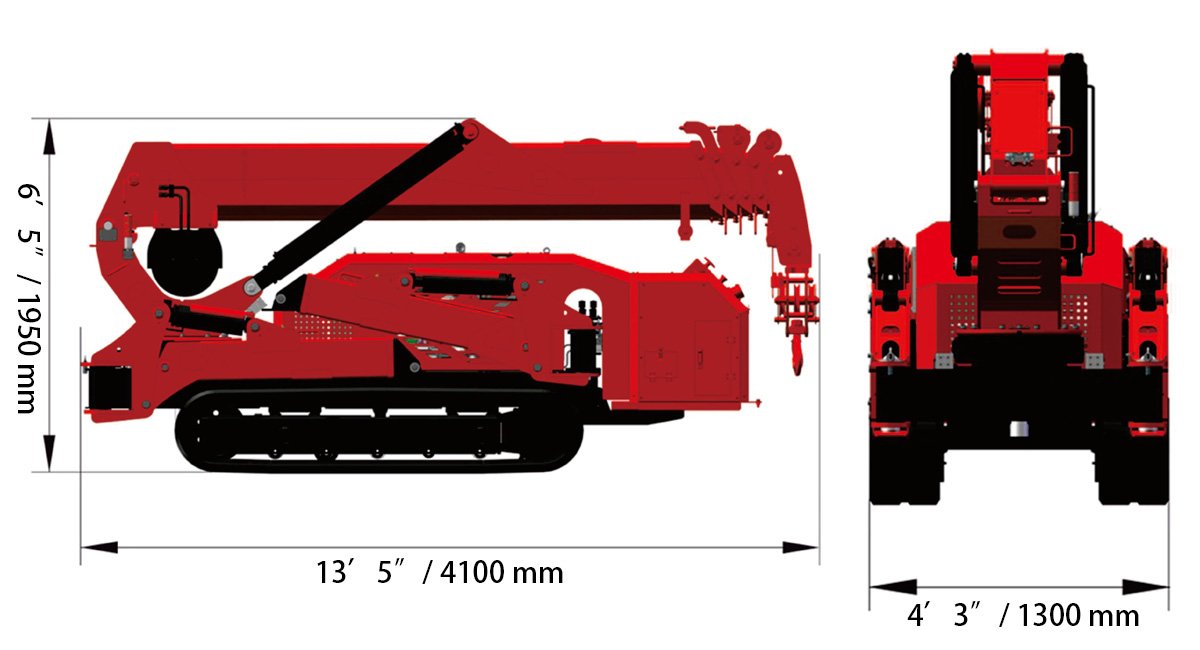

| Dimensions (L×W×H): 13' 5" × 4' 3" × 6' 5" (4100 × 1300 × 1950 mm) | Outrigger Footprint: 15' 4" × 17' 3" × 16' 5" (4675 × 5270 × 5010 mm) |
| GSC50 Mini Crawler Crane | ||
| DUAL POWER | DIESEL | |
| AC ELECTRIC | ||

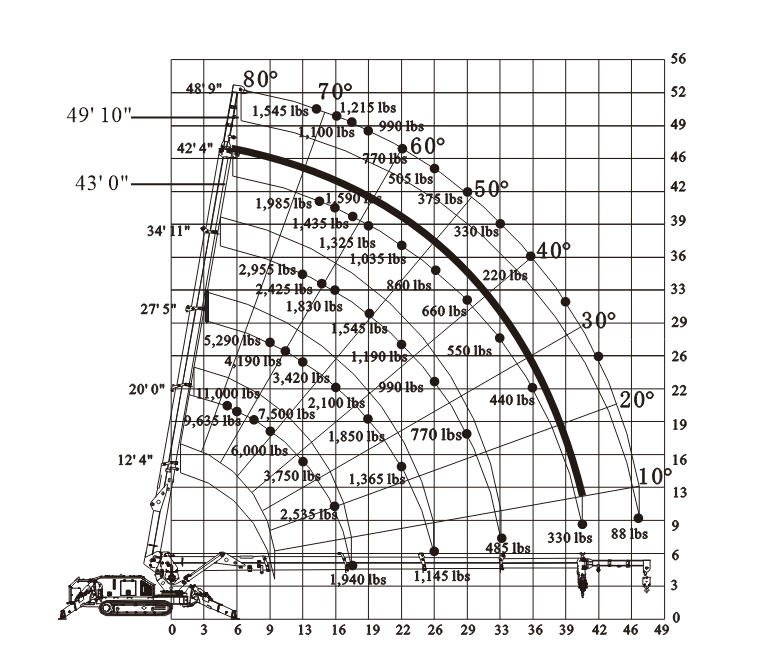

| Crane Capacity | 11,000 lbs @ 5' 11" | |
| Max.Working Radius | 40' 8" @ 330 lbs | |
| Max.Lifting Height（OG） | 43' | |
| Winch System | Hook Speed | 0 - 49.2 FPM (4-Part Line) |
| Wire Rope | 3/8" × 328' (Max) | |
| Telescopic System | Boom Type | U type automatic 5 section |
| Boom Length | 12' 4" - 42' 4" | |
| Telescopic Length / Speed | 30' / 27 sec | |
| Boom Lift Speed | Boom Angle / Speed | 0~80° / 17 sec |
| Slewing System | Slewing Angle / Speed | 0-360°Continuous / 30 sec |
| Outrigger | Outrigger | Manual adjustment for the 1section, automatic for the 2,3 section |

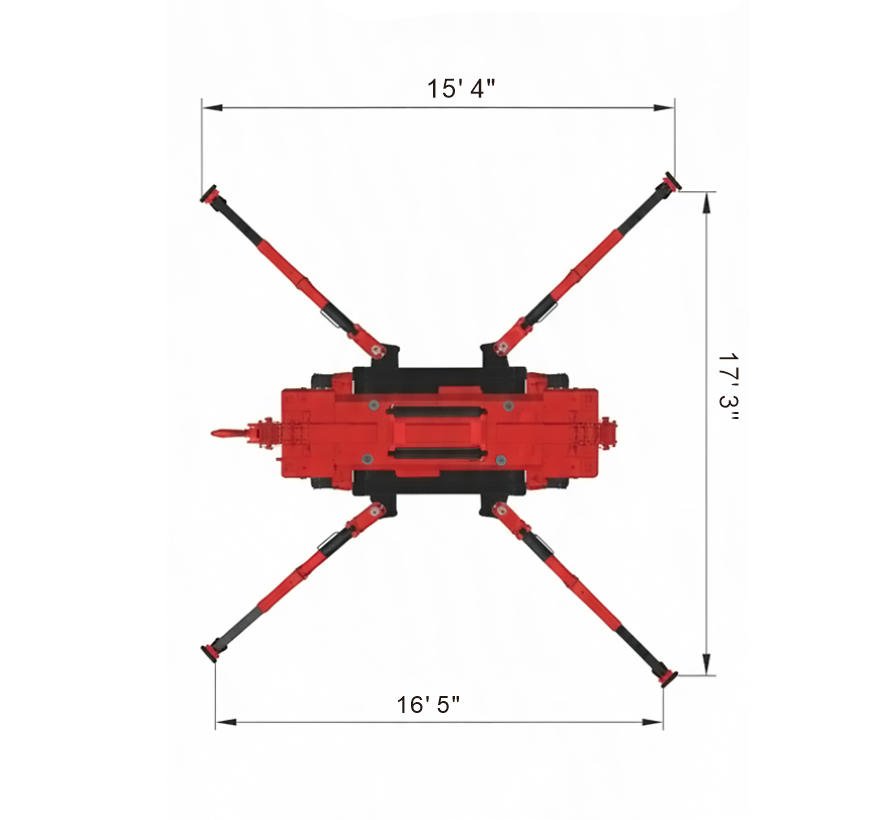

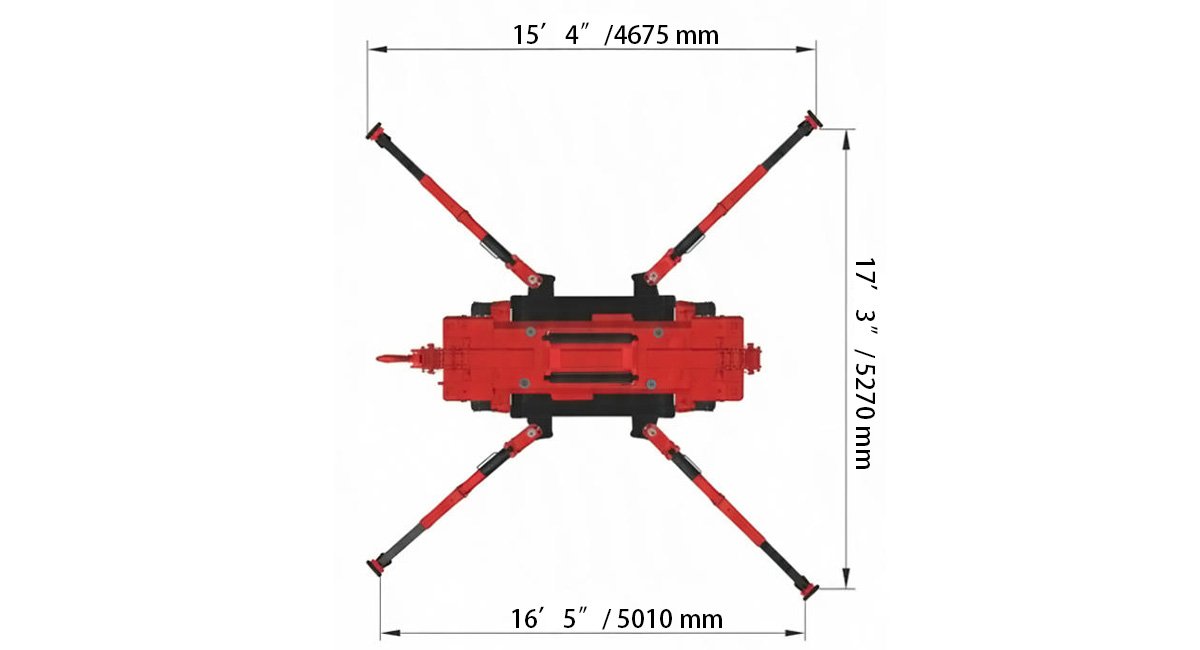

| Maximum Extended Dimensions | 15' 4" × 17' 3" × 16' 5" | |
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed |
| Travel Speed | 0 - 0.93 mph | |
| Gradeability | 20° | |
| Track Footprint (L × W) | 5' 10" × 12" | |
| Track Ground Pressure | 5.9 psi | |
| Diesel Engine | Engine Model | 3TNV80 (YANMAR) |
| Displacement | 1.331 L | |
| Maximum Output | 19.6 HP @ 2400 RPM | |
| Starting Method | Electric start | |
| Fuel / Tank Capacity | Diesel / 6.6 gal | |
| Starting Operating | -5°C ~ 40°C | |
| Battery Capacity | 12 V 80 AH | |
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft |
| Boom/Travel | Proportional Wireless | |
| Engine / Electric Motor | Proportional Wireless | |
| Electric Motor | Configurable to Local Standards (110V - 480V) | |

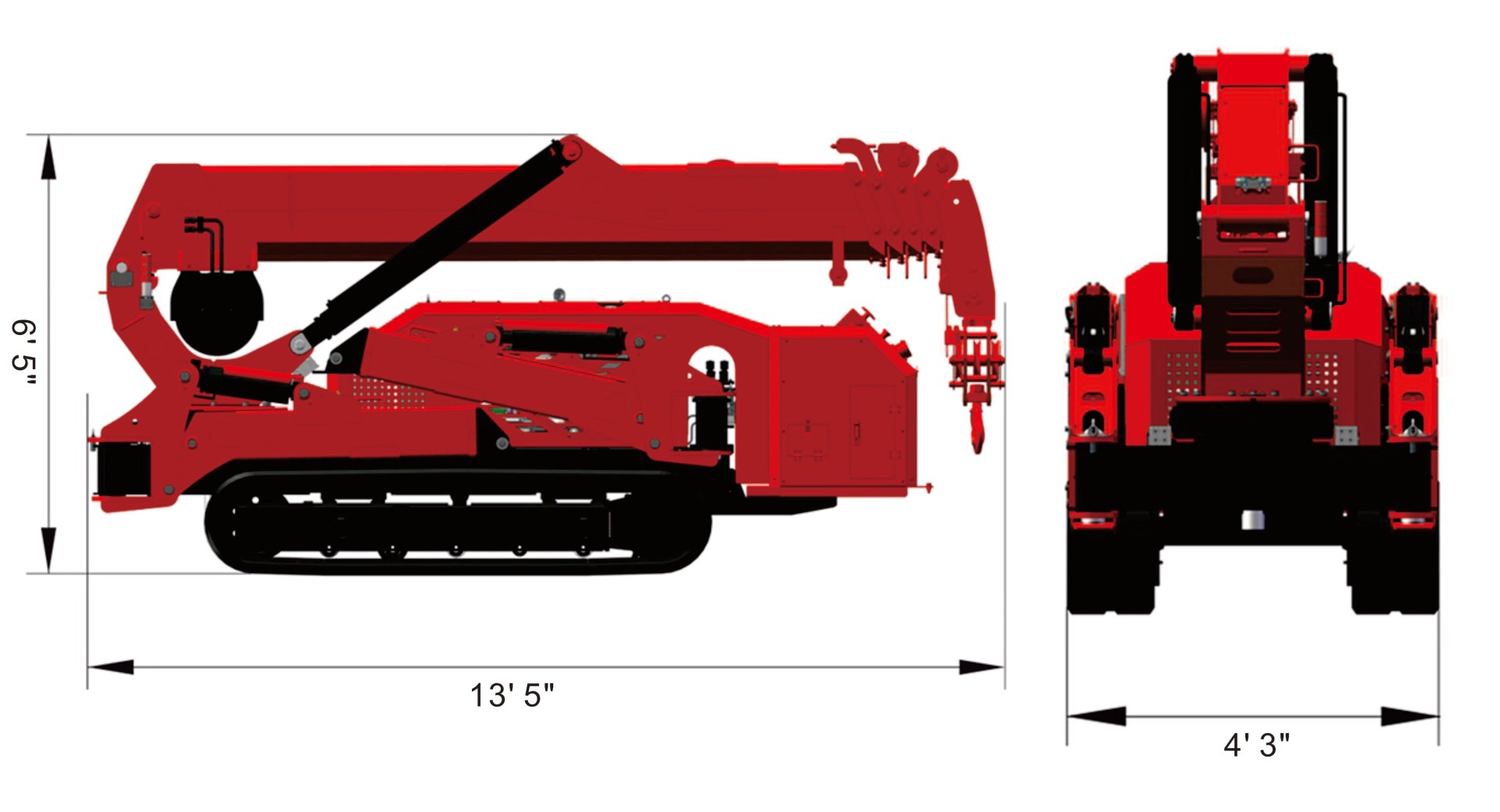

| Dimension (L × W × H) | 13' 5" × 4' 3" × 6' 5" | |
| Vehicle weight | 9,921 lbs | |
| Safety System | Level, LMI, Three Color Lamp, Emergency Stop Button, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | |
Ultra-Compact Mini Crawler Crane Features a Compact 24" / 600 mm Width to Fit Through Standard Doors
Max Capacity: 2,205 lbs @ 4.9' / 1 .0 t × 1 .5 m
Max Lifting Height (OG): 18' 4" / 5 .6 m
6,500 lbs / 3 t Mini Tracked Crawler Crane for Glass Installation & Steel Erection.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Powerful Gasoline 6,500 lbs Mini Tracked Crane. High-torque Performance for Heavy-duty Outdoor & Industrial Projects.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
6,500 lbs / 3 t Electric Mini Tracked Crane: The Silent Powerhouse for Indoor Glazing
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Compact Crawler Crane for Data Center Infrastructure, Utility, Glass Curtain Wall Installation and Steel Erection
Max Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m
Max. Lifting Height (OG): 43' / 13.1 m
17,600 lbs / 8 t Small Crawler Crane for Precision Steel Structure Erection
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
High-capacity 17,600 lbs (8-ton) Lifting Meets Zero-Emission Electric Power. Ideal for Indoor & Rooftop Heavy-Duty Jobs
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Manual Controls for Boom and Travel Operations Significantly Reduce Electronic Complexity and Long-Term Maintenance Costs.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
If you're planning to invest in a mini crawler crane, one of the first questions is simple: how much does it cost? The answer depends on several factors such as lifting capacity, working height, configuration, and safety features. In this guide, we break down real price ranges, what affects the cost, and how to choose the right model for your project.
Daily checks go beyond safety. They are your best chance to catch early wear—like those tiny surface flaws during the first 60-hour break-in period.
Maximizing Efficiency: GLT Mini Crawler Crane for Steel Structure Erection and Heavy-Duty Lifting
GLT offers a full range of steel structure assembly crane with lifting capacities from 1 to 8 tons (2,205 - 17,600 lbs). For unique project requirements, we also provide professional customization services.
For light-duty tasks, explore our 1ton spider cranes or 3 ton spider cranes
For heavy-duty industrial projects, check our 5 ton spider cranes or 8 ton spider cranes
For unique project requirements, we also provide professional customization services. Please contact our engineers to discuss your specific load requirements.
Yes. Our rated maximum load capacity incorporates a safety margin of 20% above the actual lifting load, even when operating at the maximum lifting radius.
This design ensures superior stability and equipment longevity under rigorous job site conditions. If you need a detailedsafety compliance reportor have specific site requirements, please contact our engineers directly.
LIFTSGLT mini crawler cranes come with a 1-year full-machine warranty.
If any issues arise during the warranty period, please contact our support team immediately. We provide:
Free Replacement Parts: Shipped quickly to minimize downtime.
Technical Guidance: Remote assistance from our professional engineers.
Localized Service: Support through our localized spare parts network.
Our goal is to ensure your machine is back in operation as quickly as possible. For specific warranty terms, please chat with us.
Yes,the compact crawler cranes has a One-key leveling function. Additionally, sensor of outrigger monitor the status of the outriggers in real-time， providing an interlock system to prevent overturning.
Yes. At LIFTSGLT, we provide Bi-energy solutions across our entire range to ensure maximum flexibility on the job site. By combining zero-emission electric motors with your choice of diesel, gasoline, or lithium battery power, our machines can seamlessly transition from rugged outdoor terrain to sensitive indoor spaces.
These dual-power configurations are environmentally friendly and approved for use in all regions, including those with strict noise and emission regulations. Whether you are working in a confined interior hallway or a remote construction site, our Bi-energy models provide the reliable performance you need.
