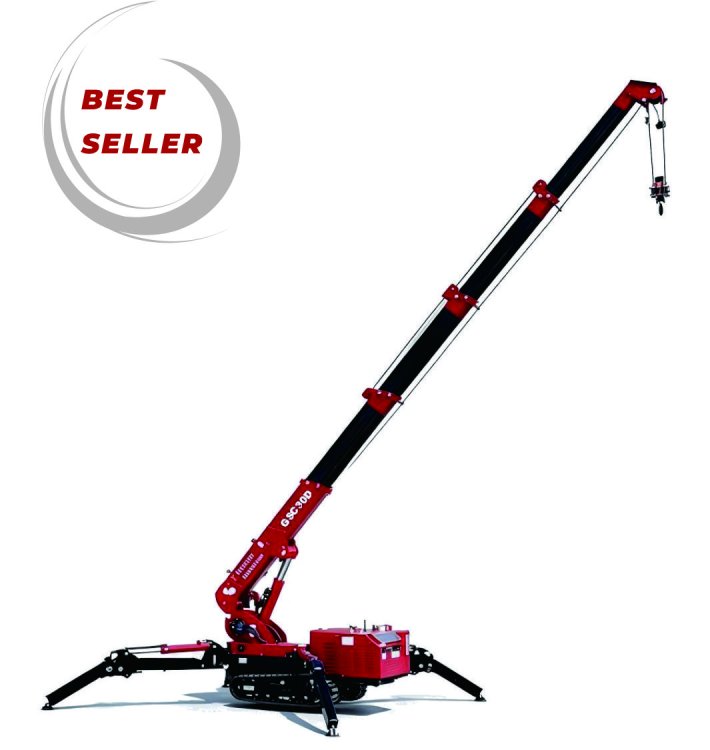

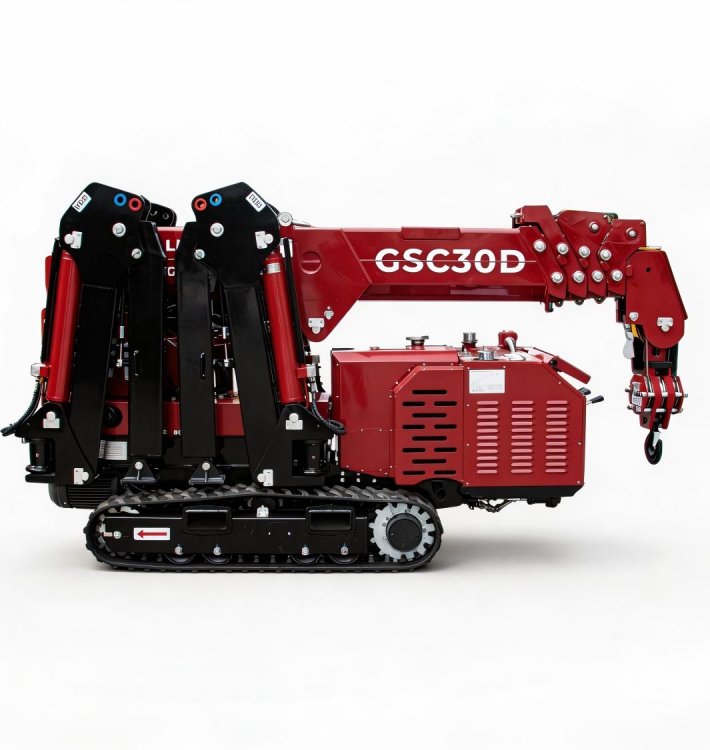

Versatile Diesel Dual-Power Workhorse
Powered by a rugged diesel engine coupled with an electric AC motor, the GSC30D delivers a max lifting capacity of 6,500 lbs (2.95 t) and a 30' 2" (9.2 m) reach. This 3-ton diesel mini crawler crane provides robust high-torque performance for demanding outdoor site preparation, steel erection, and tree care, with the flexibility to plug into shore power for zero-emission indoor operations.
| Power: Diesel Engine + Electric Motor | Max. Capacity: 6,500 lbs @ 4' 3" (2.95 t × 1.3 m) |
| Max. Lifting Height (OG): 30' 2" (9.2 m) | Max. Lifting Height (UG): 328' (100 m) |

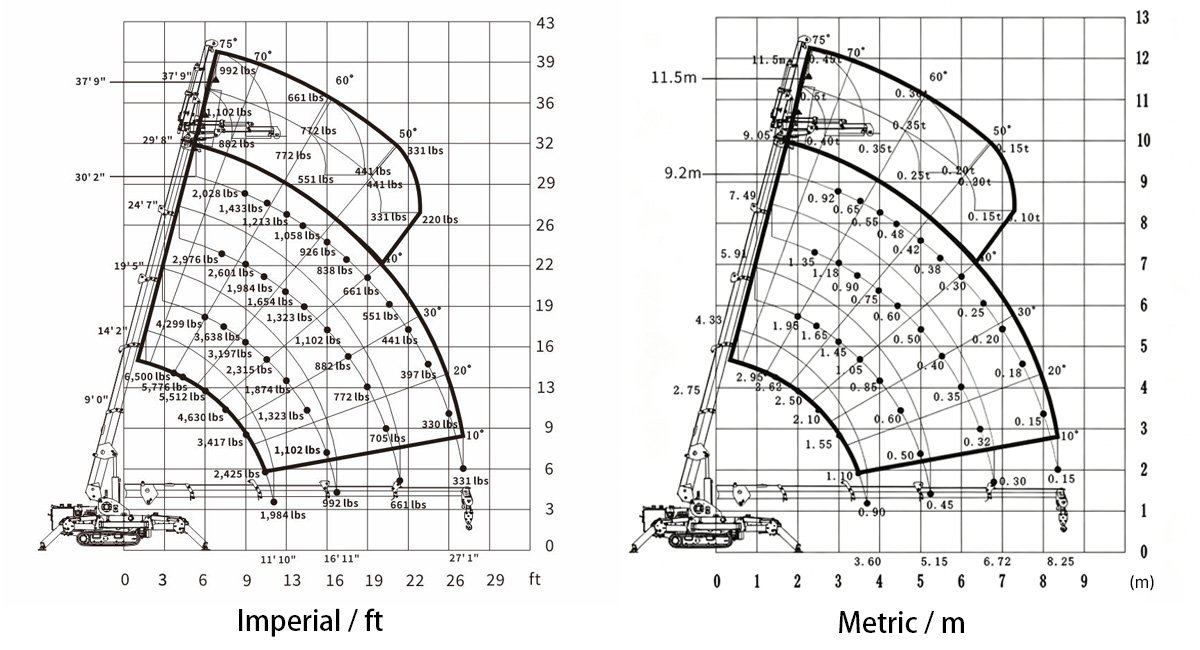

| Max. Working Radius: 27' 1" @ 330 lbs (8.25 m × 0.15 t) | Vehicle Weight: 5,030 lbs (2300 kg) |

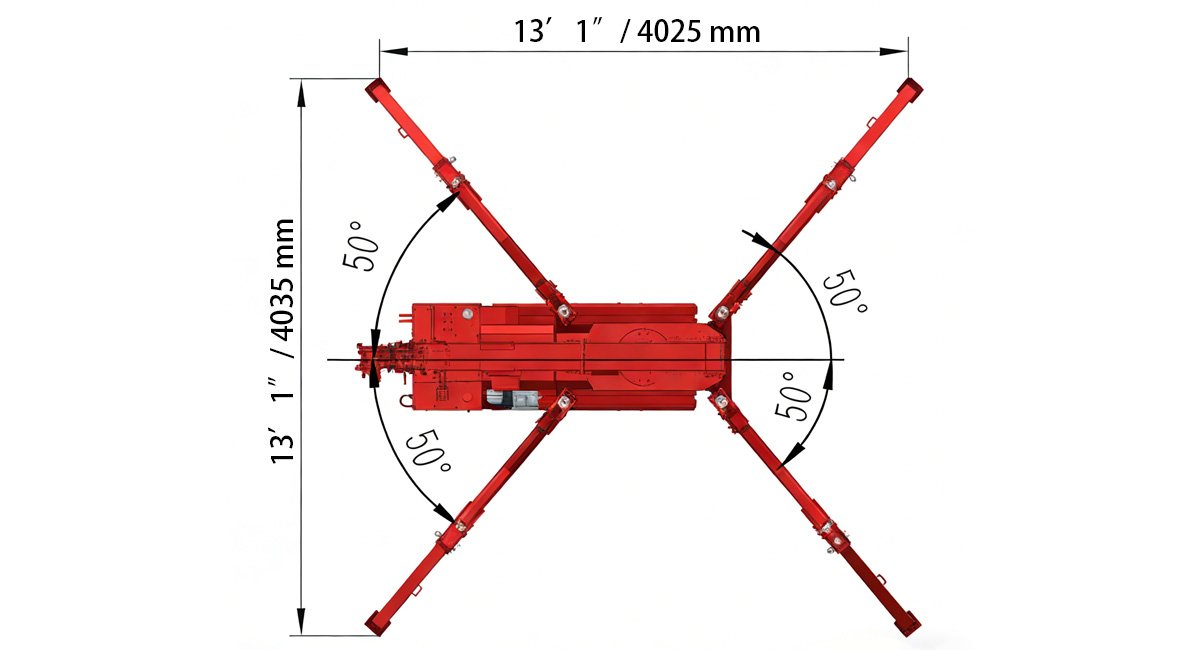

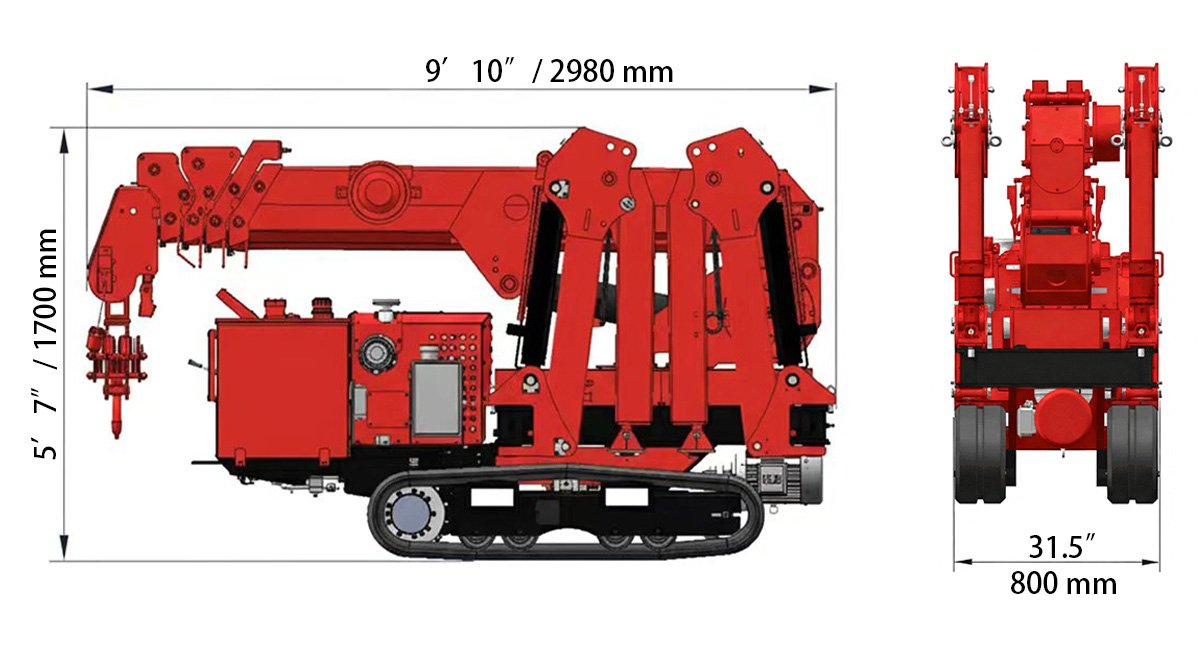

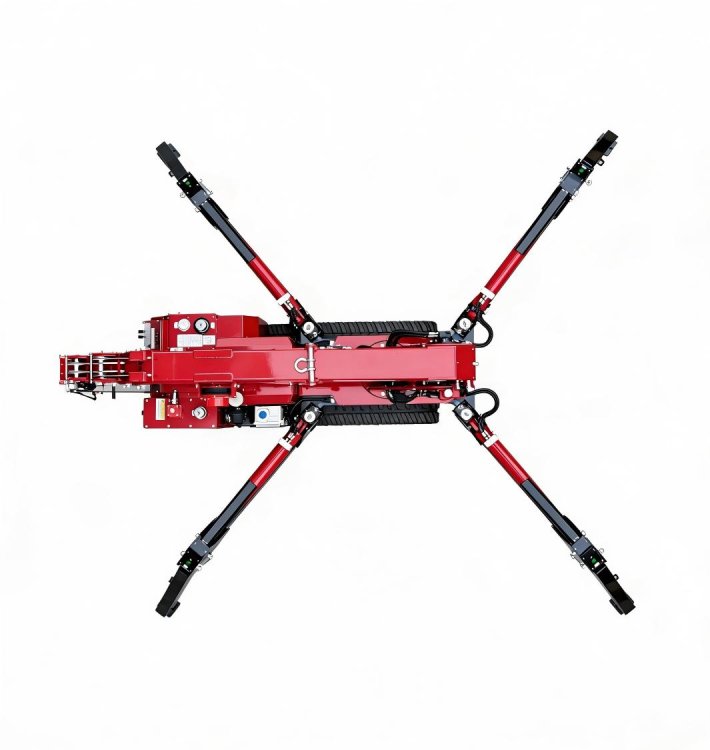

| Dimensions (L×W×H): 9' 10" × 31.5" × 5' 7" (2980 × 800 × 1700 mm) | Outrigger Footprint: 13' 1" × 13' 1" (4025 × 4035 mm) |
Live Demo: Watch GSC30D lifting heavy timber in Houston!
| Model | GSC30D | GSC30G | GSC30E | |||||||||||||||||||||||
| DUAL POWER | DIESEL | GASOLINE | LITHIUM BATTERY | |||||||||||||||||||||||
| AC ELECTRIC | AC ELECTRIC | AC ELECTRIC | ||||||||||||||||||||||||
| Engine Model | 3TNV74 (YANMAR) | HONDA GX390 | DC Motor | |||||||||||||||||||||||
| Starting Method | Electric Start | DC Motor (with battery pack) | ||||||||||||||||||||||||
| Maximum Output | 15.0 HP | 8.9 HP | 8.0 HP / 3,000 RPM | |||||||||||||||||||||||
| Fuel / Battery Capacity | 3.7 gal | 1.6 gal | 48 V | |||||||||||||||||||||||
| Electric Motor | Voltage | 110V AC, 60Hz, 1-Phase | ||||||||||||||||||||||||
| Power/Speed | 3 HP / 1700 RPM | |||||||||||||||||||||||||
| Crane Capacity | 6,500 lbs @ 4' 3" | |||||||||||||||||||||||||
| Max.Working Radius | 27' 1" | |||||||||||||||||||||||||
| Max.Lifting Height（On ground） | 30' 2" | |||||||||||||||||||||||||
| Winch System | Winch | Dual-speed Hydraulic Motor | ||||||||||||||||||||||||
| Hook Speed | Low Speed 17.4 FPM; High Speed 33.5 FPM | Low Speed 8.2 FPM; High Speed 14.8 FPM | ||||||||||||||||||||||||
| Wire Rope | 5/16" × 361' (Max) | |||||||||||||||||||||||||
| Telescopic System | Boom Type | U type automatic 5 section | ||||||||||||||||||||||||
| Boom Length | 9' 0" – 29' 8" | |||||||||||||||||||||||||
| Telescopic Length / Speed | Approx. 25sec(fully extended) | Approx. 20sec(fully extended) | ||||||||||||||||||||||||
| Boom Lift Speed | Boom Angle / Speed | 0 - 75° / 18sec | ||||||||||||||||||||||||
| Slewing System | Slewing Angle / Speed | 360° Continuous Slewing / 40sec | ||||||||||||||||||||||||
| Outrigger | Outrigger | Manual operation for the first section, automatic for the2,3 section | ||||||||||||||||||||||||
| Maximum Extended Dimensions | 13' 1" × 13' 1" | |||||||||||||||||||||||||
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed | ||||||||||||||||||||||||
| Travel Speed | 0 – 1.0 / 0 – 1.8 mph | 0 – 0.6 / 0 – 1.0 mph | ||||||||||||||||||||||||
| Gradability | 20°(36.4%) | |||||||||||||||||||||||||
| Track Footprint (L × W) | 3' 3" × 8" | |||||||||||||||||||||||||
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft | ||||||||||||||||||||||||
| Outriggers | Dual-Mode (Wireless & Manual) | Manual Operation | Dual-Mode (Wireless & Manual) | |||||||||||||||||||||||
| Travel | Manual Operation | |||||||||||||||||||||||||
| Boom | Dual-Mode (Wireless & Manual) | |||||||||||||||||||||||||
| Dimension (L × W × H) | 9' 10" × 31.5" × 5' 7" | |||||||||||||||||||||||||
| Hydraulic Oil Tank Capacity | 10.6 gal | |||||||||||||||||||||||||
| Vehicle Weight | 5,290 lbs | 5,070 lbs | 5,510 lbs | |||||||||||||||||||||||
| Safety System | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tpping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), Automatic Leveling, One-Touch Hook Auto-Stow | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tipping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tpping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), Automatic Leveling,One-Touch Hook Auto-Stow | |||||||||||||||||||||||
Equipped with rubber tracks, these compact crawler cranes easily navigate narrow backyard gates and operate on soft grass without causing property or turf damage. They provide the perfect lifting capacity and stability needed for safe tree trimming sectioning, and log removal in confined residential spaces.
Ultra-Compact Mini Crawler Crane Features a Compact 24" / 600 mm Width to Fit Through Standard Doors
Max Capacity: 2,205 lbs @ 4.9' / 1 .0 t × 1 .5 m
Max Lifting Height (OG): 18' 4" / 5 .6 m
6,500 lbs / 3 t Mini Tracked Crawler Crane for Glass Installation & Steel Erection.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Powerful Gasoline 6,500 lbs Mini Tracked Crane. High-torque Performance for Heavy-duty Outdoor & Industrial Projects.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
6,500 lbs / 3 t Electric Mini Tracked Crane: The Silent Powerhouse for Indoor Glazing
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Compact Crawler Crane for Data Center Infrastructure, Utility, Glass Curtain Wall Installation and Steel Erection
Max Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m
Max. Lifting Height (OG): 43' / 13.1 m
17,600 lbs / 8 t Small Crawler Crane for Precision Steel Structure Erection
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
High-capacity 17,600 lbs (8-ton) Lifting Meets Zero-Emission Electric Power. Ideal for Indoor & Rooftop Heavy-Duty Jobs
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Manual Controls for Boom and Travel Operations Significantly Reduce Electronic Complexity and Long-Term Maintenance Costs.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Every summer, intense heatwaves sweep across North American regions like Texas, where temperatures frequently shatter the 40°C mark. Coupled with sudden, violent storms, commercial and residential HVAC systems operate at maximum, overloaded capacity.
If you're planning to invest in a mini crawler crane, one of the first questions is simple: how much does it cost? The answer depends on several factors such as lifting capacity, working height, configuration, and safety features. In this guide, we break down real price ranges, what affects the cost, and how to choose the right model for your project.
In the glass curtain wall world, hoisting a multi-ton panel isn't the hard part—the real skill is tucking it into a tight corner and aligning it to a gap of just a few millimeters. When facing "tough nuts to crack" like oversized panels and deep overhangs, the GLT glass lifting spider crane doesn’t rely on brute force. Instead, it uses a logic of "precision craftsmanship" specifically tailored for curtain walling.
Yes. Our rated maximum load capacity incorporates a safety margin of 20% above the actual lifting load, even when operating at the maximum lifting radius.
This design ensures superior stability and equipment longevity under rigorous job site conditions. If you need a detailedsafety compliance reportor have specific site requirements, please contact our engineers directly.
Yes. LIFTSGLT mini crawler cranes are specifically designed for delicate environments. Equipped with non-marking rubber tracks and a lightweight chassis, they significantly minimize ground pressure.
This makes them the ideal solution for:
Indoor Marble & Tile Floors (no scratches or scuffs)
Raised Access Floors (in data centers or offices)
Rooftops & Landscaped Areas (low structural load)
To check if our equipment meets your specific floor loading requirements, please get a technical consultation with our team today.
LIFTSGLT mini crawler cranes come with a 1-year full-machine warranty.
If any issues arise during the warranty period, please contact our support team immediately. We provide:
Free Replacement Parts: Shipped quickly to minimize downtime.
Technical Guidance: Remote assistance from our professional engineers.
Localized Service: Support through our localized spare parts network.
Our goal is to ensure your machine is back in operation as quickly as possible. For specific warranty terms, please chat with us.
Yes. At LIFTSGLT, we provide Bi-energy solutions across our entire range to ensure maximum flexibility on the job site. By combining zero-emission electric motors with your choice of diesel, gasoline, or lithium battery power, our machines can seamlessly transition from rugged outdoor terrain to sensitive indoor spaces.
These dual-power configurations are environmentally friendly and approved for use in all regions, including those with strict noise and emission regulations. Whether you are working in a confined interior hallway or a remote construction site, our Bi-energy models provide the reliable performance you need.
