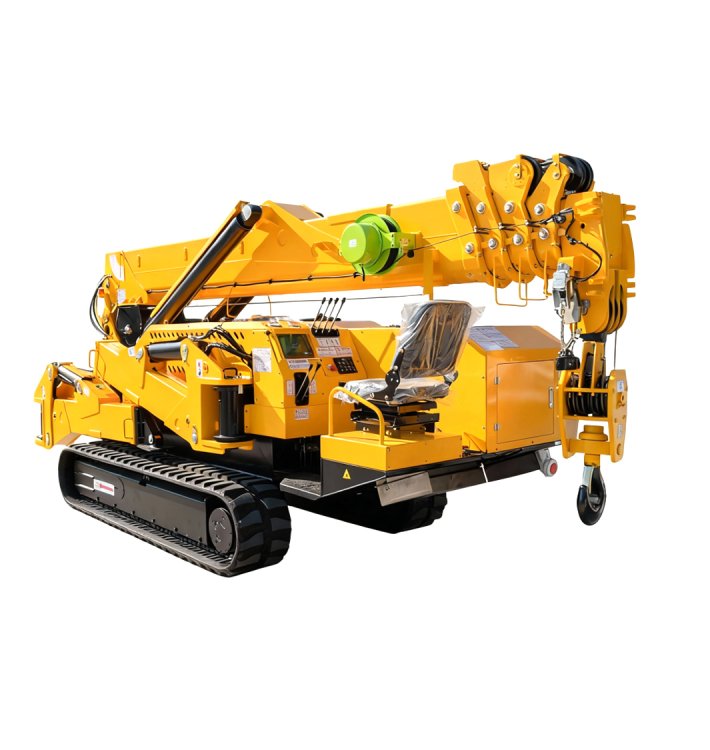

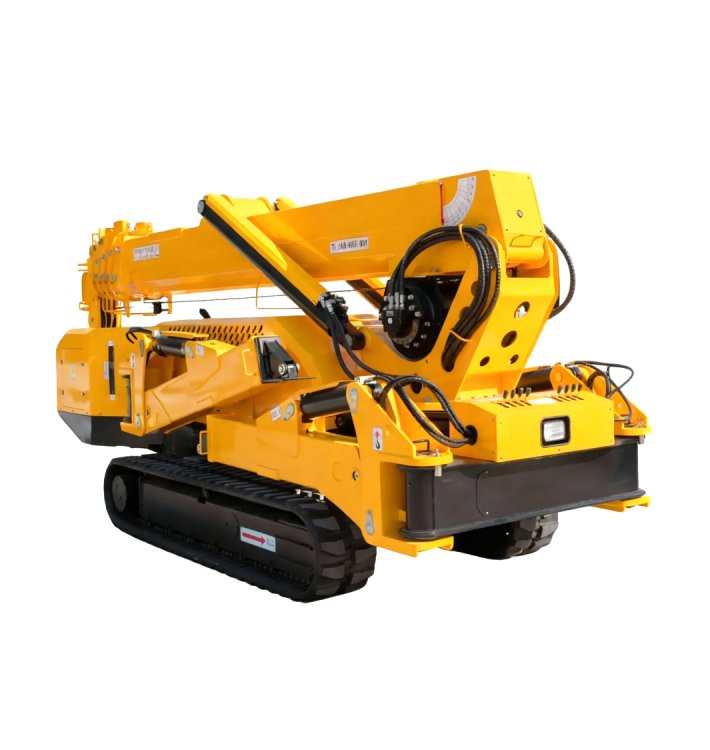

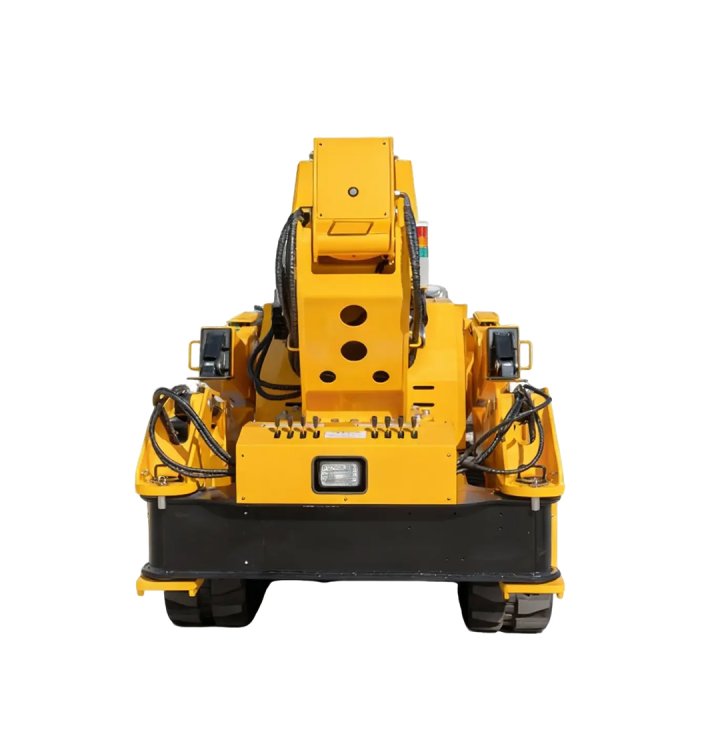

The Ultimate Zero-Emission Heavy Lifting Solution
Combining a High-Capacity Lithium Battery with an AC Electric Motor, this 8-ton electric mini crawler crane brings massive 17,600 lbs (8.0 t) lifting capacity to eco-sensitive environments. Perfect for rooftop heavy-duty jobs, indoor glass curtain walls, data centers or AI server facilities, and grid infrastructure maintenance, it allows operators to run all day on quiet battery power or plug directly into AC shore power for continuous, fume-free operation.
| Power: Lithium Battery + Electric Motor | Max. Capacity: 17,600 lbs @ 8' 2" (8.0 t × 2.5 m) |
| Max. Lifting Height (OG): 55' 9" (17 m) | Max. Lifting Height (UG): 427' (130 m) |
| Max. Working Radius: 51' 6" @ 440 lbs (15.7 m × 0.2 t) | Vehicle Weight: 16,535 lbs (7500 kg) |

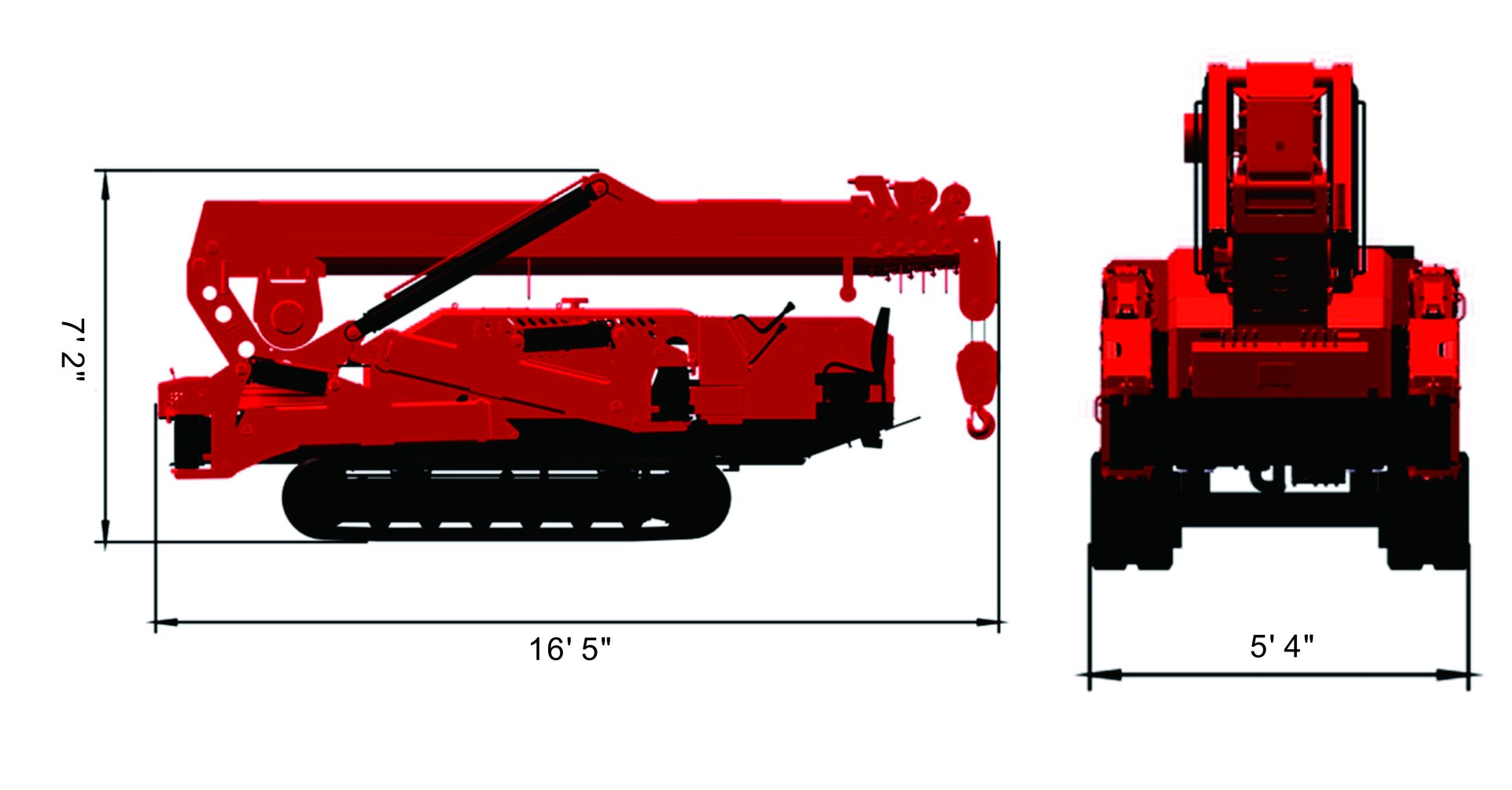

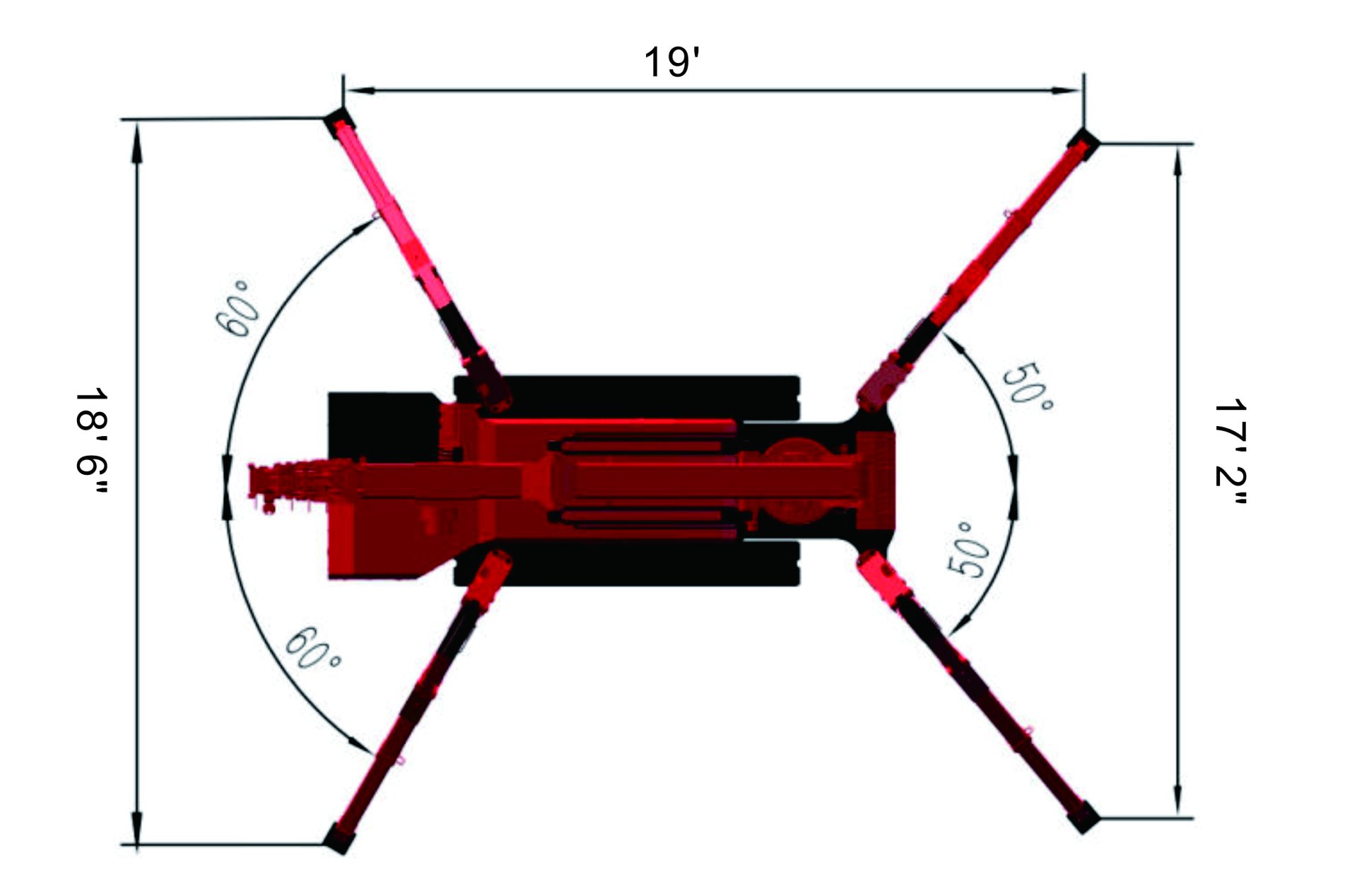

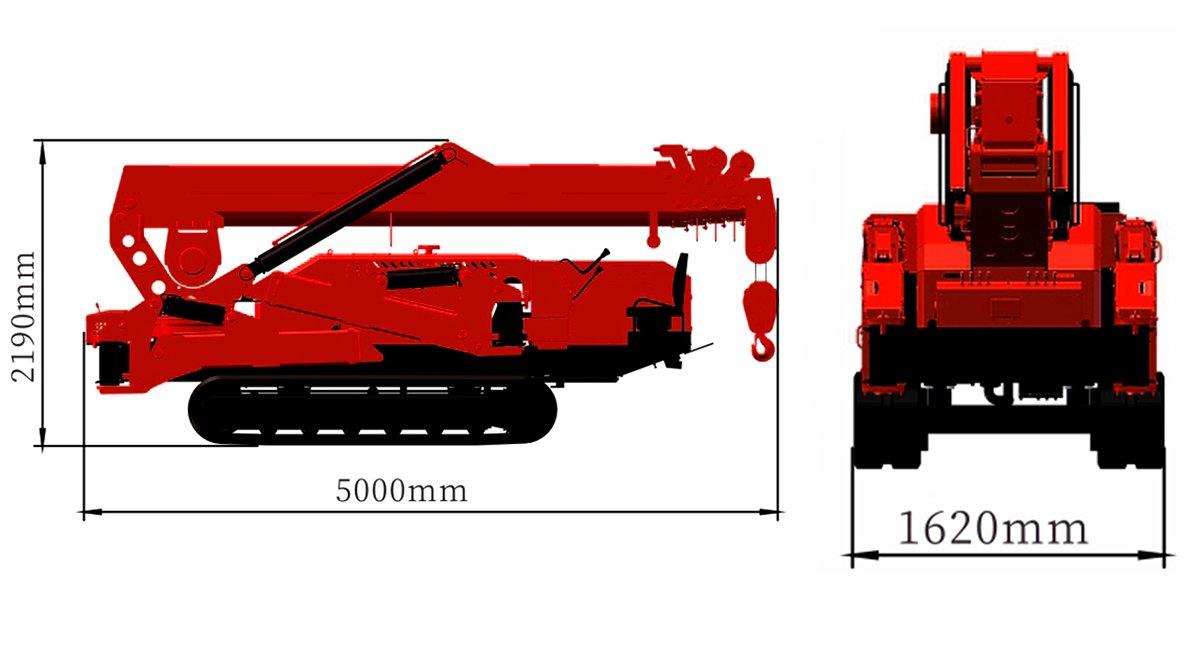

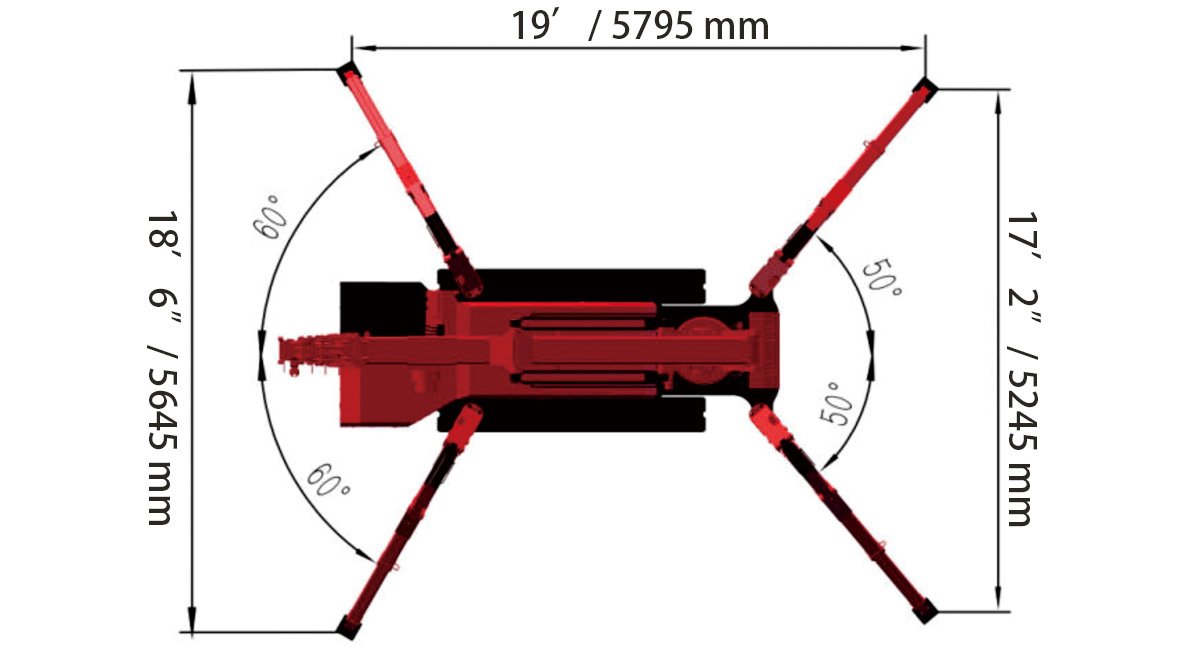

| Dimensions (L×W×H): 16' 5" × 5' 4" × 7' 2" (5000 × 1620 × 2190 mm) | Outrigger Footprint: 19' × 18' 6" × 17' 2" (5795 × 5645 × 5245 mm) |
| Model | GSC80DM | GSC80D | GSC80E | ||
| DUAL POWER | DIESEL | LITHIUM BATTERY | |||
| AC ELECTRIC | AC ELECTRIC | ||||
| Engine Model | 4TNV88 (YANMAR) | Lithium battery | |||
| Starting method | Electric Start | DC motor (with battery pack) | |||
| Maximum Output | 33.8 HP | 26.8 HP | |||
| Fuel / Battery Capacity | 11.9 gal | 80V / 460Ah | |||
| Electric Motor | Configurable to Local Standards (110V - 480V) | ||||

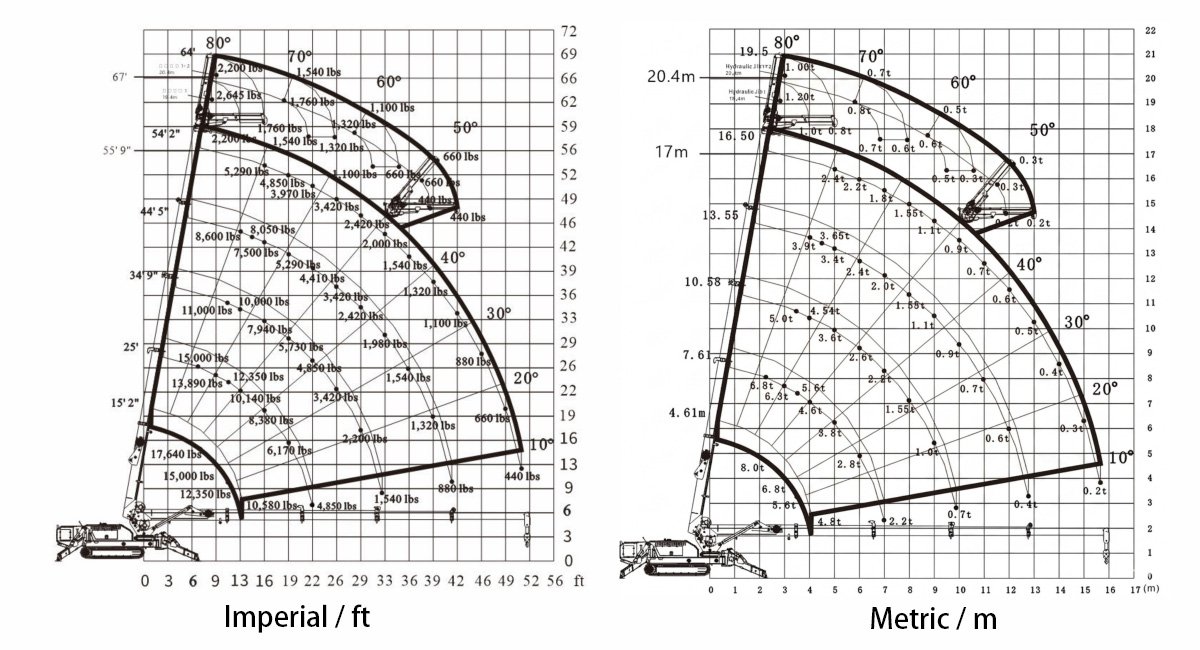

| Crane Capacity | 17,600 lbs @ 8' 2" | ||||
| Max.Working Radius | 51' 6" @ 440 lbs | ||||
| Max.Lifting Height（OG） | 55' 9" | ||||
| Winch System | Hook Speed | 0 - 32.8 FPM (4-Part Line) | |||
| Wire Rope | 15/32" × 328' | ||||
| Telescopic System | Boom Type | U type automatic 5 section | |||
| Boom Length | 15' 2" - 54' 2" | ||||
| Telescopic Length / Speed | Approx. 34 sec (fully extended) | ||||
| Boom Lift Speed | Boom Angle / Speed | 0 - 80° / 24.5sec | |||
| Slewing System | Slewing Angle / Speed | 0-360°Continuous / 29sec | |||
| Outrigger | Outrigger | Manual operation for the first section,automatic for the 2,3section | |||
| Max Extended Dimensions | 19' × 18' 6" × 17' 2" | ||||
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed | |||
| Travel Speed | 0 - 0.87 / 0 - 1.8 mph | ||||
| Gradability | 20° | ||||
| Track Footprint (L × W) | 7' 2" × 14" | ||||
| Track Ground Pressure | 7.0 psi | 7.4 psi | |||
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft | |||
| Outriggers | Proportional Wireless | ||||
| Travel | Manual operation | Dual-Mode (Wireless & Manual) | |||
| boom | |||||
| Dimension(L×W×H) | 16' 5" × 5' 4" × 7' 2" | ||||
| Hydraulic Oil Tank Capacity | 26.4 gal | ||||
| Vehicle weight | 16,204 lbs | 16,535 lbs | |||
| Safety System | Level, LMI, Three Color Lamp, Emergency Stop Button, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | ||||
