High-Torque Powerhouse for Heavy Industrial & Substation Operations

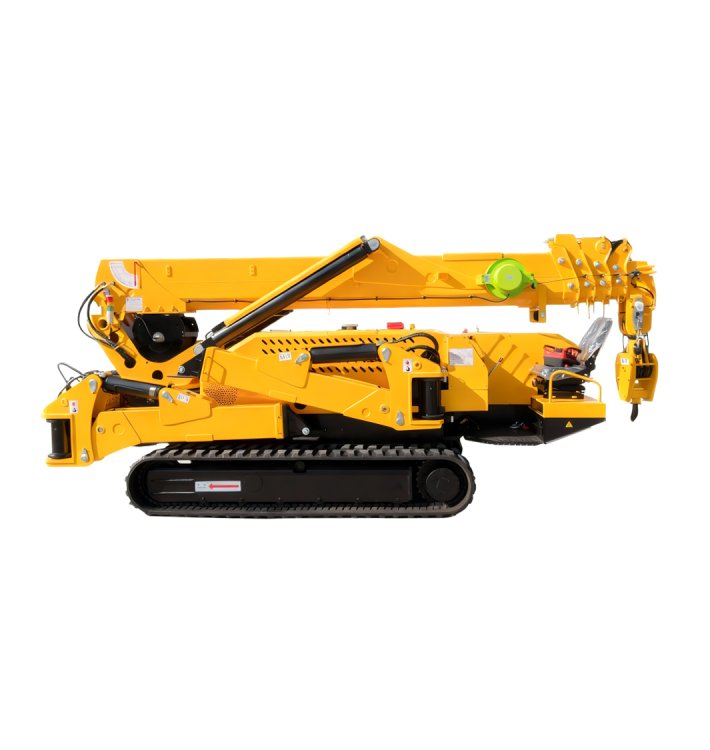

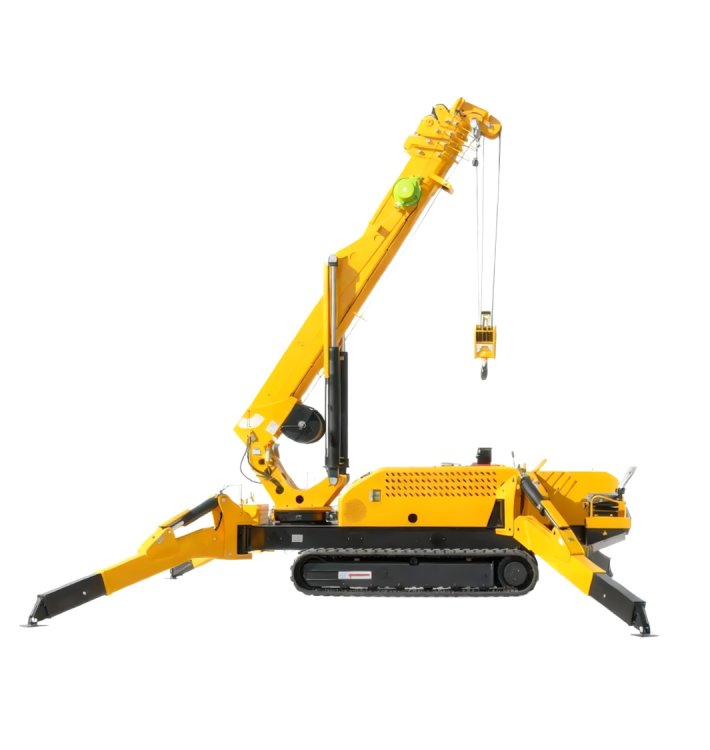

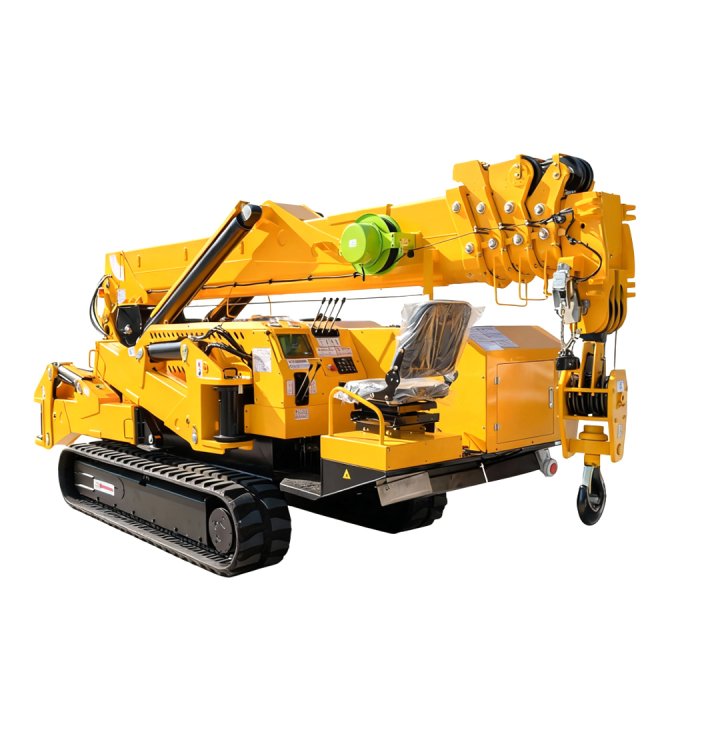

Powered by a Diesel Engine + AC Electric Plug-In Motor dual-power system, this 8-ton mini crawler crane delivers a max capacity of 17,600 lbs (8.0 t @ 8' 2") and a 55' 9" (17 m) reach. A wireless proportional remote control operates the outriggers, travel, and boom. Engineered for precision steel structure erection, rooftop hoisting, and electrical equipment assembly in power substations and narrow architectural gaps, it offers high-torque diesel performance for rugged outdoor sites, with the flexibility to plug into AC shore power for zero-emission indoor lifting
| Power: Diesel Engine + Electric Motor | Max. Capacity: 17,600 lbs @ 8' 2" (8.0 t × 2.5 m) |
| Max. Lifting Height (OG): 55' 9" (17 m) | Max. Lifting Height (UG): 427' (130 m) |
| Max. Working Radius: 51' 6" @ 440 lbs (15.7 m × 0.2 t) | Vehicle Weight: 16,204 lbs (7350 kg) |
Live Demo: Watch the 8-Ton Spider Crane Navigating Ultra-Tight Spaces & Scaffolding on Jobsite!
| Model | GSC80DM | GSC80D | GSC80E | ||
| DUAL POWER | DIESEL | LITHIUM BATTERY | |||
| AC ELECTRIC | AC ELECTRIC | ||||
| Engine Model | 4TNV88 (YANMAR) | Lithium battery | |||
| Starting method | Electric Start | DC motor (with battery pack) | |||
| Maximum Output | 33.8 HP | 26.8 HP | |||
| Fuel / Battery Capacity | 11.9 gal | 80V / 460Ah | |||
| Electric Motor | Configurable to Local Standards (110V - 480V) | ||||
| Crane Capacity | 17,600 lbs @ 8' 2" | ||||
| Max.Working Radius | 51' 6" @ 440 lbs | ||||
| Max.Lifting Height（OG） | 55' 9" | ||||
| Winch System | Hook Speed | 0 - 32.8 FPM (4-Part Line) | |||
| Wire Rope | 15/32" × 328' | ||||
| Telescopic System | Boom Type | U type automatic 5 section | |||
| Boom Length | 15' 2" - 54' 2" | ||||
| Telescopic Length / Speed | Approx. 34 sec (fully extended) | ||||
| Boom Lift Speed | Boom Angle / Speed | 0 - 80° / 24.5sec | |||
| Slewing System | Slewing Angle / Speed | 0-360°Continuous / 29sec | |||
| Outrigger | Outrigger | Manual operation for the first section,automatic for the 2,3section | |||

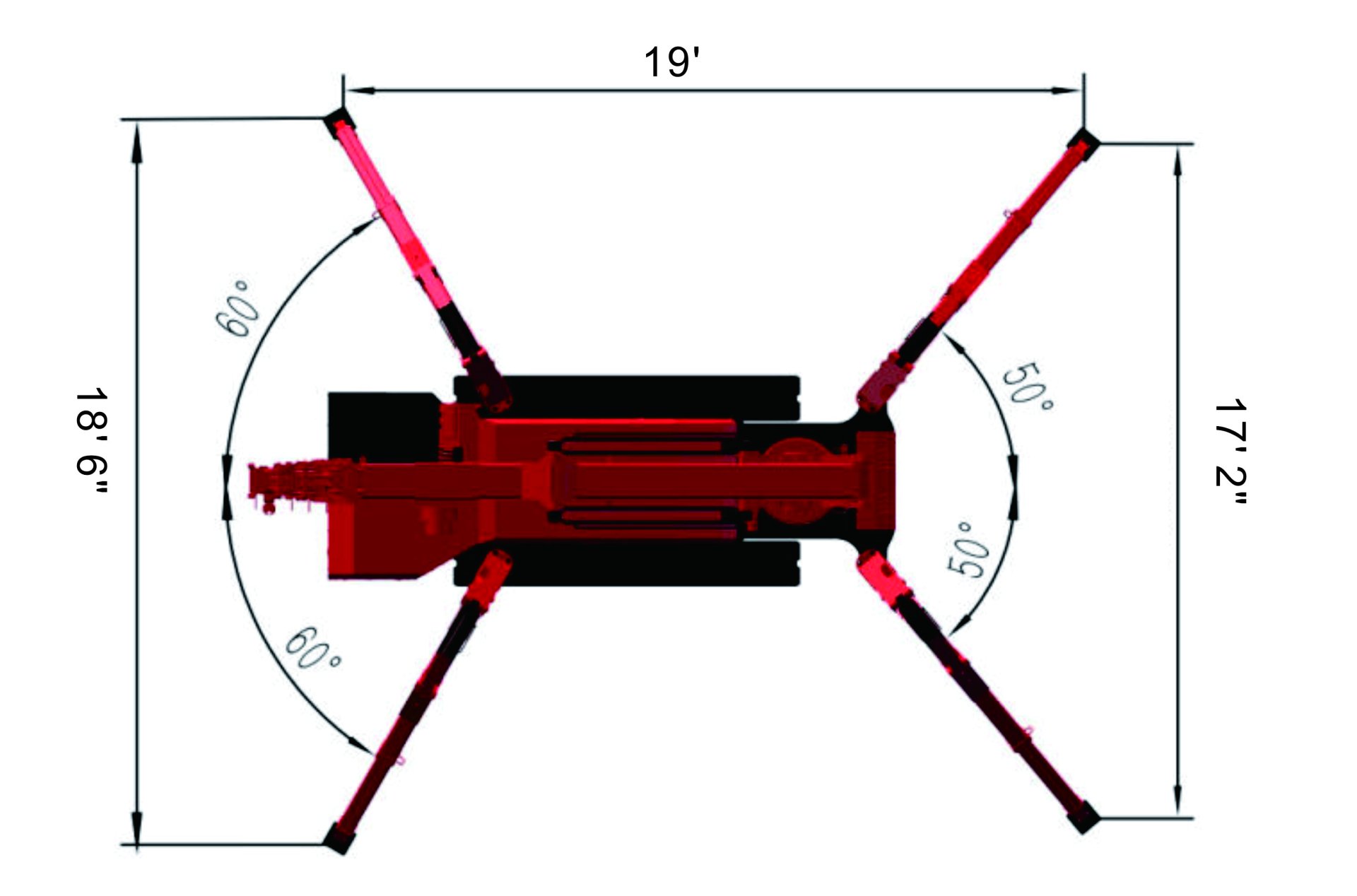

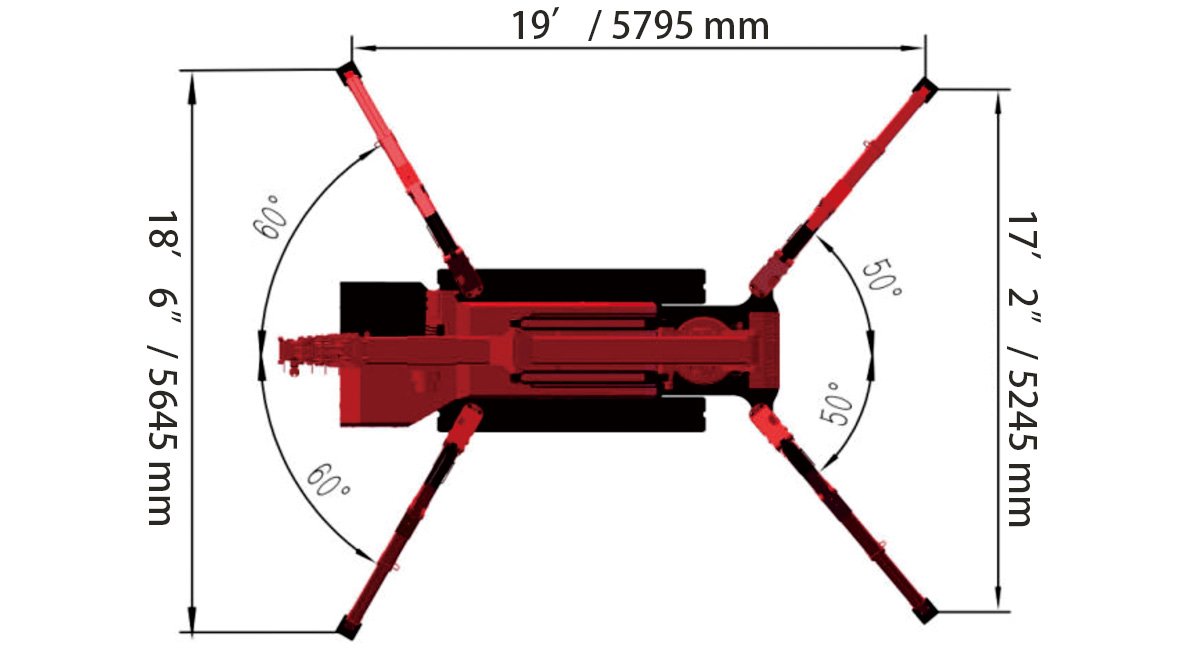

| Max Extended Dimensions | 19' × 18' 6" × 17' 2" | ||||
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed | |||
| Travel Speed | 0 - 0.87 / 0 - 1.8 mph | ||||
| Gradability | 20° | ||||
| Track Footprint (L × W) | 7' 2" × 14" | ||||
| Track Ground Pressure | 7.0 psi | 7.4 psi | |||
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft | |||
| Outriggers | Proportional Wireless | ||||
| Travel | Manual operation | Dual-Mode (Wireless & Manual) | |||
| boom | |||||

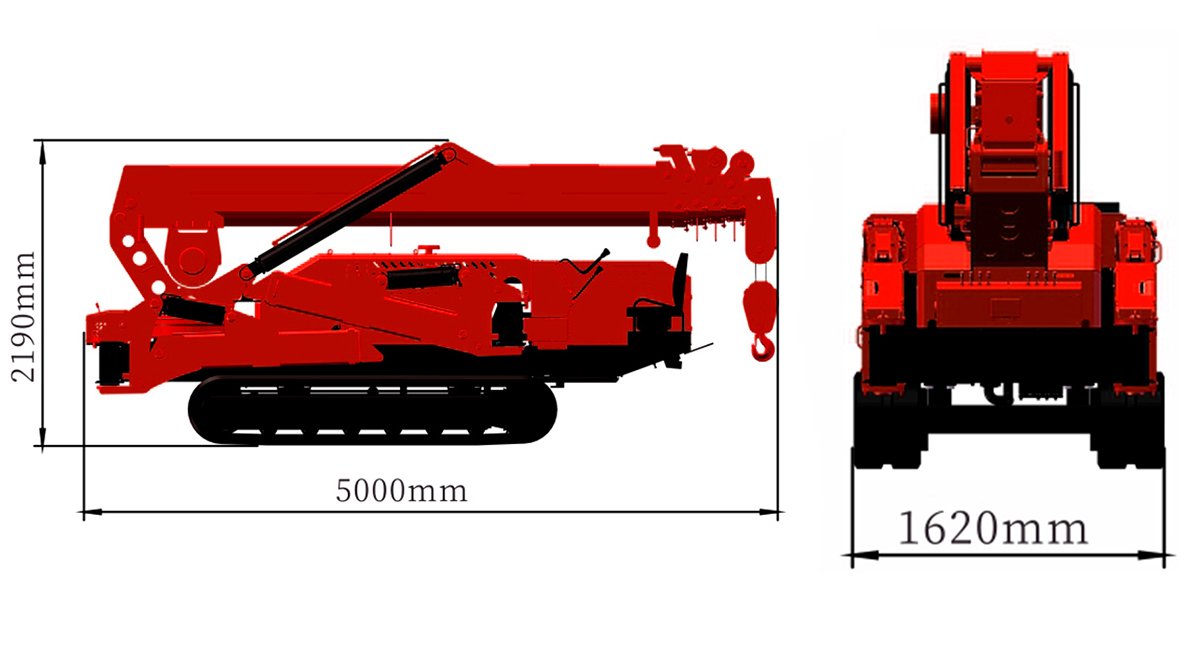

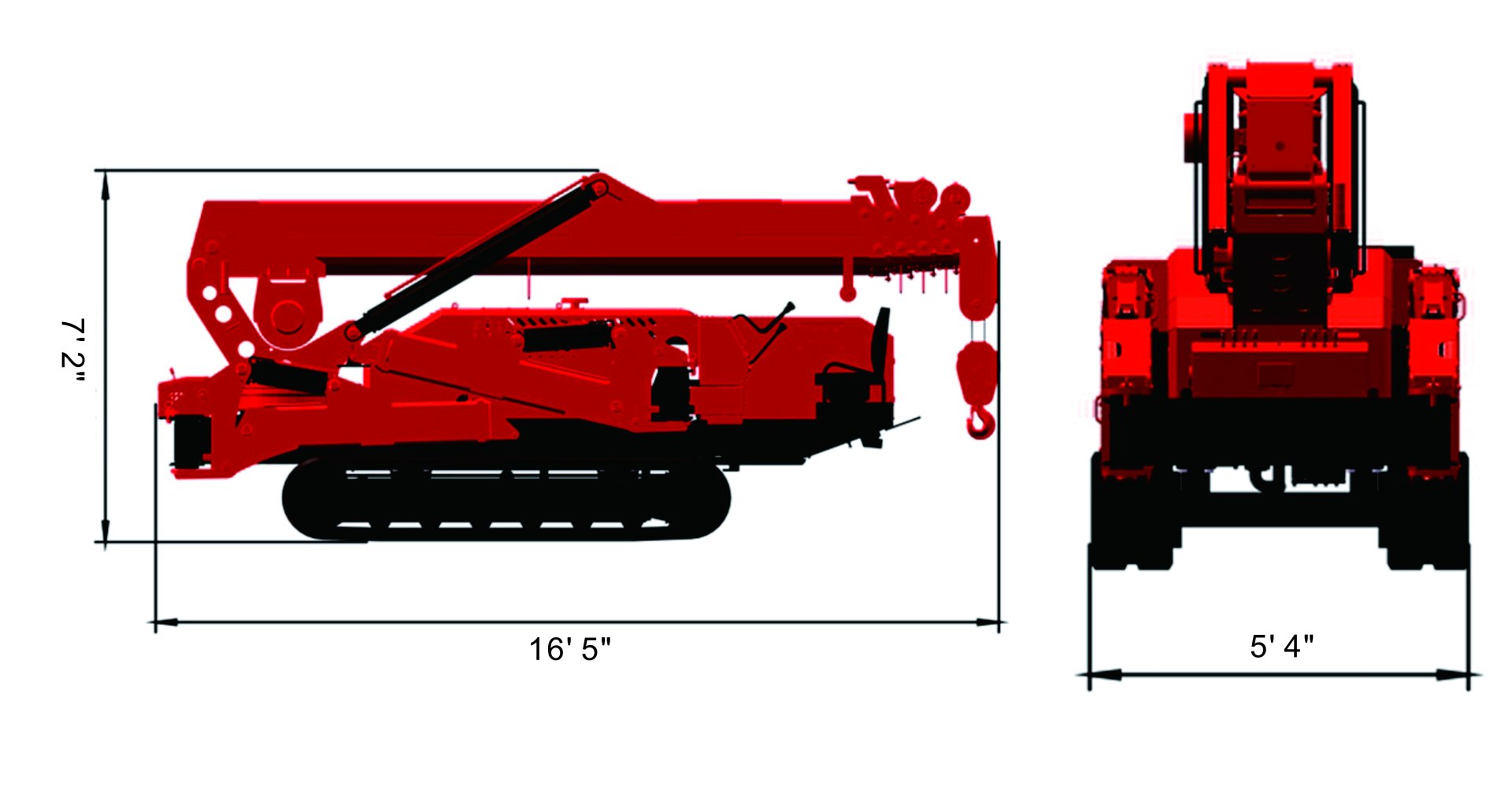

| Dimension(L×W×H) | 16' 5" × 5' 4" × 7' 2" | ||||
| Hydraulic Oil Tank Capacity | 26.4 gal | ||||
| Vehicle weight | 16,204 lbs | 16,535 lbs | |||
| Safety System | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | ||||
24" (600 mm) width fits standard doors. Ideal for narrow access & glass installation.
Max Capacity: 2,205 lbs @ 4.9' / 1 .0 t × 1 .5 m
Max Lifting Height (OG): 18' 4" / 5 .6 m
6,500 lbs / 3 t Mini Tracked Crawler Crane for Glass Installation & Steel Erection.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
High-torque 3-ton gasoline crawler crane for outdoor industrial projects.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Silent 3-ton electric mini crane engineered for indoor glazing jobs.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
5-ton compact crawler crane for data centers and steel structure erection.
Max Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m
Max. Lifting Height (OG): 43' / 13.1 m
17,600 lbs / 8 t Small Crawler Crane for Precision Steel Structure Erection
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
17,600 lbs heavy-duty crane. Zero-emission power for rooftop lifting.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Manual Controls for Boom and Travel Operations Significantly Reduce Electronic Complexity and Long-Term Maintenance Costs.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
When operating lifting equipment in confined or complex job sites, safety is not optional—it’s critical. One of the most important safety features in modern mini crawler cranes is the Load Moment Indicator (LMI) system.
Maximizing Efficiency: GLT LIFTS Mini Crawler Crane for Steel Structure Erection and Heavy-Duty Lifting
At the nerve center of energy supply—the substation—every lifting operation is a game of millimeters.
An 8-ton spider crane is often considered when a truck-mounted crane cannot access the required lifting position. Its compact tracked design allows it to work in tight courtyards, building interiors, rooftops, rear construction areas, and other restricted-access sites where conventional truck cranes may not be practical. The right choice still depends on the required lifting capacity, reach, access route, ground or slab conditions, and jobsite setup.
Yes. We offer a versatile range of mini crawler cranes to match changing jobsite demands:
Up to 2,000 lbs: Compact, agile models ideal for tight indoor spaces and glass installation.
Up to 15,000 lbs: Our heavy-duty 8-ton mini crawler crane (max capacity ~17,600 lbs), perfect for steel beams and industrial machinery moving.

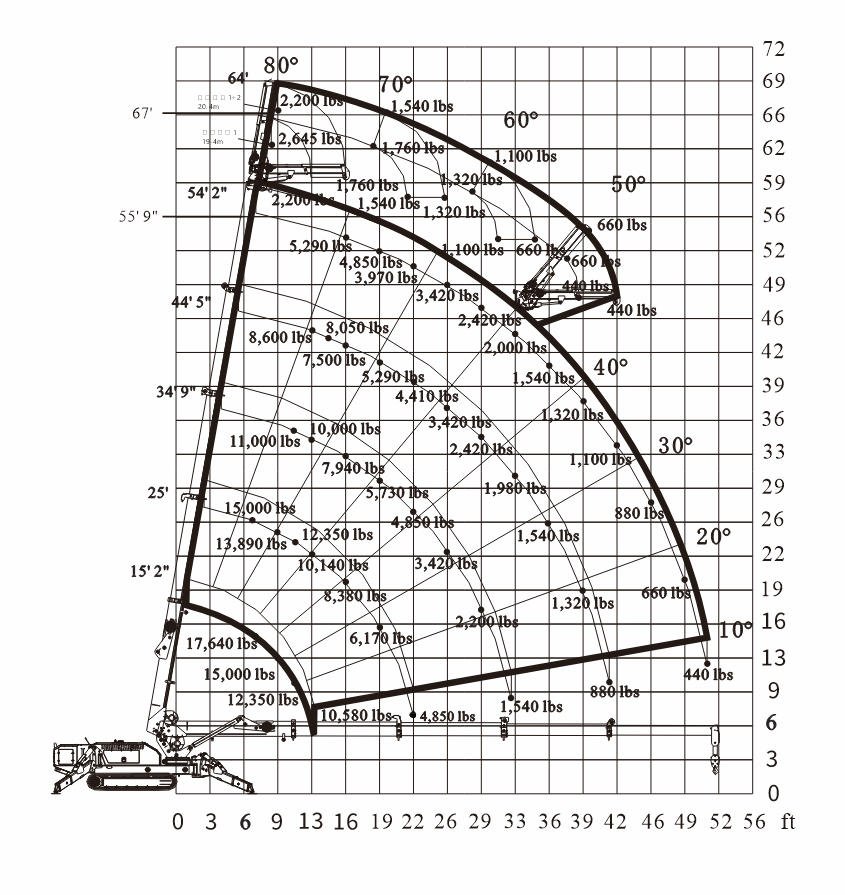

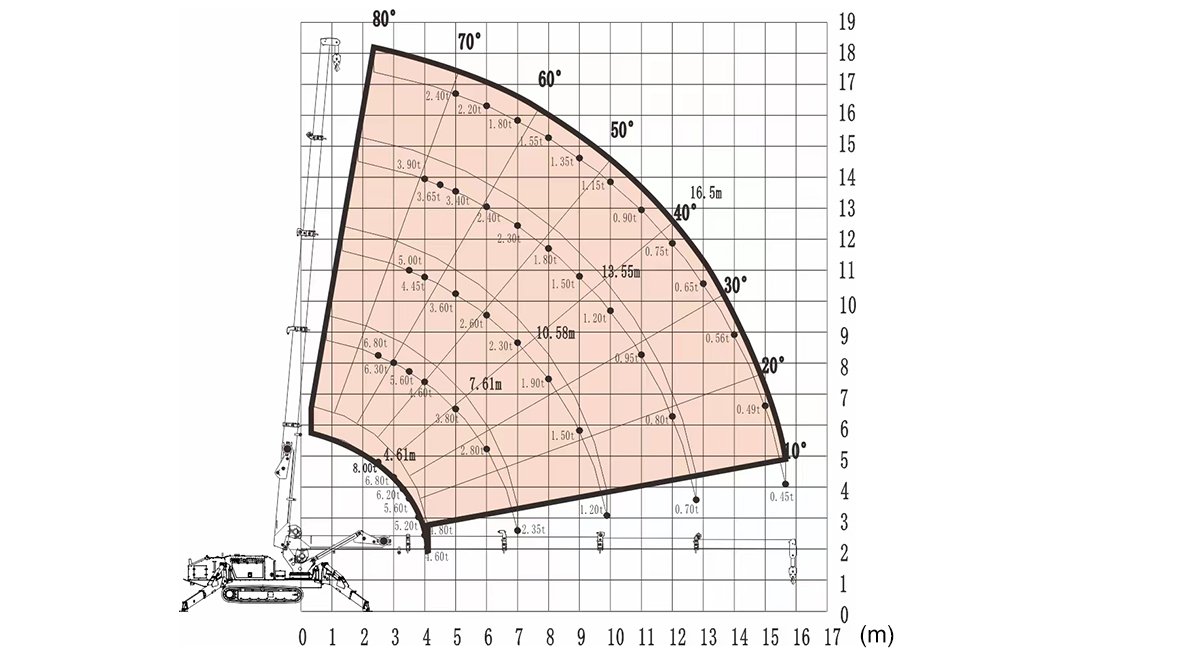

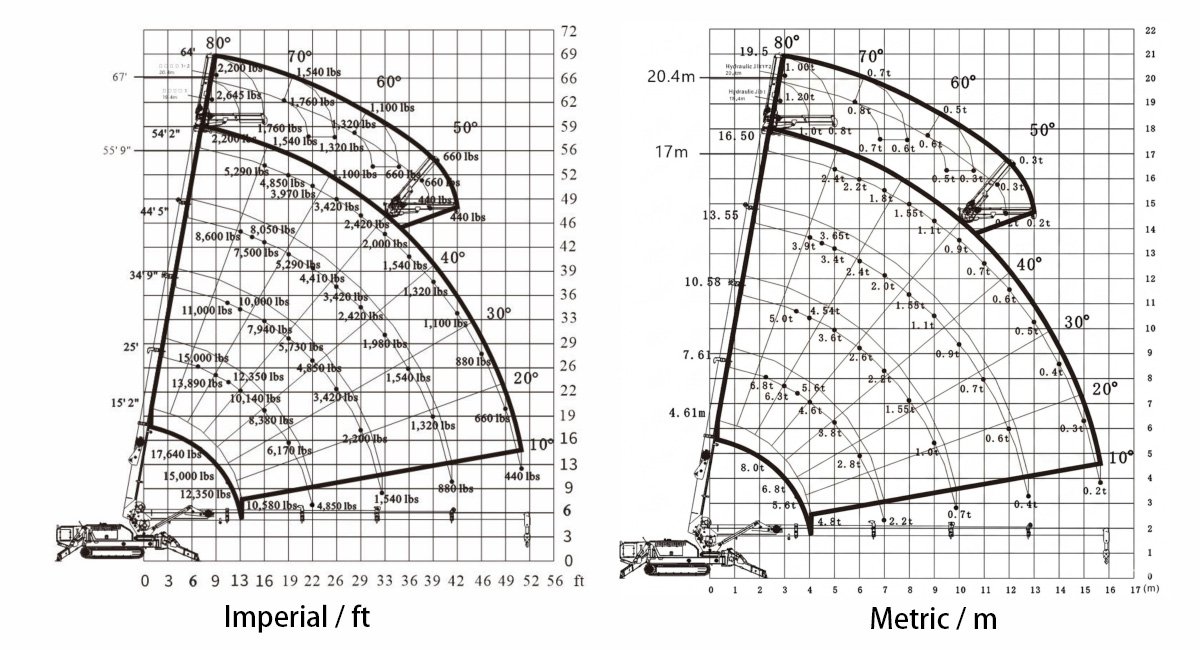

Note: Lifting capacity varies based on your working radius and boom extension. Please check our official Load Moment Indicator (LMI) charts for exact safety ratings.
Data aligned with the Load Moment Indicator (LMI) system for safety compliance
GLT LIFTS mini crawler cranes come with a 1-year full-machine warranty.
If any issues arise during the warranty period, please contact our support team immediately.
Yes. At GLT LIFTS, we maintain a comprehensive spare parts inventory specifically for our small crawler crane models.
Supported by our dedicated warehouse, we ensure a rapid response to all service needs. Whether you need common wear parts or critical components, our inventory is designed to keep your projects running without interruption.
Need to check part availability?
Yes, but only after site-specific structural verification. The crane should not be placed directly on the slab. Obtain the manufacturer's maximum outrigger reaction force and have a qualified structural engineer verify the slab capacity and required cribbing/outrigger Pads or steel plates. Position outriggers only in structurally approved areas, and use temporary shoring if required.
Yes. At GLT LIFTS, we provide Bi-energy solutions across our entire range to ensure maximum flexibility on the job site. By combining zero-emission electric motors with your choice of diesel, gasoline, or lithium battery power, our machines can seamlessly transition from rugged outdoor terrain to sensitive indoor spaces.
These dual-power configurations are environmentally friendly and approved for use in all regions, including those with strict noise and emission regulations. Whether you are working in a confined interior hallway or a remote construction site, our Bi-energy models provide the reliable performance you need.
