Smooth, High-Performance Control for Residential & Commercial Work
Featuring a Gasoline Engine + AC Electric Motor dual-power setup, this 3-ton mini crawler crane balances smooth, responsive operation with a robust 6,500 lbs (2.95 t) lifting capacity. It allows seamless plug-in AC electric operation for noise-sensitive indoor glazing and facility maintenance, as well as dependable gasoline power for fast, efficient outdoor maneuvers.
| Power: Gasoline Engine + Electric Motor | Max. Capacity: 6,500 lbs @ 4' 3" (2.95 t × 1.3 m) |
| Max. Lifting Height (OG): 30' 2" (9.2 m) | Max. Lifting Height (UG): 328' (100 m) |

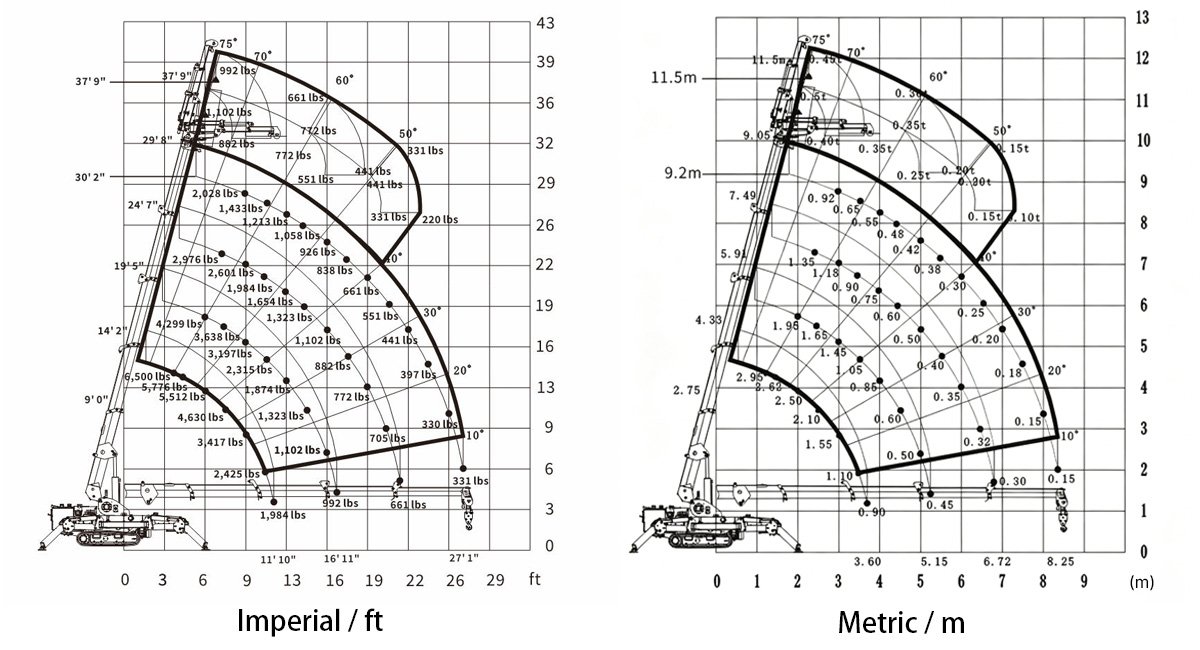

| Max. Working Radius: 27' 1" @ 330 lbs (8.25 m × 0.15 t) | Vehicle Weight: 5,030 lbs (2300 kg) |

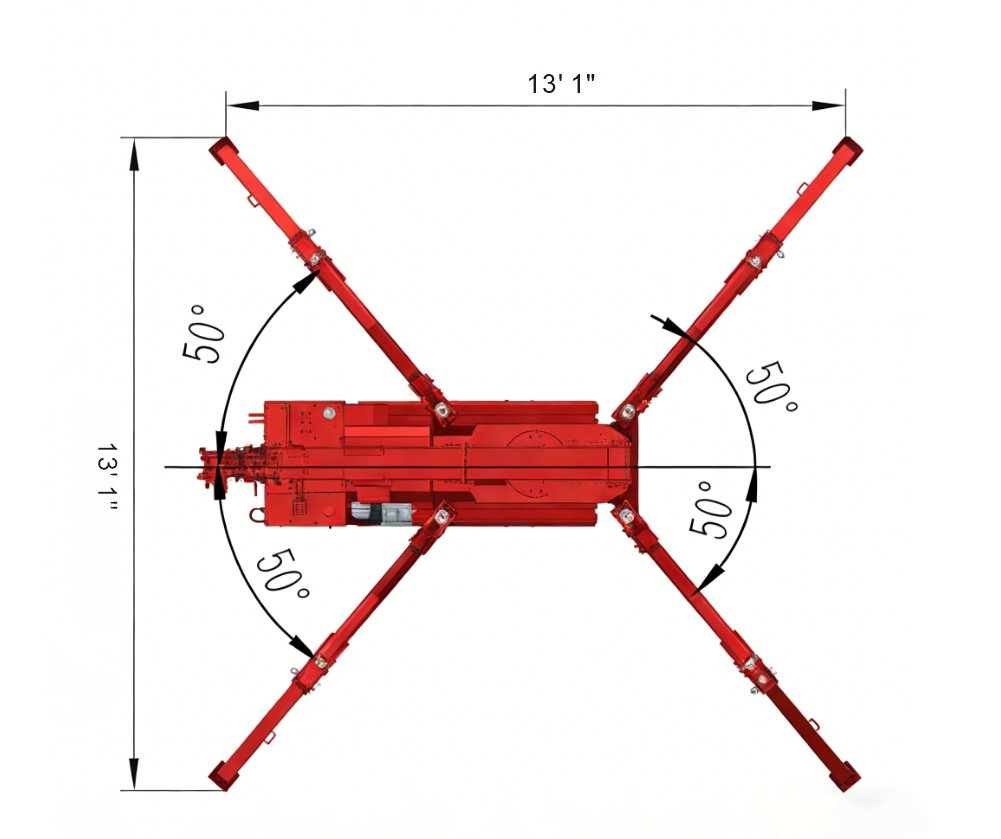

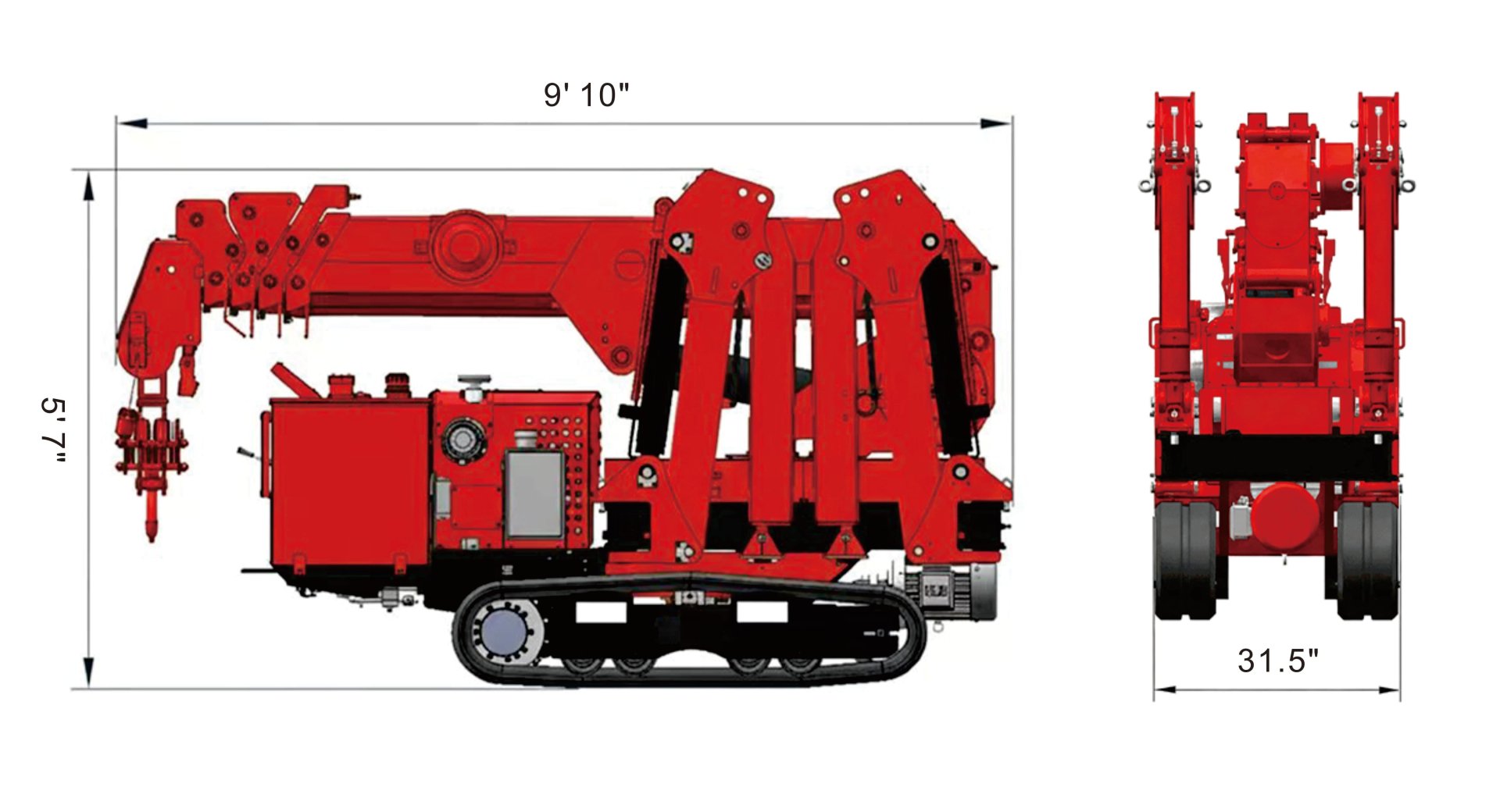

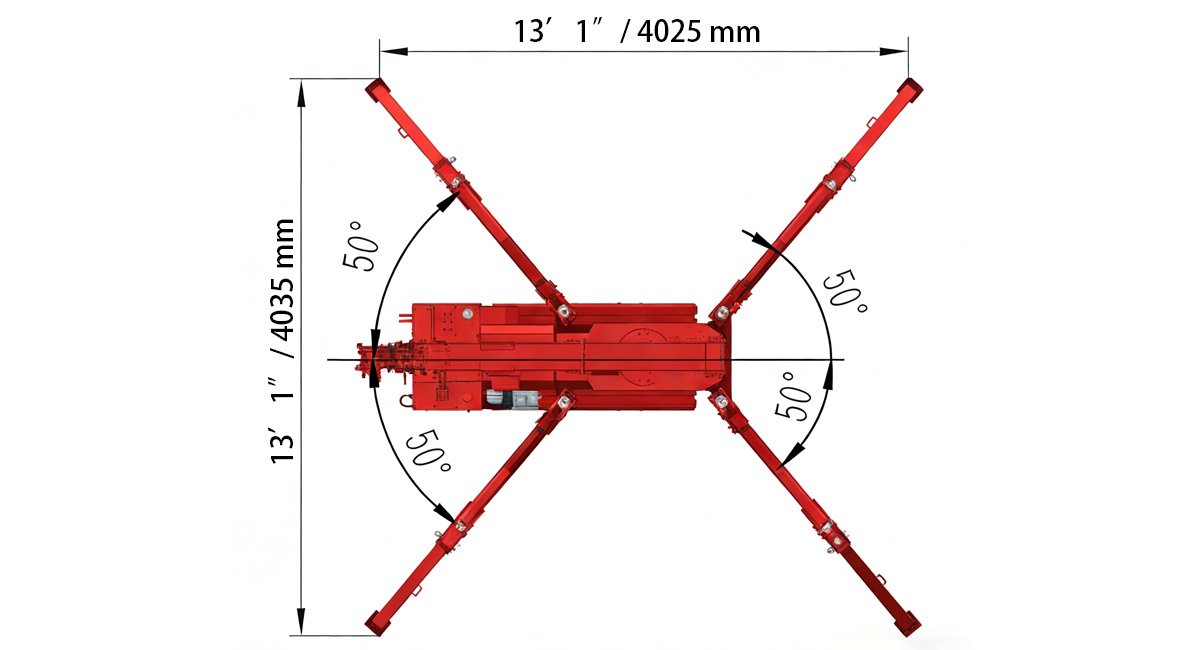

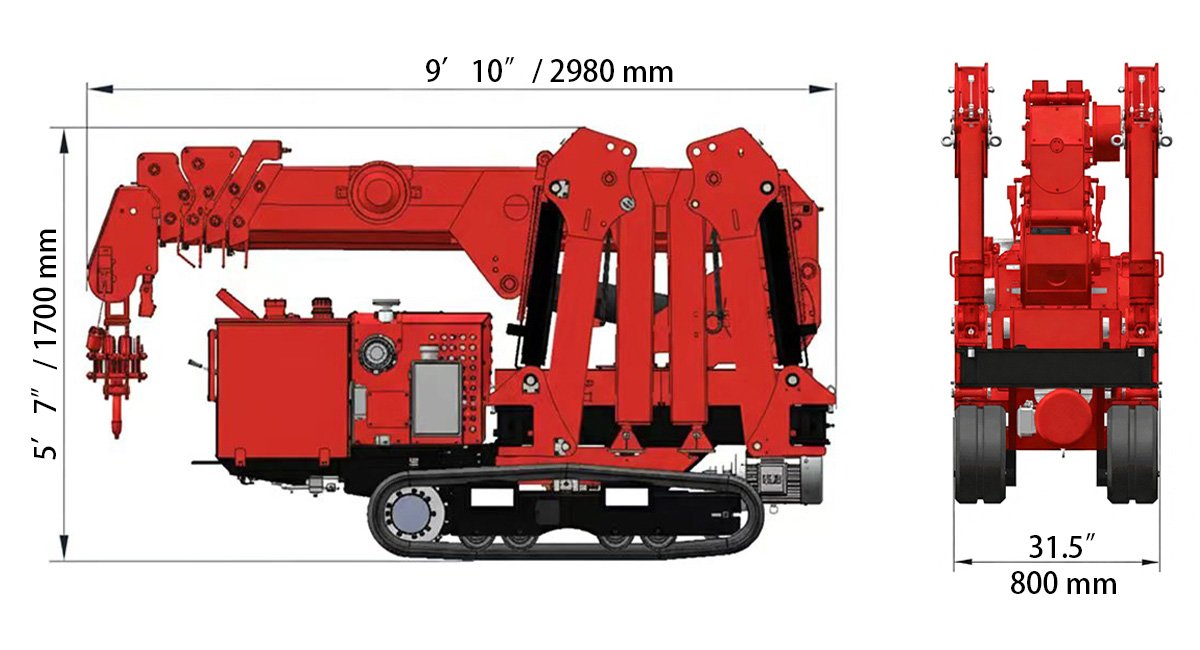

| Dimensions (L×W×H): 9' 10" × 31.5" × 5' 7" (2980 × 800 × 1700 mm) | Outrigger Footprint: 13' 1" × 13' 1" (4025 × 4035 mm) |
| Model | GSC30D | GSC30G | GSC30E | |||||||||||||||||||||||
| DUAL POWER | DIESEL | GASOLINE | LITHIUM BATTERY | |||||||||||||||||||||||
| AC ELECTRIC | AC ELECTRIC | AC ELECTRIC | ||||||||||||||||||||||||
| Engine Model | 3TNV74 (YANMAR) | HONDA GX390 | DC Motor | |||||||||||||||||||||||
| Starting Method | Electric Start | DC Motor (with battery pack) | ||||||||||||||||||||||||
| Maximum Output | 15.0 HP | 8.9 HP | 8.0 HP / 3,000 RPM | |||||||||||||||||||||||
| Fuel / Battery Capacity | 3.7 gal | 1.6 gal | 48 V | |||||||||||||||||||||||
| Electric Motor | Voltage | 110V AC, 60Hz, 1-Phase | ||||||||||||||||||||||||
| Power/Speed | 3 HP / 1700 RPM | |||||||||||||||||||||||||

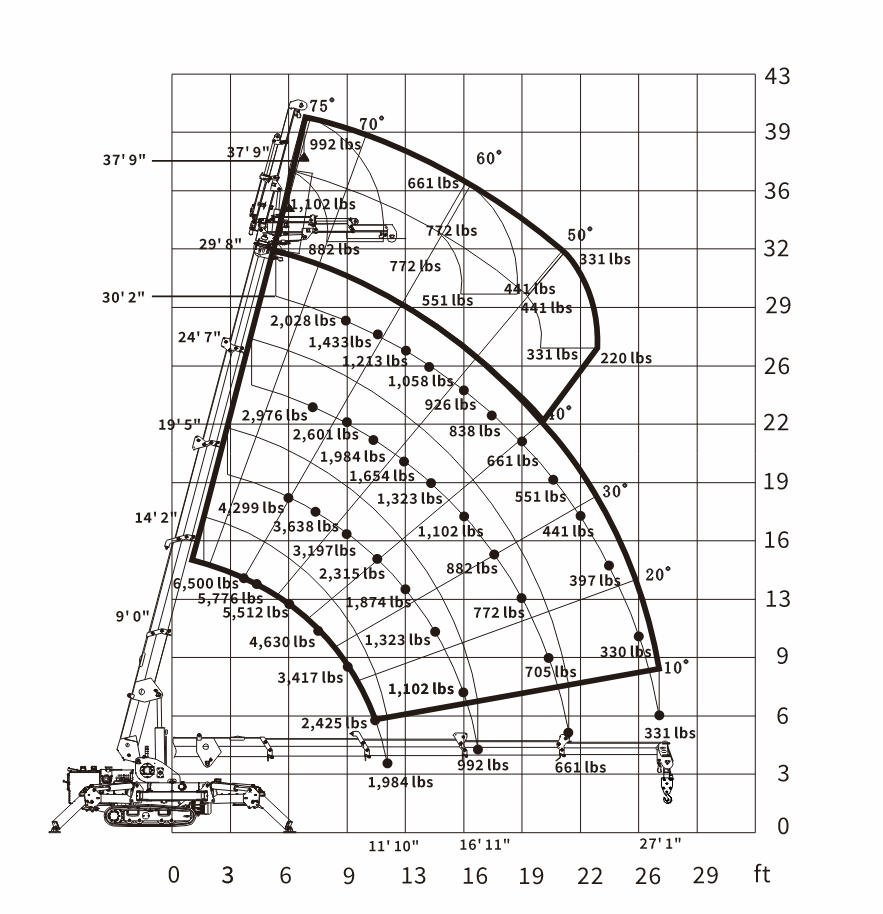

| Crane Capacity | 6,500 lbs @ 4' 3" | |||||||||||||||||||||||||
| Max.Working Radius | 27' 1" | |||||||||||||||||||||||||
| Max.Lifting Height（On ground） | 30' 2" | |||||||||||||||||||||||||
| Winch System | Winch | Dual-speed Hydraulic Motor | ||||||||||||||||||||||||
| Hook Speed | Low Speed 17.4 FPM; High Speed 33.5 FPM | Low Speed 8.2 FPM; High Speed 14.8 FPM | ||||||||||||||||||||||||
| Wire Rope | 5/16" × 361' (Max) | |||||||||||||||||||||||||
| Telescopic System | Boom Type | U type automatic 5 section | ||||||||||||||||||||||||
| Boom Length | 9' 0" – 29' 8" | |||||||||||||||||||||||||
| Telescopic Length / Speed | Approx. 25sec(fully extended) | Approx. 20sec(fully extended) | ||||||||||||||||||||||||
| Boom Lift Speed | Boom Angle / Speed | 0 - 75° / 18sec | ||||||||||||||||||||||||
| Slewing System | Slewing Angle / Speed | 360° Continuous Slewing / 40sec | ||||||||||||||||||||||||
| Outrigger | Outrigger | Manual operation for the first section, automatic for the2,3 section | ||||||||||||||||||||||||
| Maximum Extended Dimensions | 13' 1" × 13' 1" | |||||||||||||||||||||||||
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed | ||||||||||||||||||||||||
| Travel Speed | 0 – 1.0 / 0 – 1.8 mph | 0 – 0.6 / 0 – 1.0 mph | ||||||||||||||||||||||||
| Gradability | 20°(36.4%) | |||||||||||||||||||||||||
| Track Footprint (L × W) | 3' 3" × 8" | |||||||||||||||||||||||||
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft | ||||||||||||||||||||||||
| Outriggers | Dual-Mode (Wireless & Manual) | Manual Operation | Dual-Mode (Wireless & Manual) | |||||||||||||||||||||||
| Travel | Manual Operation | |||||||||||||||||||||||||
| Boom | Dual-Mode (Wireless & Manual) | |||||||||||||||||||||||||

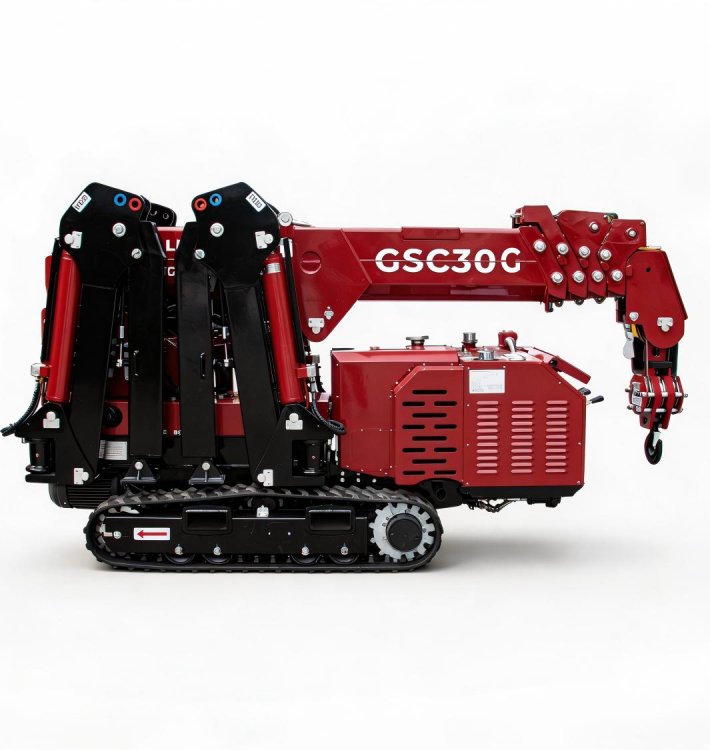

| Dimension (L × W × H) | 9' 10" × 31.5" × 5' 7" | |||||||||||||||||||||||||
| Hydraulic Oil Tank Capacity | 10.6 gal | |||||||||||||||||||||||||
| Vehicle Weight | 5,290 lbs | 5,070 lbs | 5,510 lbs | |||||||||||||||||||||||
| Safety System | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tpping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), Automatic Leveling, One-Touch Hook Auto-Stow | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tipping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, Anti-Tpping Alarm, 3-Mode Safety Interlock (Travel / Outrigger / Boom), Automatic Leveling,One-Touch Hook Auto-Stow | |||||||||||||||||||||||
