The battery system has passed a marine transportation appraisal and uses dedicated short-circuit protection. The battery pack is securely fixed inside its outer packaging to reduce movement and protect the system during handling and transportation.A Report for Safe Transport of Goods is available upon request.
The battery system includes built-in safety protection and has passed short-circuit, crush, and overcharge tests.
Short-circuit test: No rupture, disassembly, or fire was observed.
Crush test: No fire or structural collapse occurred after mechanical deformation.
Overcharge test: Tested at 57.6V and 400A, with no fire or breakdown during the test and subsequent 7-day observation.
These test results support the battery system's safety under severe test conditions.
Battery Test Reports and Safety Data Sheets (SDS) are available upon request.
The GSC80E lithium battery system has been tested under simulated high-altitude and thermal conditions. Testing covered temperatures from -40°C to 72°C and low-pressure conditions down to ≤11.6 kPa. The battery showed no leakage, venting, voltage failure, or fire during testing.
Battery Test Reports and Safety Data Sheets (SDS) are available upon request.
The GSC80E lithium battery system is suitable for normal job-site temperatures. In cold weather, battery performance and charging speed can decrease. Follow the specified operating and charging temperature range to protect battery life and performance. Battery Test Reports and Safety Data Sheets (SDS) are available upon request.
Choose the GSC80DM if you prefer manual controls for travel and boom and a more traditional operating setup.
Choose the GSC80D if you need wireless proportional control for the outriggers, travel, and boom functions.
Both models are 8-ton mini crawler cranes built for heavy-duty lifting applications.
Yes.
The crane uses a diesel engine and an AC electric motor.
The diesel engine is suitable for outdoor and remote work. The electric motor is useful for indoor or emission-sensitive areas when a suitable power supply is available.
The GSC80DM is a good choice for customers who value simple controls and easy maintenance.
Its less complex electronic system can make troubleshooting more straightforward. It is also suitable for demanding jobsites and remote projects.
Yes.
The GSC80DM includes a Load Moment Indicator (LMI), anti-two-block alarm, outrigger sensors, emergency stop button, and safety interlocks.
Manual control of the boom and travel functions does not remove these safety features.
The operator controls the boom and crawler travel functions through the crane’s onboard control system.
This design reduces the number of electronic control components. It also provides a simple and reliable way to operate the crane.
The main difference is the outrigger control system.
GSC80D: Uses a wireless proportional remote control for the outriggers, travel, and boom. It provides precise control during lifting and positioning.
GSC80DM: Uses manual controls for Travel and boom. It keeps the same diesel and dual-power configuration while offering a simpler control setup and lower equipment cost.
Both models are 8-ton mini crawler cranes for demanding lifting work.
A lithium-powered spider crane provides zero-emission, low-noise operation, making it suitable for indoor lifting, hospitals, commercial buildings, and other noise- or emission-sensitive sites. It also eliminates routine diesel-engine maintenance.
The standard GSC80E battery system is not designed for charging during operation. Continuous operation while charging is available as a customized option and should be specified when ordering.
The GSC80E can provide up to 8–10 hours of operation per full charge, depending on the workload and operating conditions.
An 8-ton spider crane is often considered when a truck-mounted crane cannot access the required lifting position. Its compact tracked design allows it to work in tight courtyards, building interiors, rooftops, rear construction areas, and other restricted-access sites where conventional truck cranes may not be practical. The right choice still depends on the required lifting capacity, reach, access route, ground or slab conditions, and jobsite setup.
Yes, but only after site-specific structural verification. The crane should not be placed directly on the slab. Obtain the manufacturer's maximum outrigger reaction force and have a qualified structural engineer verify the slab capacity and required cribbing/outrigger Pads or steel plates. Position outriggers only in structurally approved areas, and use temporary shoring if required.
Precision during glass glazing and steel erection is achieved through a Wireless Proportional Remote Control system, allowing smooth, micro-adjustments to protect fragile materials.
The GSC30E mini crawler crane delivers a maximum lifting capacity of 6,500 lbs (2.95 tons), engineered with a 5-section automatic U-type boom for optimal reach and strength.
The most common issue is broken teeth on the slew ring gear or reducer. During long-distance flatbed transportation, if the main boom is not firmly secured, travel vibration will generate massive shear forces that damage the slewing mechanism. Always lock and secure the main boom with heavy-duty tie-down straps before transporting any GLT LIFTS machine.
This is mostly due to soft ground foundations or restricted outrigger angles. In complex terrain, always place dedicated outrigger mats (cribbing) of sufficient area and ensure the Outrigger Interlock sensor of the compact crawler crane is fully engaged.
In low temperatures, hydraulic oil viscosity is higher, requiring time to build pressure. For optimal performance of your mini crawler crane, allow 10-15 minutes for a thorough engine warm-up and ensure the valves receive sufficient hydraulic flow.
Pure gasoline power indoors causes excessive exhaust emissions, noise, and heat dissipation issues (leading to "vapor lock"), failing EHS standards. For indoor sites, choose a Dual Power/Bi-Energy model for your compact crawler crane.
This is usually related to fuel degradation. If ethanol-blended gasoline is used, long-term storage of your small crawler crane can cause gum deposits that clog the carburetor jets. Always drain the fuel system before storage or use an ethanol-free fuel stabilizer.
Our 1-ton and 3-ton mini crawler cranes are the most popular models for the tree care and landscaping industry.
Equipped with rubber tracks, these compact crawler cranes easily navigate narrow backyard gates and operate on soft grass without causing property or turf damage. They provide the perfect lifting capacity and stability needed for safe tree trimming, sectioning, and log removal in confined residential spaces.
Yes. We offer a versatile range of mini crawler cranes to match changing jobsite demands:
Up to 2,000 lbs: Compact, agile models ideal for tight indoor spaces and glass installation.

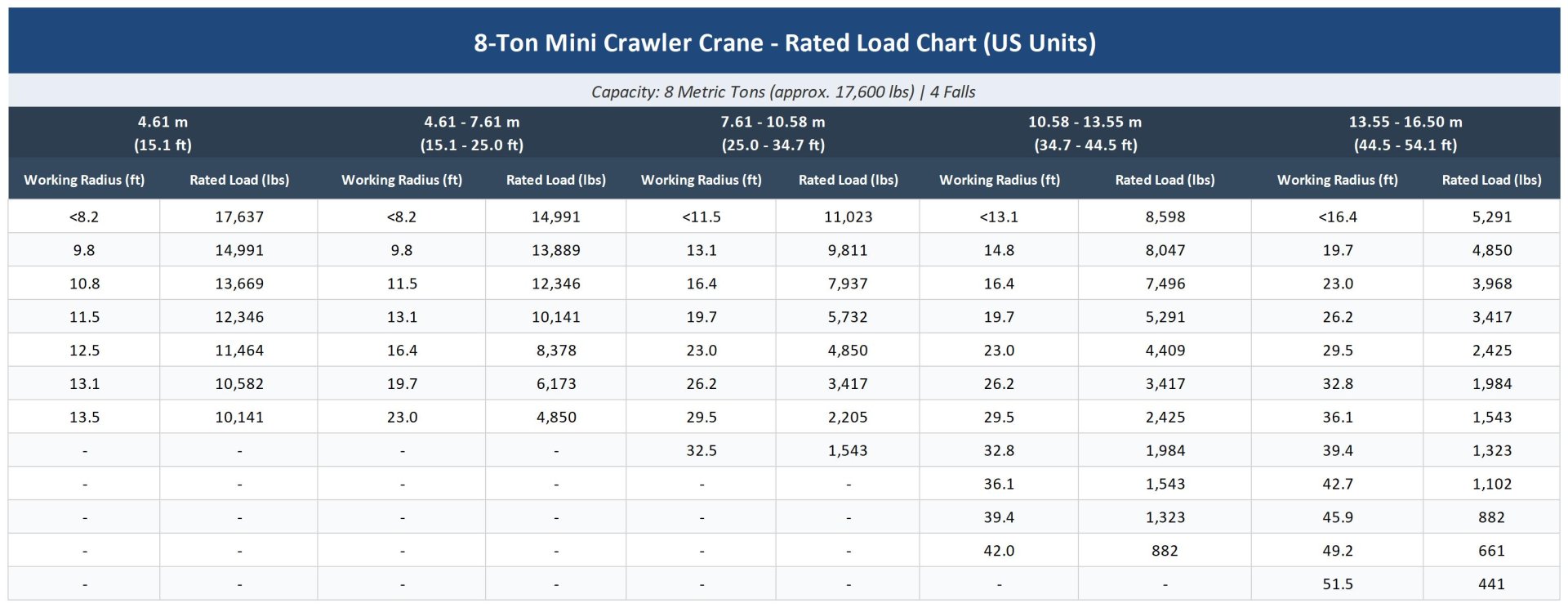

Up to 15,000 lbs: Our heavy-duty 8-ton mini crawler crane (max capacity ~17,600 lbs), perfect for steel beams and industrial machinery moving.
Note: Lifting capacity varies based on your working radius and boom extension. Please check our official Load Moment Indicator (LMI) charts for exact safety ratings.
Data aligned with the Load Moment Indicator (LMI) system for safety compliance
Our 8-Ton Small Crawler Crane (GSC80 Series) is the industry standard for container logistics. It excels in heavy material handling and high-reach stability.
Key Advantages:
Dual Power (Diesel + Electric):Seamlessly switch between diesel for outdoor power and 380V-415V electric for emission-free indoor operations.
Tier Stacking: Reaches up to 55.75 ft, ideal for precise multi-tier container stacking.
Wider Coverage: a 51.5 ft working radius reduces the need for frequent machine repositioning.
Heavy Lifting at Reach: Safely lifts 2,200 lbs even at maximum horizontal extension.

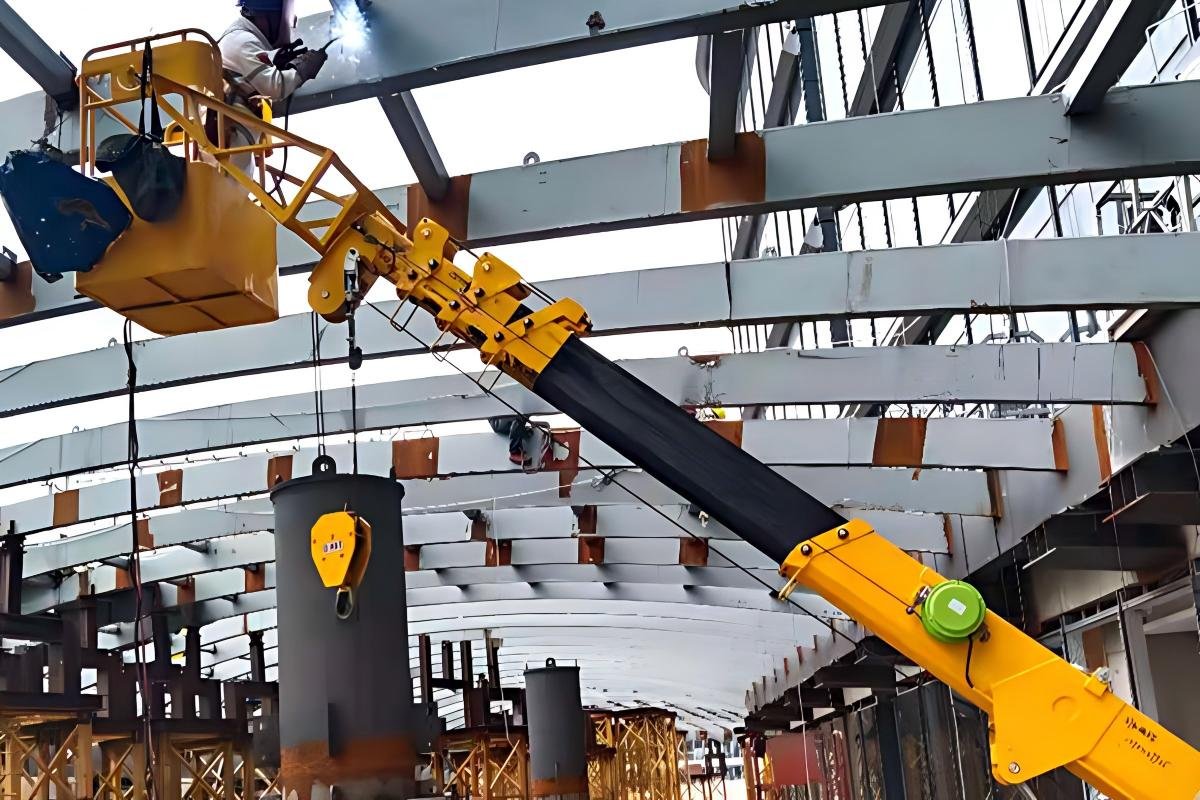

2-in-1 Versatility: Easily swaps between a heavy-duty hook and a personnel work basket for dual-use stacking and maintenance.
Yes, we prioritize indoor safety and air quality. We offer Bi-Energy (Diesel + Electric / Gasoline Electric ) and Full Electric configurations specifically designed for sensitive environments. These models allow you to travel and operate using 100% emission-free power, making them ideal for:
Museums & Art Galleries: Precise control without harmful fumes.
Food Processing Facilities: Meeting strict hygiene and air quality standards.
Narrow Corridors: With a compact chassis, our lifts can navigate through standard doorways and tight indoor hallways with ease.
Whether you are performing maintenance or installation, our electric options ensure your crew can work safely indoors without the noise or exhaust of a traditional engine.
Need a Zero-Emission solution for your indoor project?
Get a free configuration plan & quote within 24 hours
To safely handle 4,000 lbs (2 tons) stone pallets, we generally recommend our 3-ton or 5-ton mini crawler crane models, such as the GSC30 or GSC50. The best choice depends on your specific maximum Lifting Height and working radius. Since lifting capacity decreases as the boom extends, providing these two details will allow us to recommend the precise model and provide a competitive quote.
Need help selecting the right mini crawler crane?
Send us your lifting height, working radius, and load details. Our engineers can recommend the right model and review the load chart for your application.
We offer professional equipment loan services tailored specifically for B2B clients. Our heavy machinery payment plans are designed to help you buy a mini crane with man basket accessories while maintaining a healthy cash flow.
Request a customized payment plan here to get your equipment on-site with lower upfront costs.
Yes, we provide custom lifting solutions within the 90–100 ft range. While most compact mini crawler cranes are designed for lower heights, GLT LIFTS specializes in high-reach mini crawler crane engineering. These models are typically custom-built machines tailored to specific job site requirements, ensuring a perfect balance between a compact footprint and maximum vertical reach. If your project requires an extended boom up to 100 ft, please contact our technical team for a bespoke configuration.
Need a detailed spec sheet for a 100ft custom build?
Contact our technical sales team for a professional quote.
To ensure peak performance and safety, we recommend using original GLT LIFTS attachments. While some universal tools might seem similar, attachments from other brands are unlikely to match our machine's technical specifications and safety standards perfectly. Using mismatched attachments can compromise lifting precision and equipment longevity.
Yes, we are a proud U.S. company with deep roots in industrial equipment. While we utilize a high-quality global supply chain for manufacturing, our primary focus is ensuring each crane is precision-built to meet rigorous standards. More importantly, we provide local U.S.-based support and parts depots to ensure your equipment stays operational and fits your specific project needs.
GLT LIFTS mini crawler cranes come with a 1-year full-machine warranty.
If any issues arise during the warranty period, please contact our support team immediately.
Our senior technical support team provides a 24/7, year-round emergency response mechanism.
Regardless of the time or day, you can connect directly with a professional engineer for instant and precise fault diagnosis. We are committed to ensuring your GLT LIFTS equipment returns to normal operation in the shortest possible time, minimizing your downtime.
Need immediate assistance?
Yes. We understand that time is money on a job site. Once an order is received, all genuine spare parts for our mini crawler cranes are dispatched within 24 hours to minimize downtime and keep your projects on schedule.
Our localized service network ensures that critical components reach you in the shortest possible time.
Need an urgent part?
Yes. At GLT LIFTS, we maintain a comprehensive spare parts inventory specifically for our small crawler crane models.
Supported by our dedicated warehouse, we ensure a rapid response to all service needs. Whether you need common wear parts or critical components, our inventory is designed to keep your projects running without interruption.
Need to check part availability?

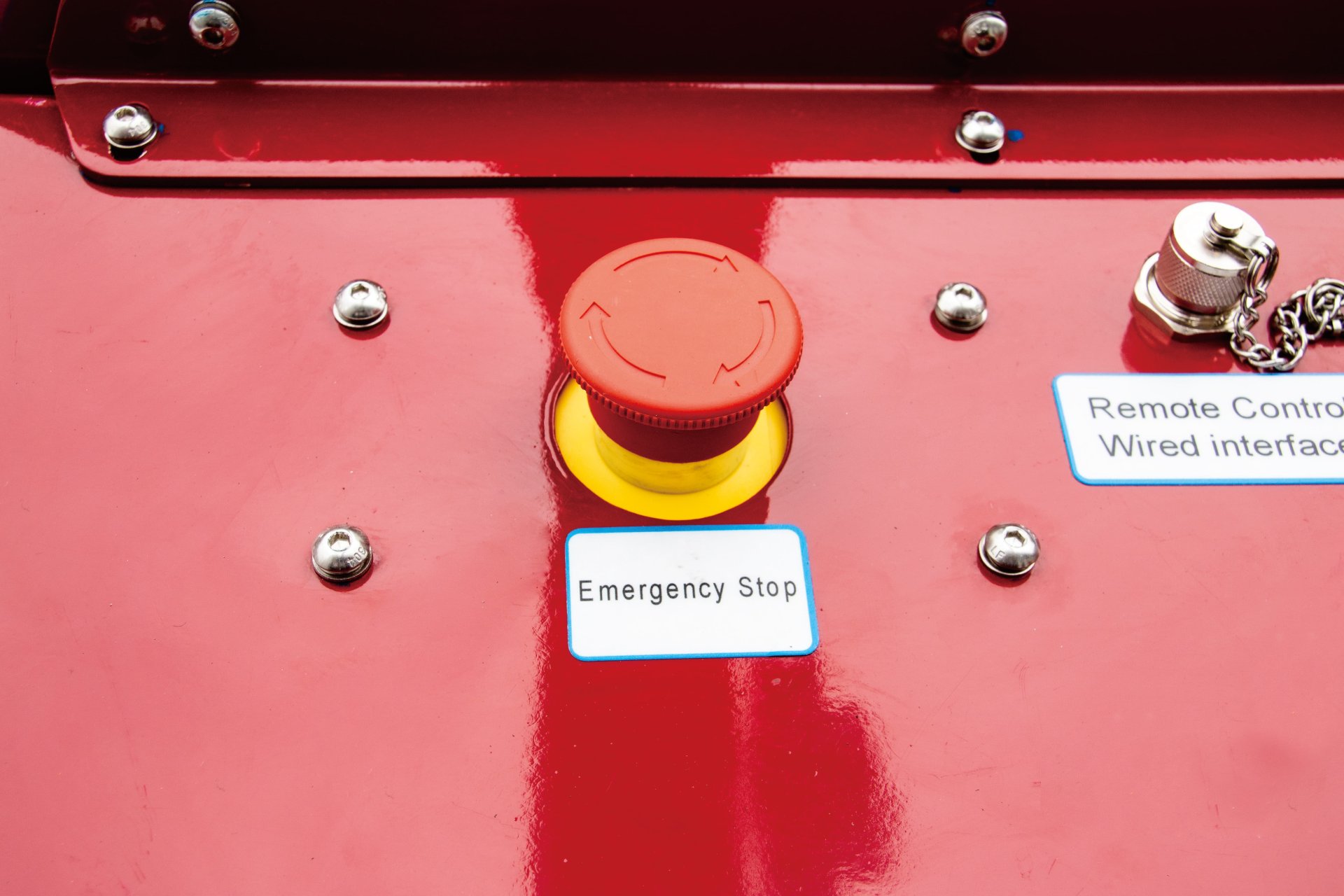

Yes,the mini crawler crane is equipped with multiple, high-visibility emergency stop buttons, which ensures load stability and personnel safety even in the event of an accidental power failure or system malfunction.
Our mini crawler cranes are engineered for maximum stability using independent, multi-angle, and asymmetrical outrigger deployment. Even in confined spaces, the onboard smart system automatically calculates safe load limits based on the crane's actual footprint. This ensures zero-compromise safety, regardless of terrain or site restrictions.
Yes,the compact crawler cranes has a One-key leveling function. Additionally, sensor of outrigger monitor the status of the outriggers in real-time， providing an interlock system to prevent overturning.

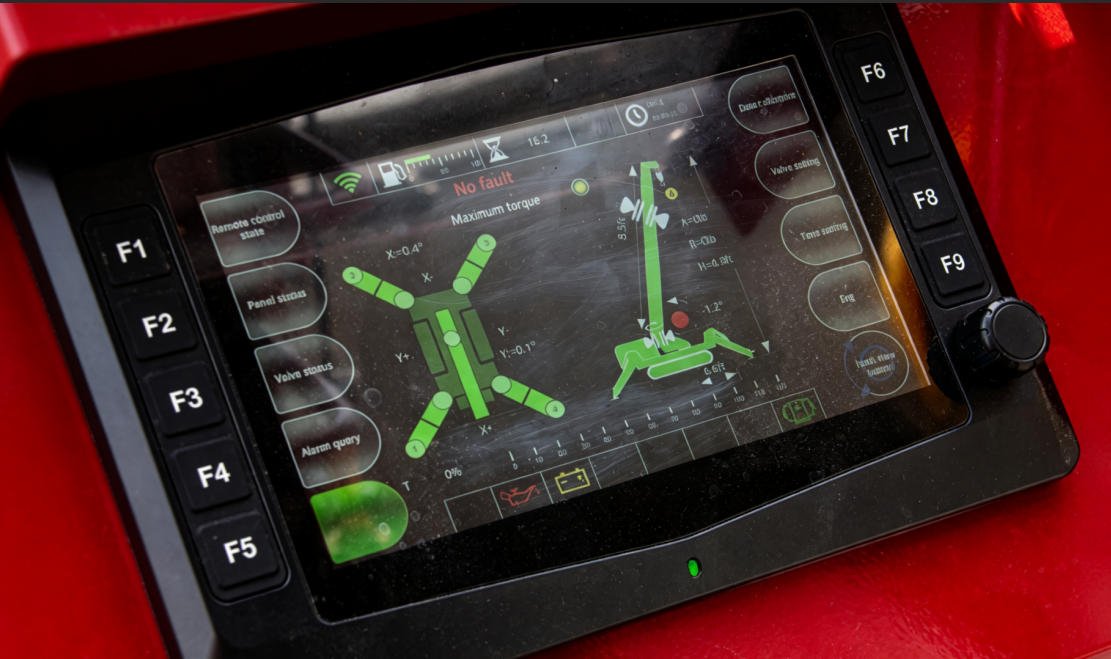

Absolutely. Safety is the core of our design. Our 3-8 ton mini crawler cranes are equipped with a sophisticated LMI (Load Moment Indicator) system that monitors two critical factors in real-time: load weight and outrigger pressure.
If the system detects that the load exceeds the rated capacity or that an outrigger is losing ground pressure (indicating a tipping risk), it will automatically trigger an emergency lock-out. This stops all hazardous movements instantly, ensuring the compact crawler crane remains grounded and stable. It's a fail-safe engineered to protect both your crew and your equipment on every job site, fully compliant with OSHA standards.
Want a mini tracked crane with advanced safety features for your project?
Get expert recommendation & pricing within 24 hours
Our machines can be converted from transport mode to fully operational within just 5 to 15 minutes, ensuring you can start working immediately.
Yes. We understand the importance of environmental compliance on modern job sites. Our diesel engines are fully certified to meet the latest EPA Tier 4 Final (North America) and EU Stage V (Europe) standards.
These high-performance engines significantly reduce particulate matter and nitrogen oxides, ensuring they are environmentally friendly and legally approved for use in all regions, including areas with strict emissions regulations. Whether you are working in urban centers or sensitive outdoor environments, our equipment provides the power you need without compromising on sustainability.
Need the official EPA certificate for your local project?
Yes, it's easy to operate.Because we utilize a high-precision, highly integrated wireless proportional control system, allowing all traveling, hoisting, and outrigger operations to be precisely controlled by a single operator remotely.
Yes. At GLT LIFTS, we provide Bi-energy solutions across our entire range to ensure maximum flexibility on the job site. By combining zero-emission electric motors with your choice of diesel, gasoline, or lithium battery power, our machines can seamlessly transition from rugged outdoor terrain to sensitive indoor spaces.
These dual-power configurations are environmentally friendly and approved for use in all regions, including those with strict noise and emission regulations. Whether you are working in a confined interior hallway or a remote construction site, our Bi-energy models provide the reliable performance you need.
Not sure which power configuration is right for your project?
Powered by a pure electric lithium system, this electric mini crawler crane produces zero exhaust emissions and minimal noise. This makes it an ideal, clean solution for sensitive enclosed spaces—such as hospitals, shopping malls, data centers, airports, and commercial atriums—allowing for maintenance and glass installation without disruption.
For precision and space-restricted operations such as interior decoration, glass curtain wall installation, and equipment maintenance，we recommend our GSC10 & GSC30 Series.
For heavy-duty, high-altitude operations, such as heavy steel structure erection, precast panel lifting, and the transport of large machinery, our GSC50 & GSC80 Series are the best fit.
Please contact our technical team for the detailed load chart, so we can match the most economical model for your job.
Looking for pricing and ROI information? Check our comprehensive [2026 Price & ROI Analysis] to understand the factors affecting the cost of your next investment
The GSC30E battery powered mini crawler crane features a 48V lithium-ion battery providing 6–8 hours of continuous operation on a single charge. For uninterrupted usage, operators can also plug this 3-ton electric mini crawler crane directly into a 110V/220V AC electric source for dual-power operation.
The GSC50 compact crawler crane has a maximum lifting capacity of 11,000 lbs (5 tons). It is designed for heavy lifting in confined and restricted-access areas, including steel structure erection, industrial machinery lifting, and heavy glass installation.
Yes. Our lithium-powered models are designed with fast charging capabilities to minimize downtime. A complete battery charge typically takes around 4–6 hours, allowing for a quick turnaround between shifts.
This efficient charging system ensures that your mini crawler crane stays productive throughout the week, even during demanding work cycles. By leveraging advanced battery management technology, we provide a reliable power solution that keeps your projects moving forward without long waiting periods.
Want to optimize your fleet's charging efficiency?
Yes. Our rated maximum load capacity incorporates a safety margin of 20% above the actual lifting load, even when operating at the maximum lifting radius.
This design ensures superior stability and equipment longevity under rigorous job site conditions. If you need a detailed safety compliance reportor have specific site requirements, please contact our engineers directly.
Yes. GLT LIFTS mini crawler cranes are specifically designed for delicate environments. Equipped with non-marking rubber tracks and a lightweight chassis, they significantly minimize ground pressure.
This makes them the ideal solution for:
Indoor Marble & Tile Floors (no scratches or scuffs)
Raised Access Floors (in data centers or offices)
Rooftops & Landscaped Areas (low structural load)
To check if our equipment meets your specific floor loading requirements, please get a technical consultation with our team today.
Yes. The GCT60 mini crawler crane is designed for stable operation on sloped job sites, with 36% (20°) gradeability and automatic leveling outriggers for improved stability. For indoor projects or sensitive flooring, optional non-marking white rubber tracks help reduce the risk of leaving marks on finished surfaces.
Expandable crawler tracks make a crawler boom lift easier to move through narrow access areas while providing a wider and more stable stance during operation. The tracks can retract to reduce the machine's width for transport and access through restricted spaces, then expand to increase the operating footprint and improve stability when the machine is set up. This design gives crawler boom lifts greater flexibility when working in tight job sites or on uneven terrain. Always check the specific model's transport width, operating width, and required clearances before use.
It is a LiDAR-based, 24/7 safety management system engineered for high-voltage environments like substations. It precise-measures spatial distances, actively monitors moving equipment relative to live lines—even in total darkness—and enforces a 3-tier safety buffer with local light/sound alarms, remote cabin alerts, and instant breach photo logging.
Yes, the GCT60 work platform comes standard with a 220V AC power outlet, allowing operators to run compatible electric power tools directly from the platform. The power outlet voltage can also be customized to meet the electrical standards and voltage requirements of the local market. This provides convenient access to power while working at height and reduces the need for long extension cords from the ground.
The GCT60 requires an outrigger setup area of approximately 11'2" × 11'3" and features full automatic leveling.

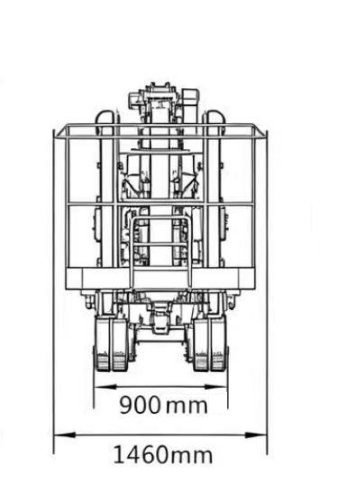

Yes, the GCT60 is designed for access through narrow commercial doorways and tight job-site passages. By quickly removing the work platform and retracting the crawler tracks, the GCT60's transport dimensions can be reduced to 15'9" L × 2'11" W × 6'7" H. This compact transport configuration makes it easier to move the machine through narrow gates, commercial entrances, and restricted-access areas.
The GCT60 maximum horizontal reach is 24'7" with a full platform capacity of 507 lbs (230 kg). With a lighter 265-lb (120-kg) load, the GCT60 can reach up to 29'6" horizontally. The maximum outreach therefore depends on the load on the work platform.
Yes. The diesel engine is suited to outdoor work, while electric power can be used where low-emission or quieter operation is preferred.
Our crawler boom lift series is well suited for substation maintenance, power grid inspections, tree care, building maintenance, construction, and other limited-access applications.
Use the Emergency Operation procedure to lower the platform, when normal engine-powered or remote controls wireless proportional control are unavailable. Always follow the manufacturer's emergency instructions and keep the area below the platform clear.
● Battery Care: Follow the lithium battery manufacturer's instructions for proper care and maintenance.
● Fuel System: Use the manufacturer-recommended fuel stabilizer when required.
● Engine Maintenance: Follow the engine maintenance instructions in the 《Crawler Boom Lift Maintenance Manual》
● Hydraulic System: Check fluid levels and inspect for leaks before storage.
● Protect the Machine: Store the lift in a clean, dry location and protect electrical components from moisture.
Trapped Air: Bleed air from the hydraulic system.
Incorrect Fluid: Use the manufacturer-recommended hydraulic fluid for the operating temperature.
Dirty Filters: Inspect and replace contaminated hydraulic filters.
Low Fluid Level: Check the hydraulic reservoir and correct the level if necessary.
Remove Moisture: Clear frost, ice, or condensation from sensors and connectors.
Check Wiring: Inspect harnesses and connectors for moisture, damage, or loose connections.
Check Voltage: Verify stable battery voltage before restarting the system.
Allow Components to Stabilize: Let sensors and electronics reach normal operating conditions if condensation is present.
Do Not Bypass LMI: Never operate with a malfunctioning or bypassed load moment indicator.
Ground Check: Verify that the surface can support the machine and outrigger loads.
Use Outrigger Pads: Place properly sized pads under each outrigger to distribute the load.
Level the Machine: Keep the machine within the manufacturer's specified leveling limits.
Add Cribbing: Use suitable cribbing where additional ground support is required.
*Stop if Unstable: Do not operate if the ground shifts, sinks, or cannot support the machine.
Low-Angle Ramps: Use low-profile ramps to prevent undercarriage damage.
Tie-Downs: Secure the lift strictly using factory-designated anchor points.
Tow Capacity: Ensure the vehicle matches the total machine and powertrain weight.

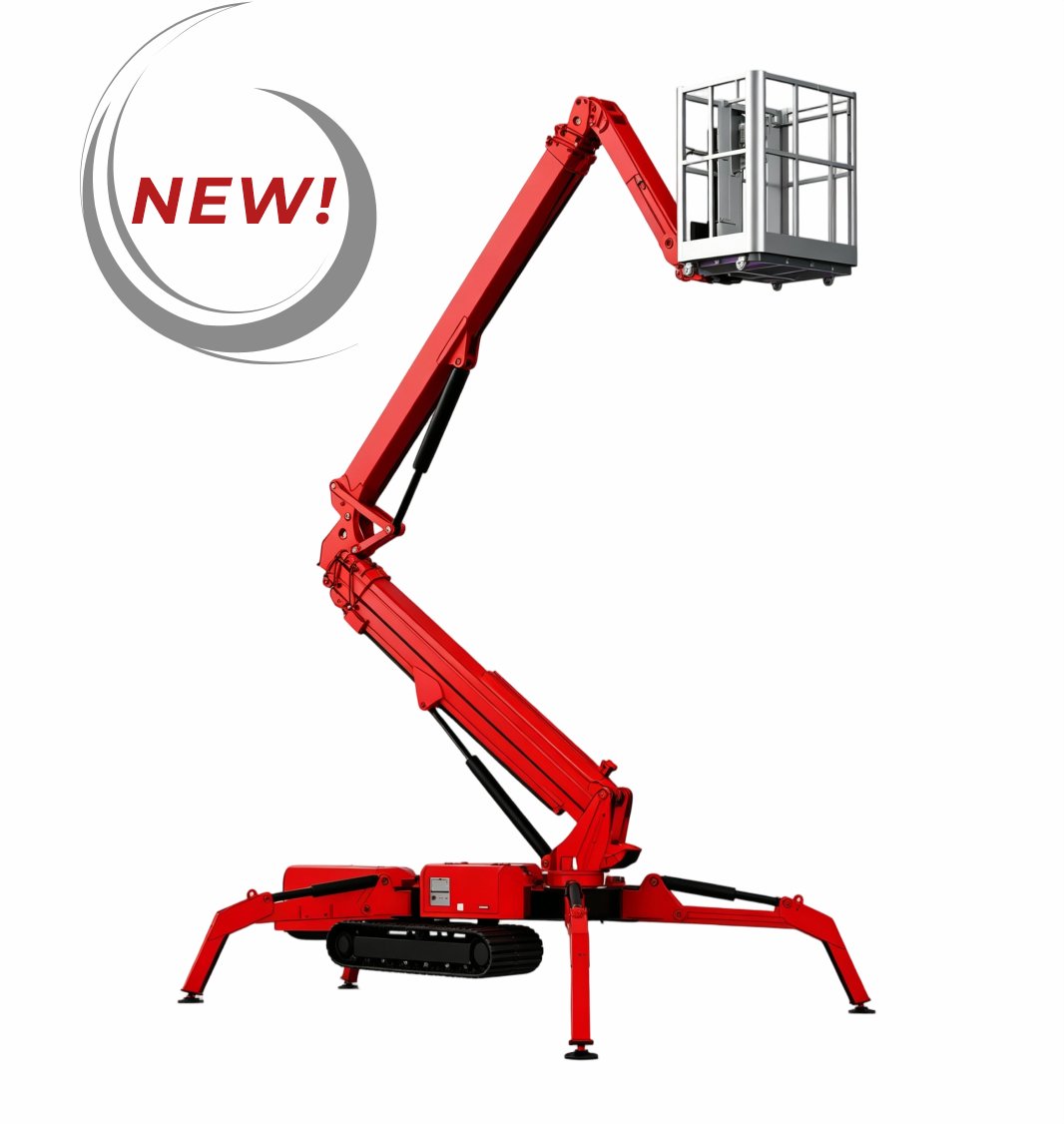

Yes, we highly recommend our 98ft Tracked Aerial Work Platform (Model GCA98) for stadium lighting installation and maintenance.
While it provides an impressive 98ft working height that perfectly meets stadium requirements, this compact crawler lift features a heavy-duty tracked chassis. This allows it to navigate narrow access gates, soft stadium turf, or sensitive indoor sports flooring without causing damage. It offers the ideal combination of maximum vertical reach and flexible, low-ground-pressure mobility for challenging jobsites.
If you are looking for a high-performance spider lift for tree work or exterior maintenance, the GCT43 Crawler Boom Lift is the industry-leading choice.
As a versatile 45ft spider lift alternative, the GCT43 is engineered specifically for demanding painting and roofing projects. It offers a precise 13m（42' 8"）working height and a robust 230 kg（507 lbs）platform capacity, allowing two operators to work comfortably with heavy tools.
What sets this compact crawler lift apart is its Dual Power system（Yanmar Diesel + Electric Motor）, which ensures quiet operation in residential neighborhoods while providing the ruggedness needed for all-terrain landscaping. Whether you need a 500lb capacity aerial platform to reach over rooflines or navigate through narrow gates, the GCT43 provides the stability of an automatic leveling system and the precision of Danfoss proportional valves for maximum safety at full extension.
Ready to elevate your tree care or roofing business?
Download GCT43 Technical Spec Sheet
Get a Quote for the GCT43 Series
We offer professional equipment loan services tailored specifically for B2B clients. Our heavy machinery payment plans are designed to help you buy a spider lift while maintaining a healthy cash flow.
Request a customized payment plan here to get your equipment on-site with lower upfront costs.
Safety and stability are our top priorities. The maximum permissible working wind speed for our equipment is typically Level 6 on the Beaufort scale, which corresponds to 24-30 mph (10.8–13.8 m/s).
Operating within these limits ensures the stability of the mini crawler crane and the safety of your crew during exterior tasks. We always recommend monitoring local weather conditions and utilizing a hand-held anemometer on the job site to confirm that wind speeds remain within these safe operating parameters.
Looking for more safety guides and stability load charts?
Download Our Full Safety & Operational Manual
At GLT LIFTS, we understand that every hour of downtime counts. For all in-stock common wear parts, we offer a 24-hour dispatch guarantee.
In-Stock Items: Dispatched within 24 business hours.
Custom or Out-of-Stock Parts: Lead times vary by component; please contact our parts department for a specific timeline.
Need urgent support? Get a Free Parts Consultation
All GLT LIFTS devices are backed by a one-year full-unit warranty. This covers critical components and ensures your equipment operates at peak performance.
If any issues arise, our technical team is ready to assist you immediately.
Need support?
View Warranty Details |
Technical Guidance | Contact After-Sales Support
Yes，the wireless proportional control features a clean, highly intuitive interface, making operation exceptionally easy and convenient.
At GLT LIFTS, we provide multiple power configurations to ensure your equipment excels in any working environment:
Diesel / Gasoline Engine: Engineered for heavy-duty outdoor tasks and rough terrain where constant power is required.
Lithium Battery System: The ideal choice for zero-emission, low-noise indoor operations or sensitive job sites with strict environmental regulations.
Bi-Energy (Hybrid): Offers the ultimate flexibility by combining an engine with electric power, allowing for seamless transitions between indoor and outdoor work.
Not sure which power system fits your project? Get a Custom Quote for Your Project
Yes, the GLT LIFTS crawler boom lift is equipped with a high-precision Automatic Leveling Control system.
To ensure maximum operational safety, integrated outrigger sensors monitor the status of all outriggers in real-time. This smart safety logic prevents the boom from operating if stability is compromised, effectively protecting the machine from overturning on uneven terrain.
Enhance Your Site Safety:
Technical Guidance | Request a Safety Specs Sheet | Contact LIFTSGLT Engineering Team
At GLT LIFTS, operator safety is our core engineering principle. Our crawler boom lifts are designed with a multi-layered safety architecture to ensure reliable operation in challenging environments:
Walking/Outrigger/Boom Three-Mode Interlock System: A sophisticated safety logic that prevents accidental movement by ensuring all components are safely positioned before the boom or tracks can be operated.
Overload Protection System: Automatically monitors platform weight and restricts functions if the rated capacity is exceeded.
Tilt Protection System: Provides real-time monitoring of chassis inclination, issuing alerts and limiting boom reach on unsafe slopes.
Emergency Stop Buttons: Dual-control emergency stops are strategically located on both the ground panel and the platform basket for immediate shutdown.
Looking for a safe lifting solution?
Technical Guidance
Need a deep dive into our safety logic? Contact Our Professional Design Team
Selecting the perfect glt lift depends on three critical metrics:
Working Height: The vertical reach required. Formula: Target height + 2 meters (approx. 6.5 ft).
Horizontal Reach: The distance from the base to the furthest work point. This is critical for "up-and-over" articulating tasks.
Platform Capacity: TThe combined weight of operators, tools, and materials (e.g., 230kg / 507 lbs).
Looking for maximum reach? Explore our new 98ft GCA98 model
Pro Tip: Always choose a crawler boom lift that slightly exceeds your maximum requirements to ensure a safe "buffer" during complex maneuvers. If you're unsure, send us your site photos and our team will recommend the ideal model for you.
Yes. The GLT LIFTS crawler boom lifts are designed for rugged terrains. They feature professional-grade, one-touch hydraulic outriggers that quickly level the machine on slopes, mud, sand, or gravel. This ensures a stable base and maximum safety even on the toughest jobsites.
The maximum gradeability of GLT LIFTS tracked spider lift is up to 30° (GCA98 SERIES), allowing the machine to travel efficiently on slopes, uneven ground, and rough outdoor terrain. High gradeability is especially important for construction sites, hillside projects, and confined access areas where stable mobility and safe operation are required.
Our crawler boom lift is engineered with a maximum platform capacity of 230 kg (507 lbs). This weight limit is designed to safely accommodate one operator along with their essential tools and materials.
Note: To ensure maximum safety and machine stability at full height, it is crucial that the combined weight of the person, safety gear, and all onboard equipment does not exceed this 230 kg (507 lbs) threshold.
Need a custom load solution?
Yes. The GCA66 crawler boom lift has an overall width of just 900 mm (35.4 in), allowing it to navigate narrow passages, standard industrial doorways, and elevators. Its compact design makes it well suited for indoor facility maintenance and other limited-access job sites.
The GCA66 spider lift is engineered for superior vertical reach, offering a max. working height of 20 m ( 66 ft ).
This robust lifting capacity makes it an ideal solution for demanding tasks such as building facade maintenance, steel structure installation, and outdoor industrial projects. Its stable crawler base ensures safe operation even at its full 20-meter extension.
Ready to elevate your project efficiency?
View the Full GCA66 Specifications
Explore our Crawler Boom Lift Series
Have specific height requirements? Get a Free Technical Consultation
As largest model in the GLT LIFTS towable boom lift rang, the GTB66 is built for higher reach and greater working envelopes. It is engineered for large-scale buildings and demanding outdoor sites where standard lifts fall short.
60–66 ft towable boom lifts are commonly used for high-access applications where contractors need vertical height and flexible positioning.
Typical applications include:
1. Commercial building maintenance
2. Exterior construction work
3. Sign installation
4. Electrical and lighting maintenance
5. Tree trimming and arborist work
6. Facility maintenance
7. Industrial equipment inspection
8. Rental fleet operations
Articulating towable boom lifts are especially useful when operators need up-and-over clearance around obstacles.
The GLT LIFTS GTB60 60 ft towable boom lift provides a maximum horizontal outreach of 39 ft 4 in (12 m). Its articulating lower boom and telescopic upper boom design create a flexible working envelope, allowing operators to reach over roofs, around obstacles, and access hard-to-reach areas with fewer repositioning requirements.
Actual working range may vary depending on boom position, platform load, and jobsite conditions. Refer to the GTB60 working range diagram for detailed lifting performance.
A 60 ft towable boom lift typically provides up to approximately 60 feet of Platform height, 65 feet working height depending on the boom configuration, platform position, load condition, and operating environment.
The actual working height may vary because the boom angle, horizontal outreach, and ground conditions affect the final platform position. When selecting a towable aerial lift, operators should consider both maximum height and horizontal reach rather than height alone.
Yes. The GTB52 towable boom lift is suitable for tree care, facility maintenance, construction, and commercial property maintenance. It provides a 52 ft 6 in (16 m) maximum platform height, 59 ft 1 in (18 m) maximum working height, and 34 ft 5 in (10.5 m) maximum horizontal outreach, making it suitable for a range of elevated maintenance and access tasks.
The GTB52 must be operated within its rated platform capacity, working envelope, wind limits, and approved equipment configuration. It should not be used as a crane, to push or pull objects, or with unauthorized platform extensions or attachments.
Before raising the GTB52 boom, the operator should:
1. Inspect the work area for soft or uneven ground, slopes, edges, holes, trenches, overhead obstructions, and power lines.
2. Position the machine on suitable ground and fully deploy the outriggers according to the operator’s manual.
3.Verify the platform load is within the rated 440 lb (200 kg) capacity, including occupants, tools, and materials.
4. Inspect key components and safety systems, including the boom, platform, guardrails, entry gate, hydraulic hoses, controls, alarms, emergency stop, and emergency-lowering system.
5. Check weather and wind conditions against the GTB52 operating limits and warning decals.
6. Confirm the occupants understand the communication and emergency-rescue procedures.
Do not operate the GTB52 if a defect affects the coupling, brakes, tires, wheels, structure, platform, controls, outriggers, alarms, or manual descent valve.
The GTB52 uses automatic hydraulic outrigger leveling, outrigger sensors, anti-tipping protection, and outrigger interlocks to help establish a level and stable working position. These systems also help reduce the risk of operation when the outriggers are not properly deployed.
The operator must still confirm that the ground can safely support the machine and outrigger loads. Automatic leveling cannot compensate for soft soil, hidden voids, trenches, unstable edges, excessive slopes, or inadequate support pads.
The main risks include tip-over, falls from the platform, contact with overhead power lines, crushing or collision hazards, falling objects, and towing-related accidents. Risks can increase on soft or uneven ground, near unprotected edges, in high winds, with an overloaded platform, or when towing, braking, or safety components are defective. Always follow the manufacturer's operating instructions and applicable safety requirements.
Yes, towable boom lifts are extremely safe when operated by trained personnel on solid ground within rated limits. For the GLT LIFTS GTB52, safety is built directly into the hardware through automatic outrigger leveling, anti-tipping sensors, overload alarms, and a 3-way interlock system. However, safety ultimately depends on proper site assessment and following standard pre-use inspection protocols.
The towable boom lift comes with a 1-year full-machine warranty. During the warranty period, GLT LIFTS provides free replacement parts, remote technical guidance from professional engineers, and localized service through its spare parts network to help minimize downtime. For specific warranty terms and coverage, please contact our support team.
The GTB45 is well suited for residential construction, exterior painting, window cleaning, tree care and pruning, commercial property maintenance, and municipal street light or sign repairs. Its towable design and flexible boom reach make it suitable for a wide range of residential, commercial, and municipal high-access jobs.
Yes. The GLT LIFTS GTB33 can be equipped with an optional Auxiliary Drive System (Assist Drive System). Once unhitched from your towing vehicle, a single operator can use the control handle to maneuver the lift effortlessly through narrow gates, residential backyards, and tight alleys without manual pushing.
We offer professional equipment loan services tailored specifically for B2B clients. Our heavy machinery payment plans are designed to help you buy a towable boom lift accessories while maintaining a healthy cash flow.
[Request a customized payment plan here] to get your equipment on-site with lower upfront costs.
Diesel / Gasoline: For heavy-duty outdoor tasks.
Lithium Battery: For zero-emission, low-noise indoor work.
Bi-Energy: The ultimate flexibility for both.
It utilizes a standardized standardized 2-inch ball hitch coupler (Approx. 50mm).The ability to quickly connect and disconnect is key to its low logistics costs and high turnover rate.
Yes. The unit is designed for trailer towing and can be transported by a properly rated pickup truck or other suitable towing vehicle. The towing vehicle, hitch, and towing equipment must meet the applicable weight and towing requirements.
The fully extended outrigger footprint is 13' 9" × 14' 9"(4.2 × 4.5 m), This compact setup allows the equipment to achieve maximum stability even in tight spaces, narrow driveways, or confined indoor job sites without sacrificing working height.
The maximum permissible working wind speed for the GLT LIFTS towable boom lift is 24 mph (10.7 m/s). If actual wind speeds exceed this limit, the operator must immediately cease all operations, safely lower the platform to the stowed ground-level position, and retract the outriggers if necessary.
The GLT LIFTS towable man lift is equipped with multiple redundant safety systems: Tilt Sensor, Emergency Stop Button, Lower Limit Switches, and Outrigger Interlocks.
Yes, but proper safety measures must be taken. When deploying a towable boom lift on unpaved or soft surfaces—such as grass or mud—we strongly recommend placing heavy-duty Outrigger Pads beneath each stabilizer. This maximizes load distribution, drastically reduces ground bearing pressure, and effectively prevents stabilizer sinking or tipping hazards.
The Optimal Solution for Challenging Terrain:If your jobsites frequently involve muddy, soft, or rugged terrain, we highly recommend upgrading to a Crawler Spider Lift (such as our GCA66 series), which features rubber tracks designed for superior off-road stability and low ground pressure.
The platform dimensions for the towable boom lift are 2' 11"(L) × 2' 4" (W)× 3' 7"(H)（ 900 x 700 x 1100 mm）.This compact yet optimized working basket provides ample space for a single operator along with their essential tools and equipment, while allowing easy navigation through tight aerial spaces.
The maximum rated platform capacity is 440 lbs (200 kg), designed to safely accommodate up to two operators and their essential equipment. For ultimate peace of mind, GLT LIFTS engineers have built a 20% structural redundancy safety margin into the boom and hydraulic systems beyond the rated capacity, ensuring absolute stability during high-altitude operations under full load.
GLT LIFTS offers a comprehensive range of towable boom lifts to meet various aerial access requirements:
Max working heights : 39' 4" to 72' 2"（12 m – 22 m )
Max platform heights: 32' 10" to 65' 7" （10 m – 20 m）
| Models | GTB33 | GTB40 | GTB52 | GTB60 | GTB66 | |
| Max working heights | 39' 4"/ 12 m | 45' 11" / 14 m | 52' 6" / 16 m | 59' 1"/ 18 m | 65' 7" / 20 m | 72' 2" / 22 m |
| Max platform heights | 32' 10" / 10 m | 39' 4" / 12 m | 45' 11" / 14 m | 52' 6" / 16 m | 59' 1" / 18 m | 65' 7" / 20 m |
Need help choosing?
Consult our experts now for a tailored solution to ensure you get the perfect GLT LIFTS towable boom lift for your project.
Yes. GLT LIFTS towable boom lifts feature versatile power options for all job sites:
1. Outdoor: Powered by Gasoline or Diesel engines for continuous heavy-duty work.
2. Indoor: Powered by AC Plug-in or Lead-Acid Battery / Lithium-ion Battery for zero-emission, low-noise operation in warehouses, malls, and churches.
3. Bi-Energy (Hybrid): Combines engine and electric drives for ultimate indoor/outdoor switching.
* If you can't find your answer in the FAQ, you can contact us via online chat or email, and we will respond to your inquiry within 24 hours.
