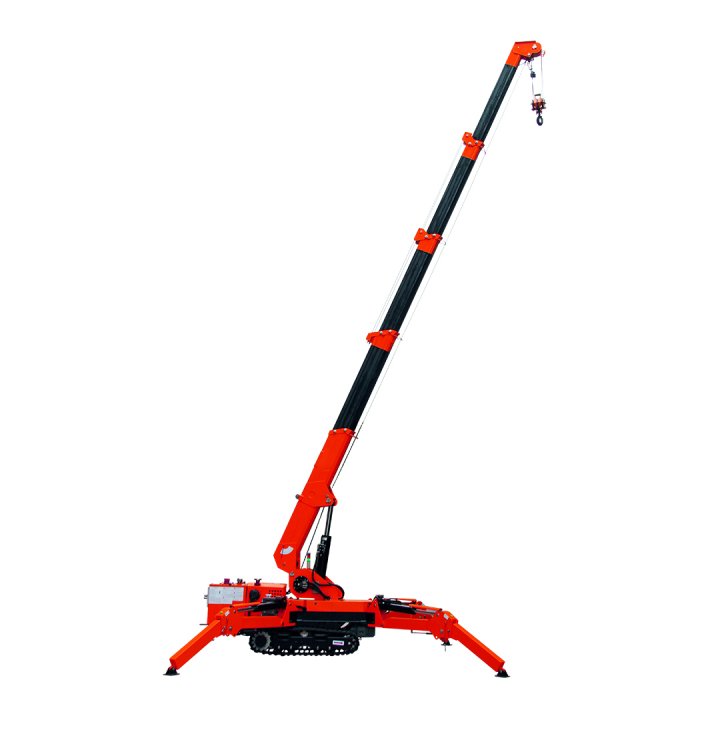

GSC30E electric mini spider crane with outriggers

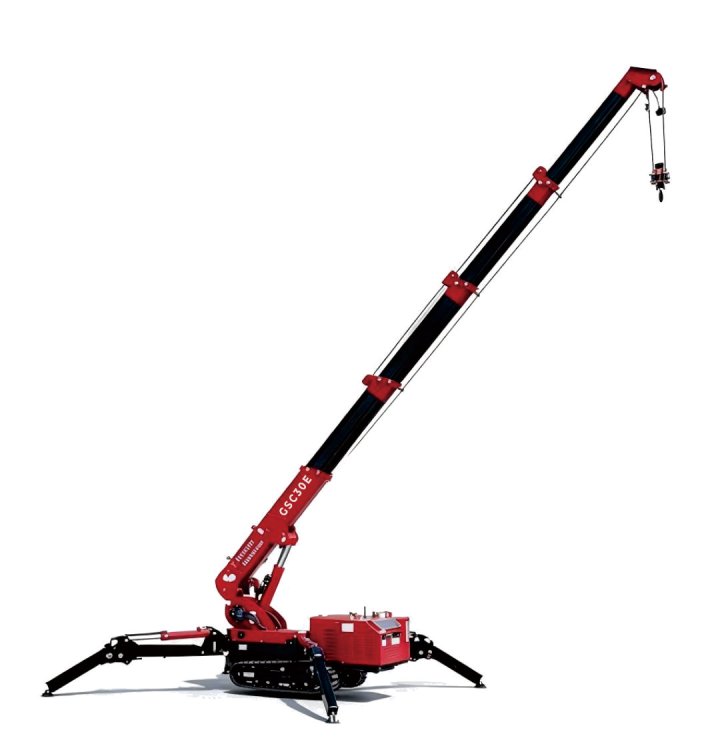

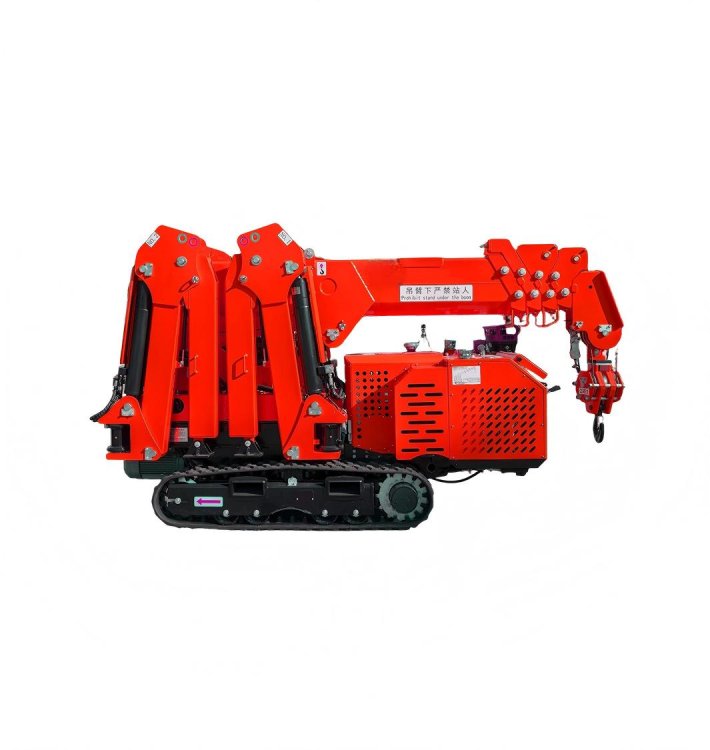

GSC30E mini spider crane boom and hook

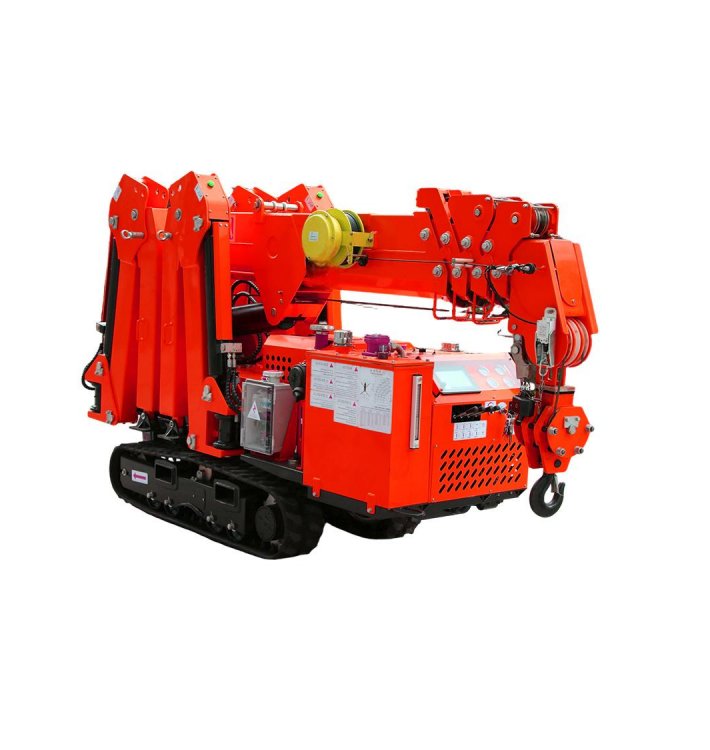

GSC30E mini spider crane rubber track

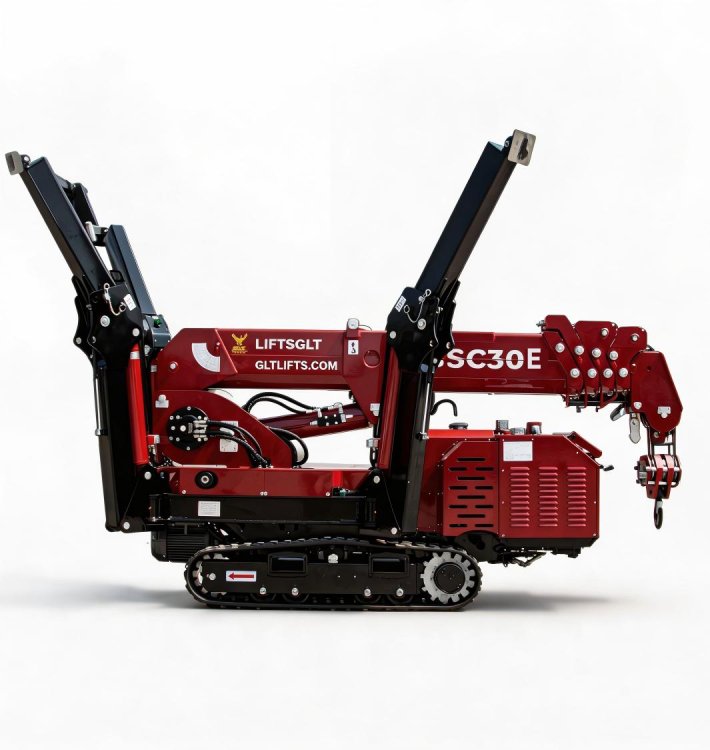

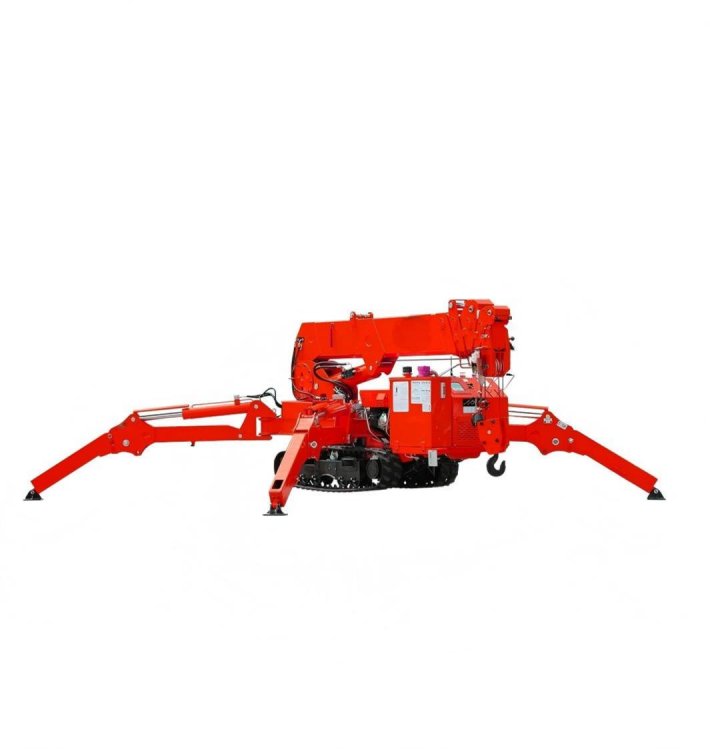

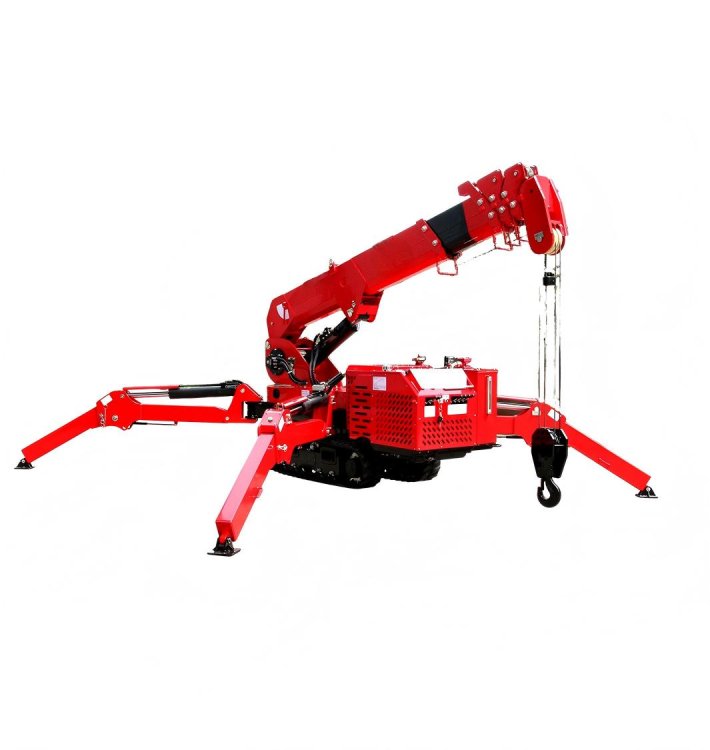

GSC30E mini spider crane hydraulic outriggers
GSC30E mini spider crane hydraulic outriggers
GSC30E electric mini spider crane with outriggers
GSC30E mini spider crane boom and hook
GSC30E mini spider crane rubber track
GSC30E mini spider crane hydraulic outriggers
GSC30E mini spider crane hydraulic outriggers

GSC30E | Lithium Electric Spider Crane

Imperial Metric
KEY SPECIFICATIONS:

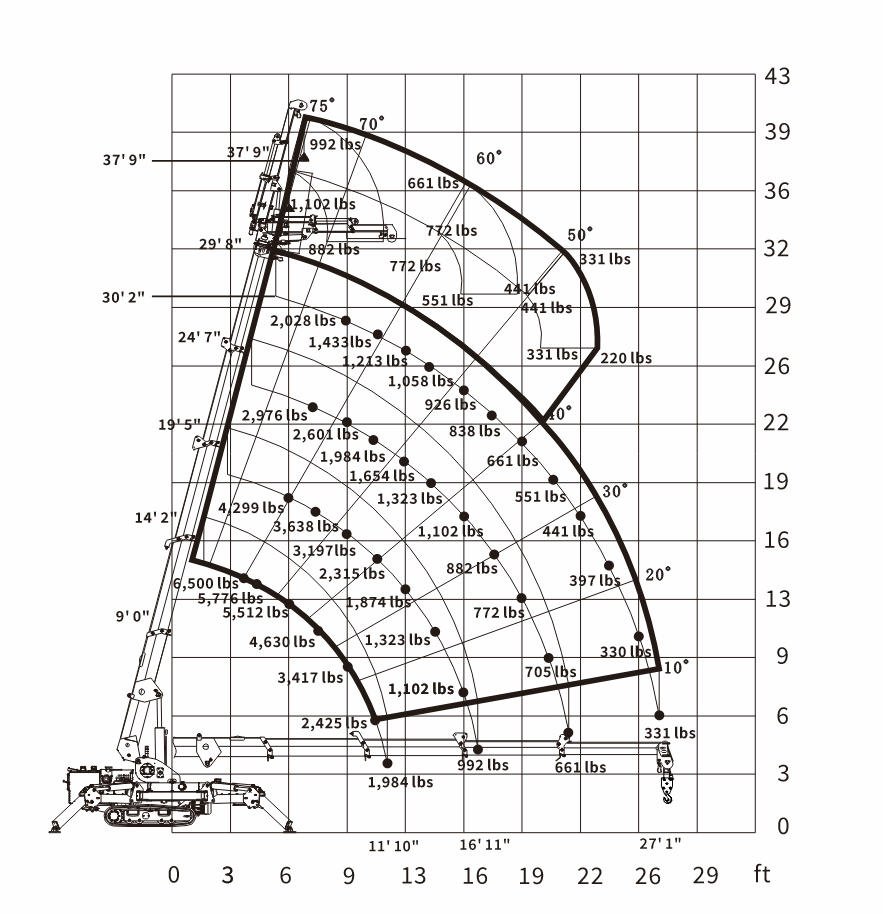

Lithium battery + electric motor Max Capacity: 6,500 lbs @ 4' 3" (2.95t @ 1.3m)
Max. lifting height (OG): 30' 2" (9.2m) Max. lifting height (UG): 328' (100m)

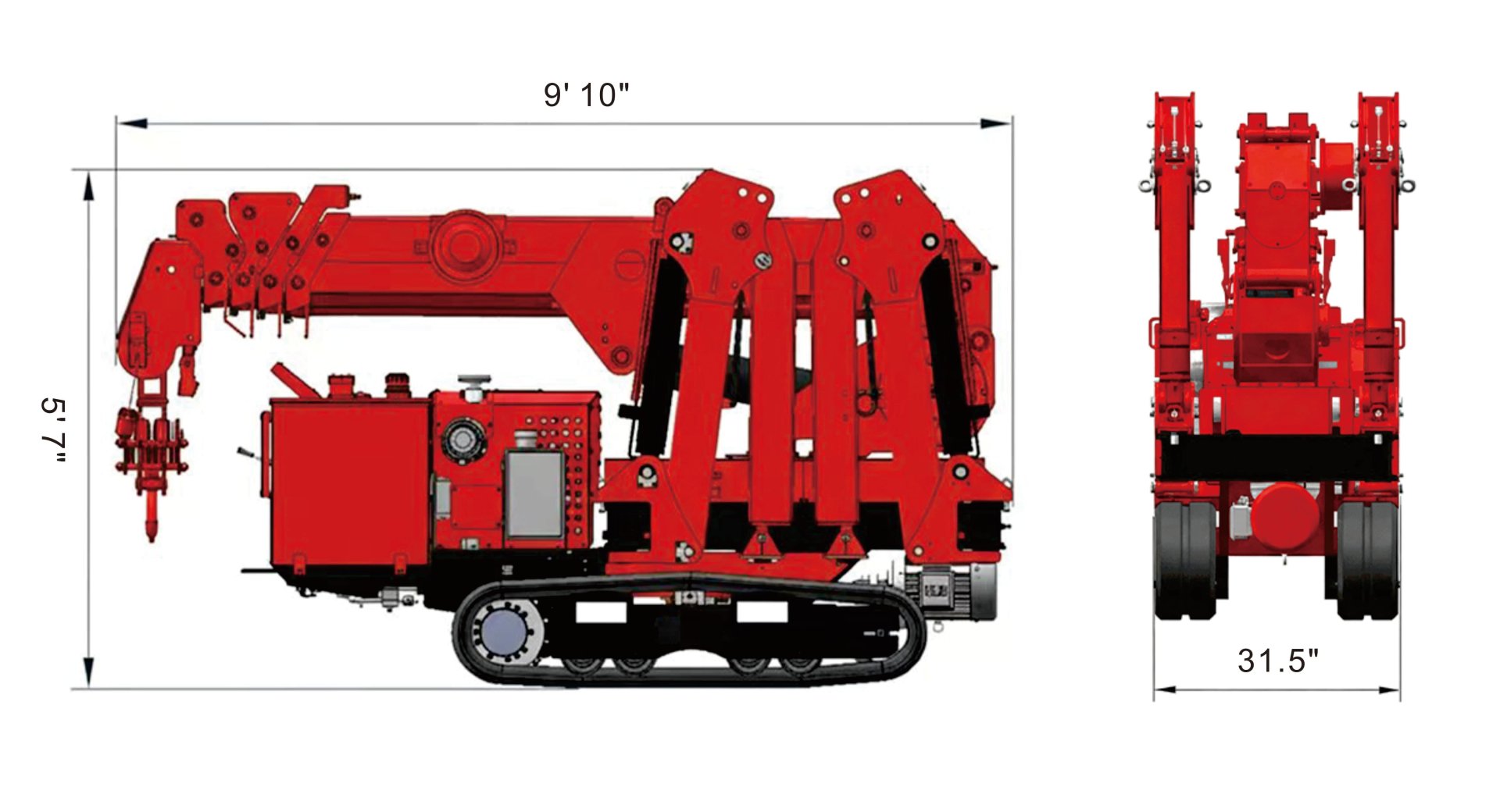

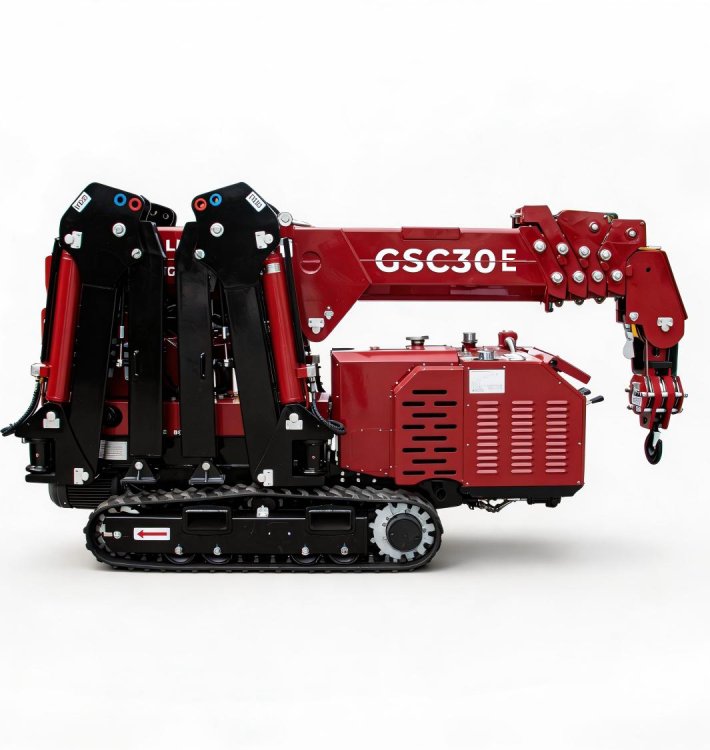

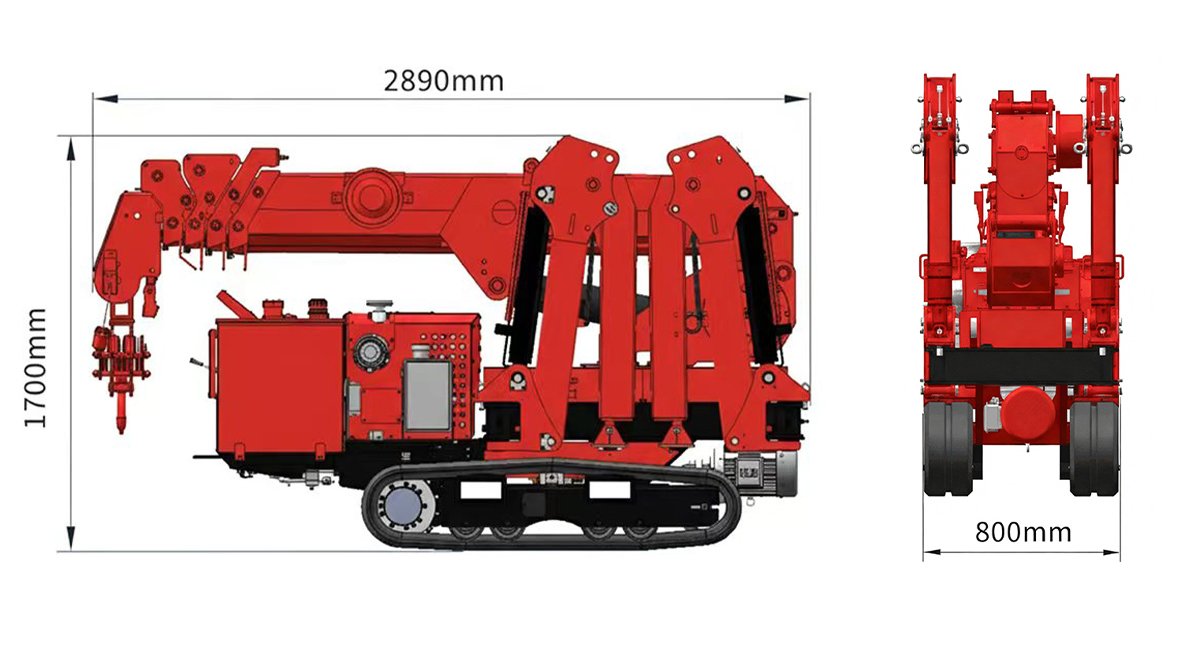

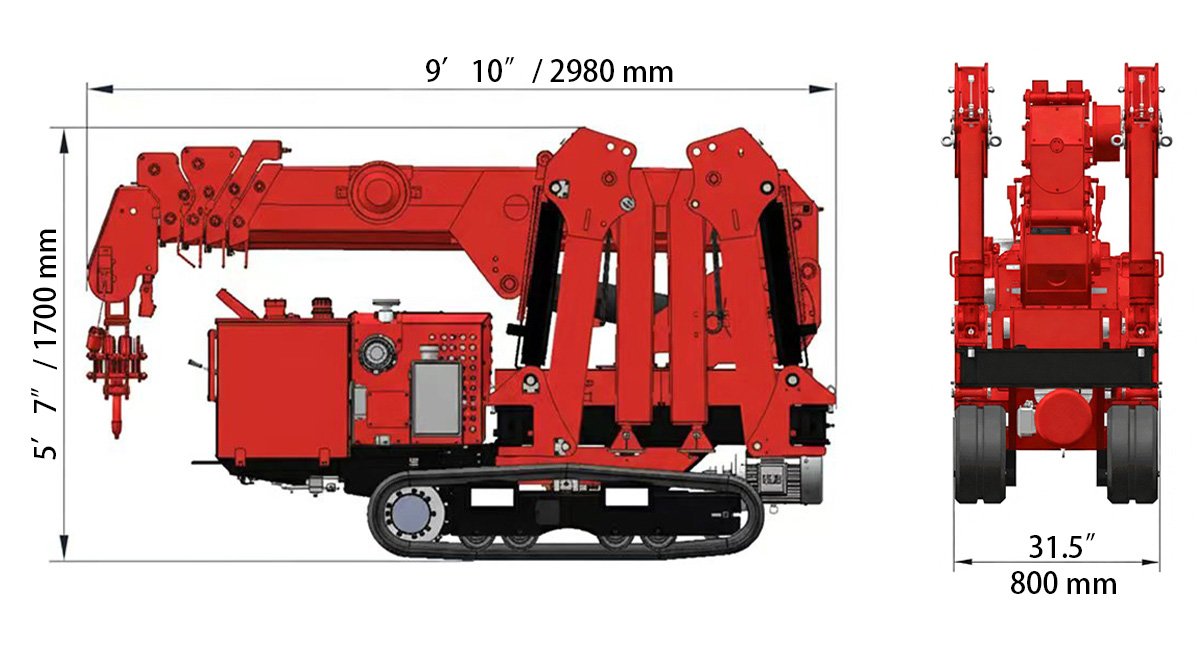

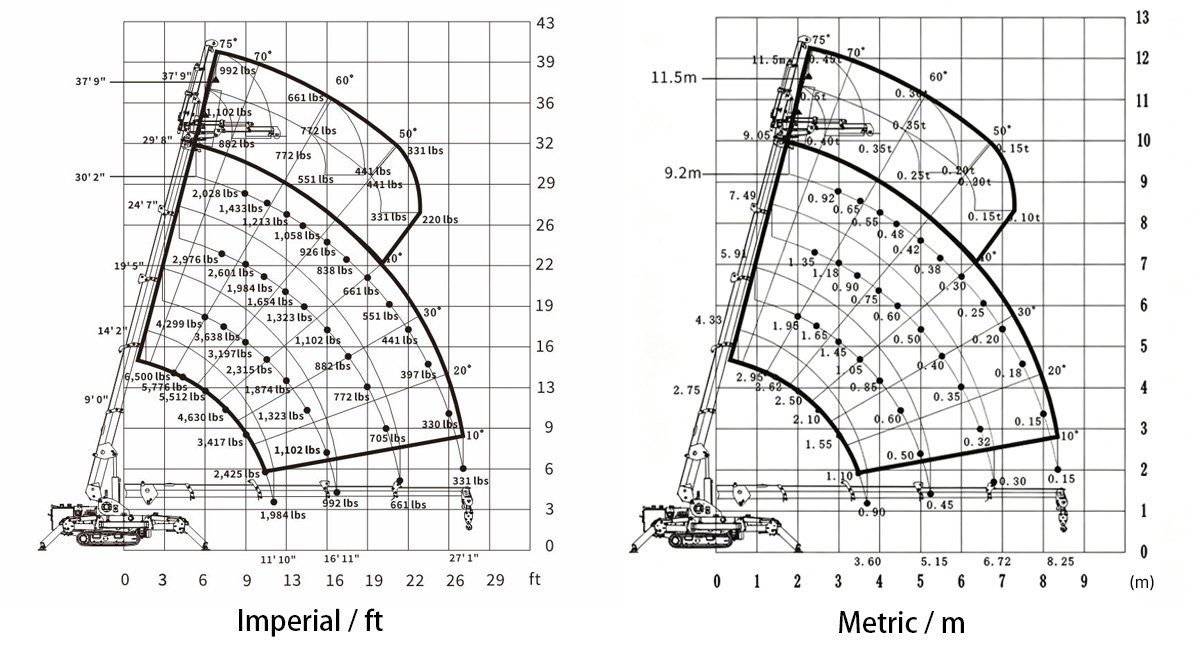

Max. working radius: 27' 1" @ 330 lbs (8.25m @ 0.15t) Dimensions (L×W×H): 9' 6" × 31.5" × 5' 7"(2890 × 800 × 1700 mm)

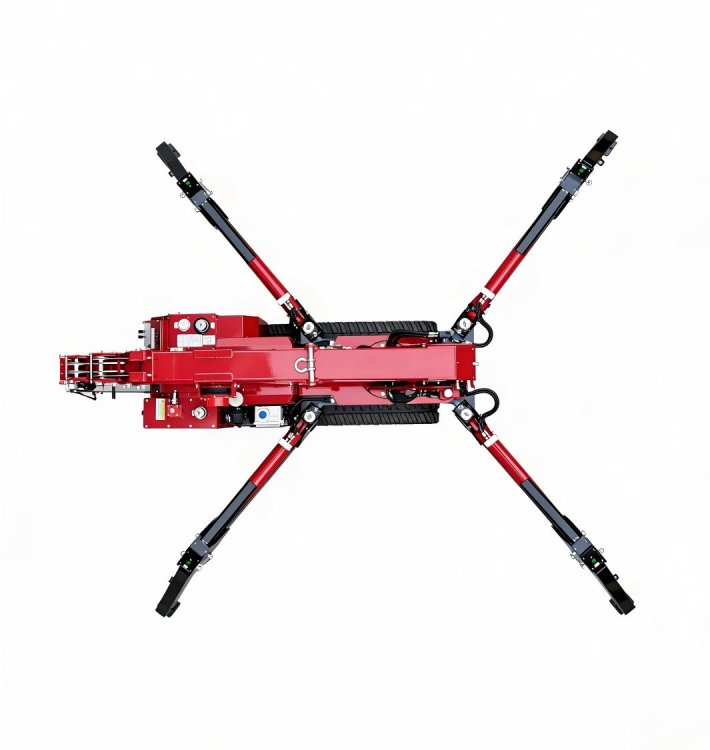

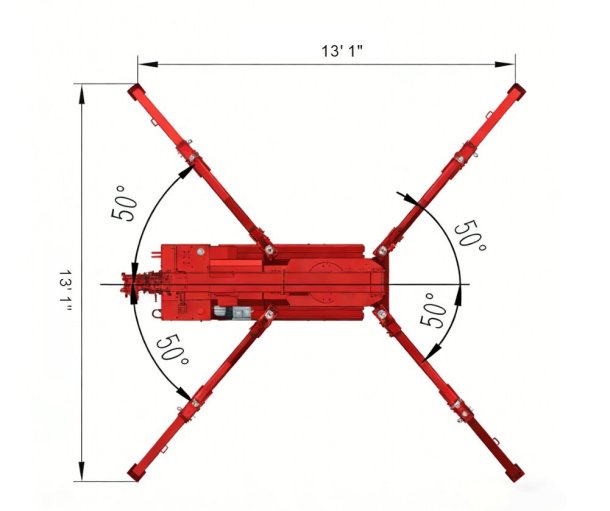

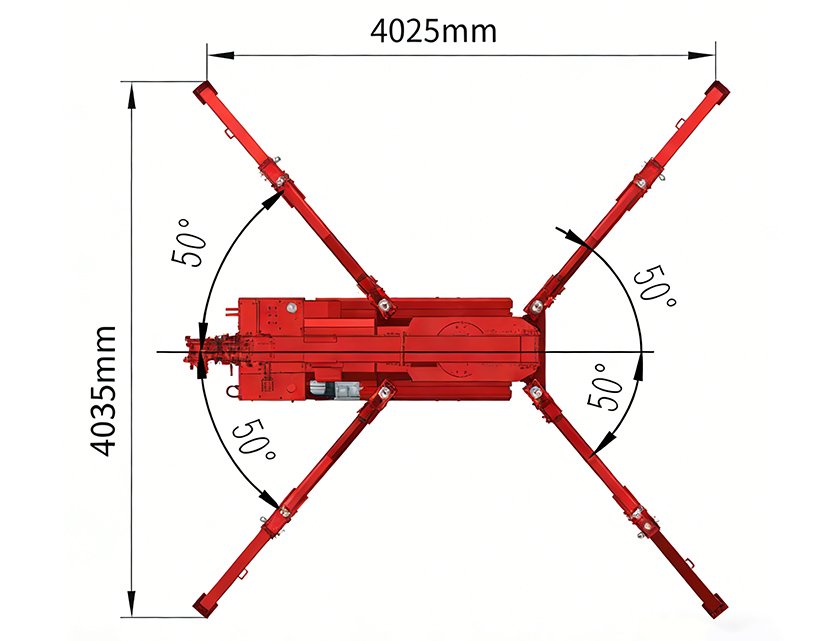

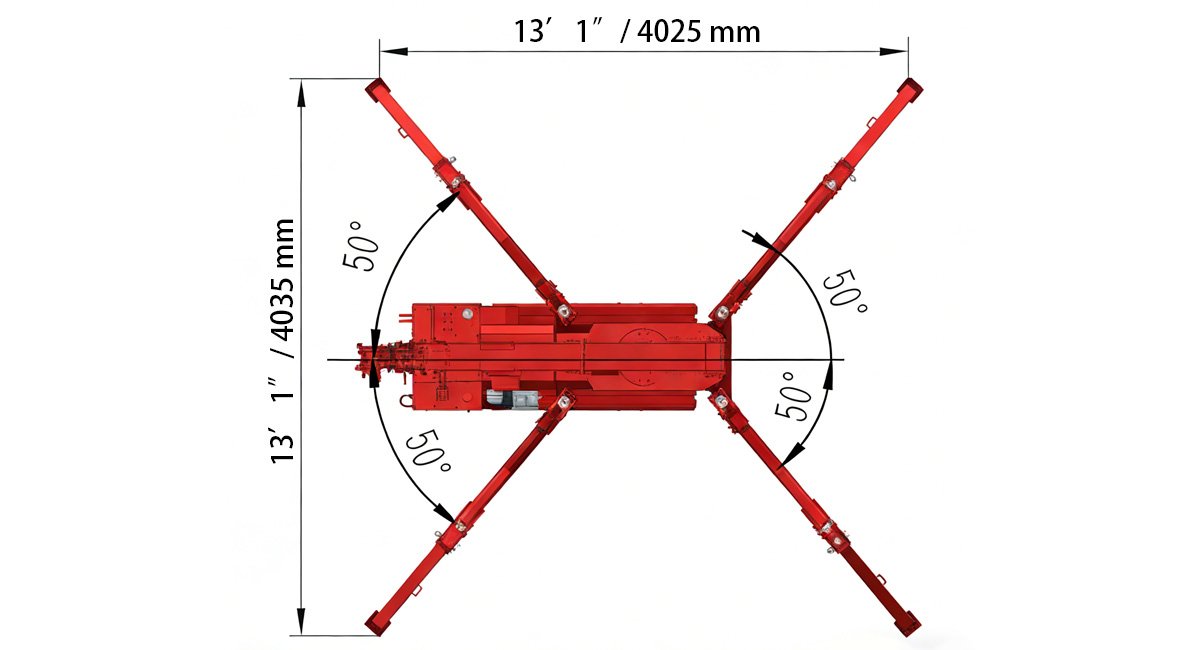

Vehicle Weight: 4,938 lbs (2,240 kg) Max. Outrigger Footprint: 13' 1" × 13' 1"(4000 × 4000 mm)

FEATURES:

  • Compact and lightweight body (Crane width 31.5"/800mm),flexibly into elevatorand indoor sites.
  • Load Moment Indicator (LMI): Real-time load monitoring to prevent overloading.
  • anti-two-block alarm:Prevents hook-to-boom impact.
  • Outrigger Sensors: Continuous monitoring to prevent tipping.
  • Emergency Stop Button: Instant cutoff for maximum safety.
  • Walking/outrigger/boom three mode interlock system:Prevents tipping or mechanical damage caused by misoperation.
  • Variable geometry outriggers :Stable setup around any obstacle.
  • Automatic Leveling Control:Maximizes setup efficiency.
  • 5 sections The U-shaped boom &double connecting cylinder:High strength and rigidity in a lightweight design.
  • Wireless proportional control(work, walking, outrigger, engine),easy operation.
  • Equipped with Danfoss proportional valves to ensure smooth and precise operation.
  • Wind Rated: Up to 24-30mph(10.8–13.8 m/s).
