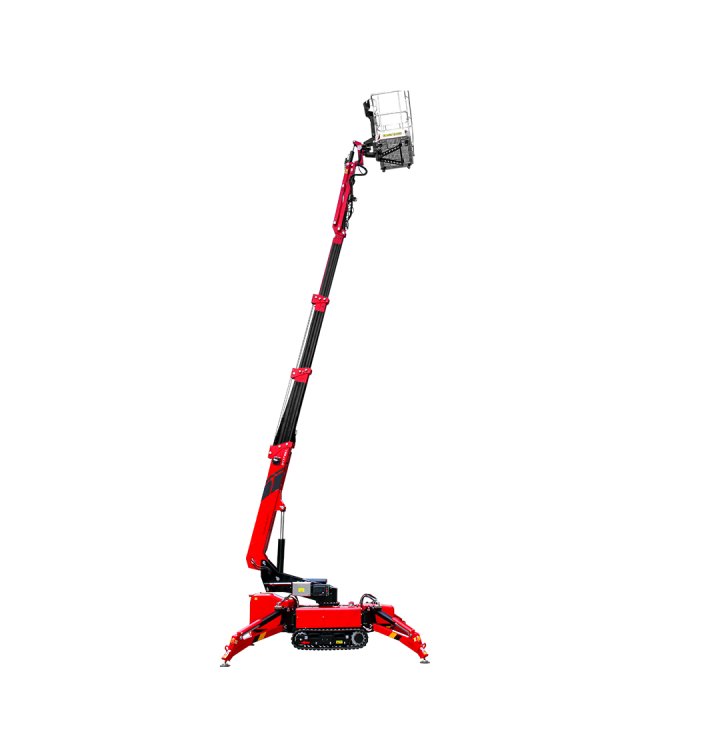

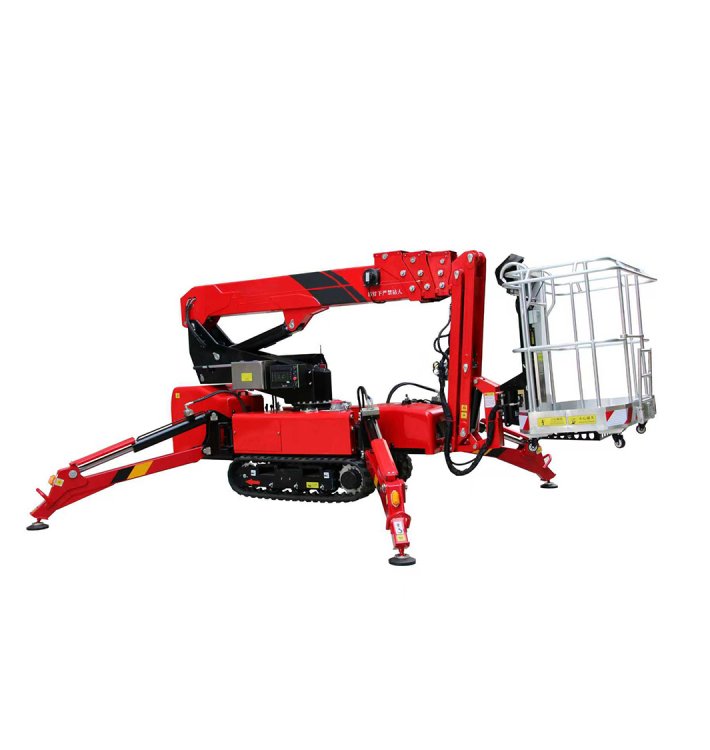

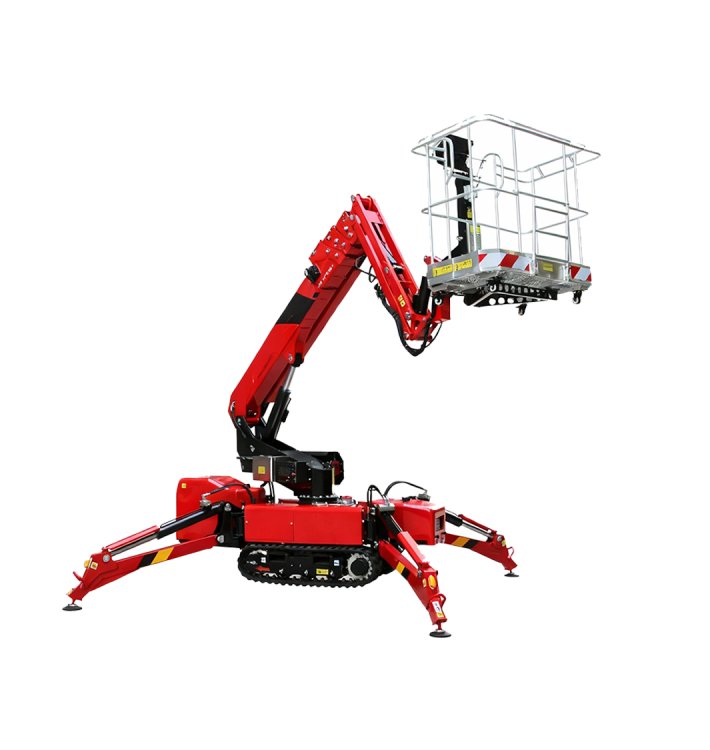

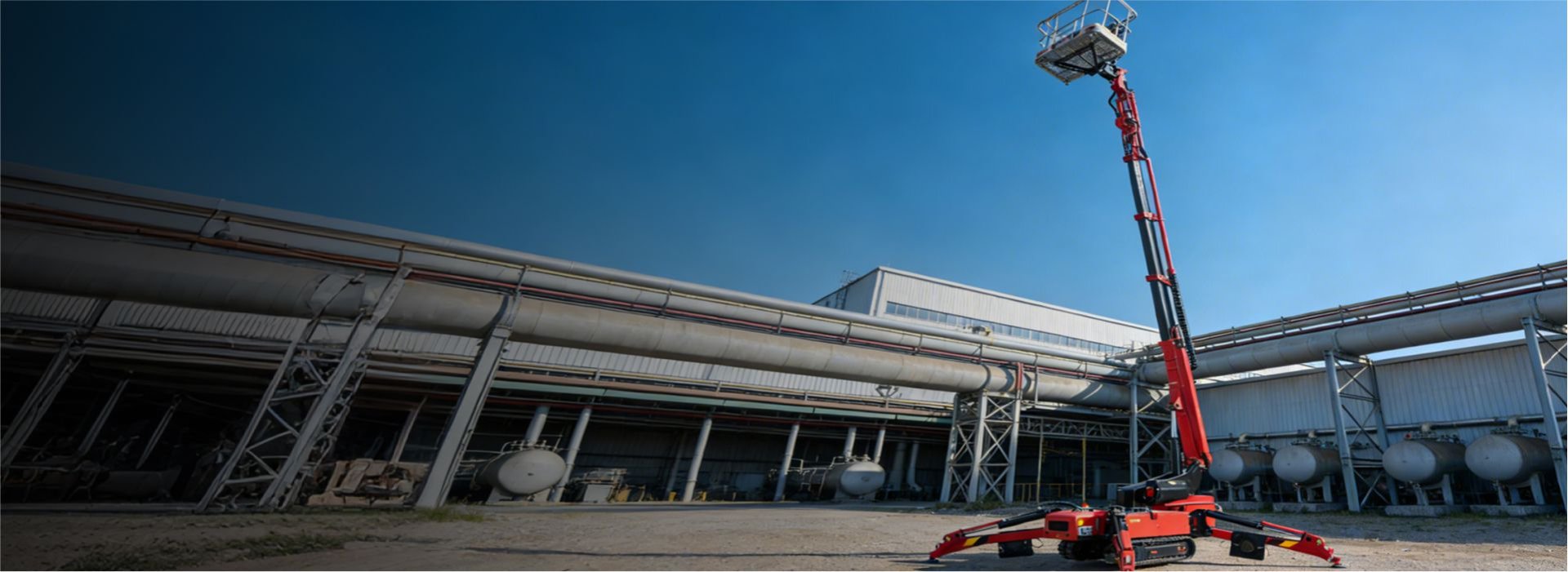

The GCT43 compact crawler lift delivers a 42' 8" (13 m) working height and 16' 5" (5 m) horizontal reach in a lightweight, ultra-compact design. Weighing just 5,688 lbs (2,580 kg), this versatile spider lift leaves minimal ground pressure, making it ideal for delicate indoor flooring, turf, and sensitive outdoor surfaces. Powered by a dual-power diesel engine and electric motor setup, the GCT43 easily fits through standard doorways, tight hallways, and elevators. Featuring Danfoss proportional hydraulic valves, automatic outrigger leveling, and wireless proportional control, it offers safe, precise maneuvering for facility maintenance, indoor atrium work, and light tree care.
| Power: Diesel Engine + Electric Motor | Max. Working Height: 42'8"/ 13 m |
| Max. Horizontal Reach: 16' 5" / 5 m | Max. Platform Capacity: 507 lbs / 230 kg |
| Outrigger Footprint: 10' x 10' / 3.05 × 3.05 m | Max. Platform Height: 36' 1" / 11 m |
| Dimensions (LxWxH): 14' 3" x 4' 9" x 6' 8" / 4350 x 1460 x 2040 mm | Total Weight: 7,606 lbs / 3,450 kg |
| GCT43 Crawler Boom Lift | ||
| Technical Data | unit | Technical parameter |

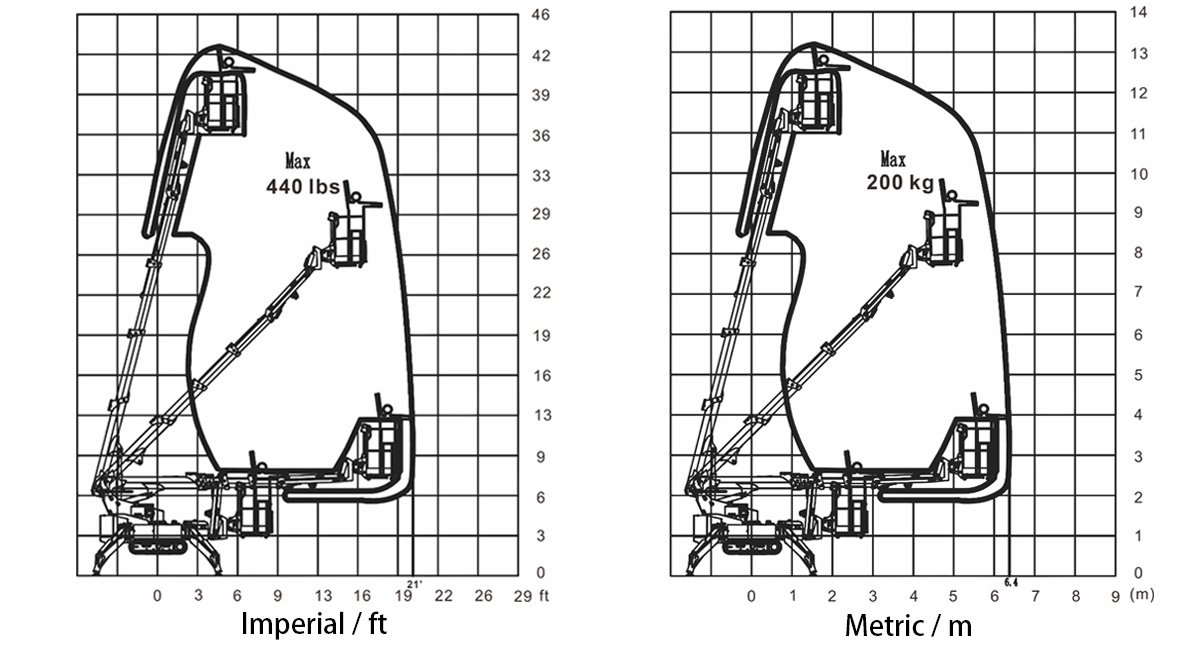

| Max working height | ft | 42' 8" |
| Max platform height | ft | 36' 1" |

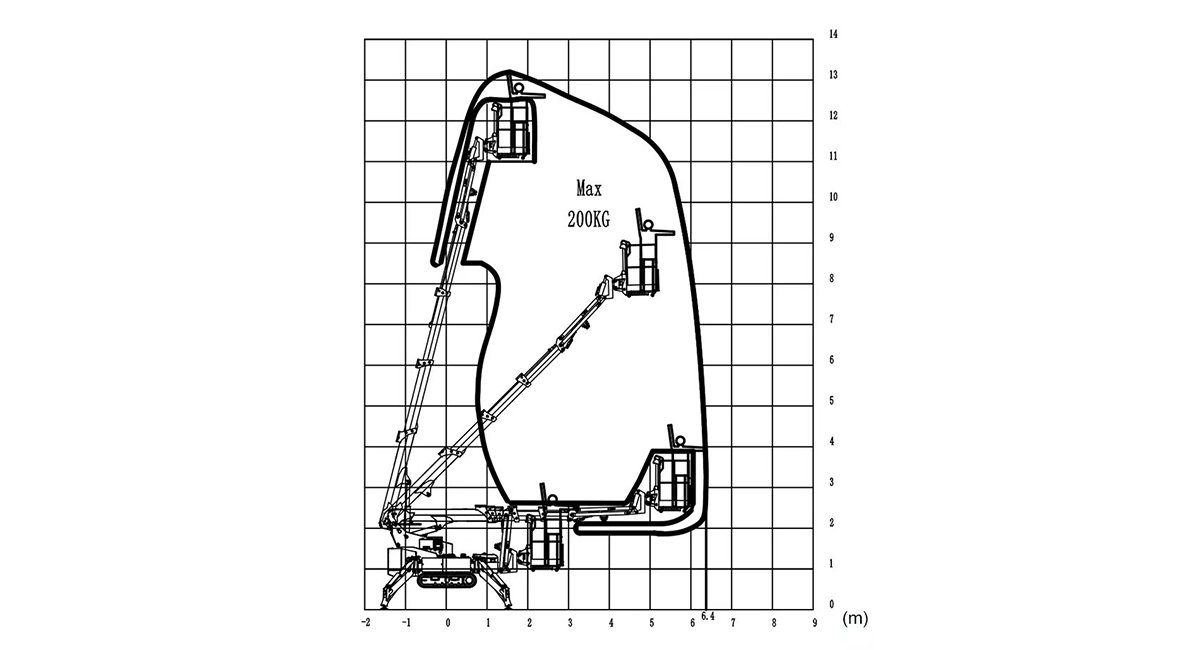

| Max Horizontal Reach | ft | 16' 5" |
| Rotation Angle | ° | 360 （ continuous ） |
| Platform Dimensions | ft | 57.5" × 32.7" x 43.3" |
| Platform Rotation Angle | ° | 180 |
| Max Platform Capacity | lbs | 507 |

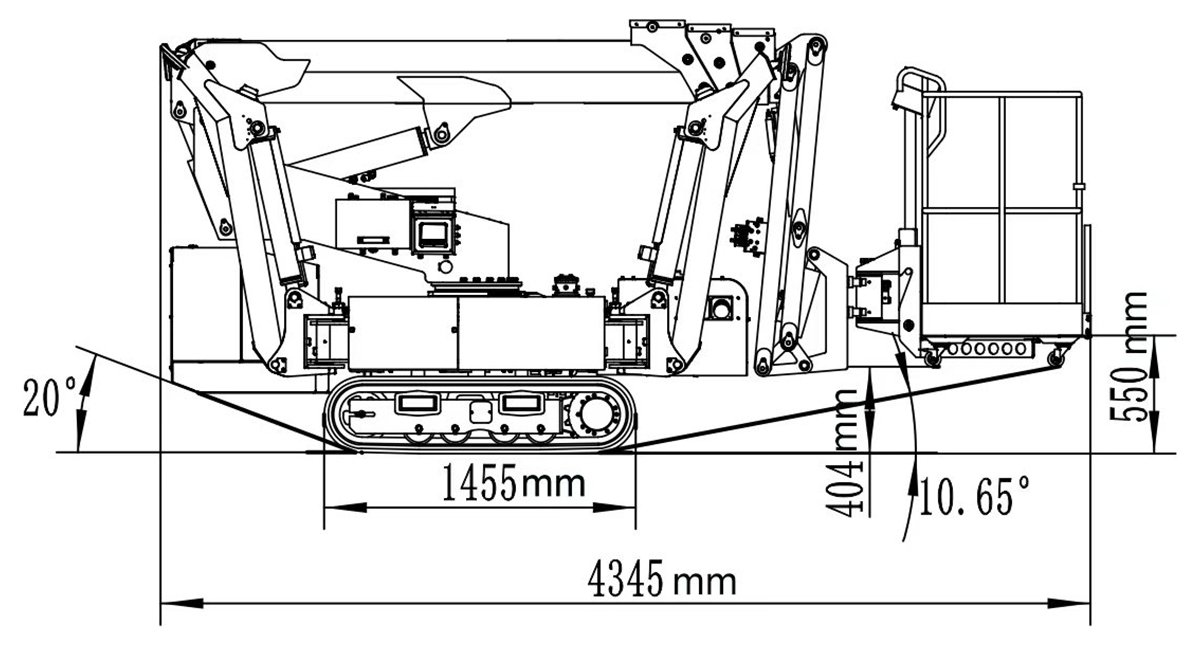

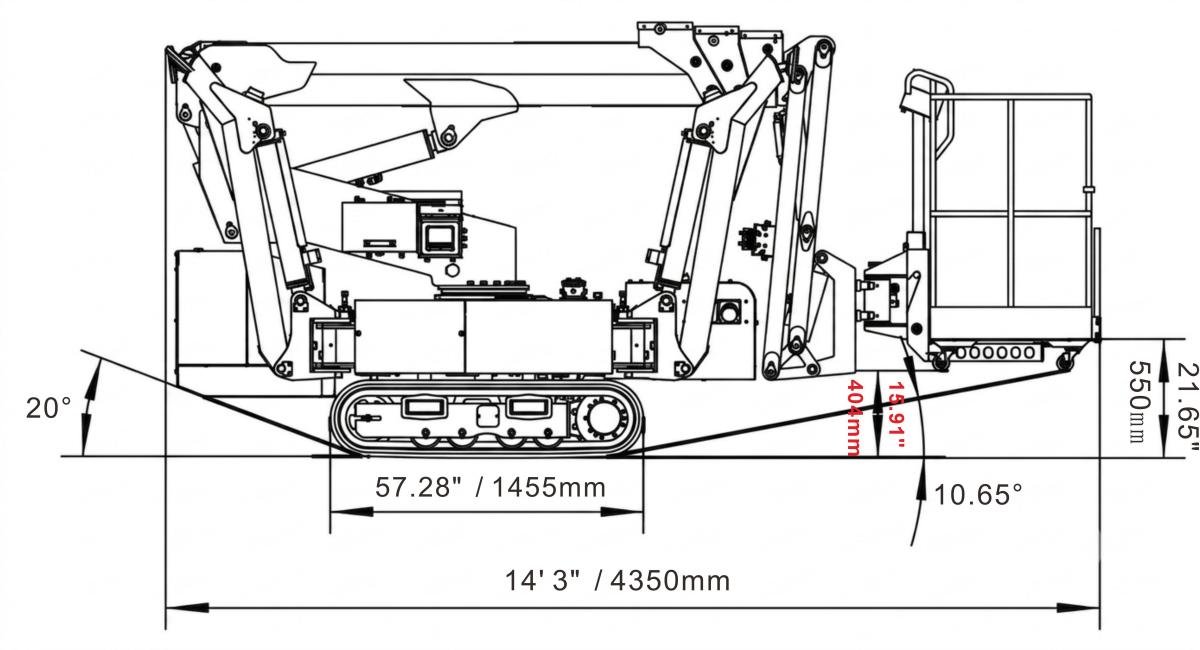

| Transport Length | ft | 14' 3" / 11' 11" （without platform ） |
| Transport Width | ft | 4' 9" / 2' 11" （without platform ） |
| Stowed Height | ft | 6' 8" |

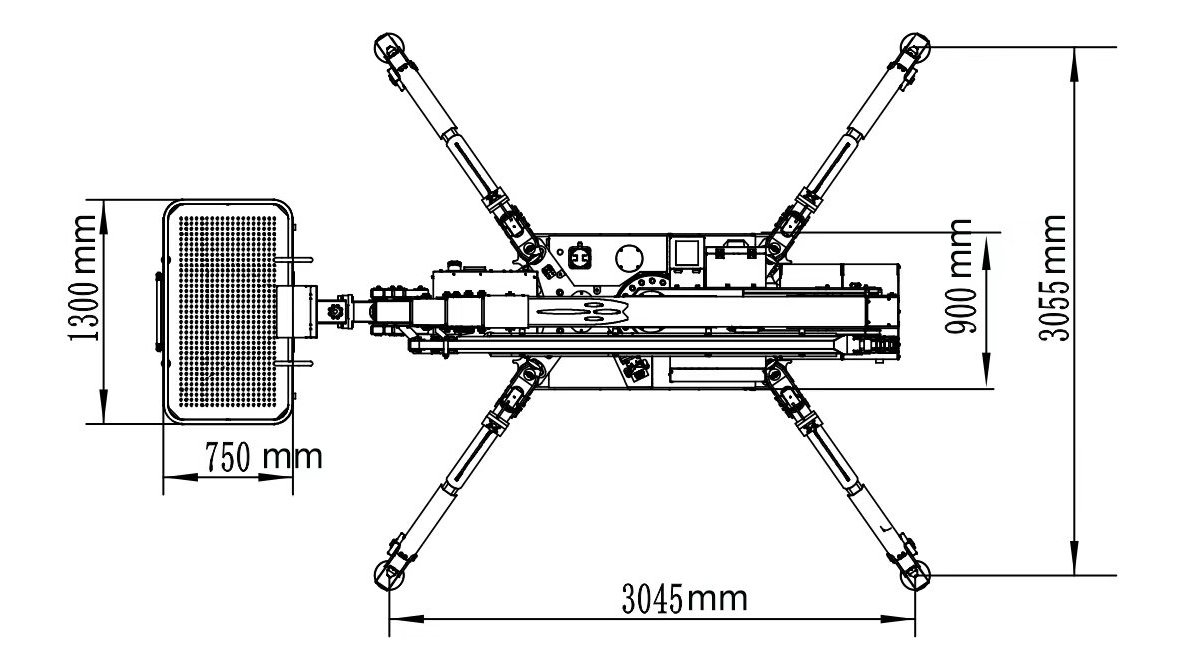

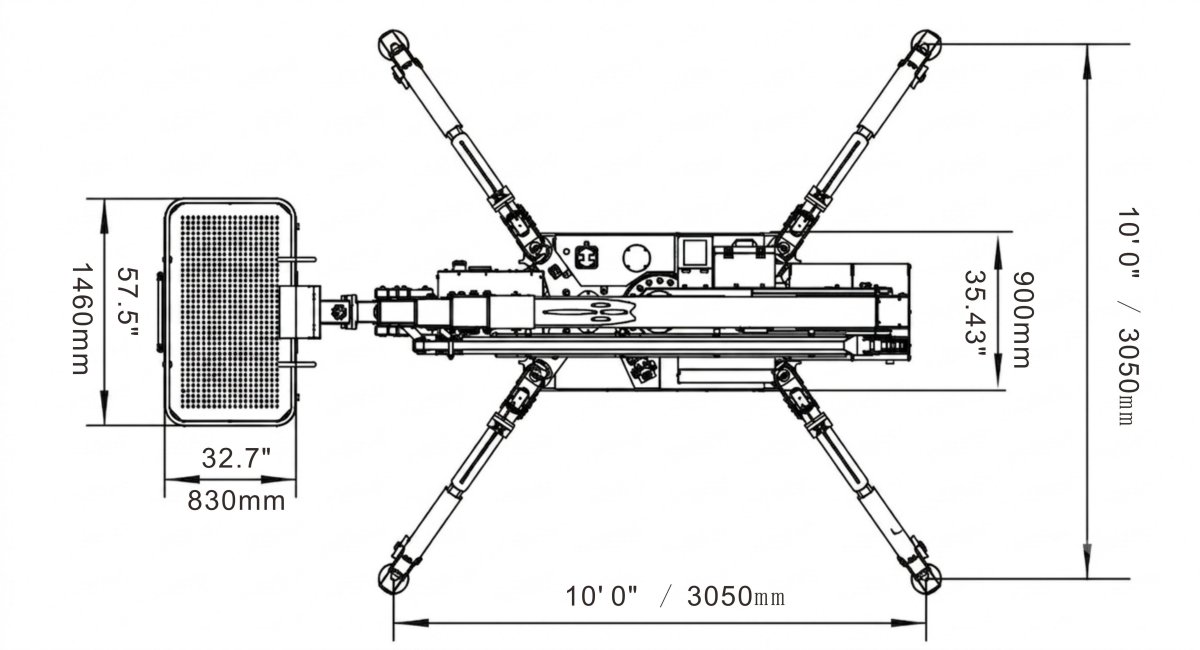

| Overall Outrigger Footprint | ft | 10' 0" x 10' 0" |
| Gradeability | ° | 10° / (17.6%) |
| Driving Speed | High Speed 1.0 Slow Speed 0.5 | |
| Weight | lbs | 5,688 |
| Dimension | 14' 3" x 4' 9" x 6' 8" （with platform ） | |
| Power | ||
| Engine 3TNV70 YANMAR（diesel） | 15.0 HP @ 2400 RPM | |
| Electric Motor 380 V | hp | 4 |
| Manual Emergency Pump | Manual Operation | |
| Operate system | ||
| Driving | Wireless Proportional Control | |
| Outrigger | Wireless Proportional Control | |
| Boom | Manual Operation | |
| Safety Devices | ||
| LMI, Automatic Leveling,Sensor of Outrigger, Alarm Device,Emergency Stop Button, Walking / Outrigger / Boom Three Mode Interlock System | ||
| Optional Device | ||
| Non-Marking White Rubber Tracks、Electric Motor 220V、Engine GX390 Honda Petrol | ||
