Ultra-Compact Access for Tight Job Sites

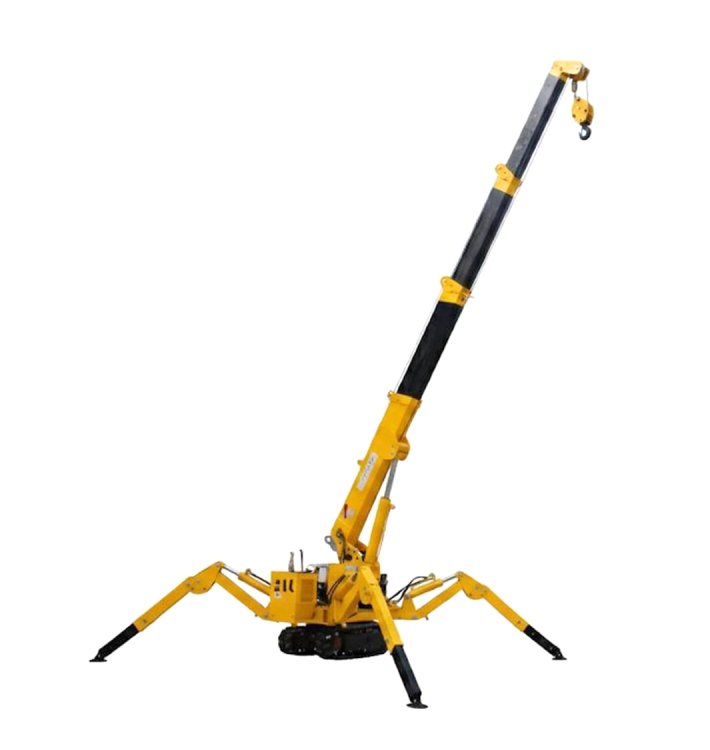

Powered by a dependable gasoline engine, this 1-ton (2,205 lbs) mini crawler crane features an ultra-narrow 24" (600 mm) width, allowing it to easily pass through standard interior doorways, tight gates, and passenger elevators. Delivering maximum flexibility where physical space is severely restricted, it is the ultimate compact lifting solution for residential tree care, indoor glass glazing, rooftop work, and narrow-access construction.
| Power: Gasoline Engine + Electric Motor | Max. Capacity: 2,205 lbs @ 4.9' (1 .0 t × 1 .5 m) |
| Max. Lifting Height (OG): 18.4' (5 .6 m) | Max. Lifting Height (UG): 59' (18 m) |

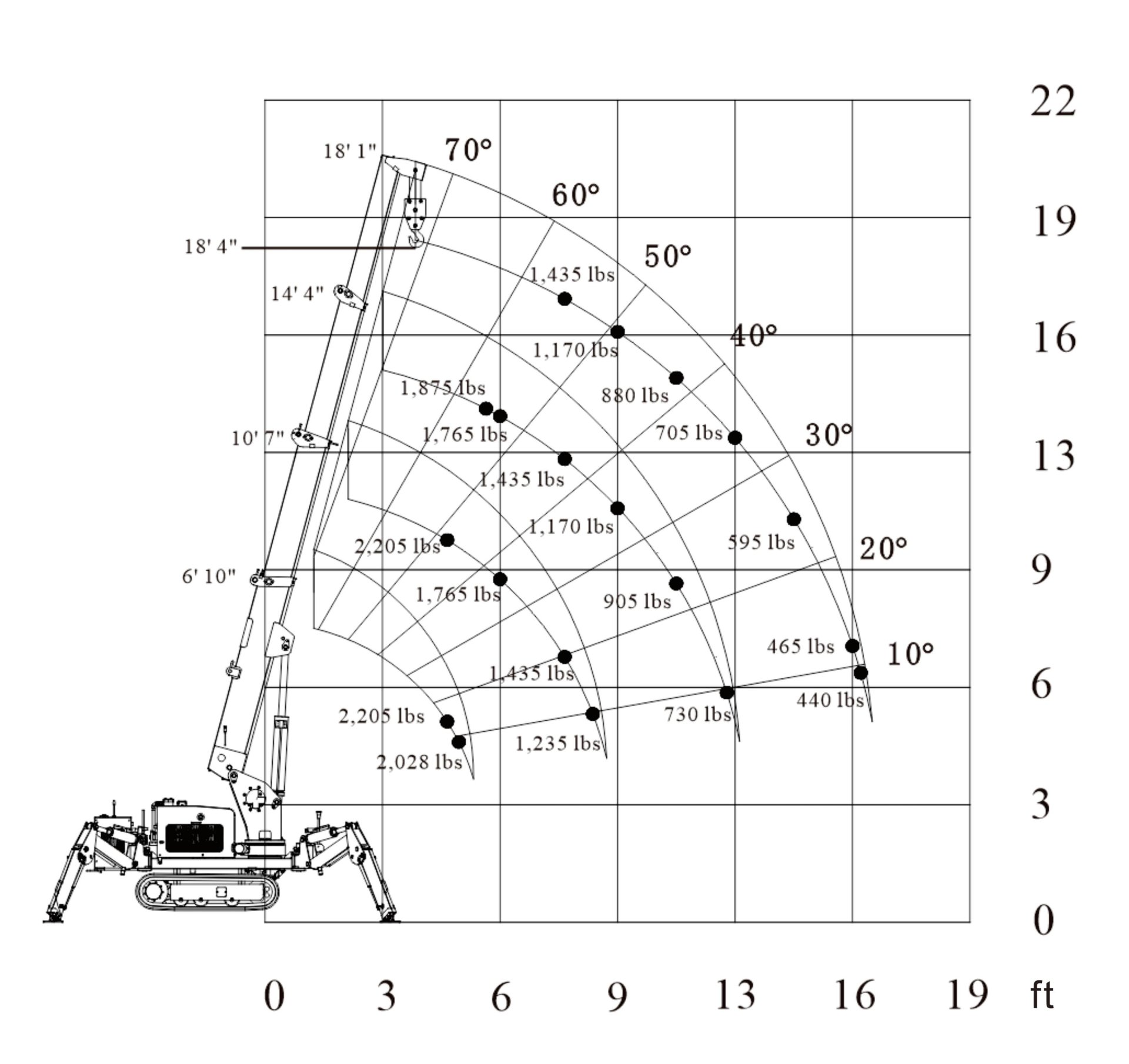

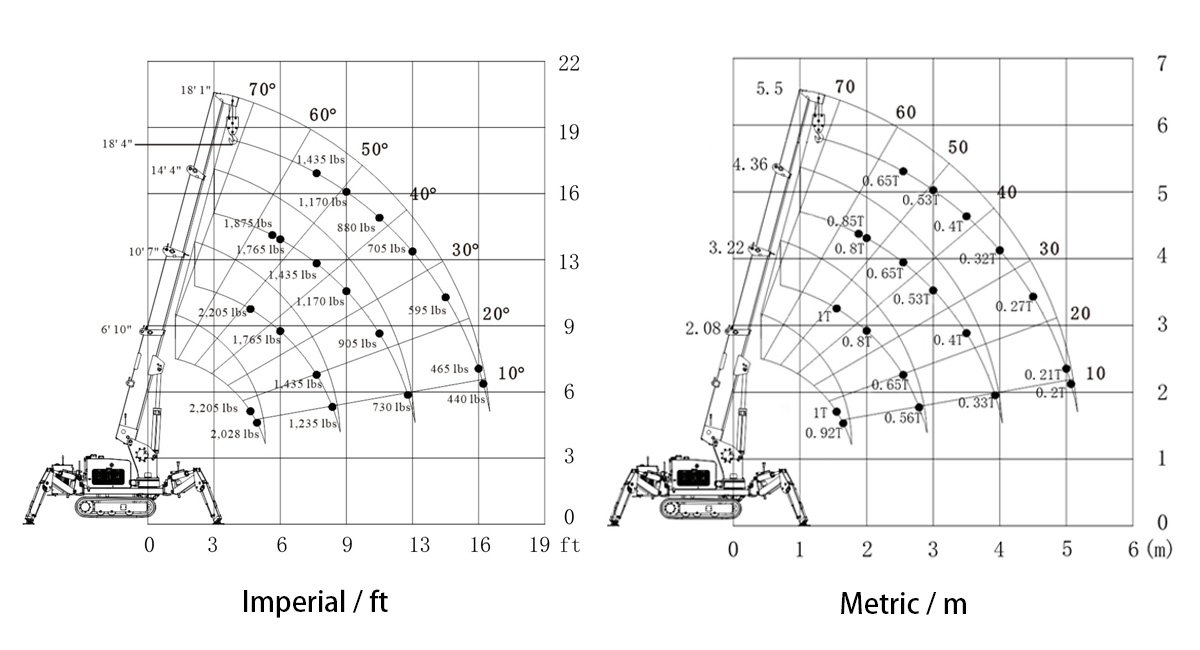

| Max. Working Radius: 16.6' @ 440 lbs (5.07 m × 0.2 t) | Vehicle Weight: 2,844 lbs (1290 kg) |

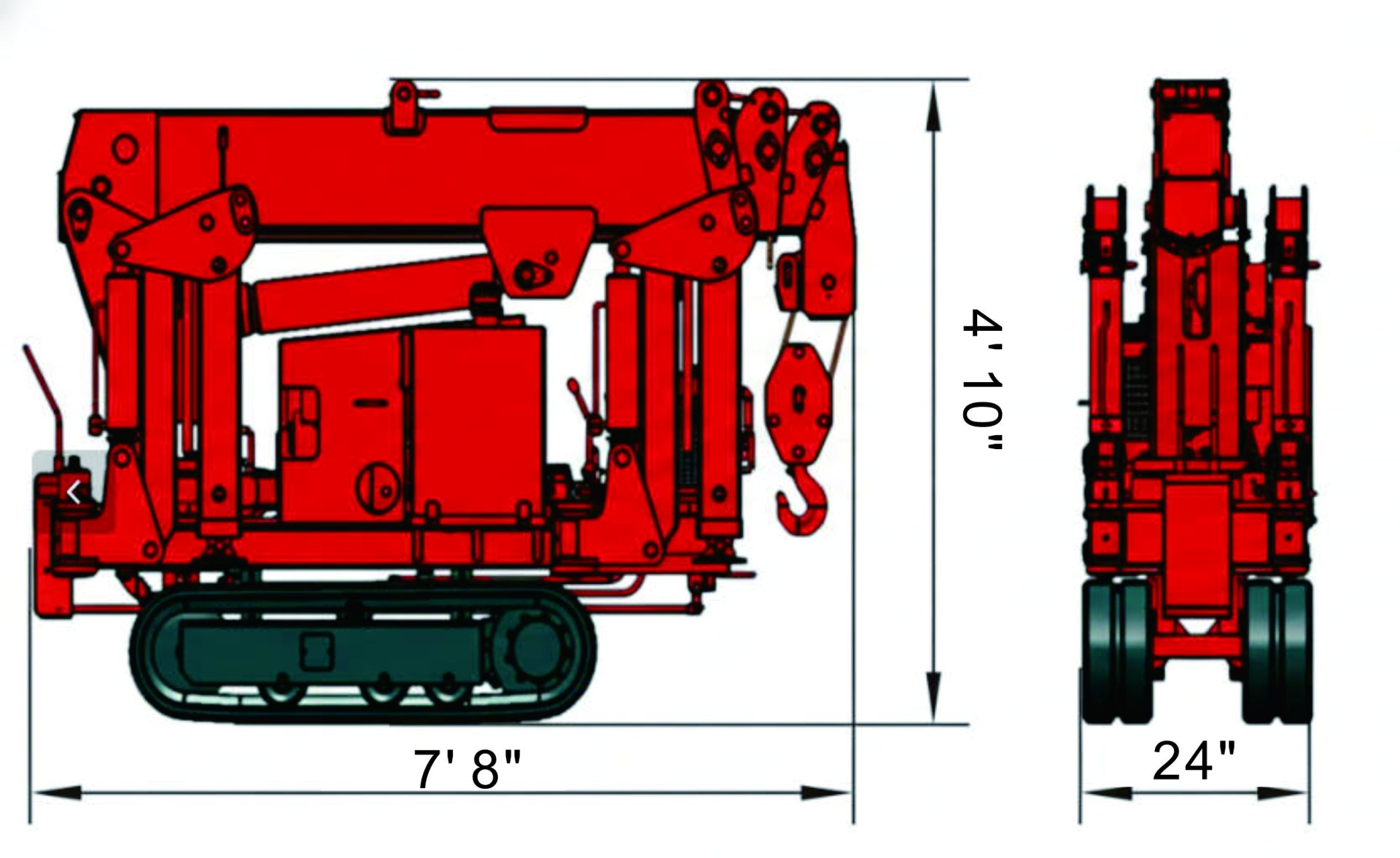

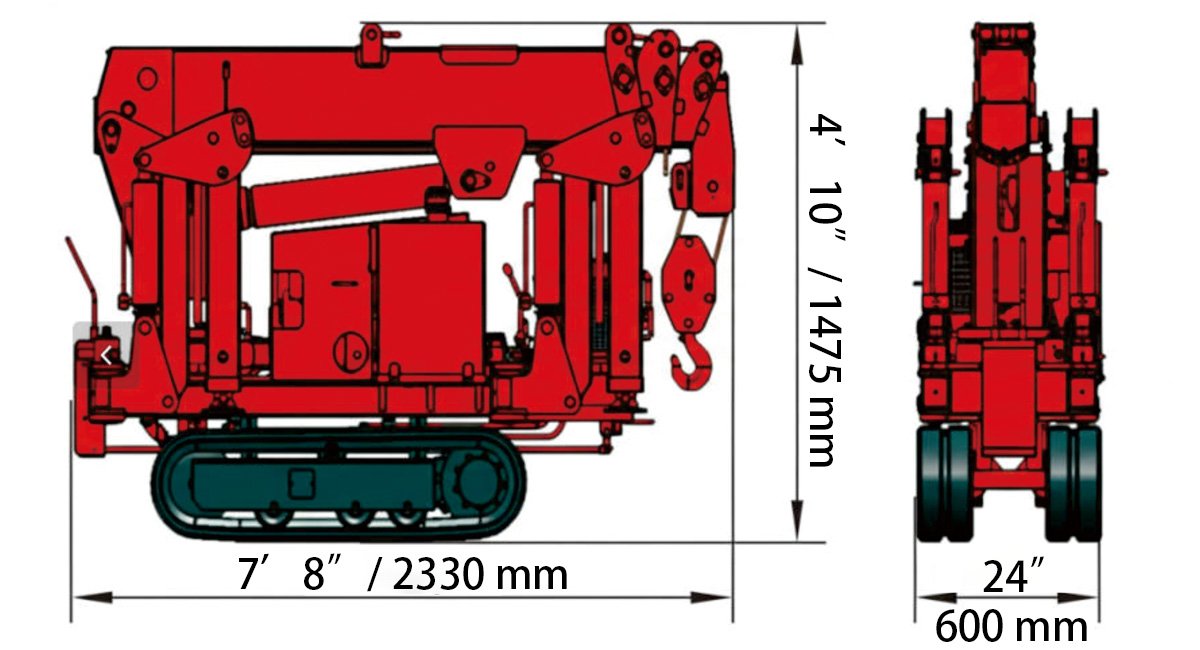

| Dimensions (L×W×H): 7' 8" x 24" x 4' 10" (2330 × 600 × 1475 mm) | Outrigger Footprint: 10' 8" x 10' 8" (3260 × 3245 mm) |
| GSC10 Mini Crawler Crane | ||
| Crane Capacity | 2,205 lbs @ 4.9' | |
| Max. Working Radius | 16.6' × 440 lbs | |
| Max. Lifting Height（OG） | 18.4' | |
| Max. Lifting Height（UG） | 59' | |
| Winch System | Hook Speed | 32.8 ft/min (2-part line) |
| Wire Rope | 5/16" × 157' | |
| Telescopic System | Boom Type | Full automatic 4 section |
| Boom Length | 6' 10" – 18' 1" | |
| Boom Lift Speed | Boom Angle / Speed | 0 °~75 °/14sec |
| Slewing System | Slewing Angle / Speed | 0 ° ~360 ° (Continuous) / 40sec |
| Outrigger | Outrigger Active Form | Automatic for the 1 section, |
| manual adjustment for 2,3 section | ||

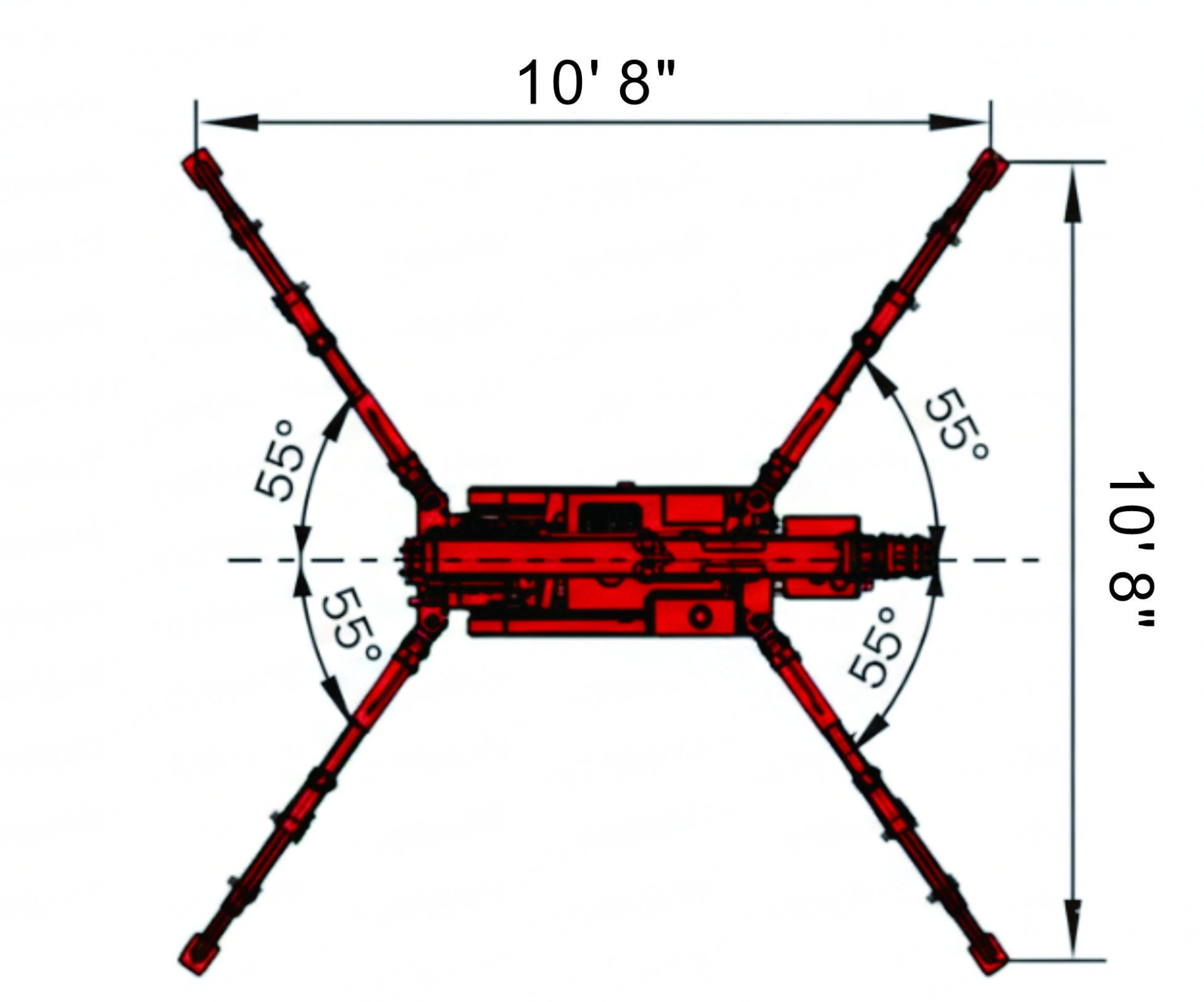

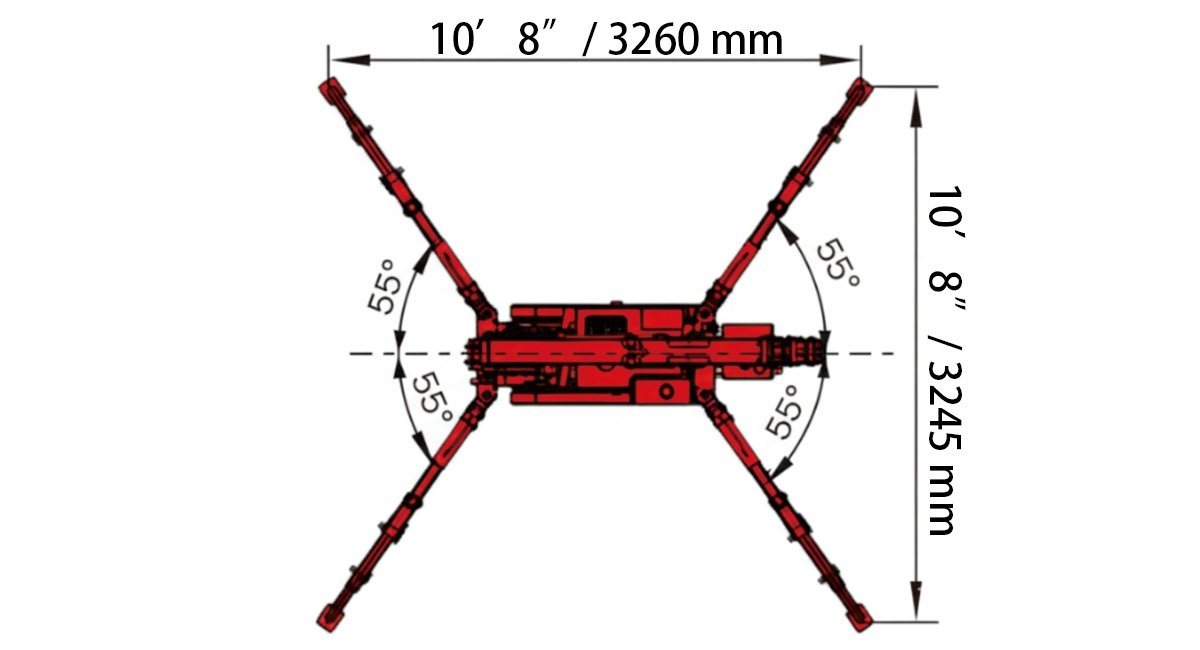

| Maximum Extended Dimensions | 10' 8" × 10' 8" | |
| Traction System | Travel Method | Hydraulic motor |
| Travel Speed | 0 – 1.6 mph | |
| Gradability | 20 ° | |
| Track Footprint (L×W) | 3' 2" × 7" | |
| Track Ground Pressure | 5.16 psi | |
| Diesel Engine | Engine Model | （HONDA） GX270 |
| Displacement | 270 ml | |
| Maximum Output | 6.8 HP / 3600 RPM | |
| Starting Method | Electric starting | |
| Fuel/Tank Capacity | Gasoline / 1.6 gal | |
| System Voltage | DC12 V | |
| Dimension | L × W × H | 7' 8" × 24" × 4' 10" |
| Weight | Vehicle Weight | 2,844 lbs |
| Safety System | Outrigger Automatic Detection Alarm, Level, Emergency Stop Button | |
Proven Performance in Tight & Sensitive Spaces
From historical building restorations to busy industrial workshops, see how our 1-ton mini crawler crane (GSC10) delivers precise, reliable lifting in restricted environments.

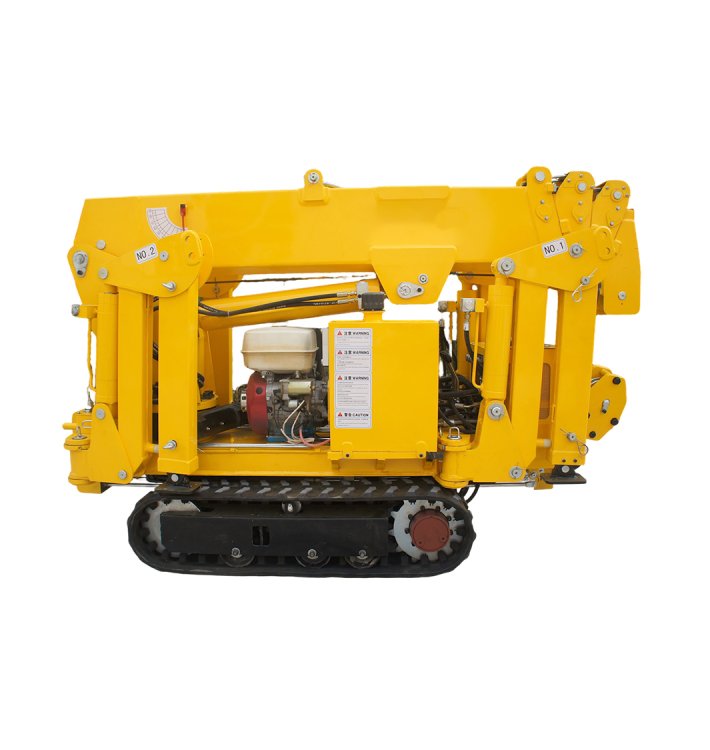

Ultra-Compact Mini Crawler Crane Features a Compact 24" / 600 mm Width to Fit Through Standard Doors
Max Capacity: 2,205 lbs @ 4.9' / 1 .0 t × 1 .5 m
Max Lifting Height (OG): 18' 4" / 5 .6 m
6,500 lbs / 3 t Mini Tracked Crawler Crane for Glass Installation & Steel Erection.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Powerful Gasoline 6,500 lbs Mini Tracked Crane. High-torque Performance for Heavy-duty Outdoor & Industrial Projects.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
6,500 lbs / 3 t Electric Mini Tracked Crane: The Silent Powerhouse for Indoor Glazing
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Compact Crawler Crane for Data Center Infrastructure, Utility, Glass Curtain Wall Installation and Steel Erection
Max Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m
Max. Lifting Height (OG): 43' / 13.1 m
17,600 lbs / 8 t Small Crawler Crane for Precision Steel Structure Erection
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
High-capacity 17,600 lbs (8-ton) Lifting Meets Zero-Emission Electric Power. Ideal for Indoor & Rooftop Heavy-Duty Jobs
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Manual Controls for Boom and Travel Operations Significantly Reduce Electronic Complexity and Long-Term Maintenance Costs.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Buying a mini crawler crane for sale comes down to three things: access, efficiency, and long-term value. GLT is a premier U.S. mini crawler crane manufacturer offering a full range of equipment from 2,200 lbs to 17,600 lbs (1–8 tons). Follow this 5-step guide to bypass brand markups and maximize your ROI.
Daily checks go beyond safety. They are your best chance to catch early wear—like those tiny surface flaws during the first 60-hour break-in period.

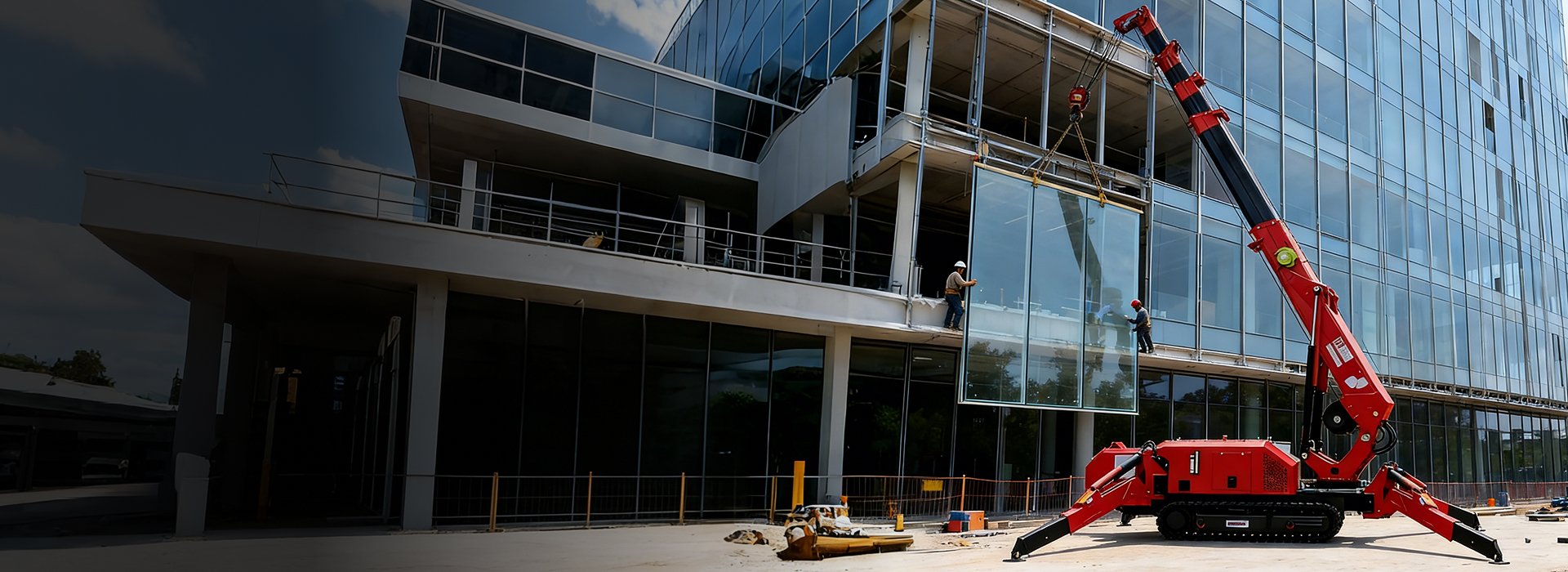

In the glass curtain wall world, hoisting a multi-ton panel isn't the hard part—the real skill is tucking it into a tight corner and aligning it to a gap of just a few millimeters. When facing "tough nuts to crack" like oversized panels and deep overhangs, the GLT glass lifting spider crane doesn’t rely on brute force. Instead, it uses a logic of "precision craftsmanship" specifically tailored for curtain walling.
Our 1-ton and 3-ton mini crawler cranes are the most popular models for the tree care and landscaping industry.
Equipped with rubber tracks, these compact crawler cranes easily navigate narrow backyard gates and operate on soft grass without causing property or turf damage. They provide the perfect lifting capacity and stability needed for safe tree trimming, sectioning, and log removal in confined residential spaces.
Yes, it's easy to operate.Because we utilize a high-precision, highly integrated wireless proportional control system, allowing all traveling, hoisting, and outrigger operations to be precisely controlled by a single operator remotely.
Yes. LIFTSGLT mini crawler cranes are specifically designed for delicate environments. Equipped with non-marking rubber tracks and a lightweight chassis, they significantly minimize ground pressure.
This makes them the ideal solution for:
Indoor Marble & Tile Floors (no scratches or scuffs)
Raised Access Floors (in data centers or offices)
Rooftops & Landscaped Areas (low structural load)
To check if our equipment meets your specific floor loading requirements, please get a technical consultation with our team today.
