Maximum Durability & Cost-Effective Heavy Duty Performance

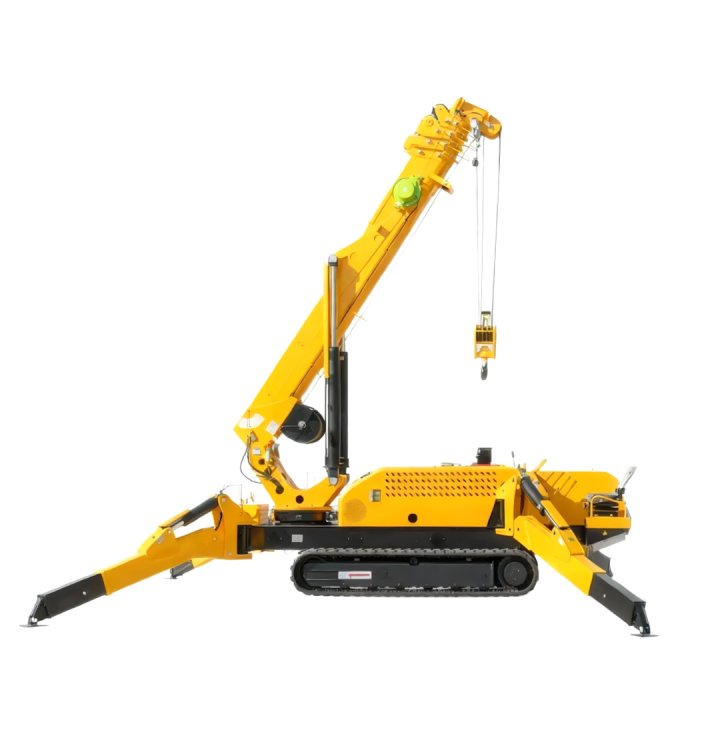

Built with a Diesel Engine + AC Electric Motor dual-power setup, the GSC80DM combines 17,600 lbs (8.0 t) lifting capacity with highly reliable manual controls for boom and travel operations. Designed as a rugged 8-ton mini crawler crane, this mechanical control configuration significantly reduces electronic complexity and long-term maintenance costs. Delivering exceptional stability, high reliability, and easy jobsite transport, it is the ideal, budget-smart solution for demanding steel structure erection, power substations, confined spaces, and remote site construction.
| Power: Diesel Engine + Electric Motor | Max. Capacity: 17,600 lbs @ 8' 2" (8.0 t × 2.5 m) |
| Max. Lifting Height (OG): 55' 9" (17 m) | Max. Lifting Height (UG): 427' (130 m) |

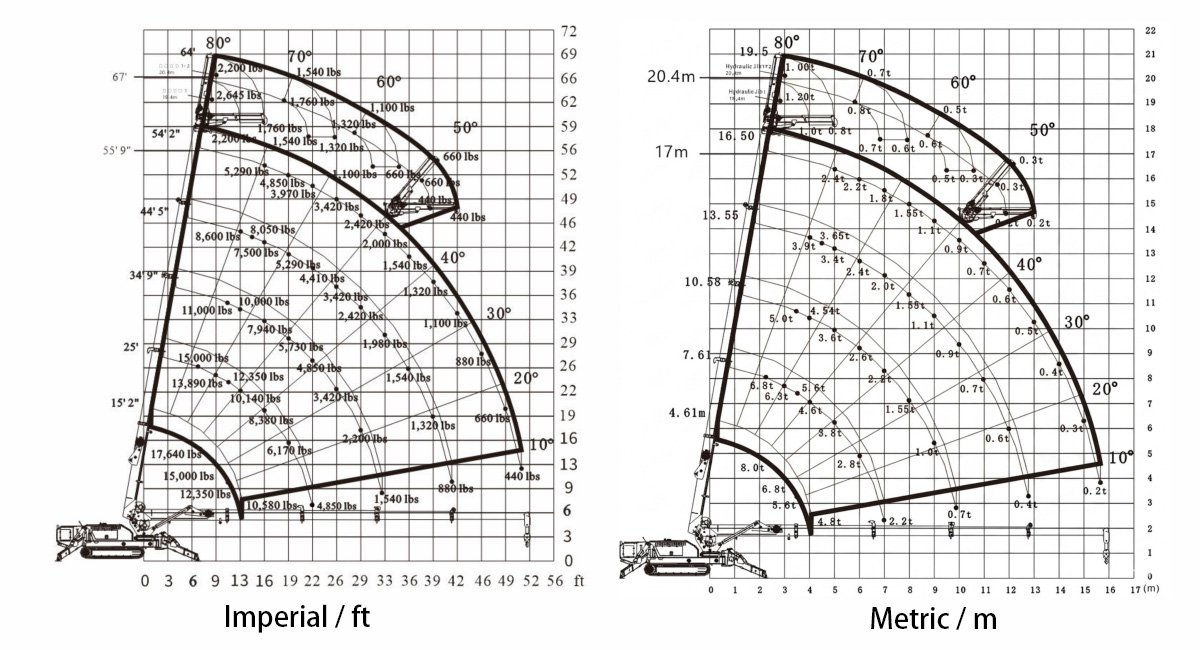

| Max. Working Radius: 51' 6" @ 440 lbs (15.7 m × 0.2 t) | Vehicle Weight: 16,204 lbs (7350 kg) |
Live Demo: Watch GSC80 (8-Ton) spider crane maneuvering through ultra-tight spaces within a power station!
| Model | GSC80DM | GSC80D | GSC80E | ||
| DUAL POWER | DIESEL | LITHIUM BATTERY | |||
| AC ELECTRIC | AC ELECTRIC | ||||
| Engine Model | 4TNV88 (YANMAR) | Lithium battery | |||
| Starting method | Electric Start | DC motor (with battery pack) | |||
| Maximum Output | 33.8 HP | 26.8 HP | |||
| Fuel / Battery Capacity | 11.9 gal | 80V / 460Ah | |||
| Electric Motor | Configurable to Local Standards (110V - 480V) | ||||

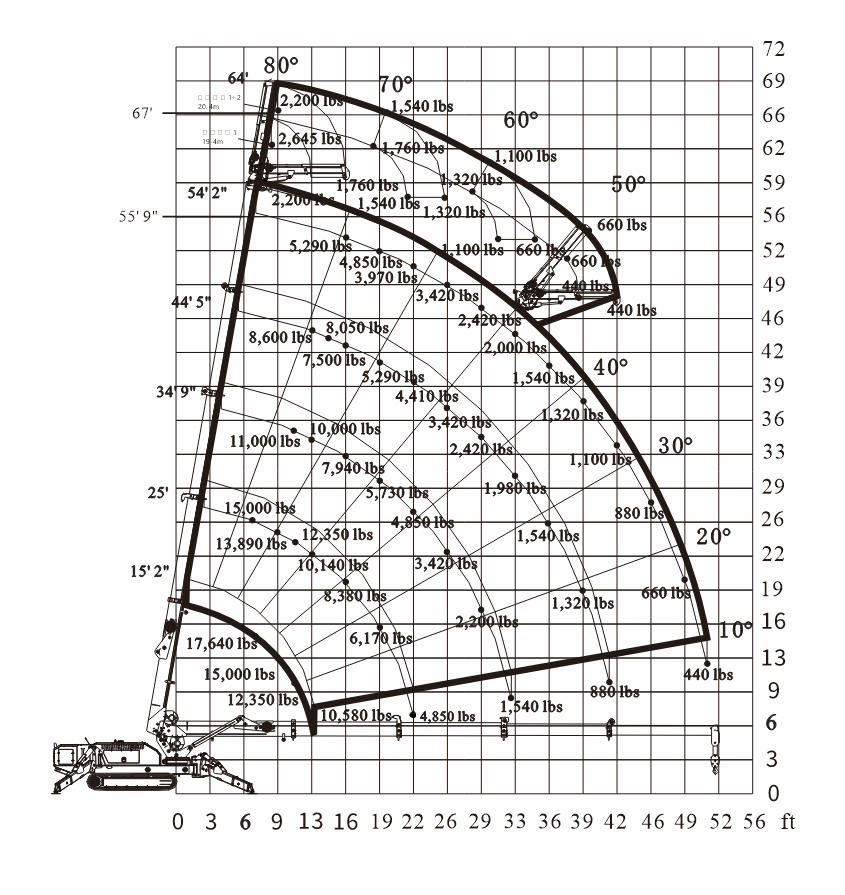

| Crane Capacity | 17,600 lbs @ 8' 2" | ||||
| Max.Working Radius | 51' 6" @ 440 lbs | ||||
| Max.Lifting Height（OG） | 55' 9" | ||||
| Winch System | Hook Speed | 0 - 32.8 FPM (4-Part Line) | |||
| Wire Rope | 15/32" × 328' | ||||
| Telescopic System | Boom Type | U type automatic 5 section | |||

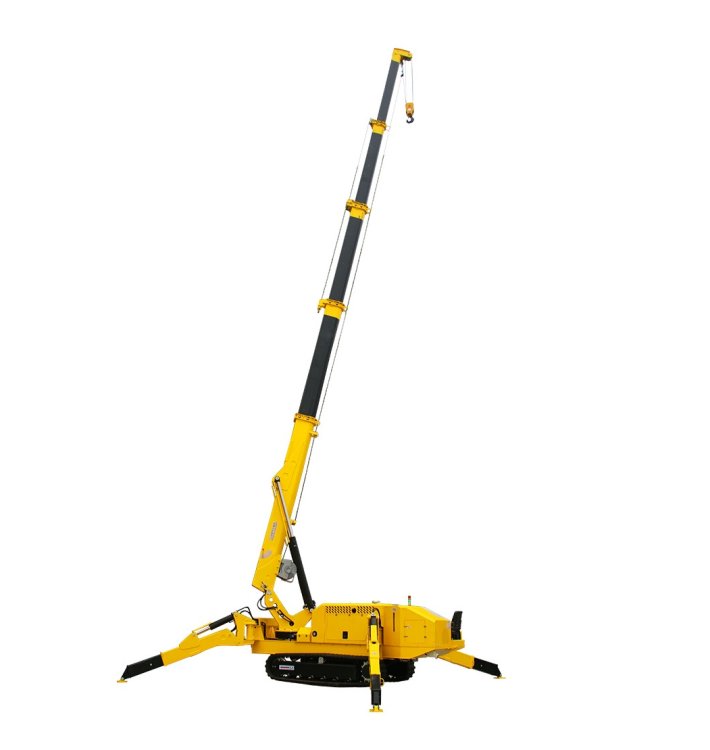

| Boom Length | 15' 2" - 54' 2" | ||||
| Telescopic Length / Speed | Approx. 34 sec (fully extended) | ||||
| Boom Lift Speed | Boom Angle / Speed | 0 - 80° / 24.5sec | |||
| Slewing System | Slewing Angle / Speed | 0-360°Continuous / 29sec | |||
| Outrigger | Outrigger | Manual operation for the first section,automatic for the 2,3section | |||

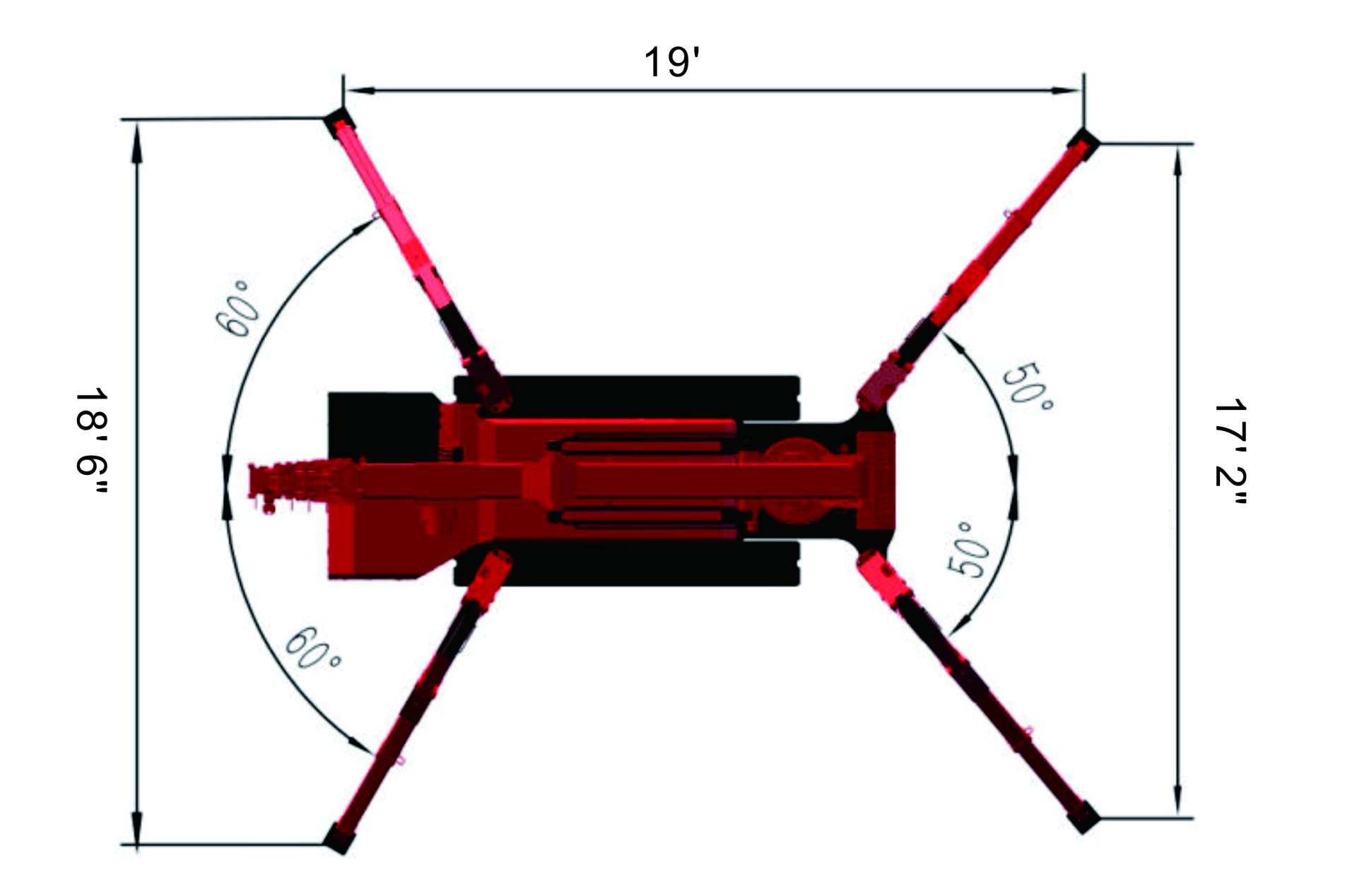

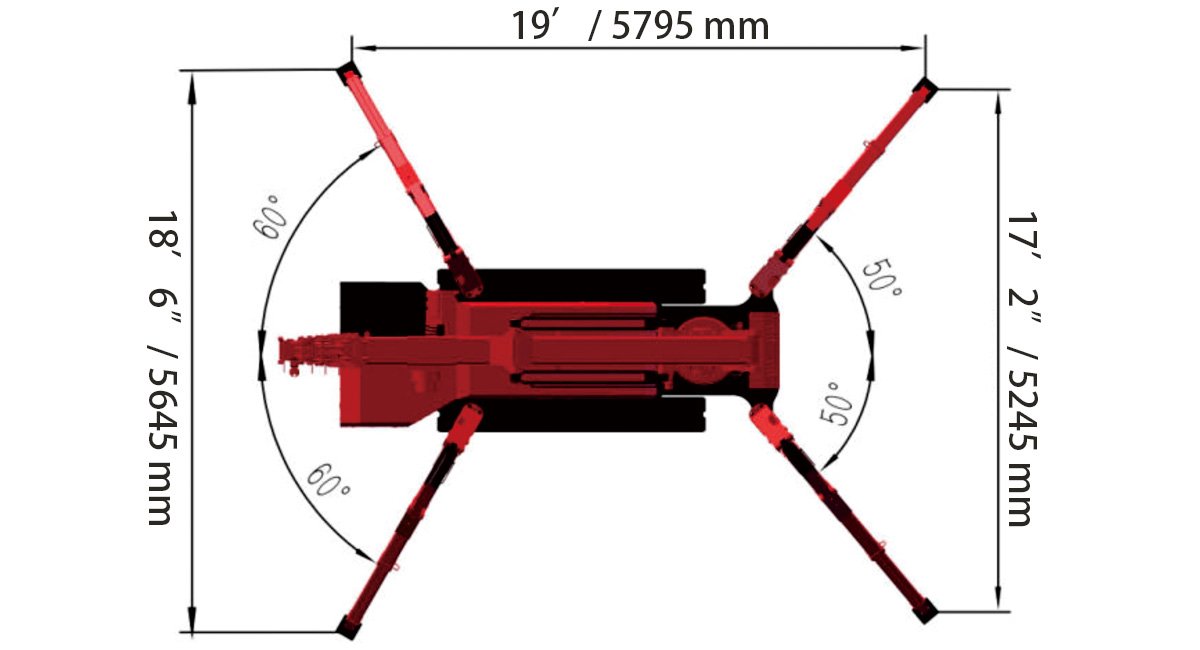

| Max Extended Dimensions | 19' × 18' 6" × 17' 2" | ||||
| Traction system | Travel Method | Hydraulic Motor; High / Low Speed | |||
| Travel Speed | 0 - 0.87 / 0 - 1.8 mph | ||||
| Gradability | 20° | ||||
| Track Footprint (L × W) | 7' 2" × 14" | ||||
| Track Ground Pressure | 7.0 psi | 7.4 psi | |||
| Operating System | Remote Control Type / Range | Proportional Wireless / 328 ft | |||
| Outriggers | Proportional Wireless | ||||
| Travel | Manual operation | Dual-Mode (Wireless & Manual) | |||
| boom | |||||

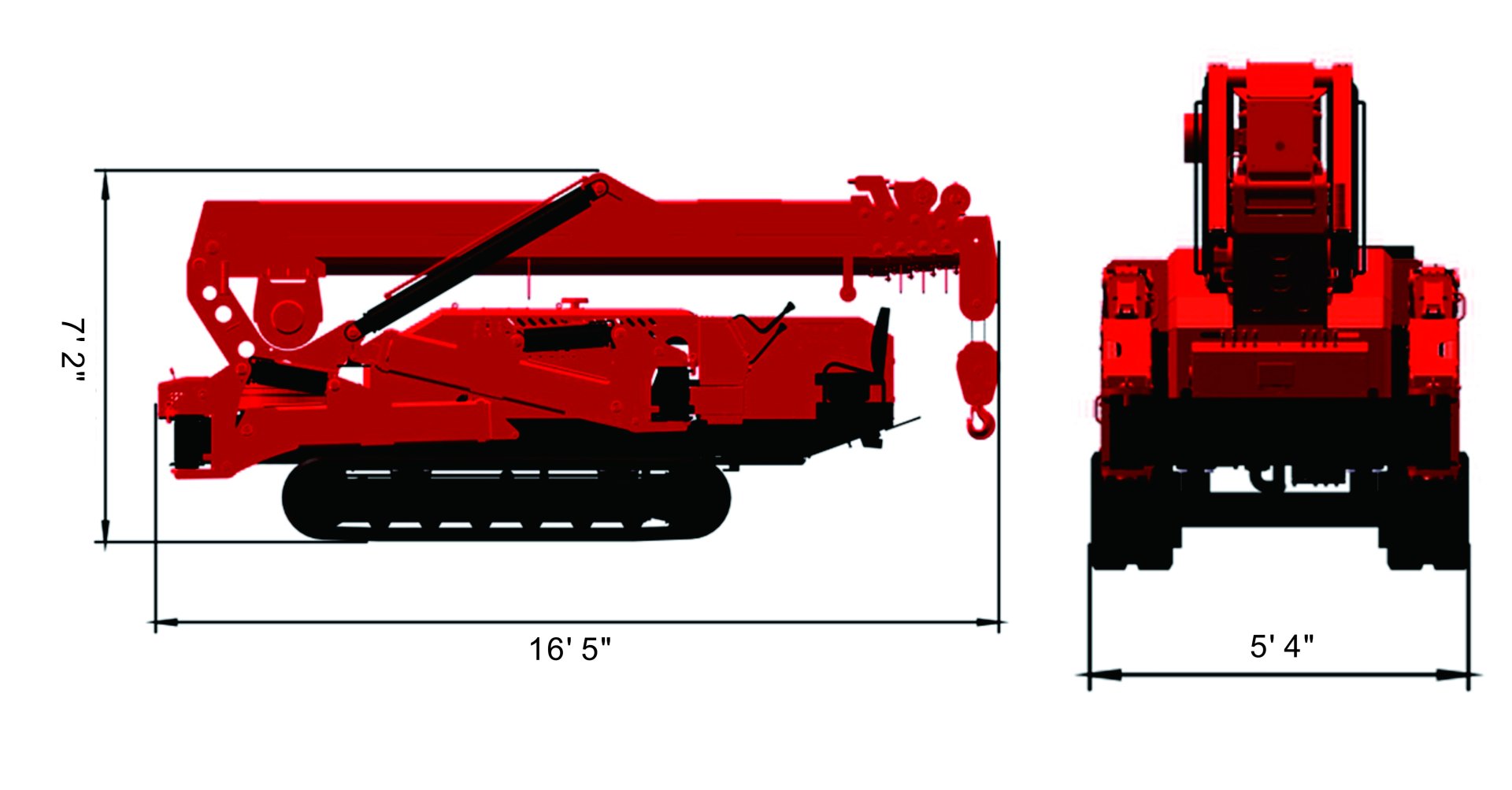

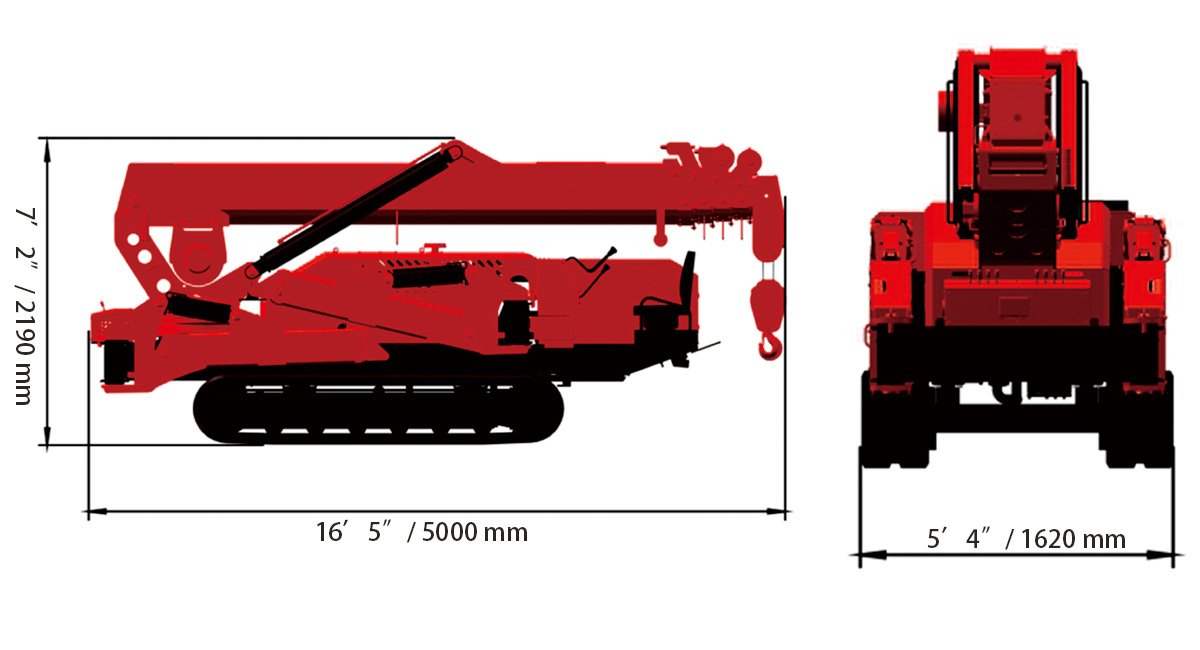

| Dimension(L×W×H) | 16' 5" × 5' 4" × 7' 2" | ||||
| Hydraulic Oil Tank Capacity | 26.4 gal | ||||
| Vehicle weight | 16,204 lbs | 16,535 lbs | |||
| Safety System | Level, LMI, Tricolor Safety Warning Light, Emergency Stop Button, 3-Mode Safety Interlock (Travel / Outrigger / Boom), One-Touch Hook Auto-Stow | ||||
24" (600 mm) width fits standard doors. Ideal for narrow access & glass installation.
Max Capacity: 2,205 lbs @ 4.9' / 1 .0 t × 1 .5 m
Max Lifting Height (OG): 18' 4" / 5 .6 m
6,500 lbs / 3 t Mini Tracked Crawler Crane for Glass Installation & Steel Erection.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
High-torque 3-ton gasoline crawler crane for outdoor industrial projects.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
Silent 3-ton electric mini crane engineered for indoor glazing jobs.
Max Capacity: 6,500 lbs @ 4' 3" / 2.95 t × 1.3 m
Max. Lifting Height (OG): 30' 2" / 9.2 m
5-ton compact crawler crane for data centers and steel structure erection.
Max Capacity: 11,000 lbs @ 5' 11" / 5.0 t × 1.8 m
Max. Lifting Height (OG): 43' / 13.1 m
17,600 lbs / 8 t Small Crawler Crane for Precision Steel Structure Erection
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
17,600 lbs heavy-duty crane. Zero-emission power for rooftop lifting.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
Manual Controls for Boom and Travel Operations Significantly Reduce Electronic Complexity and Long-Term Maintenance Costs.
Max Capacity: 17,600 lbs @ 8' 2" / 8.0 t × 2.5 m
Max. Lifting Height (OG): 55' 9" / 17 m
If you're planning to invest in a mini crawler crane, one of the first questions is simple: how much does it cost? The answer depends on several factors such as lifting capacity, working height, configuration, and safety features. In this guide, we break down real price ranges, what affects the cost, and how to choose the right model for your project.
When operating lifting equipment in confined or complex job sites, safety is not optional—it’s critical. One of the most important safety features in modern mini crawler cranes is the Load Moment Indicator (LMI) system.
Maximizing Efficiency: GLT LIFTS Mini Crawler Crane for Steel Structure Erection and Heavy-Duty Lifting
Choose the GSC80DM if you prefer manual controls for travel and boom and a more traditional operating setup.
Choose the GSC80D if you need wireless proportional control for the outriggers, travel, and boom functions.
Both models are 8-ton mini crawler cranes built for heavy-duty lifting applications.
Yes.
The crane uses a diesel engine and an AC electric motor.
The diesel engine is suitable for outdoor and remote work. The electric motor is useful for indoor or emission-sensitive areas when a suitable power supply is available.
The GSC80DM is a good choice for customers who value simple controls and easy maintenance.
Its less complex electronic system can make troubleshooting more straightforward. It is also suitable for demanding jobsites and remote projects.
The main difference is the outrigger control system.
GSC80D: Uses a wireless proportional remote control for the outriggers, travel, and boom. It provides precise control during lifting and positioning.
GSC80DM: Uses manual controls for Travel and boom. It keeps the same diesel and dual-power configuration while offering a simpler control setup and lower equipment cost.
Both models are 8-ton mini crawler cranes for demanding lifting work.
GLT LIFTS mini crawler cranes come with a 1-year full-machine warranty.
If any issues arise during the warranty period, please contact our support team immediately.
Yes.
The GSC80DM includes a Load Moment Indicator (LMI), anti-two-block alarm, outrigger sensors, emergency stop button, and safety interlocks.
Manual control of the boom and travel functions does not remove these safety features.
The operator controls the boom and crawler travel functions through the crane’s onboard control system.
This design reduces the number of electronic control components. It also provides a simple and reliable way to operate the crane.
