If you are considering a mini crawler crane for construction, glass installation, industrial maintenance, tree care, or restricted-access lifting, one of the first questions is:
How much can a mini crawler crane lift?
1 TON →3 TONS →5 TONS →8 TONS+
Mini crawler cranes can lift approximately 1 ton to 8 tons or more, depending on the model and operating configuration.
Actual lifting capacity depends on working radius, boom configuration, lifting height, boom angle, outrigger setup, and site conditions.
Mini crawler cranes—often referred to as mini spider cranes because they combine a compact crawler chassis with deployable outriggers—are engineered to access areas where conventional lifting equipment cannot fit. However, a crane's maximum rated capacity does not apply at every working position.
This guide breaks down the core factors affecting lifting capacity, how to read a manufacturer's load chart, and how to select the right machine based on your actual job-site requirements.
Several mechanical and environmental variables determine how much a mini crawler crane can safely lift in a specific setup.

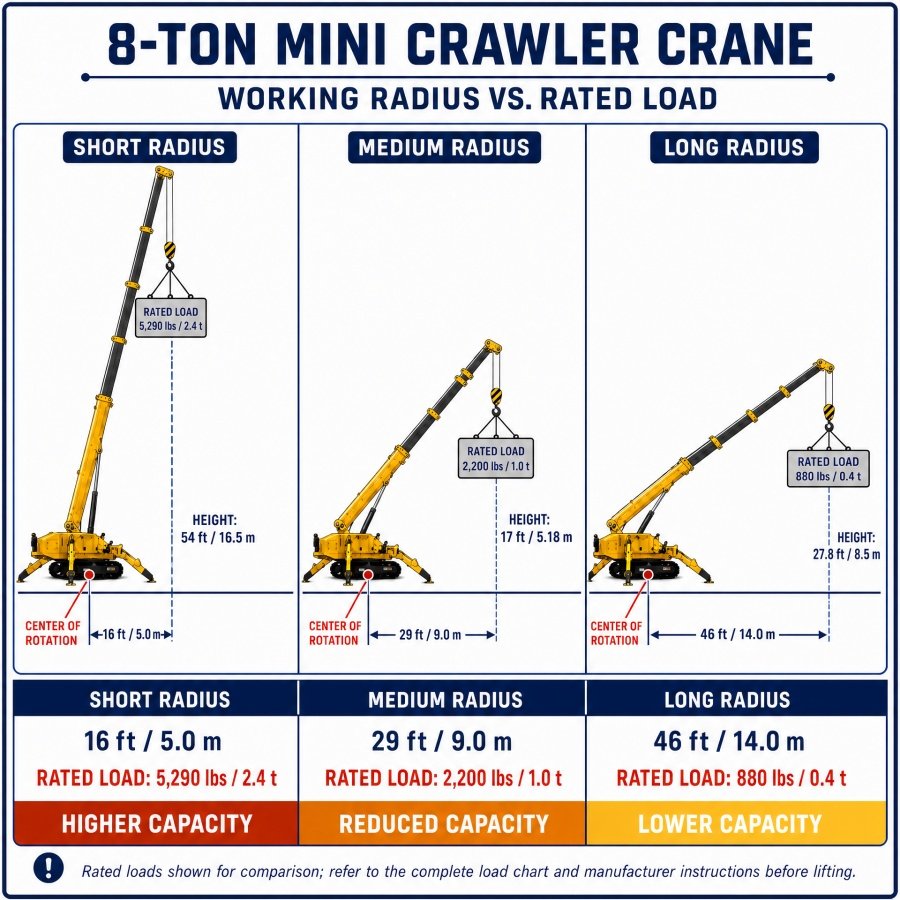

Working radius is the horizontal distance from the crane's center of rotation to the center of the suspended load. As the radius increases, the load creates a greater moment (Load Moment = Load ×Radius) around the support system, significantly reducing the allowable capacity.
Reaching maximum height does not mean maximum lifting capacity. Boom length, extension sequence, and operating angles dictate your working geometry. More reach or height does not equal more capacity.
Deploying outriggers creates the necessary support footprint, but it doesn't automatically grant maximum capacity. The machine must be properly leveled, correctly configured, and supported on stable, engineered ground to safely handle rated loads.
Rated chart capacity does not automatically equal payload weight. Depending on the manufacturer's methodology, the weight of hook blocks, slings, shackles, jibs, and spreader beams must be factored into or deducted from the total allowable capacity.
 Pro Tip:Instead of asking, "How many tons can this crane lift overall?" the proper question is, "What does the load chart allow at my exact working radius and configuration?" |
Follow these steps to evaluate capacity accurately:
Calculate the exact weight of the object plus all rigging accessories (hooks, slings, spreader beams).
Accurately measure the horizontal distance from the crane's center of rotation to the final placement point of the load.
Determine the required hook height, pickup clearance, and any vertical obstructions.
Verify the exact boom length, extension sections, and angle required for the lift.
Consult the Manufacturer's Load Chart: Cross-reference your measurements on the official load chart. Never rely on rough estimates or linear extrapolations if your operating conditions fall between chart values.
When operating near maximum capacity, safety systems play a critical role. A Load Moment Indicator (LMI) is an advanced onboard safety device designed to monitor critical operating parameters in real-time.
An LMI tracks:
|
By providing visual and audible warnings as the crane approaches its operational boundaries, the LMI helps operators prevent overloads. However, an LMI is an auxiliary safety aid and never replaces the manufacturer's load chart, proper pre-lift planning, or rigorous site assessment.

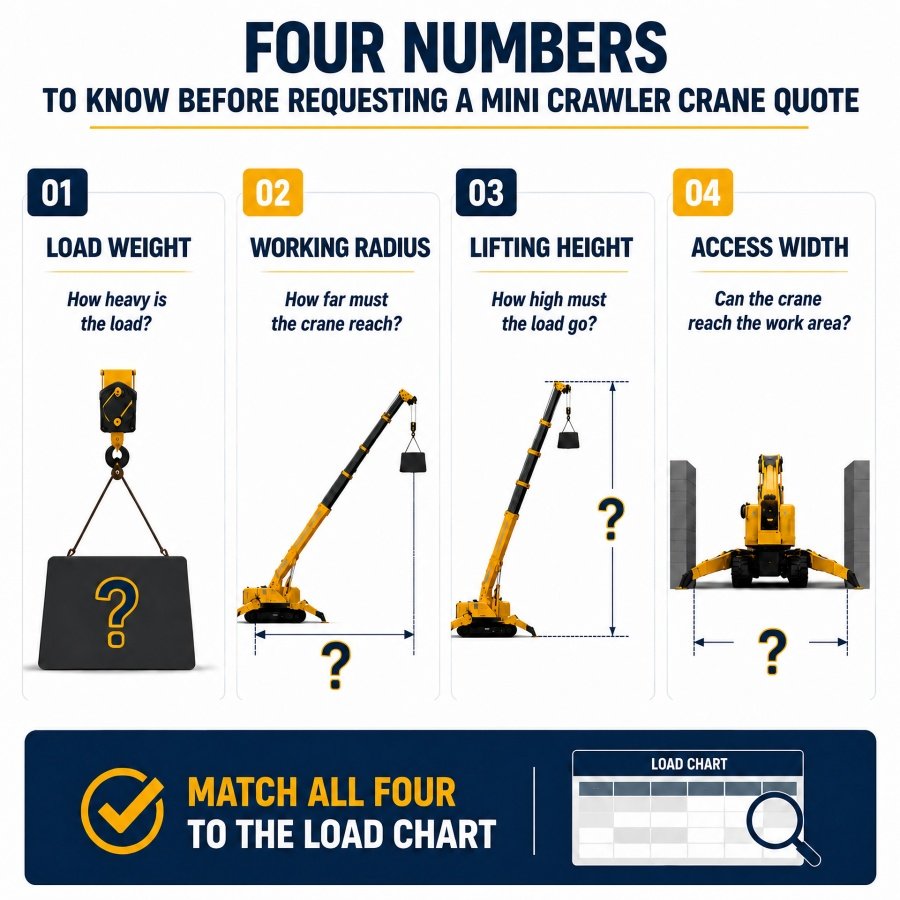

Selecting the correct machine starts with four essential job-site measurements rather than the crane's headline tonnage class:
Imagine a contractor needing to hoist a 1,500-lb piece of equipment at a 15-ft working radius inside a building with restricted entry.
Instead of arbitrarily choosing a 2-ton or 3-ton crane based solely on object weight, the contractor must verify through the manufacturer's load chart that the specific model can safely handle 1,500 lbs at a 15-ft radius under the required outrigger spread and boom configuration.
Mini crawler crane capacity can range from approximately 1 ton to 8 tons or more depending on the model. The actual rated capacity depends on working radius, boom configuration, lifting height, boom angle, and outrigger setup.
Always check the manufacturer's load chart.
Not necessarily.
A 3-ton rating represents the maximum rated capacity under specified conditions.
The allowable capacity can be lower when the working radius increases or the boom configuration changes.
Generally, yes.
As working radius increases, the load creates a greater moment around the crane's support system.
Therefore, the allowable lifting capacity generally decreases as the load moves farther from the crane.
First determine:
Load weight → Working radius → Lifting height → Boom configuration → Outrigger setup
Then find the corresponding rated capacity on the manufacturer's load chart.
It can.
Depending on the manufacturer's load-chart methodology, hook blocks, slings, shackles, jibs, spreader beams, and other equipment may need to be included in the applicable load calculation.
Follow the manufacturer's load-chart notes.
Yes. Outrigger configuration and ground conditions can affect the crane's rated operating condition and the lifting capacity allowed by the manufacturer.
Outriggers provide the required support for the crane, but simply deploying them does not automatically mean the crane can use its maximum rated capacity. The crane must be correctly positioned, leveled, supported, and configured according to the manufacturer's requirements.
Ground conditions are also important. The surface must be capable of safely supporting the crane and outrigger loads. Depending on the application, consider:
Ground bearing capacity
Surface stability and levelness
Outrigger support area
Floor loading limits for indoor applications
Ground protection or support mats
Available space for outrigger deployment
Always follow the manufacturer's load chart and operating instructions for the specific machine configuration and site conditions.
How much can a mini crawler crane lift? Classes range from compact 1-ton, 3-ton units up to robust 5-ton and 8-ton systems, but maximum rated capacity should never be assumed to apply at every working position.
To ensure a safe and successful lift:
Never choose a crane by maximum tonnage alone.
Always evaluate working radius, boom configuration, and outrigger setup.
Verify every lift against the official manufacturer's load chart.
By prioritizing actual operating conditions over general capacity ratings, you ensure maximum safety and efficiency on every restricted-access job.
Not sure how to determine the correct rated capacity for your mini crawler crane application?
Provide your project details:
| ■ Load weight | ■ Working radius | ■ Required lifting height |
| ■ Boom configuration | ■ Access width | ■ Ground conditions |
LIFTSGLT can help you review the key lifting parameters and identify the appropriate crane configuration.
