Direct Answer
A hydraulic hose carrier is a guided track that protects and manages hydraulic hoses as a towable articulating boom lift raises, lowers, and articulates. It controls hose movement, helps maintain the required Minimum Bend Radius, and reduces the risk of abrasion, pinching, twisting, and premature hose wear.
For high-reach equipment, a properly designed hose carrier helps keep hydraulic lines organized and protected throughout the boom's range of motion, supporting hydraulic system reliability, easier maintenance, and longer hose service life.
A hydraulic hose carrier is a mechanical guiding system used to route and protect hydraulic hoses during continuous equipment movement. It is sometimes referred to as a drag chain, energy chain, or hose guide carrier, depending on the design and application.
On a towable articulating boom lift, the hydraulic hose carrier is more than a simple fixing or mounting component. It is part of the machine's dynamic hydraulic hose management system, helping hydraulic lines move in a controlled path as the boom changes position.
On a towable articulating boom lift, hydraulic hoses must move repeatedly as the boom articulates, raises, lowers, and changes position. Simply allowing long hose bundles to move freely can increase the risk of rubbing, twisting, pinching, or excessive bending.
The hose carrier provides a controlled routing path so that hydraulic lines move along a predictable arc instead of swinging or contacting surrounding structures.
In practical terms, the carrier performs several important functions:
01. Protects hydraulic hoses from unnecessary abrasion and contact. 02. Guides hydraulic hoses through the boom's range of motion. 03. Helps maintain the manufacturer's specified Minimum Bend Radius. 04. Reduces twisting, pinching, and uncontrolled hose movement. 05. Keeps multi-line hydraulic hose bundles organized. 06. Simplifies routine inspection and maintenance. |
This makes the hydraulic hose carrier an important part of the hydraulic routing system on many articulating boom lifts.

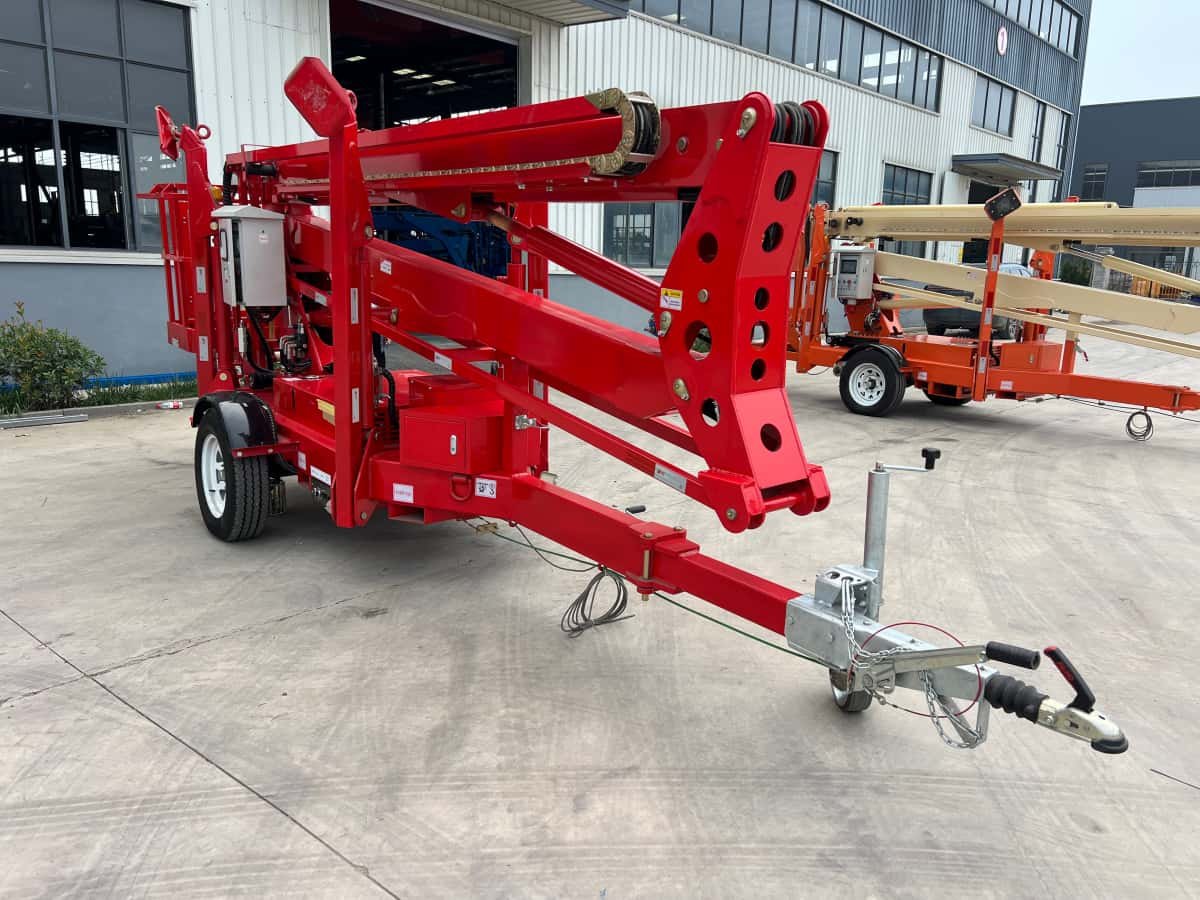

Complete towable articulating boom lift showcasing how the hydraulic hose carrier neatly aligns along the boom during storage and transport.
As the boom moves, the hose carrier moves with it. Its interconnected links allow controlled articulation while limiting excessive movement of the hose bundle.
During repeated raising, lowering, and articulating operations, hydraulic hoses are subjected to continuous mechanical movement. Without proper routing, hoses may droop, sway, drag against surfaces, rub against steel boom structures, or become pinched between moving components.
A properly installed hose carrier keeps the hose bundle within a defined movement path and helps reduce unnecessary contact with surrounding structures.
This can help:
01. Reduce hose-to-steel abrasion 02. Prevent uncontrolled hose movement 03. Reduce the risk of pinching and crushing. 04. Protect hose covers from unnecessary mechanical wear 05. Extend hydraulic hose service life |
The hose carrier does not make hydraulic hoses immune to damage, but it provides an additional layer of mechanical guidance and protection during repeated boom movement.
The hose carrier functions much like a mechanical guide track.
As the boom moves through its operating range, the hydraulic hoses follow the carrier's designed path.
This provides several benefits:
Controlled movement: Hydraulic lines follow a predictable routing path.
Reduced random movement: The carrier limits unnecessary swinging and displacement.
Organized hose bundles:Multiple hydraulic lines remain aligned instead of twisting around each other.
Smooth dynamic movement:The hose bundle follows the carrier as the boom changes position.
The result is a more controlled hydraulic hose routing system throughout the boom's operating range.
This controlled movement is particularly important on articulating boom lifts with long hydraulic hose runs and multiple movement points, where uncontrolled hose movement can increase mechanical stress over repeated operating cycles.
Every hydraulic hose has a manufacturer-specified Minimum Bend Radius (MBR). This is the smallest radius to which the hose can safely bend without excessive mechanical stress.
Exceeding the recommended bend radius can place additional stress on the hose reinforcement and may contribute to premature wear or failure.
A properly engineered hose carrier helps control how far and how quickly the hose can bend. The carrier's link geometry establishes a controlled bending path, helping keep the hydraulic hoses within their intended operating range.
Potential problems associated with excessive bending include:
⚙ Fatigue of internal wire reinforcement |
|
◆ Damage to the hose cover | ⏳ Reduced hose service life |
↕ Localized stress and deformation | ◆ Premature hose failure |
The hose carrier therefore acts as a mechanical guide for maintaining controlled hose movement and bend radius.
The actual bend radius must always comply with the hose manufacturer's specifications and the equipment manufacturer's hydraulic routing requirements. A hose carrier helps control the bending path, but correct hose selection and installation remain essential.

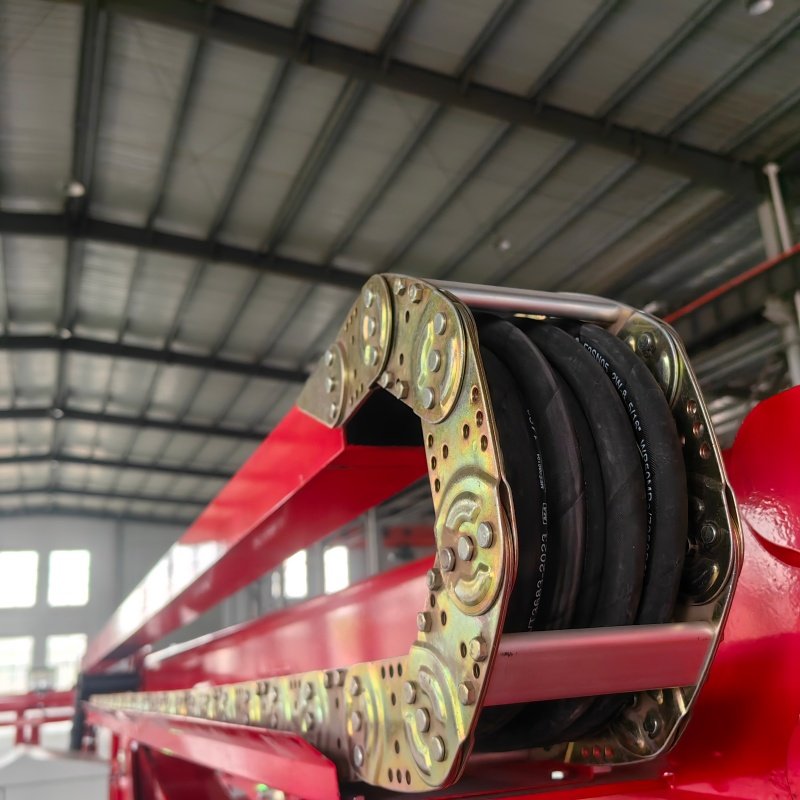

High-resolution close-up showing precision metal carrier links enforcing the minimum bend radius for internal hydraulic lines.
Hydraulic hoses on a towable boom lift can operate close to steel boom structures, pivot points, sliding mechanisms, and other equipment components.
Without proper routing, repeated contact can cause the hose cover to wear over time.
A hose carrier helps keep hydraulic lines separated from nearby structures and reduces the likelihood of:
Hose-to-steel abrasion
Pinching between moving components
Uncontrolled twisting
Contact with sharp structural edges
Interference with boom movement
It does not make hydraulic hoses immune to damage, but it provides an additional mechanical layer of protection and controlled routing.
As boom lifts increase in working height and articulation complexity, the physical demands on hydraulic lines multiply significantly. On basic compact lifts, short hoses experience minimal movement; however, on long-reach equipment, uncontrolled line movement leads to exponential wear.

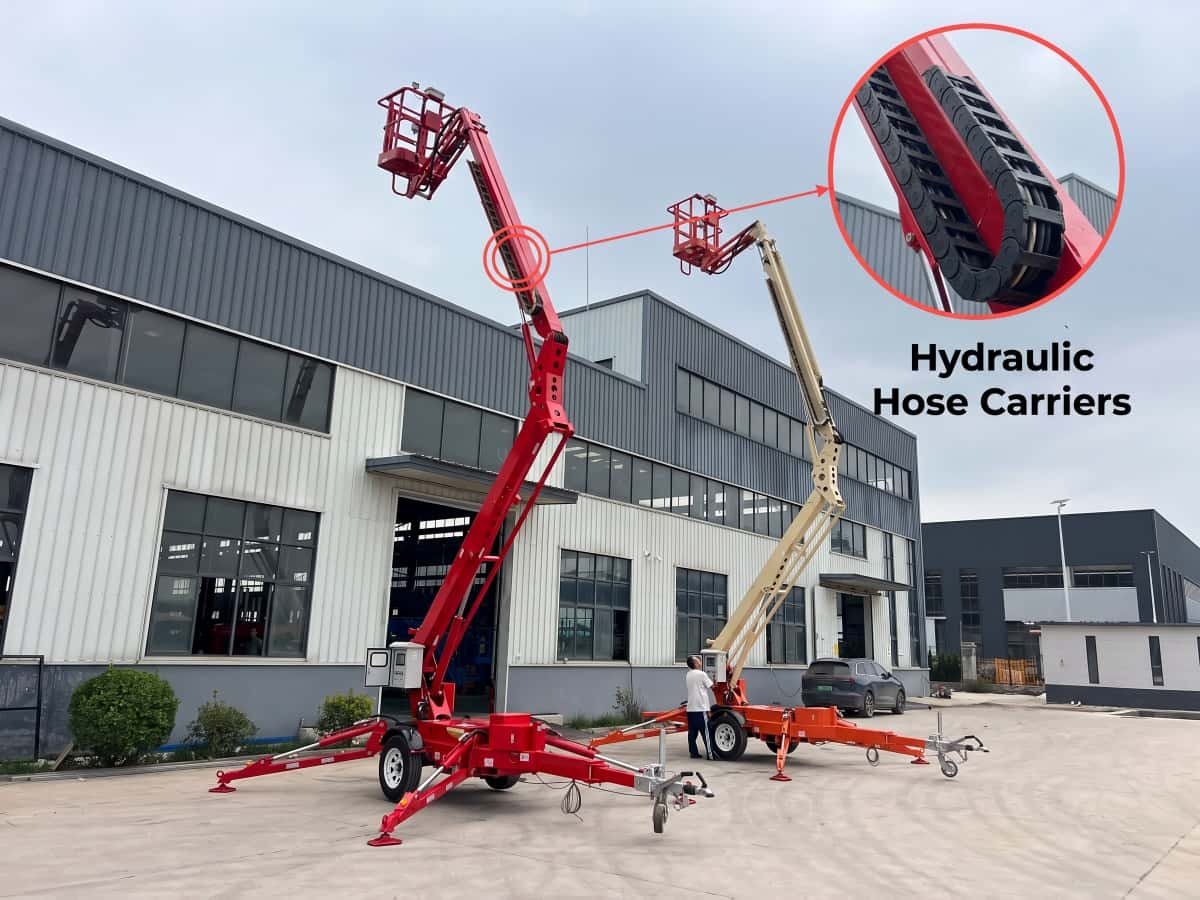

High-reach towable boom lift operating at full extension, highlighting the functional hydraulic hose carrier supporting continuous line protection.
High-reach models like the LIFTSGLT GTB66 Towable Boom Lift feature a 22 m (72 ft) working height, multi-stage articulating booms, and extensive hydraulic travel runs. During full elevation or rapid articulation:
Dynamic Tension Accumulates: Long hydraulic runs flex across multiple pivot points simultaneously.
Sway Amplification: Without rigid guiding tracks, elevated long hoses sway aggressively under wind load or rapid rotation.
For operators working in harsh jobsite conditions, controlled hose routing directly prevents costly project downtime:
Tree Care & Pruning: Prevents fallen branches or tight crotches from snagging loose hydraulic lines.
Structural Steel & Masonry: Guards against hose covers shearing against sharp beam edges or concrete formwork during close-proximity positioning.
The difference between controlled hose routing and uncontrolled hose movement can be summarized as follows:
Parameter / Condition | Without a Hose Carrier | With a Hose Carrier |
Movement Control | Uncontrolled hose movement | Controlled hose routing |
Abrasion Risk | Greater risk of hose-to-steel friction | Reduced abrasion & cover wear |
Hose Bundle Alignment | Lines may twist, droop, or sway | Maintained side-by-side alignment |
Bend Radius | Risk of exceeding Minimum Bend Radius | Controlled bending path |
Inspection & Maintenance | Difficult visual inspection | Simplified routine inspection |
A hose carrier does not eliminate the need for regular inspection or proper hose installation. Instead, it provides a controlled environment for hydraulic hoses during repeated boom movement.
A hydraulic hose carrier should be included in the machine's pre-operation and routine maintenance inspection program.
Operators and maintenance personnel should check both the carrier and the hydraulic hoses for visible signs of damage or abnormal movement.
Look for:
| ✓ Cuts, cracks, or damaged hose covers | ✓ Oil leakage or weeping |
| ✓ Abrasion or scuffing | ✓ Loose or damaged fittings |
| ✓ Bulging or deformation | ✓ Unusual hose movement during boom operation |
Any hose showing significant damage should be evaluated and replaced according to the manufacturer's maintenance requirements.
| ▢ Damaged or deformed links | ▢ Obstructions in the carrier path |
| ▢ Loose or missing fasteners | ▢ Unusual noise during movement |
| ▢ Excessive play between links | ▢ Signs that hoses are rubbing against the carrier or boom structure |
Inspect the carrier for:
The carrier should move smoothly through its intended range without binding or interfering with other machine components.
Hydraulic hose routing should always follow the equipment manufacturer's specifications.
In particular, technicians should verify:
hose routing, minimum bend radius, carrier configuration, mounting points, hose separation, and allowable movement.
The correct carrier design and installation are important because a hose carrier must accommodate the specific hose sizes, boom geometry, and movement pattern of the machine.
A hydraulic hose carrier is a guided mechanical track that manages hydraulic hoses as a boom lift moves. It keeps hoses within a controlled routing path, helps maintain the required bend radius, and reduces the risk of abrasion, pinching, twisting, and uncontrolled movement.
Without proper hose routing, hydraulic lines may droop, sway, twist, or rub against boom structures and other components. Repeated uncontrolled movement can increase the risk of hose abrasion, excessive bending, leakage, and premature hose failure.
A hose carrier guides hydraulic hoses along a controlled path and helps keep them away from moving structures and sharp edges. It can reduce abrasion, uncontrolled twisting, pinching, and excessive bending during boom operation.
The interconnected links of the carrier limit the movement of the hose bundle and establish a controlled bending path. This helps keep the hydraulic hoses within the manufacturer-specified Minimum Bend Radius.
The hose carrier and hydraulic hoses should be inspected as part of the machine's pre-operation and routine maintenance procedures. Operators should look for damaged links, loose fasteners, hose abrasion, leakage, unusual movement, or any condition that could interfere with safe boom operation.
