GSC10 | Mini Spider Crane For Narrow Access

Imperial Metric
KEY SPECIFICATIONS:
Gasoline engine + electric motor Max Capacity: 2,205 lbs (1,000 kg)

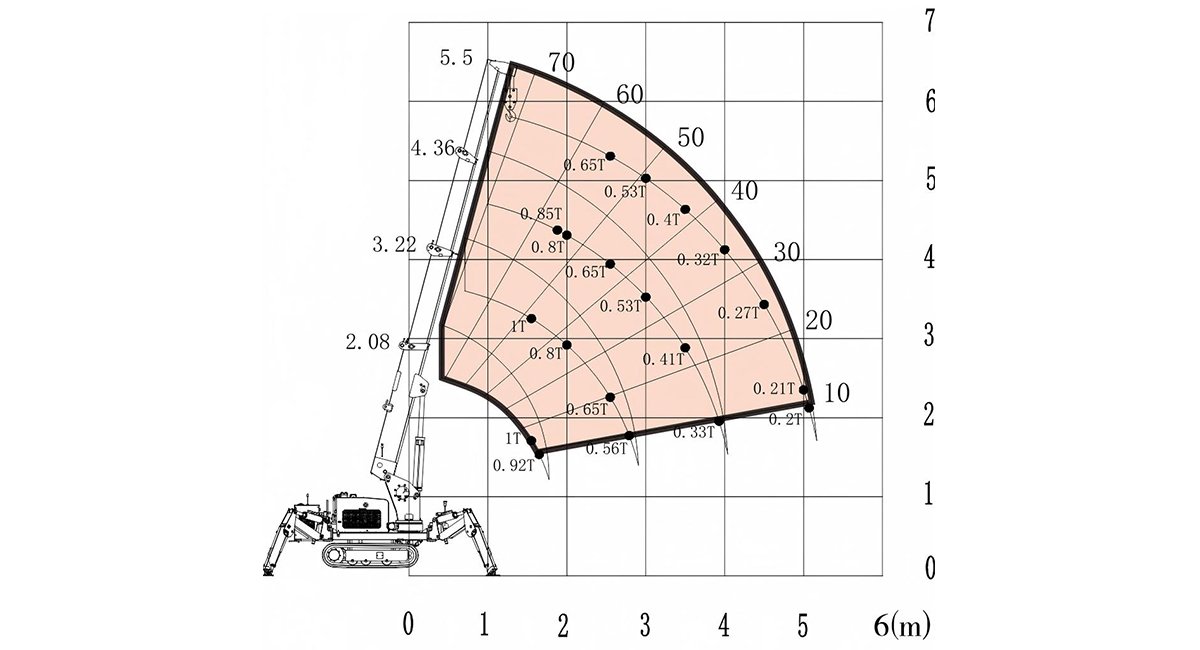

Max Working Radius: 16' 8" (5.07 m) Max Lifting Height (OG): 18' 4" (5.6 m)
Max Lifting Height (UG): 59' (18 m) Dimension(L×W×H): 7' × 23.6" × 4' 8" (2140 × 600 × 1413 mm)

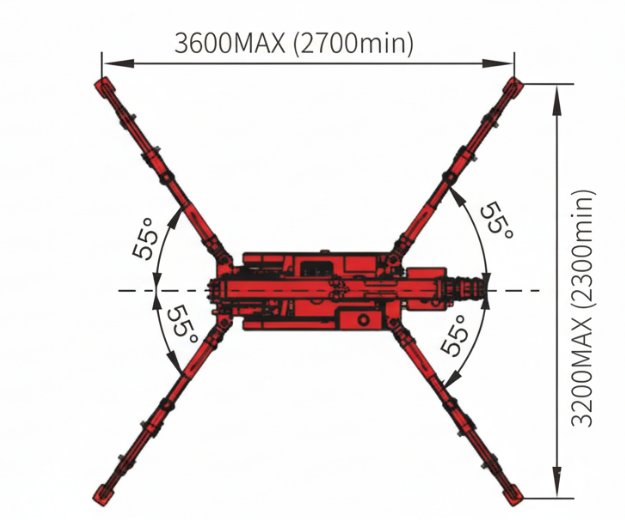

Vehicle Weight: 2,712 lbs (1,230 kg) Max. Outrigger Footprint: 11' 10" × 10' 6" (3600 × 3200 mm)

FEATURES:

  • Ultra-Compact Design:Compact and lightweight body for easy access to confined areas and standard doorways(as narrow as 23.6" / 600 mm)
  • Rigid pentagonal boom for precision lifting.
  • Walking Way:Hydraulic motor driven.
  • Sensor of outigser: Crane automatically stops and alarms if an outrigger leaves the ground.
  • Over-winding Alarm System: Prevents the hook from colliding with the boom tip.
  • Forklift-ready for easy transport.
