GSC30D | Mini Crawler Crane

Imperial Metric
KEY SPECIFICATIONS:

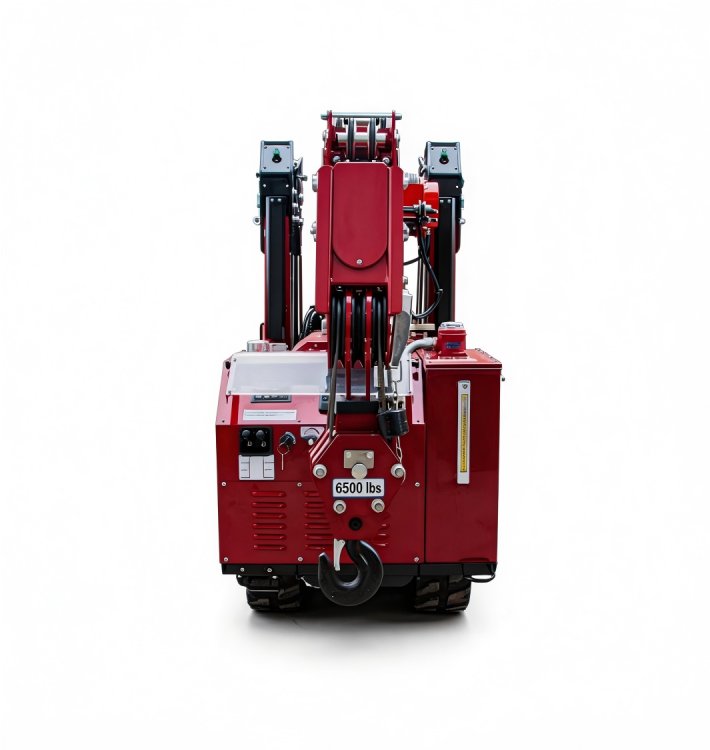

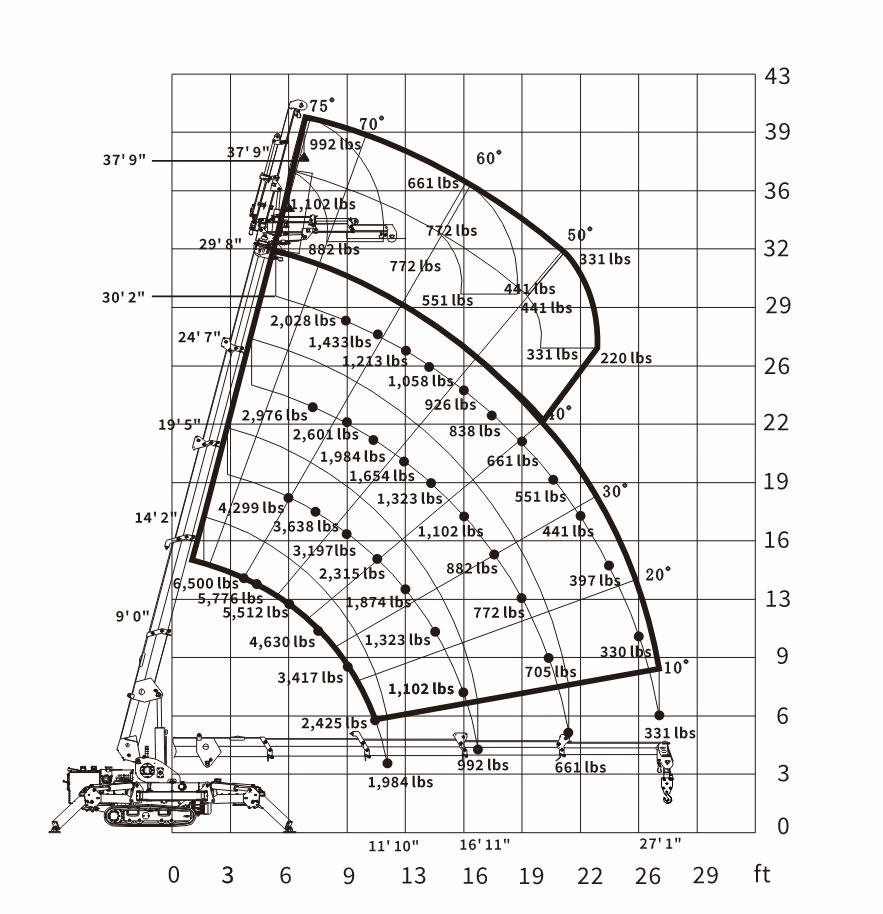

Diesel Engine + Electric Motor Max Capacity: 6,500 lbs @ 4' 3"
Max. Lifting Height (OG): 30' 2" Max. Lifting Height (UG): 328'

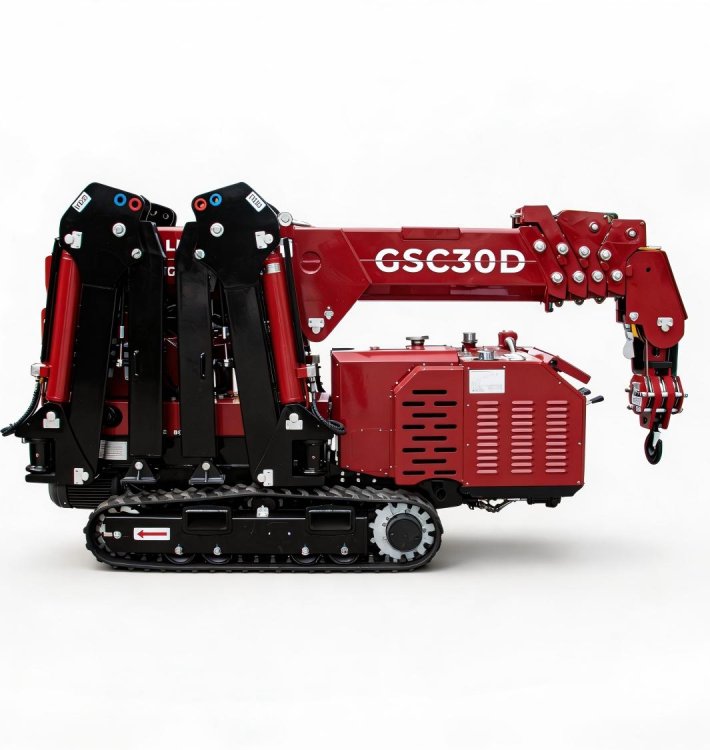

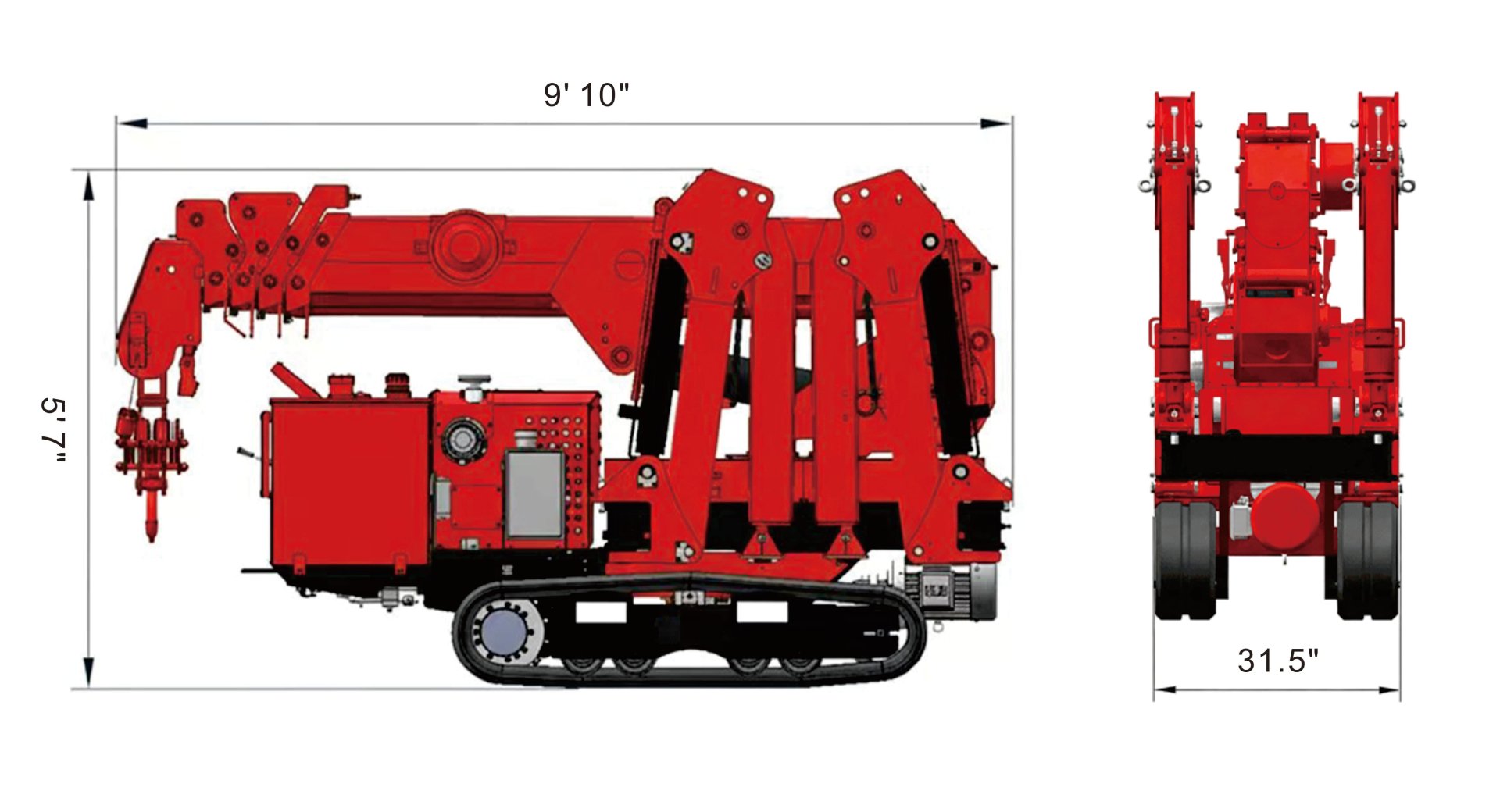

Max. Working Radius: 27' 1" @ 330 lbs Dimensions (L×W×H): 9' 10" × 31.5" × 5' 7"

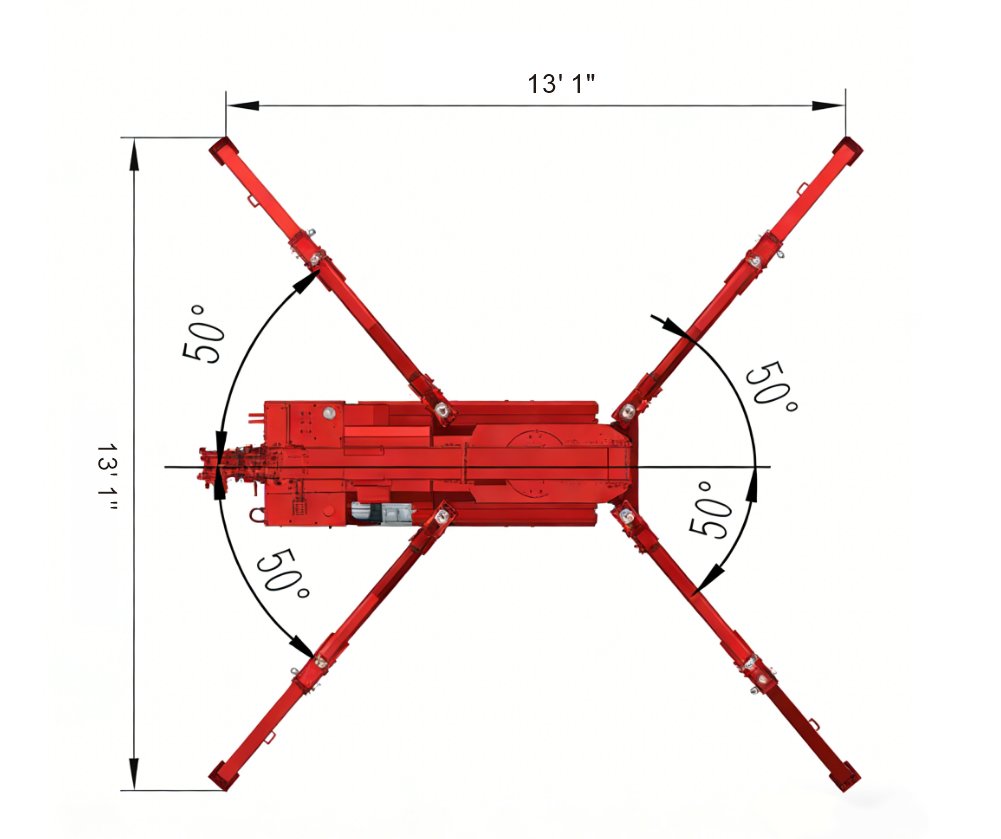

Vehicle Weight: 5,290 lbs Max. Outrigger Footprint: 13' 1" × 13' 1"

FEATURES:

  • Compact 31.5" width: Fits easily through doors and into elevators — No Demolition Required.
  • Wireless Proportional Control: Precision control for travel, outriggers, and boom operations.
  • 360° Continuous Rotation: Full-circle reach. Zero downtime.
  • Equipped with Danfoss Proportional Valves: Ultra-smooth, pinpoint control for all functions.
  • Integrated smart LMI: Real-time stability monitoring to automatically prevent tipping.
  • 3-Mode Safety Interlock (Travel / Outrigger / Boom): Prevents tipping or mechanical damage caused by misoperation.
  • Hybrid Power for Any Environment: Zero-emission electric power for clean indoor work, and a rugged diesel engine for heavy-duty outdoor tasks.
