| KEY SPECIFICATIONS: | |
| Diesel Engine+Electric Motor | Max Capacity: 6,600 lbs / 3 t |
| Max. Lifting Height (OG): 33' 6" / 10.2 m | Max. Lifting Height (UG): 147' 8" / 45 m |

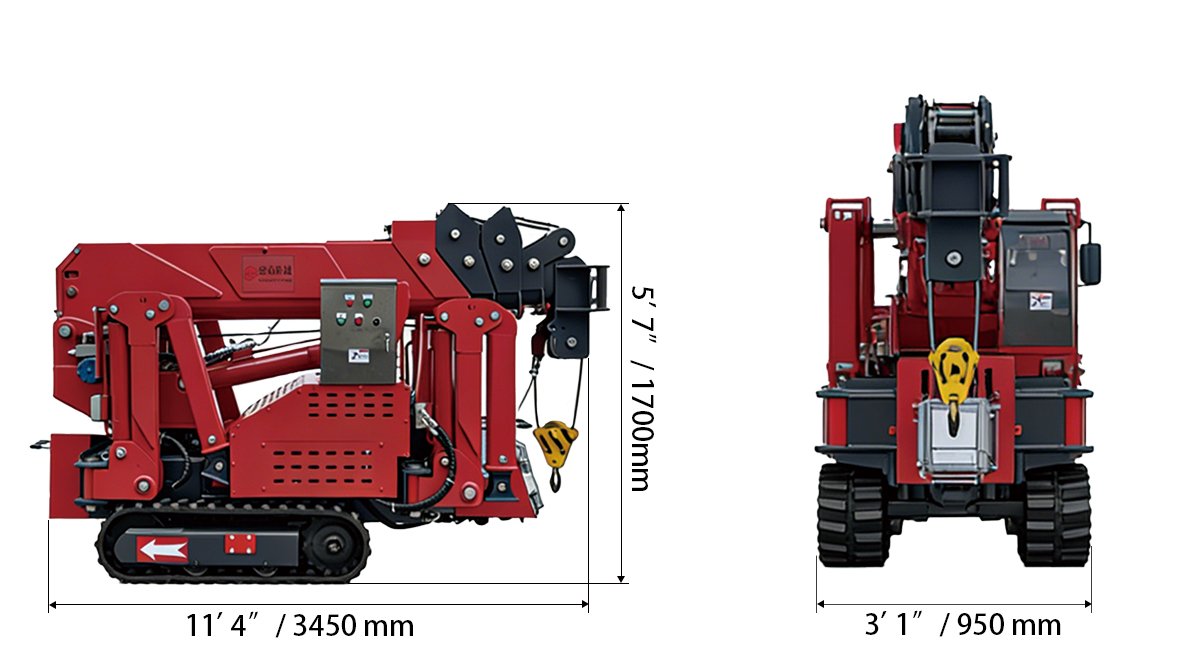

| Max. Working Radius: 30' 2"@ 440 lbs / 9.2 m × 0.2 t | Dimensions (L×W×H): 11' 4" × 3' 1" × 5' 7" / 3450 × 950 × 1700 mm |

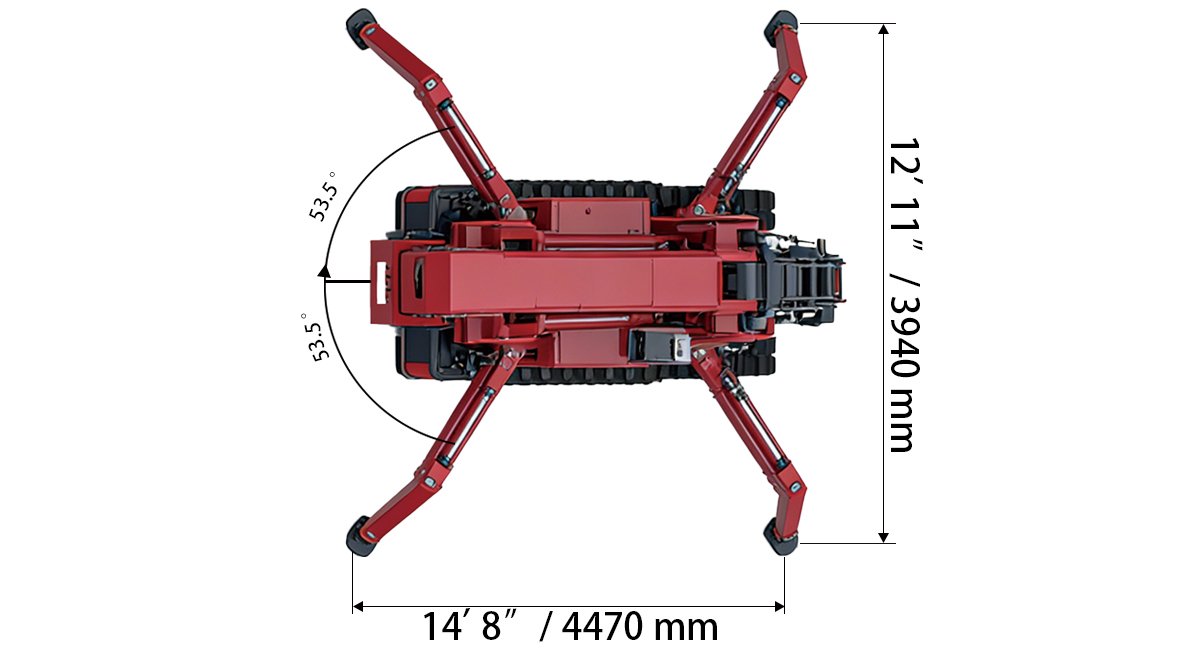

| Vehicle Weight: 5,950 lbs / 2700 Kg | Max. Outrigger Footprint: 14' 8" x 12' 11" / 1600 × 240 mm |
Supports Quick Switching Between a Glass Manipulator and A Work Basket, Maximizing Job Site Utility.
Max Capacity: 2,200 lbs / 1 t
Max. Lifting Height (OG): 18' 8'' / 5.7m
The Field-Proven All-Terrain Multitool for Modern Construction.
Max Capacity: 6,600 lbs / 3 t
Max. Lifting Height (OG): 33' 6" / 10.2 m
Compact Crawler Crane for Utility, Glass Curtain Wall Installation and Steel Erection
Max Capacity: 11,000 lbs / 5 t
Max. Lifting Height (OG): 59' / 18 m
