GSC10-U | 1-Ton Gasoline Mini Tracked Crane

KEY SPECIFICATIONS:
Gasoline Engine + Electric Motor	Max Capacity: 2,200 lbs / 1 t
Max Working Radius: 17' 1'' / 5.2 m	Max Lifting Height (OG): 18' 8'' / 5.7 m
Max Lifting Height (UG): 65' 7'' / 20m	Dimension(L×W×H): 7' 5" x 23.6" x 4' 10" / 2260 × 600 × 1470 mm
Vehicle Weight: 2,646 lbs / 1200 Kg	Max. Outrigger Footprint: 10' 3'' × 9' 8'' / 3120 × 2950 mm

FEATURES:

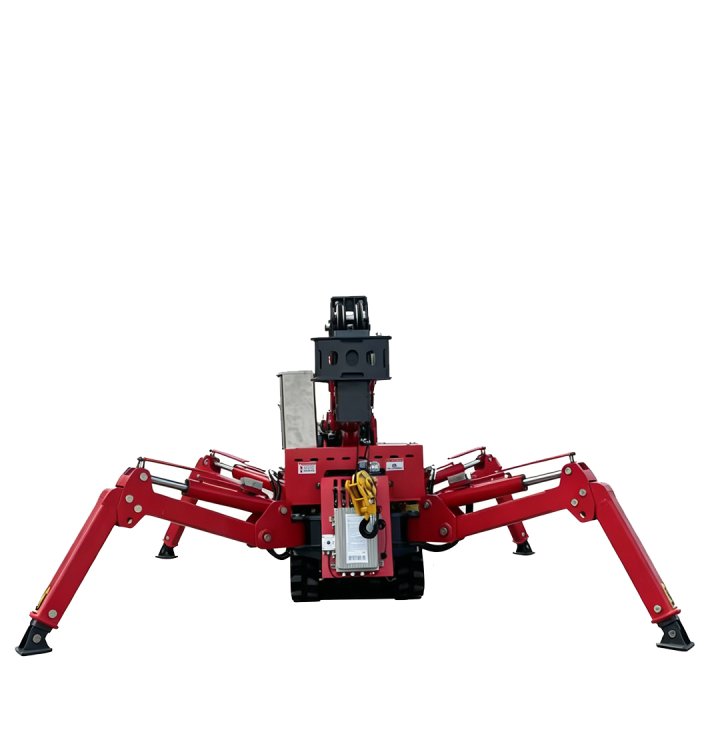

Ultra-Compact Design：With a body width of only 23.6" (600 mm), it easily maneuvers through standard indoor doorways and narrow corridors.
Versatile Attachment Options: Supports quick switching between a glass manipulator and a work basket, maximizing job site utility.

Advanced Outrigger System: Features manual-swing positioning combined with automatic hydraulic leveling outriggers for flexible setup and rapid deployment.
hydraulic track drive system, offering exceptional traction and all-terrain capability for both indoor and outdoor environments.
