Articulating vs. Telescopic Spider Lifts: How to Choose for Tree Trimming & Removal

Quick Buyer’s Summary & Verdict

1. Which boom wins for residential tree trimming and pruning?           Articulating (GLT GCA Series, e.g., GCA66): Engineered with dual-parallelogram lower risers and an independent articulating jib, this design provides "up-and-over" access. It clears 30-foot residential rooflines, privacy fences, and mature tree crotches without repositioning outriggers.

2. Which boom wins for heavy tree removal and utility line clearing?
Telescopic (GLT GCT Series, e.g., GCT60): Built with a nested structural steel straight boom, this design delivers high torsional rigidity. It minimizes platform bounce under 70cc+ chainsaw cutting forces while offering faster linear cycle times directly to the cut point.

3. The decisive metric for your fleet:           Evaluate your billable hours. If more than 60% of your work is crown reduction, deadwooding, or working over buildings in tight backyards, choose the GCA Series. If more than 60% is hazardous tree felling, sectional dismantling, or roadside line clearing, choose the GCT Series.

Table of Contents (Quick Navigation)

  1. Executive Summary: Boom Geometry in Modern Arboriculture

  2. Articulating Spider Lifts (GCA Series) — Precision for Tree Trimming & Pruning

  3. Telescopic Spider Lifts (GCT Series) — Power & Speed for Heavy Tree Removal

  4. Head-to-Head Comparison: Articulating vs. Telescopic Spider Lifts

  5. Contractor's Decision Framework

  6. Frequently Asked Questions (FAQ)

  7. Request Engineering Load Charts & US Support


1. Executive Summary: Boom Geometry in Modern Arboriculture

In professional tree care, jobsite access and operator safety dictate project margins. Climbing hazardous, decaying trees presents severe liability risks, while traditional 20-ton bucket trucks often cannot reach backyards without tearing up residential turf, cracking decorative driveways, or getting stopped cold by a 36-inch pedestrian garden gate.

Compact crawler boom lifts (spider lifts) have become an essential fleet asset. Operating on low ground-pressure rubber tracks and setting up on variable outrigger footprints, these machines place tree trimmers directly into the canopy with minimal turf disturbance.

However, equipment fleet managers face a foundational architectural choice: Articulating (Knuckle/Z-Boom) vs. Telescopic (Straight Stick) Boom Geometry. Selecting the wrong configuration creates immediate field bottlenecks—either leaving your crew unable to articulate over a roofline to access interior deadwood, or causing excessive boom bounce during heavy chainsaw bucking cuts.


2. Articulating Spider Lifts (GCA Series) — Precision for Tree Trimming & Pruning

Articulating crawler lifts—exemplified by the GLT GCA66—use a multi-stage articulated geometry: a dual-parallelogram lower riser mechanism, an intermediate knuckle pivot, a telescopic upper boom, and an independent articulating jib.

GLTLIFTS GCA66 articulating spider lift showing dual-parallelogram lower riser, knuckle pivot, telescopic upper boom, and articulating jib.

The GLT LIFTS GCA66 featuring its dual-parallelogram lower riser, intermediate knuckle pivot, telescopic upper boom, and articulating end-jib.

The Physics of the Dual-Parallelogram Lower Riser

The defining advantage of the GCA66 is its dual-parallelogram riser, which elevates the upper pivot point nearly vertically without protruding tailswing. The lower linkage acts as an elevator, lifting the main knuckle above physical jobsite barriers:

  • Two-story residential eaves, gutter lines, and chimneys

  • Perimeter privacy fences, retaining walls, and hedges

  • Secondary limb crotches on mature hardwoods

Once the knuckle clears the obstruction, the operator extends the upper telescopic boom horizontally into the interior crown—working directly above obstacles without having to reposition the tracked chassis.

Canopy Penetration & The Articulating Jib

In selective pruning, crown thinning, and routine deadwood removal, the primary branches of the tree are often your biggest obstacle. A straight boom cannot curve around structurally sound limbs to access inner deadwood.

The GCA66 solves this with its articulating end-jib paired with 180° (±90°) hydraulic basket rotation. The main boom remains stationary outside the canopy, while the operator articulates the jib and swivels the platform to slip between branch unions without scraping bark or damaging cambium.

GLTLIFTS GCA66 articulating spider lift clearing a residential two-story roof and fence to reach tree canopy with zero tailswing.

Real-world field application: The GLTLIFTS GCA66 deploying its vertical riser and articulating jib to clear structural obstacles with zero tailswing interference.


3. Telescopic Spider Lifts (GCT Series) — Power & Speed for Heavy Tree Removal

Telescopic spider lifts, such as the GLT GCT60, use a distinct engineering approach: a single, heavy-duty trunnion pivot powered by an oversized hydraulic elevation cylinder, driving a multi-stage nested high-tensile steel boom that extends in a direct line.

GLT LIFTS GCT Series telescopic spider lift featuring a multi-stage boom with fewer articulation points for direct reach and controlled positioning.

High Structural Rigidity Under Heavy Dynamic Loads

When executing complete tree removals, stability under dynamic load is critical. Sectional trunk felling with a heavy 70cc+ chainsaw generates significant reactive kickback, vibration, and shift in operator center-of-gravity.

With fewer pivot joints, hinge bushings, and link pins than an articulated machine, the GCT Series provides higher torsional stiffness and minimal boom bounce. The nested rectangular steel boom resists lateral deflection, giving the cutter a steady, stable platform to notch, back-cut, and lower heavy wood safely.

Fast Linear Cycle Times for Production Felling

Production tree removals rely on speed. Rather than coordinating multiple riser elevations, knuckles, and telescopic extensions, a telescopic spider lift targets cutting points along a single direct axis.

The operator can boom directly from ground level to the canopy shoulder in seconds, take down a section, boom straight back down to clear the drop zone, and return immediately to the next cut. These faster cycle times add up to substantial labor savings on multi-tree municipal or commercial projects.

GLT GCT telescopic spider lift performing fast linear cycle tree felling and limb removal near power line corridor.

Real-world jobsite application: The GLT LIFTS GCT Series achieving high-elevation linear reach and rigid platform stability across expansive industrial easements.

Dual-Capacity Working Envelope Dynamics

Telescopic boom geometry provides exceptional direct horizontal reach. By monitoring hydraulic cylinder pressure and load distribution via an integrated Load Moment Limiter (LMI), the GCT60 offers a predictable two-stage operating envelope:

  • Unrestricted 507 lbs (230 kg) Platform Capacity: Provides a full 2-man basket envelope out to 24' 7" (7.5 m) horizontal outreach, supporting two crew members and heavy rigging gear.

  • Restricted 265 lbs (120 kg) Capacity: Reaches out to 29' 6" (9.0 m) for single-operator access across wide embankments or low-pitch roofs.

  • Vertical Elevation: Delivers up to 59' 1" (18.0 m) maximum working height on an ultra-compact chassis.

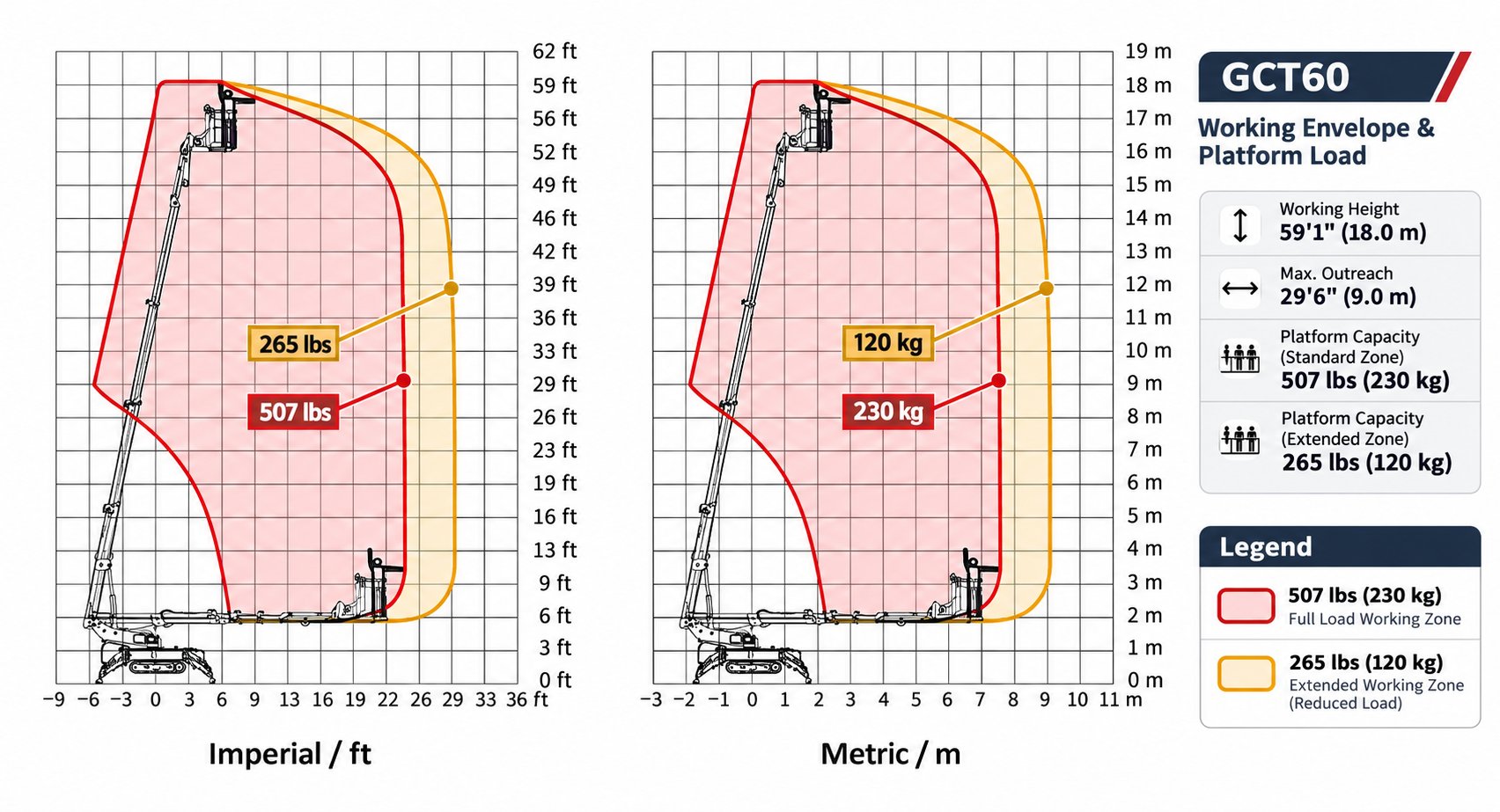

GLT GCT60 telescopic spider lift working envelope and platform load chart showing dual 507 lbs and 265 lbs reach zones in imperial and metric.

Official GLT LIFTS GCT60 Working Range Load Chart: Imperial (ft) and Metric (m) showing dual-capacity outreach (24'7" @ 507 lbs / 29'6" @ 265 lbs).


4. Head-to-Head Comparison: Articulating vs. Telescopic Spider Lifts

To understand how these boom designs function on the jobsite, evaluate their mechanical and performance differences:

Evaluation MetricArticulating Lifts (GLT GCA Series)Telescopic Lifts (GLT GCT Series)
Boom Structural DesignDual-parallelogram risers + knuckle + upper telescope + jibMulti-stage nested rectangular steel telescopic boom
Up-and-Over CapabilityExceptional: Clears high rooflines, fences, and canopy shouldersLinear Only: Requires clear line of sight from turret to target
Canopy ManeuverabilitySuperior: Articulating jib allows entry into dense branchingModerate: Best suited for external canopy perimeters or clear trunks
Boom Rigidity (Dynamic Load)Moderate: Multiple mechanical joints allow minor deflection during heavy cutsHigh: Stiff structural steel assembly with minimal bounce under cutting loads
Speed to Work HeightRequires coordinated sequencing of lower risers and upper telescopeRapid: Single-axis linear extension straight to the cut zone
Envelope ProfileExtended vertical neck with stepped horizontal reachBroad, sweeping circular arc reaching 29' 6" horizontally
Platform PayloadTypically 440 – 507 lbs with automatic load sensing507 lbs (230 kg) unrestricted / 265 lbs at extended outreach
Primary Arborist ApplicationPrecision pruning, crown reduction, and tight-access trimmingHazardous tree removals, crane dismantling, and utility line clearing


5. Contractor's Decision Framework

Before investing in a tracked crawler lift, look past maximum working height numbers. Analyze your contracts, revenue drivers, and typical property layouts:

  • Breakdown by Revenue Mix: Choose the GCA Series (Articulating) if your business focuses on residential pruning, fine crown maintenance, and estate tree preservation. The ability to set up outriggers once in a driveway, clear the garage roof, and access multiple trees saves hours of repositioning time every day. Choose the GCT Series (Telescopic) if your revenue comes from tree removals, storm damage mitigation, and utility right-of-way contracts.

  • Access & Transport Width: Select models across both GLT series feature hydraulically expandable tracks . In transport mode, both platforms narrow to 2' 11" (900 mm), allowing them to track through a standard 36-inch backyard gate without pulling down fence posts. Once through, tracks hydraulically expand for ground clearance and traction over rough ground.

  • Dual-Power Flexibility for Urban & Off-Grid Jobs: Both series offer dual-power configurations: a fuel-efficient Tier 4 Final Diesel Engine (Yanmar) for off-road torque and site tracking, paired with an auxiliary 110V/220V AC electric motor for whisper-quiet, zero-emission pruning in residential neighborhoods.


6. Frequently Asked Questions (FAQ)

Q: Is an articulating spider lift or a telescopic spider lift better for residential tree care?            ▲

A: If your work is primarily trimming, pruning, and working over rooflines, an articulating spider lift (like the GCA Series) is superior due to its up-and-over knuckle reach. If your work focuses on whole tree removals, hazard takedowns, and roadside clearing, a telescopic spider lift (like the GCT Series) offers faster linear cycles and higher structural stiffness.

Q: Why choose a telescopic spider lift over a standard wheeled telescopic boom lift?            ▲

A: Standard wheeled telescopic boom lifts often weigh over 15,000 lbs and exceed 7 feet in width, causing severe turf rutting. A telescopic spider lift retracts to under 3 feet wide, easily traverses garden gates, and disperses weight through rubber tracks.

Q: Does boom deflection differ between articulating and telescopic spider lifts?            ▲

A: Yes. Telescopic booms feature nested steel sections with fewer pivot pins, resulting in significantly higher rigidity and less platform bounce during heavy chainsaw cuts.

Q: Can both types of spider lifts pass through standard 36-inch gates?            ▲

A: Yes. Both series can narrow down to 2' 11" (900 mm) when the work platform/basket is removed, allowing them to easily pass through standard 36-inch gates.

Upgrade Your Tree Care Capabilities with GLT LIFTS

Need a customized load chart calculation, outrigger footprint diagram, or live equipment demonstration for your arboriculture business? Contact GLT Transglobal Machinery's factory engineering specialists today.
